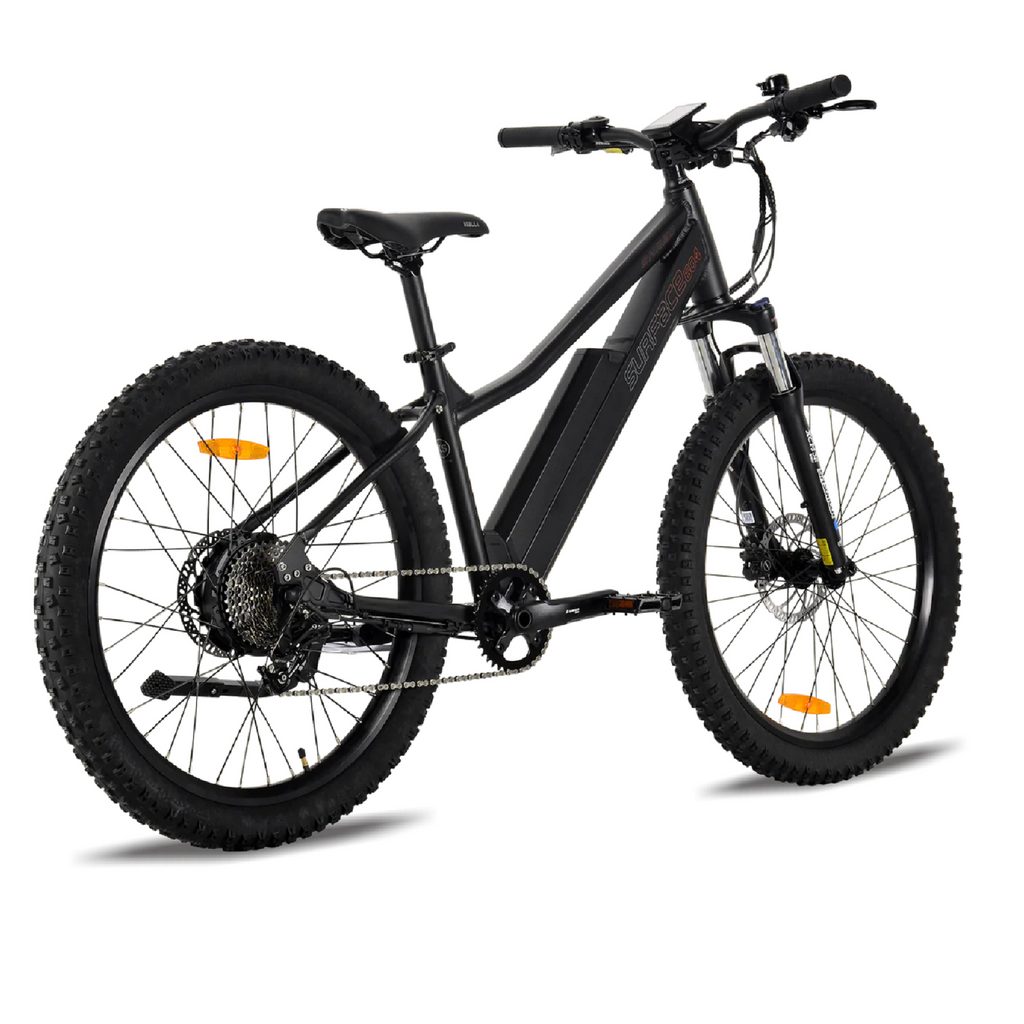

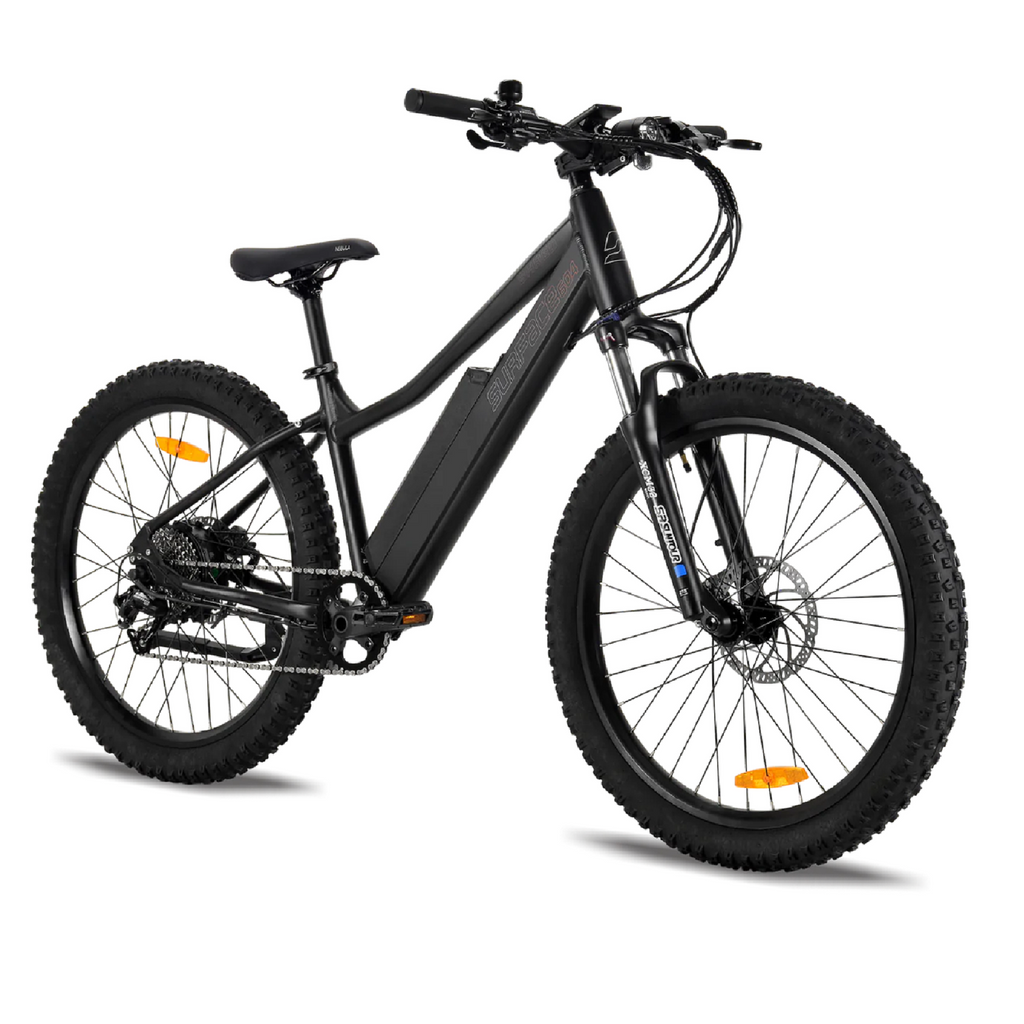

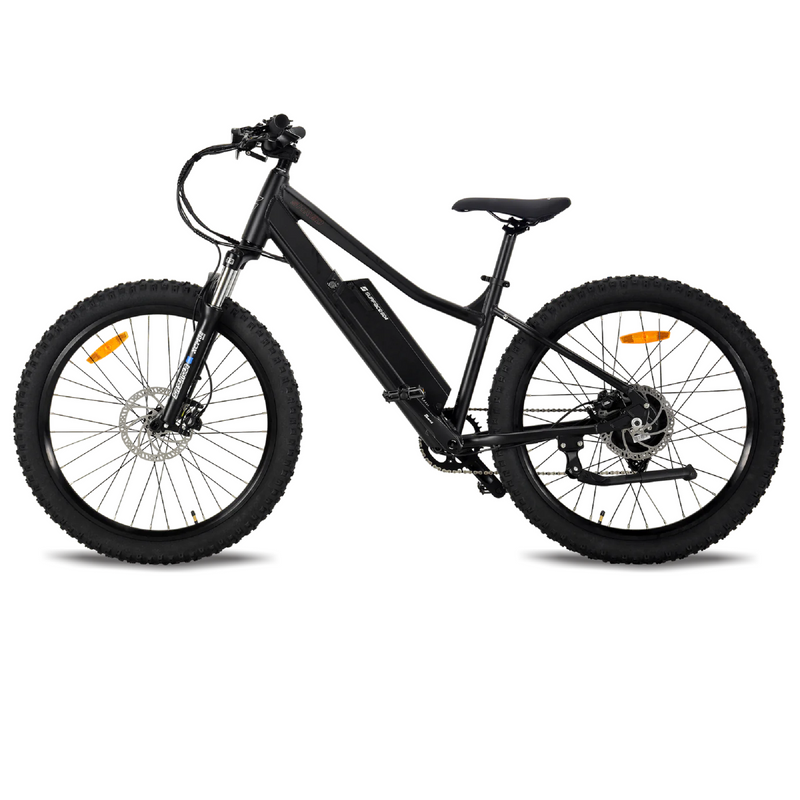

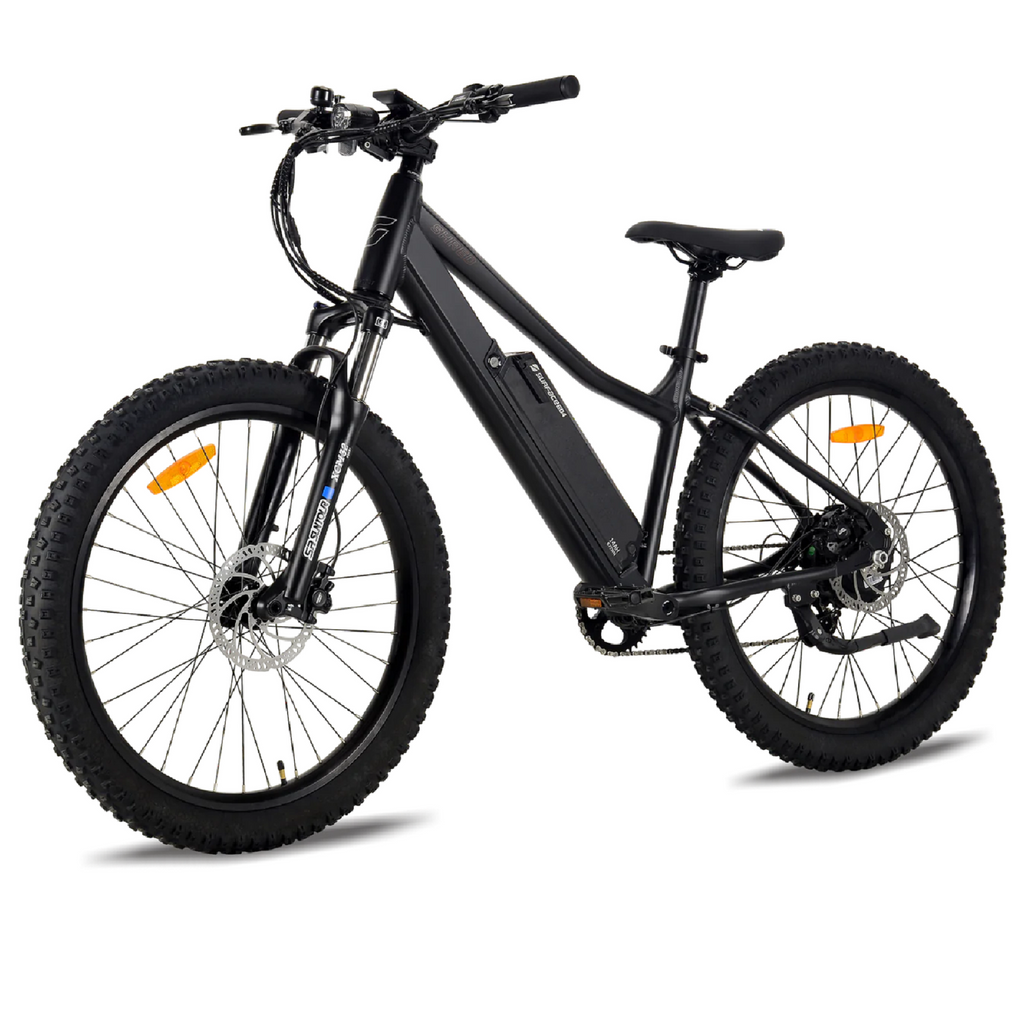

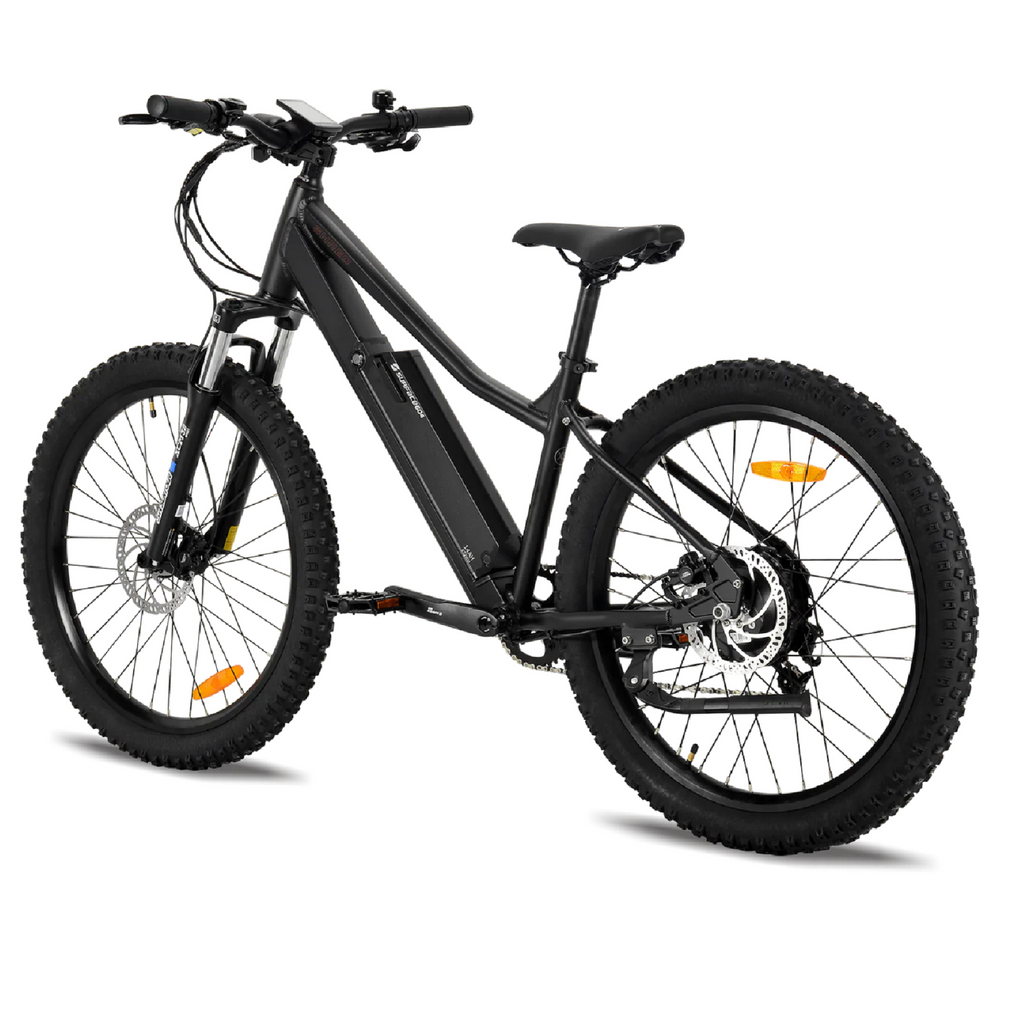

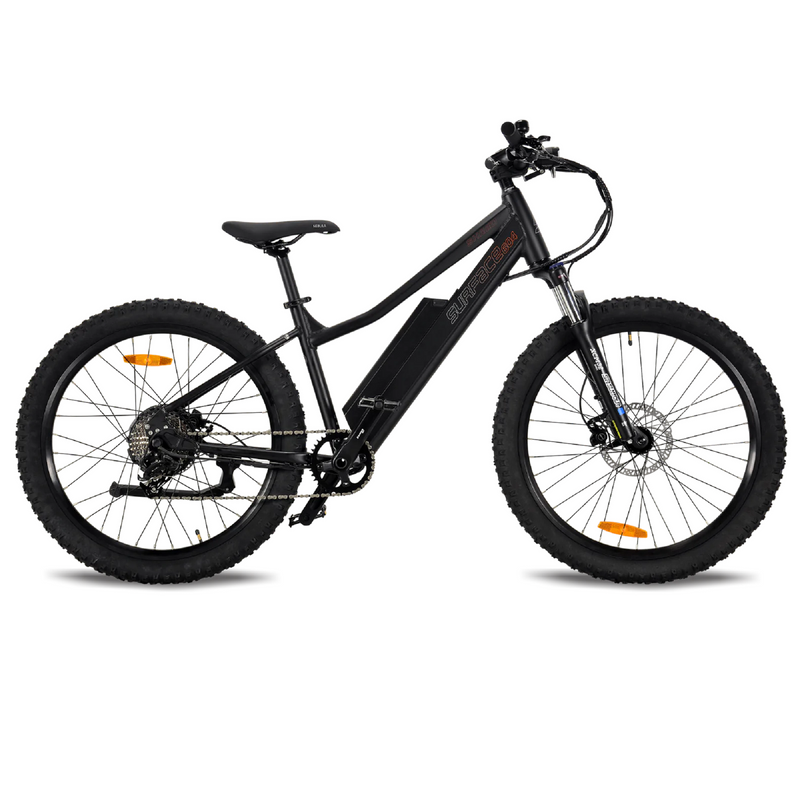

Surface 604 500W Shred XS Electric Bike

Surface 604SKU: EB-SHRED-XS-20


FREE SHIPPING to Continental US

Battery: 20ah
Price:
Sale price$2,899

Motor Size:

500 Watt Bafang Brushless

Battery:

48V 14ah Samsung Lithium Ion

Drive Mode:

Class II: Throttle Pedal Assist

Frame Type:

6061 Aluminum Alloy Step Over

Wheel Size:

26" x 2.8"

Motor Position:

Rear Hub

Financing Available

Pay in 4 interest-free payments.

Free Shipping

Enjoy free shipping to the continental US.

We're Here To Help

Lifetime customer & technical support

Premium Warranty

Every bike comes backed by a warranty against manufacturing defects


The Surface 604 500W Shred XS Electric Bike, also known as the Baby Shred, comes equipped with a Bafang electric mountain bike specialized 500W hub motor that is capable of fast speeds and has a throttle that is capable of producing a great deal of power (peaks at 750W). The size of the Shred Extra Small is a crucial element that sets it apart from the pack of other eMTBs that are currently available on the market. However, one group of riders that other bike companies consistently ignore is adults who are too small for typical e-bike sizes and older teenagers. The market is flooded with many possibilities for eBikes. However, one group of riders is regularly ignored by other bike brands. People that fall into this underserved market will have a reliable choice in the form of Shred XS.

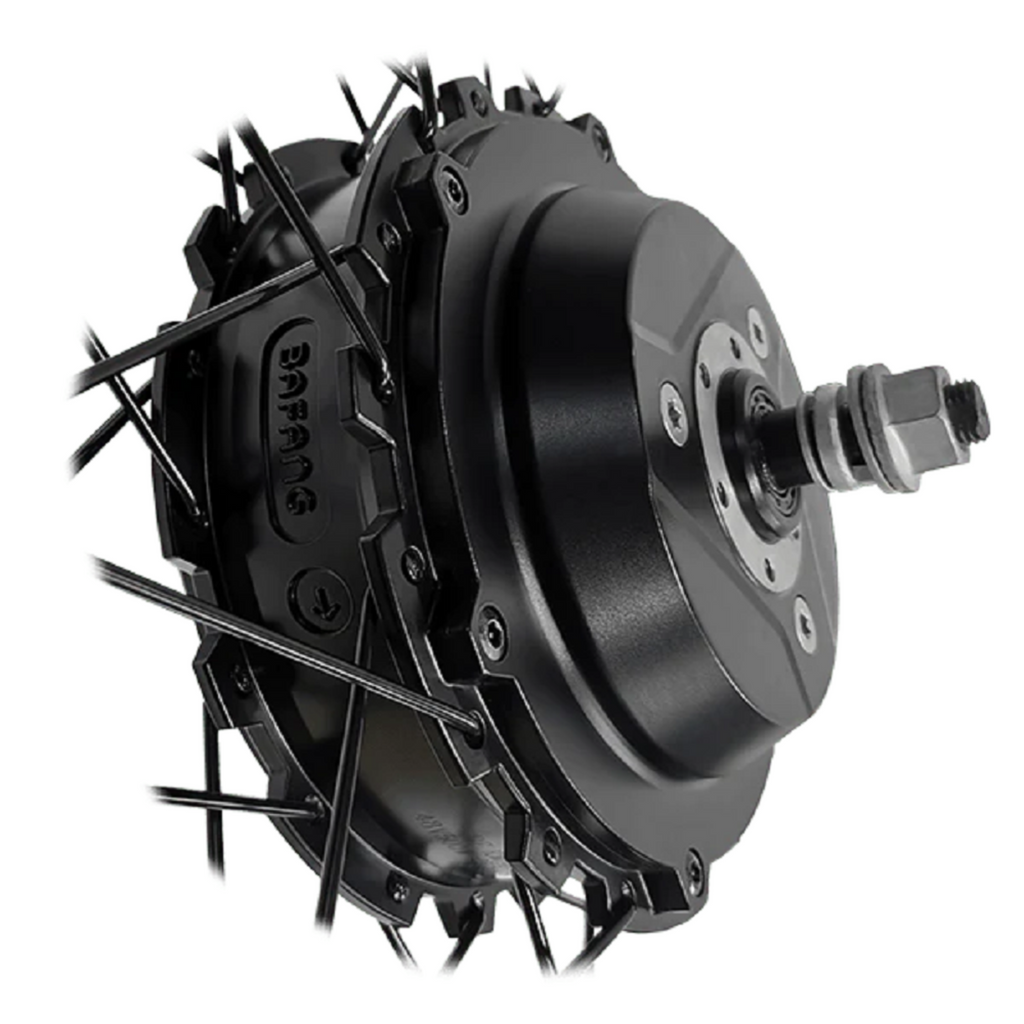

500W Brushless Bafang Geared Hub Motor

The Surface 604 500W Shred XS Electric Bike is outfitted with an electric motor that is purpose-built for maximum speed and has a power output of 500W at 48V. Experience the rush of vibration-free power distribution that is both quiet and steady even at greater speeds. Furthermore, the XS electric bike has an outstanding shred that is built for performance, which is the reason Surface64 combined all that power with the most advanced controller in its class (12 mosfets, 25 amps), resulting in unrivaled torque and speed.

Whisper Smooth Torque Sensing Pedal Assist

Because the power distribution of an electric bike is the single most important factor in determining its overall quality, the Shred's torque sensor of this XS electric bike is incredibly smooth and can measure the force with which you are pedaling down to the microsecond. It then matches that force with the appropriate amount of power. Those days of using a basic cadence sensor are long gone!

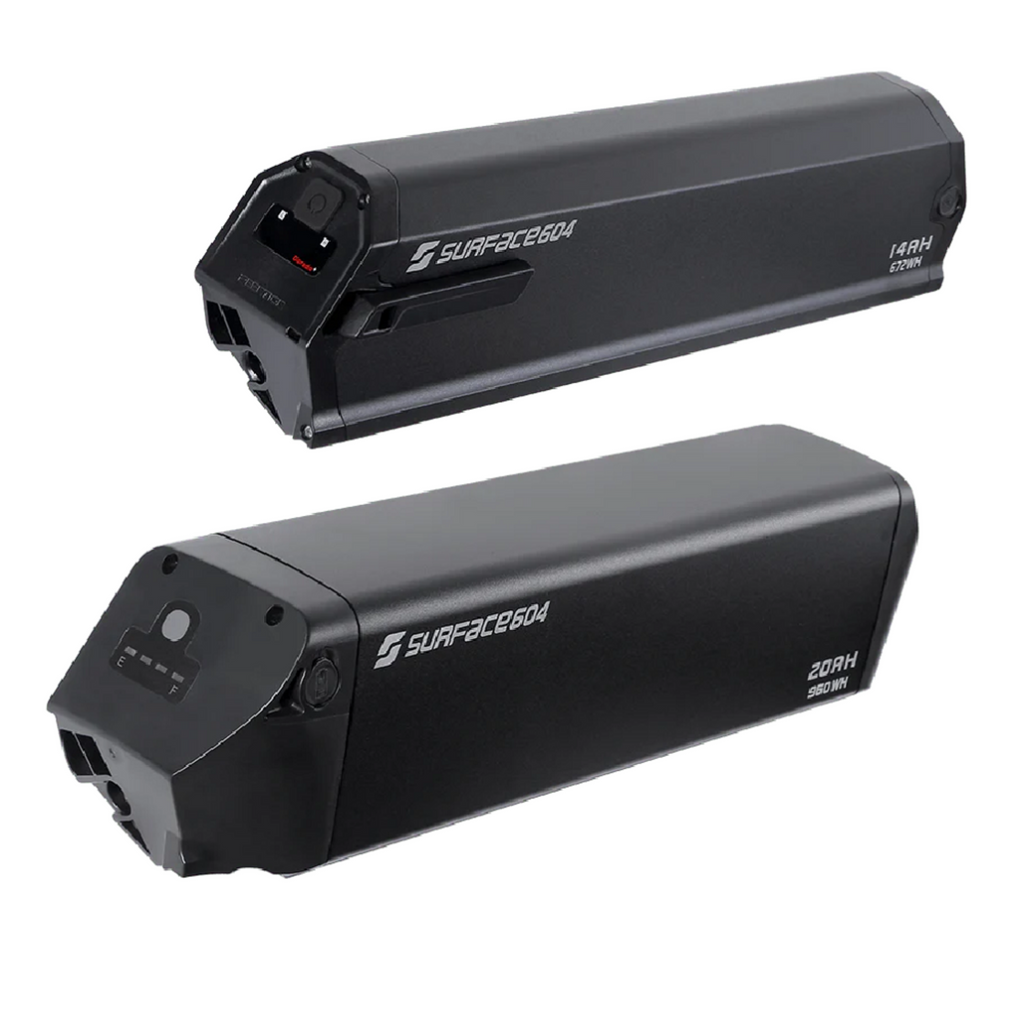

Long Range Battery

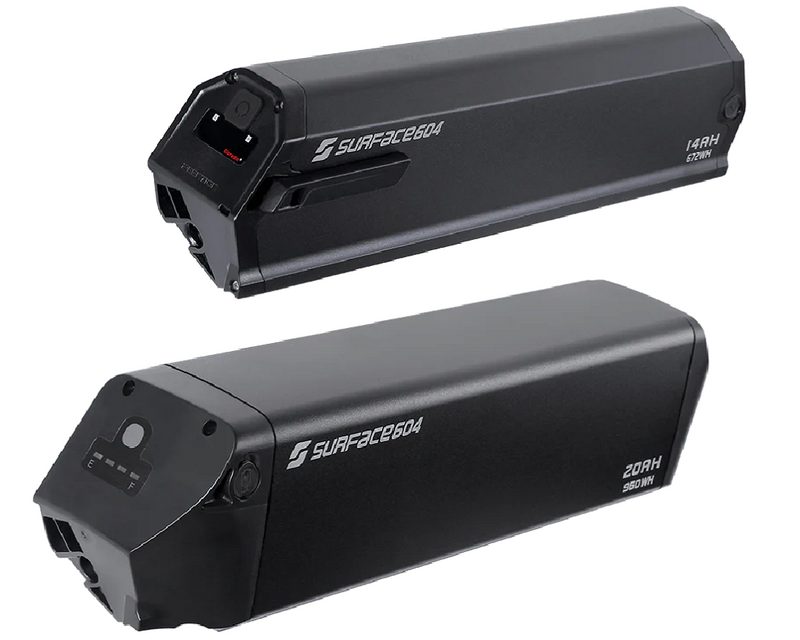

The Surface 604 500W Shred XS Electric Bike offers two high-capacity battery options with proprietary designs:
=>>1. Samsung 18650 cells, made in Korea with a USB plug, capacity indicator button, and a range of up to 45 miles (72 kilometers). It weighs 7.59 pounds (3.45 kilograms).
=>>2. Samsung Cells 21700, made in Korea with a USB plug, capacity indicator button, and a range of up to 65 miles (105 kilometers). It weighs 10.23 pounds (4.65 kilograms).

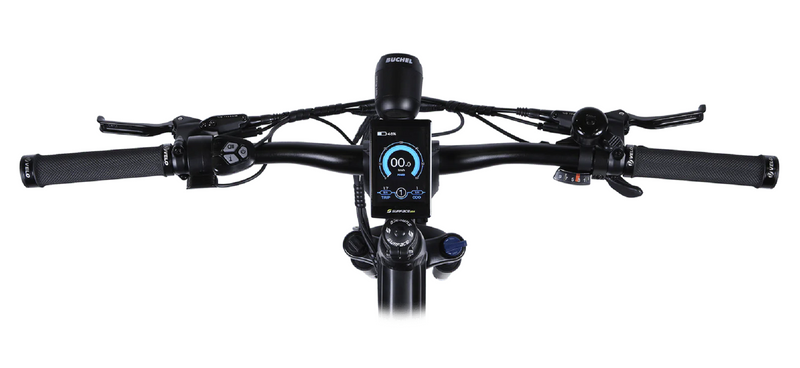

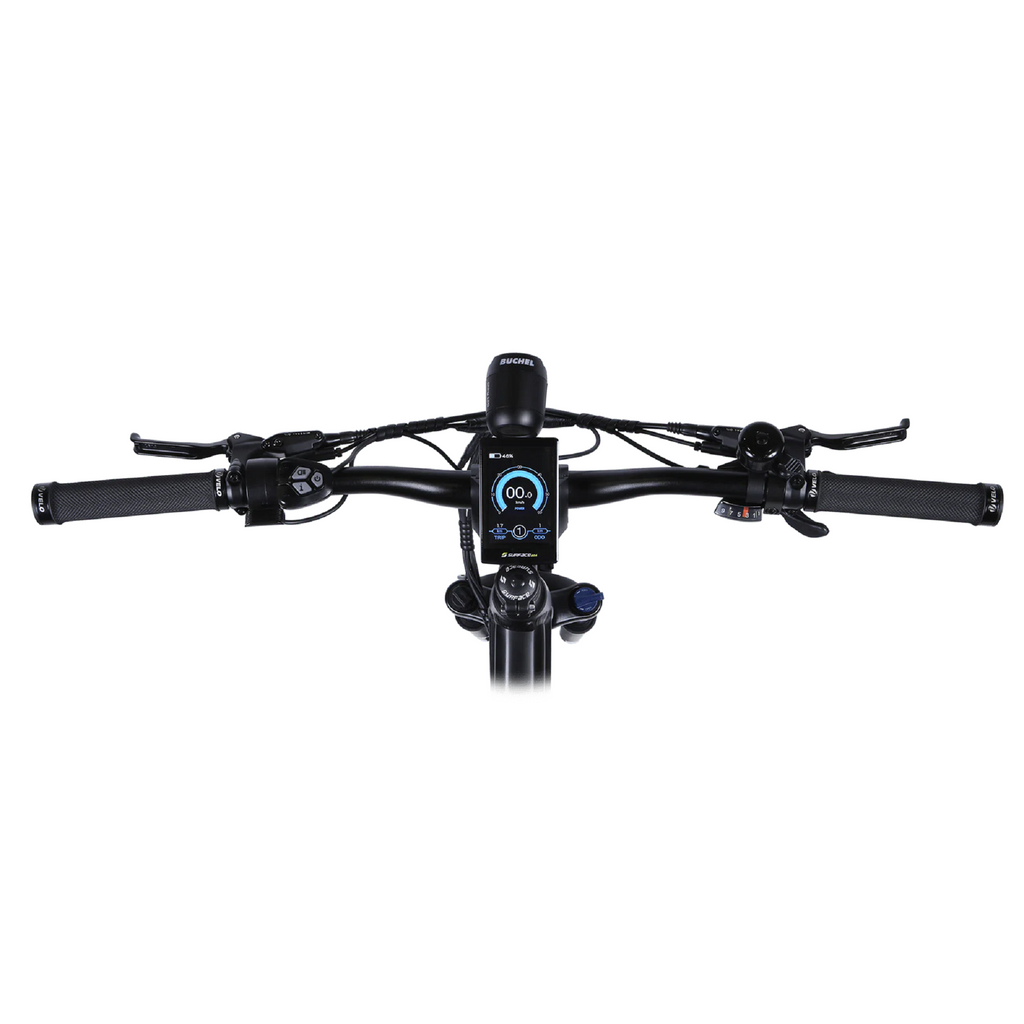

A Cockpit With A New Design

Now with an extra-large color LCD display such as the SURFACE604 Color LCD Display with Micro USB Jack and a larger display: 3.5 inches for the year 2021, compared to 3.2 inches for the year 2020. to display all the critical information and to offer an extra layer of protection. You may also give the bike a passcode, and much like your phone, it won't start unless you enter the correct passcode.

Specifications:

MOTOR: eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
DRIVE MODE: Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE: 65Nm of Torque
THROTTLE: Thumb Push Activated Throttle
CONTROLLER: SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
BATTERY: Included: 48V 14Ah / 672Wh, Samsung lithium-ion 18650 cells, Upgrade option: 48V 20Ah / 960Wh, Samsung lithium-ion 21700 cells
BATTERY RANGE: Up to 45mi (72km) with a 48V14Ah Battery, Up to 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME: 3-4 Hours for a Full Charge from Empty
LIGHTS: BÜCHEL SHINY 120 LED Headlight
FORK: SR Suntour XCM32, Suspension Air Fork (110mm Axle Thru Hub)
MOTOR WIRE HARNESS: 30Ah, can handle up to 120C current
DERAILLEUR: SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE: SRAM 12-34T
SHIFT LEVERS: SRAM X5 Trigger Shift
BRAKES: TEKTRO E500, MTB Specific Hydraulic Disc Brakes: Post Mount, with Motor Inhibitors
CRANK SET: SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS: 180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET: SAMOX Sealed Bottom Bracket
FRAME MATERIAL: 6061 Aluminum Alloy
CHAIN: KMC 9-Speed
SEAT POST DIAMETER: 30.4mm
SEAT: Selle Royal "Essenza Plus" Gel Saddle.
WHEELS/TIRE: Custom S604 Innova Dirt Tires 26" x 2.8"
RIMS: Aluminum Alloy Double Wall Rim, 26″x13Gx36H
FRONT HUBS: 1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
KICKSTAND: Adjustable Heavy-Duty Aluminum
STANDOVER HEIGHT: Extra Small-Small: 26” (660mm)
RECOMMENDED RIDER HEIGHT: Frame Sizes: XS 16”, For Riders: Extra Small 4’8”-5’7”
WEIGHT CAPACITY: 285lbs (130kg) same as regular Shred
STANDARD FEATURES: Adjustable Kickstand, Water Bottle Bosses
