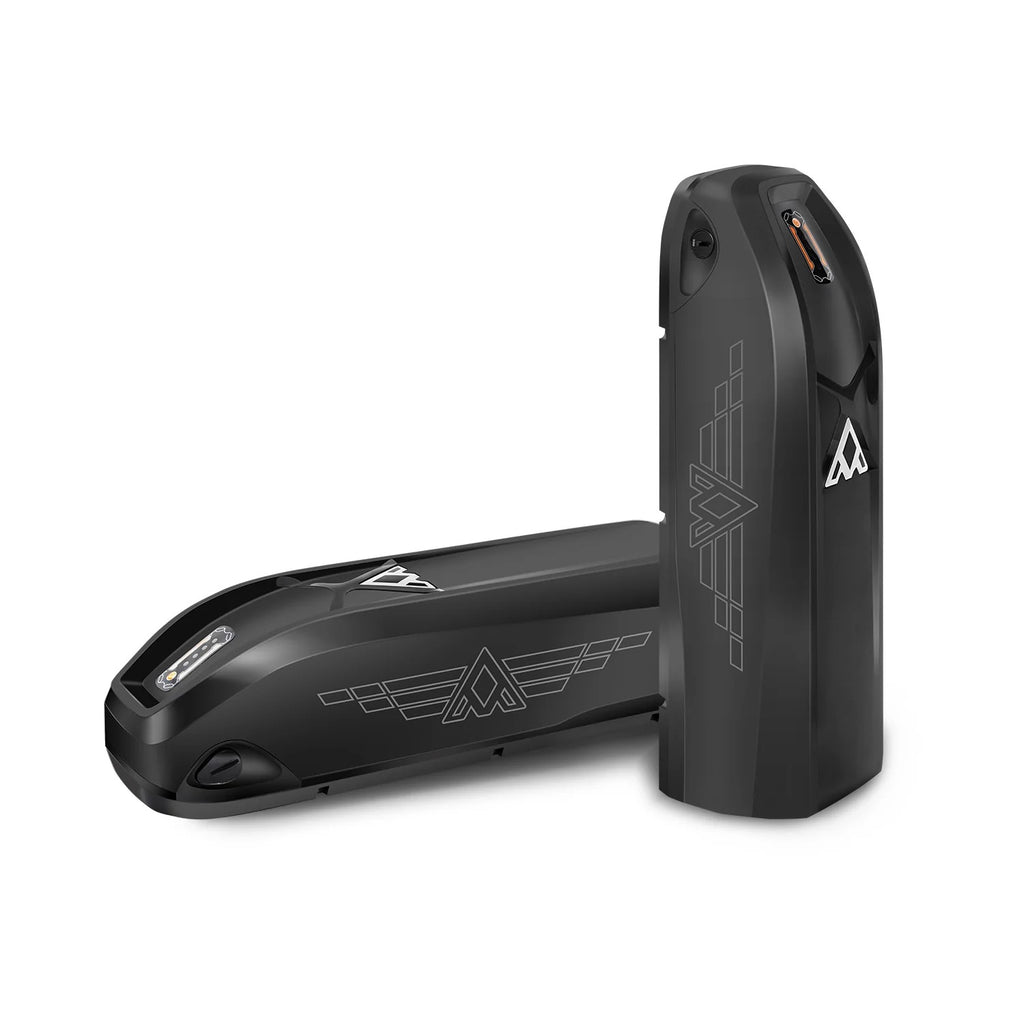

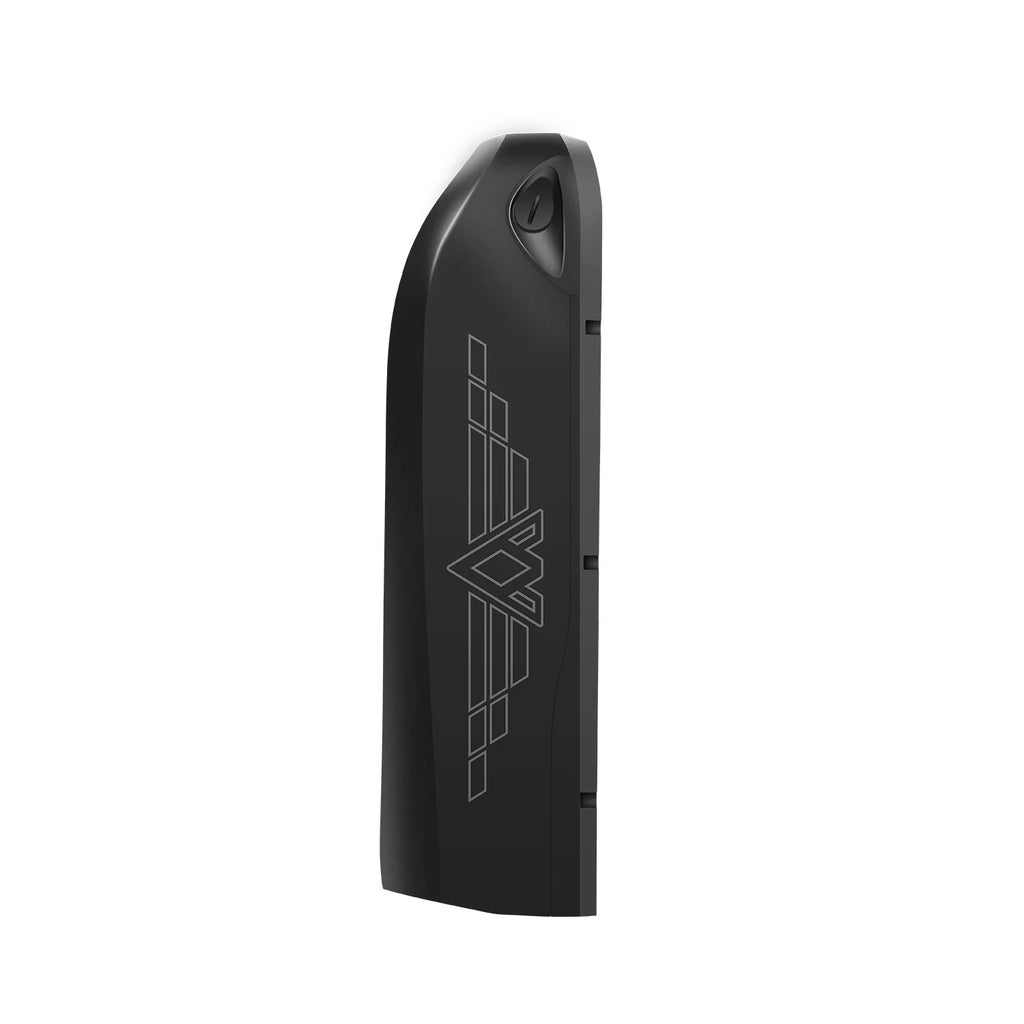

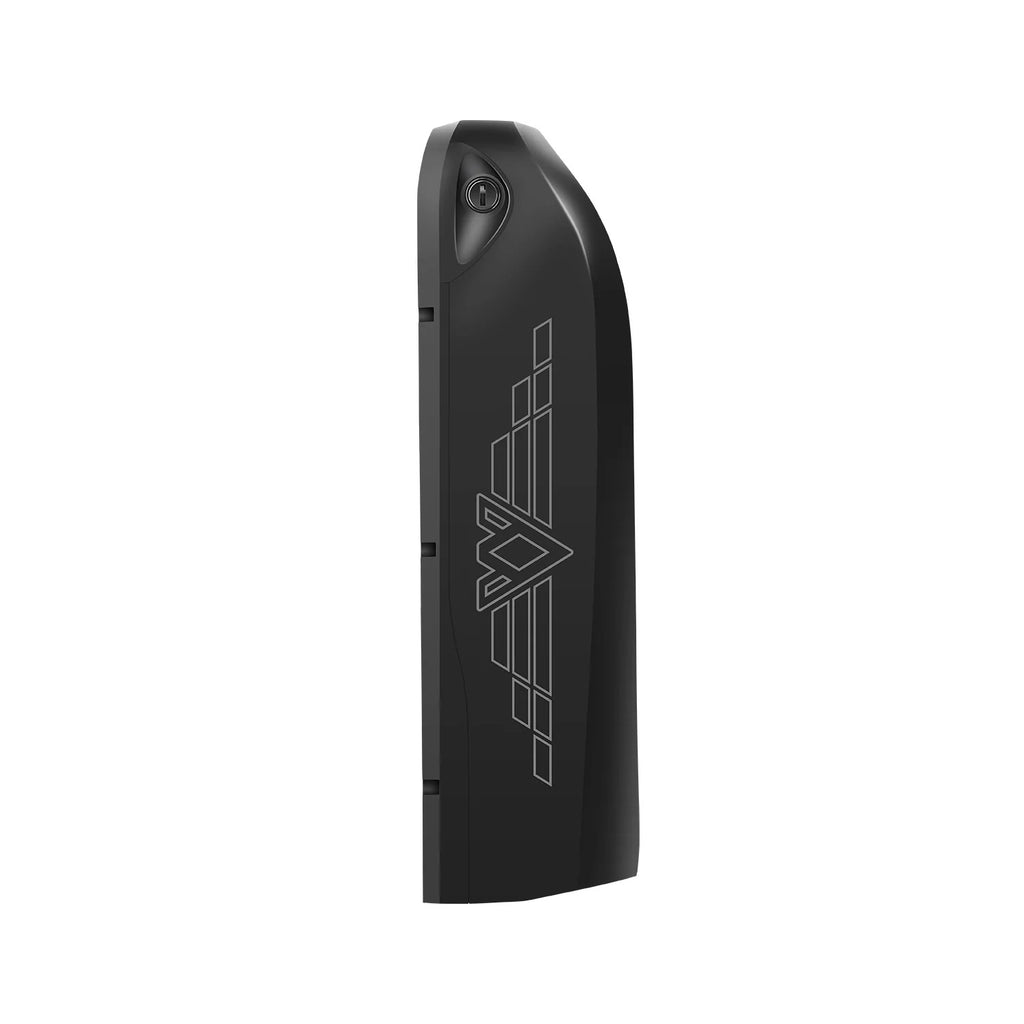

The Addmotor 48V 20Ah battery is a high-performance power solution designed to significantly extend the range and reliability of your electric bike or trike. Built with advanced Samsung 21700 cells, this battery pack offers a massive 960Wh capacity, allowing riders to achieve an impressive range of up to 125 miles on a single charge. It is engineered for durability, featuring a reinforced 3.0mm–3.5mm thick casing that is 30% stronger than previous models to withstand external pressure and harsh riding conditions.

Key Performance Features

• Extended 125-Mile Range: Offers an astonishing capacity that allows for long-distance travel of up to 125 miles (on PAS 1) without needing a recharge.

• Samsung 21700 Cells: Utilizes premium high-capacity 21700 cells which provide better temperature control and a higher 3C discharge rate compared to standard 18650 cells.

• Full UL Certification: The entire battery pack is UL-certified, having passed rigorous 5-ton pressure tests to ensure maximum safety and electrical stability.

• Reinforced Protective Shell: Features an upgraded 3.0mm–3.5mm thick casing that provides superior protection for internal components against impacts.

• Smart BMS Protection: Integrated dual-circuit protection for charging and discharging, along with high/low-temperature sensing to prolong battery life.

• User-Centric Design: Includes a magnetic automatic retorquing charging port cover and a "7-shaped" charger head for more practical and convenient daily use.

• External Replaceable Fuse: Designed with an accessible fuse holder at the bottom, allowing for quick maintenance without disassembling the entire battery case.

Safety is at the core of this battery's design, being one of the first in the industry to receive full UL certification for the entire pack, not just the cells. It features a sophisticated Battery Management System (BMS) with dual protection for over-current and triple protection against short circuits. With its user-friendly magnetic charging port and an external replaceable fuse, this battery provides a seamless, secure, and long-lasting power source for commuters and adventure seekers alike.

Product Specifications

• Battery Type: Lithium-ion (Samsung 21700 Cells)

• Voltage: 48V

• Capacity: 20Ah (960Wh)

• Charging Time: 8–10 hours

• Lifespan: 1,000–1,500 charge cycles

• Max Range: Up to 125 Miles (PAS 1)

• Compatible Models: Addmotor EB2.0 Models (E-43, E-53, M-66 R7, M-81, M-340, M-350, M-360, etc.)

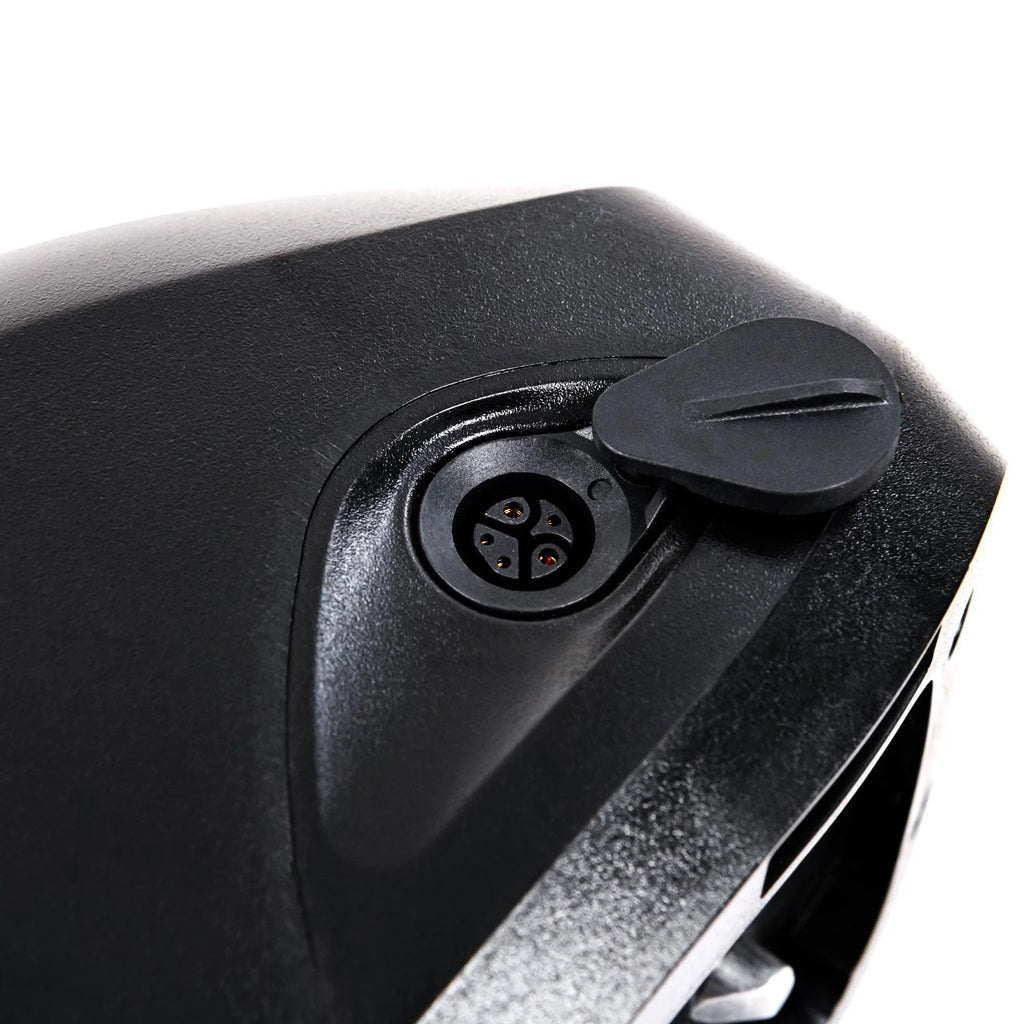

• Charging Port: 5-Pin with Magnetic Suction Cover
