Love Sale
BBR TuningSKU: FH-CLUTCHBEARING

FREE SHIPPING on Orders $99+
Support For Life Guarantee
Coupon

10% OFF W/Code "LOVE10"

$2.95
$2.66 after coupon
Price:
$2.95
  • Description

Description

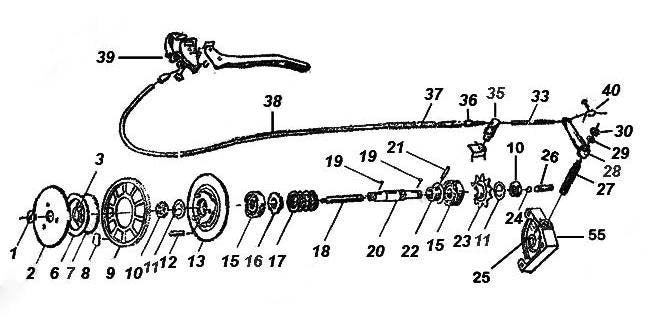

Part #24 on the Clutch Diagram

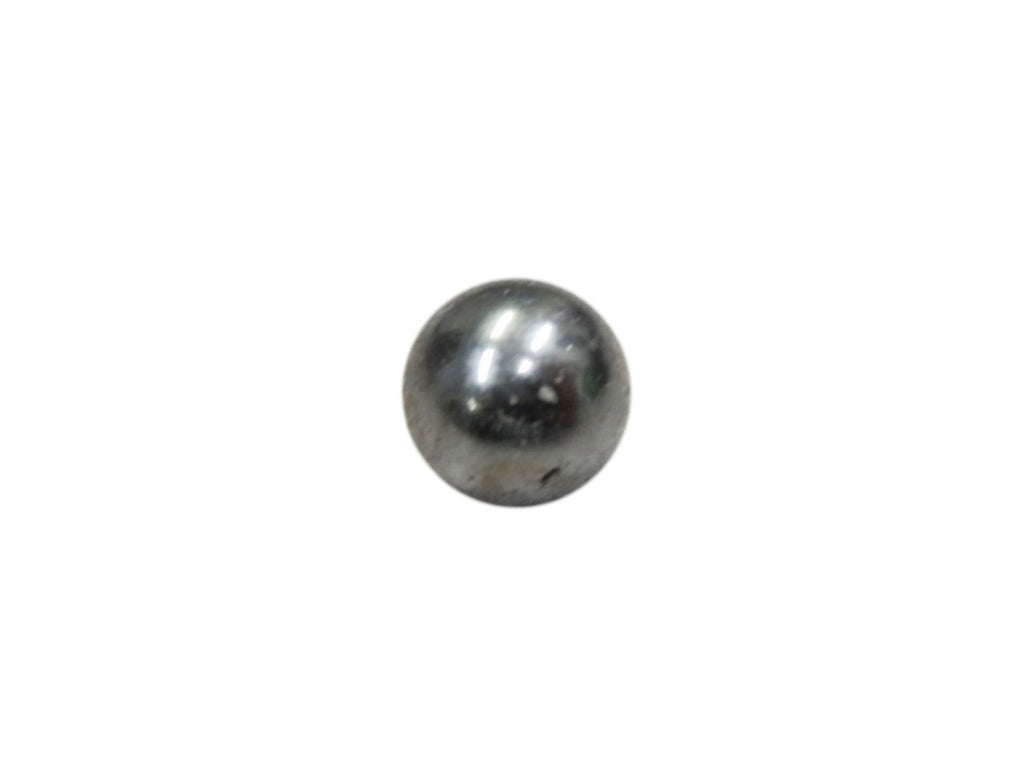

The clutch actuator bearing is located inside of the 10 tooth drive sprocket behind the bucking bar. It is a silver 8 mm ball bearing that is pushed by the bucking bar when the clutch is engaged to release the back wheel. Every 2 stroke bike engine has 1 clutch actuator bearing.

Troubleshooting tip:

If your clutch arm moves, but your clutch will not engage, check to see if the bucking bar is warn or if the clutch actuator bearing has fallen out.

Part Number (See Parts Manual):Clutch-24
