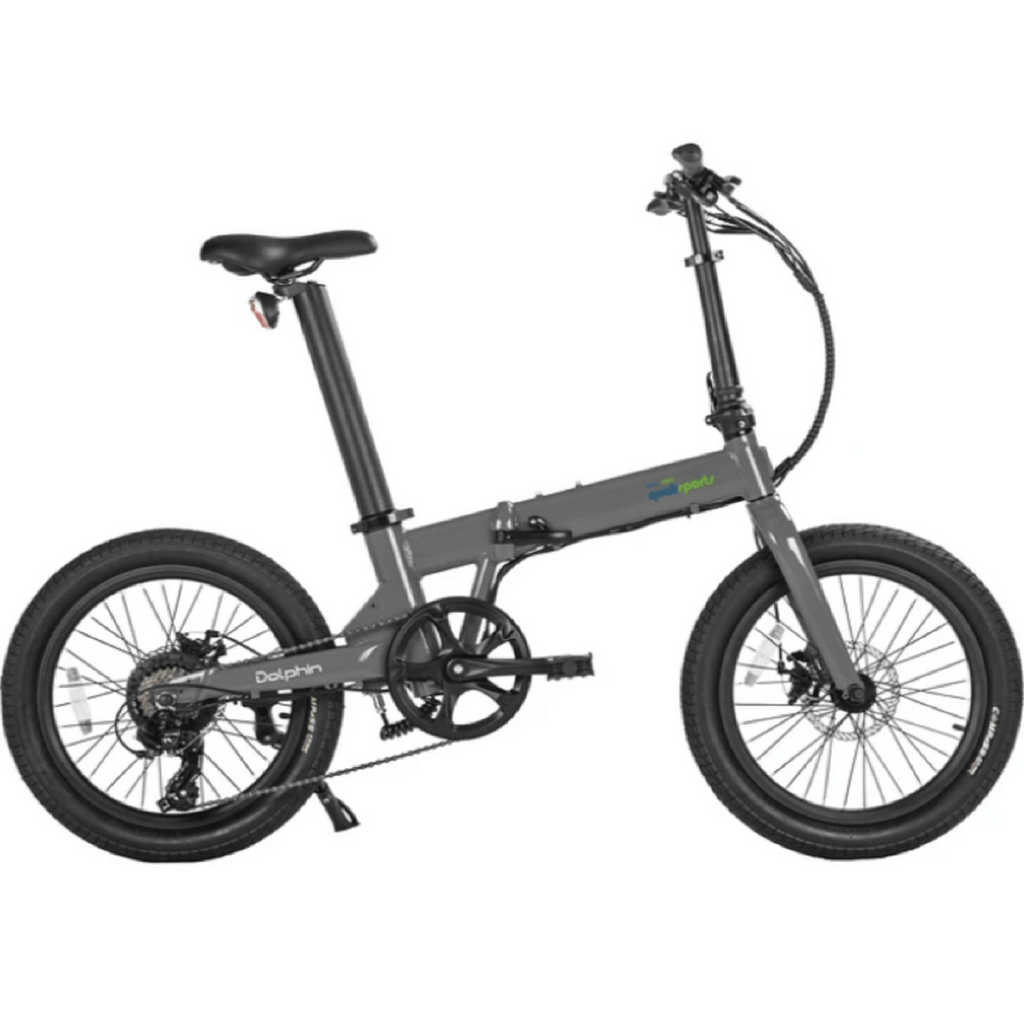

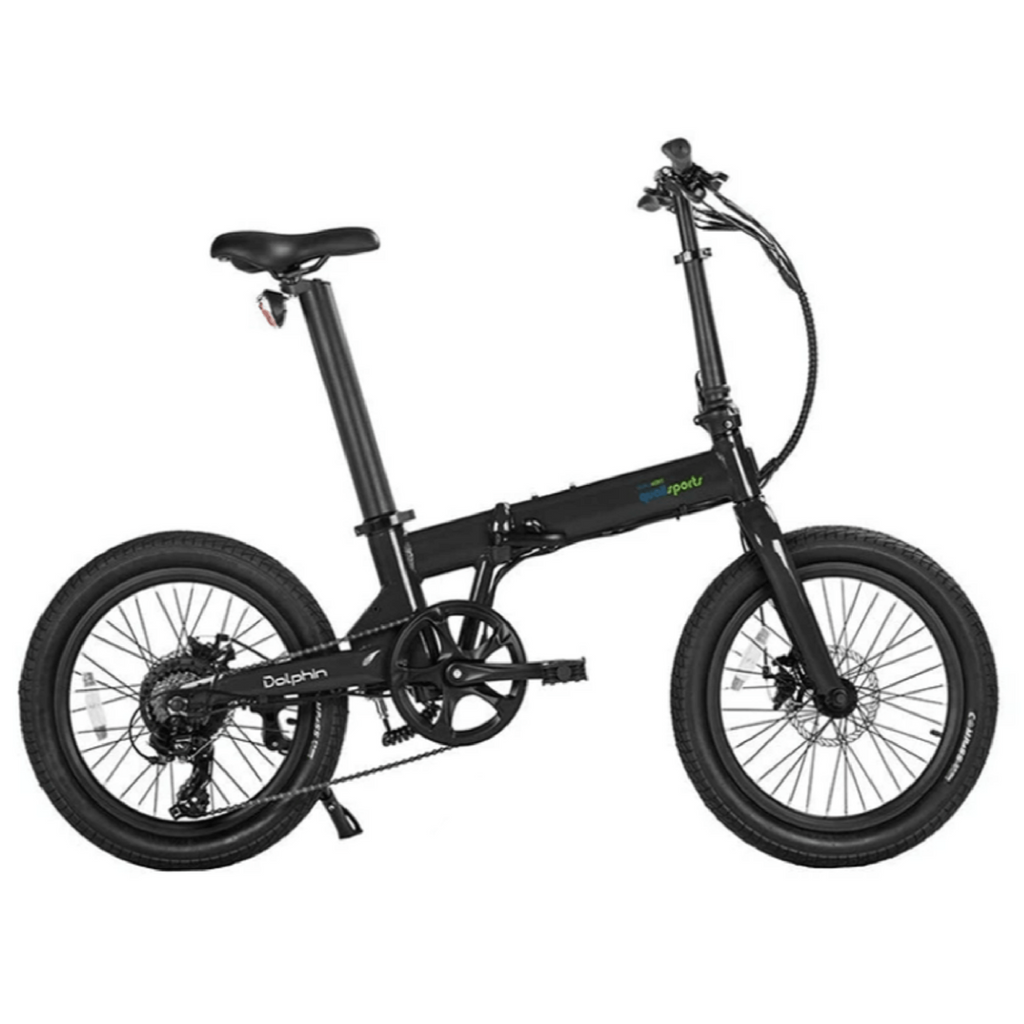

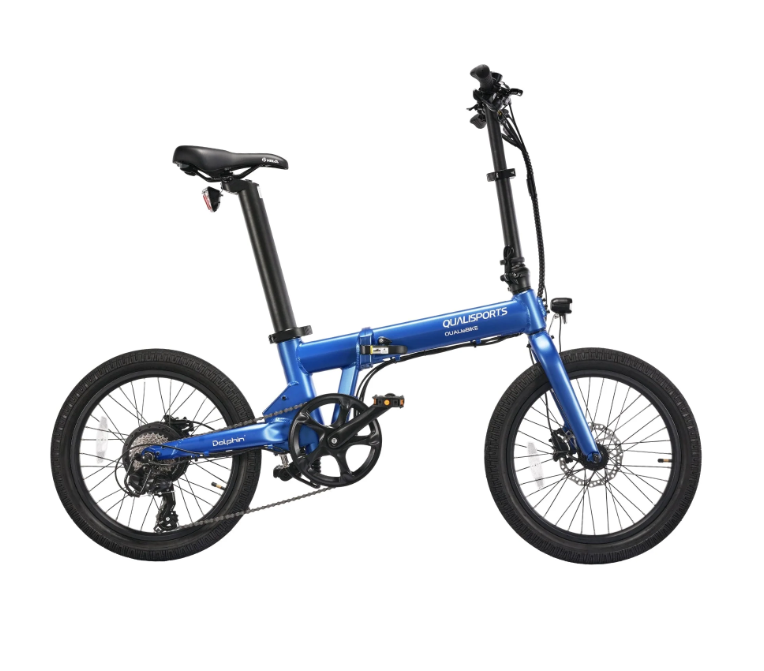

Qualisports 350W Dolphin Folding Electric Bike

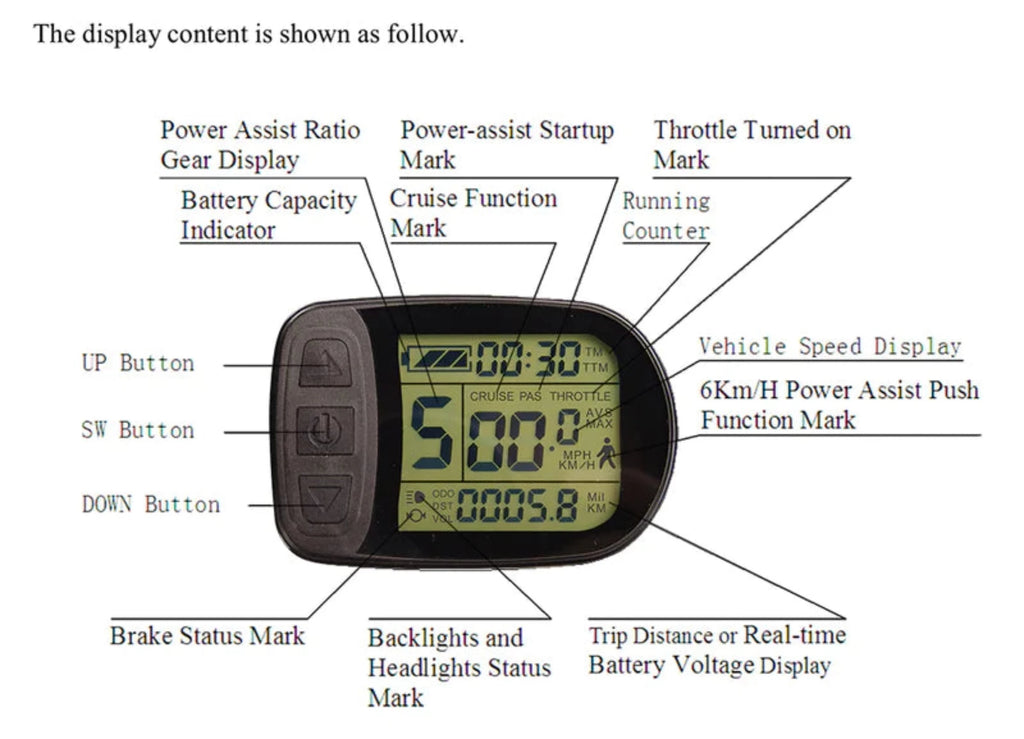

We also intergraded a multi-fuction LCD display on board together with a 12 dots Cadence Sensor to help the riding experience more enjoyable . The LCD panel has the following visual indicators on it. 5 levels of PAS (Pedals Assist levels - 5 levels), battery level indicator, timer, speed, distance, average speed, trip distance, trip timer, ODO, max speed, battery voltage indicator, Lamp on/off, back lights, walking mode and cruise control mode.

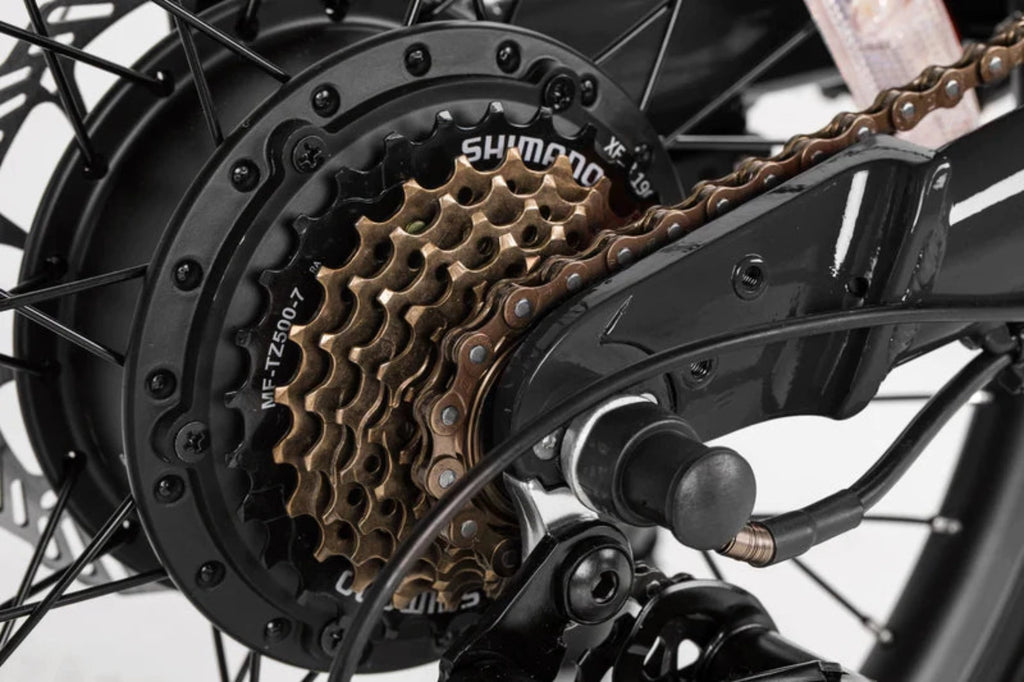

The rear mounted 350W brushless geared motor has been re-engineered from inside and out. New material was utilized in the gears producing a stronger magnetic field is applied inside the motor which achieves a more powerful and efficient motor that will endure a longer lifespan.

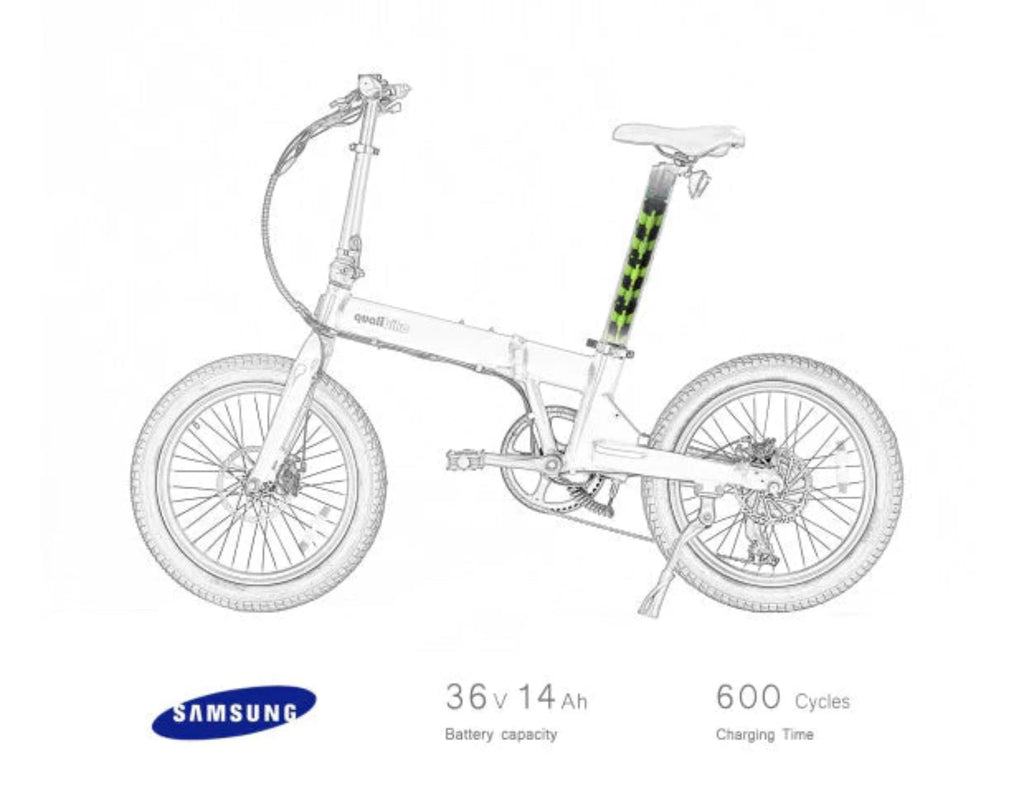

The Dolphin features a 14Ah Samsung battery, hidden in our patented seat post battery system that lasts longer, is more efficient and encased with full battery-cell protection sleeve. This e-bike will allow Qualibikers to ride between 50-60 miles of utilizing the PAS (Pedal Assist) mode and 30 miles range on the throttle mode in a single charge. The intergraded customized BMS system protects the battery from over charging, over heating, stabilizes and regulates current output.

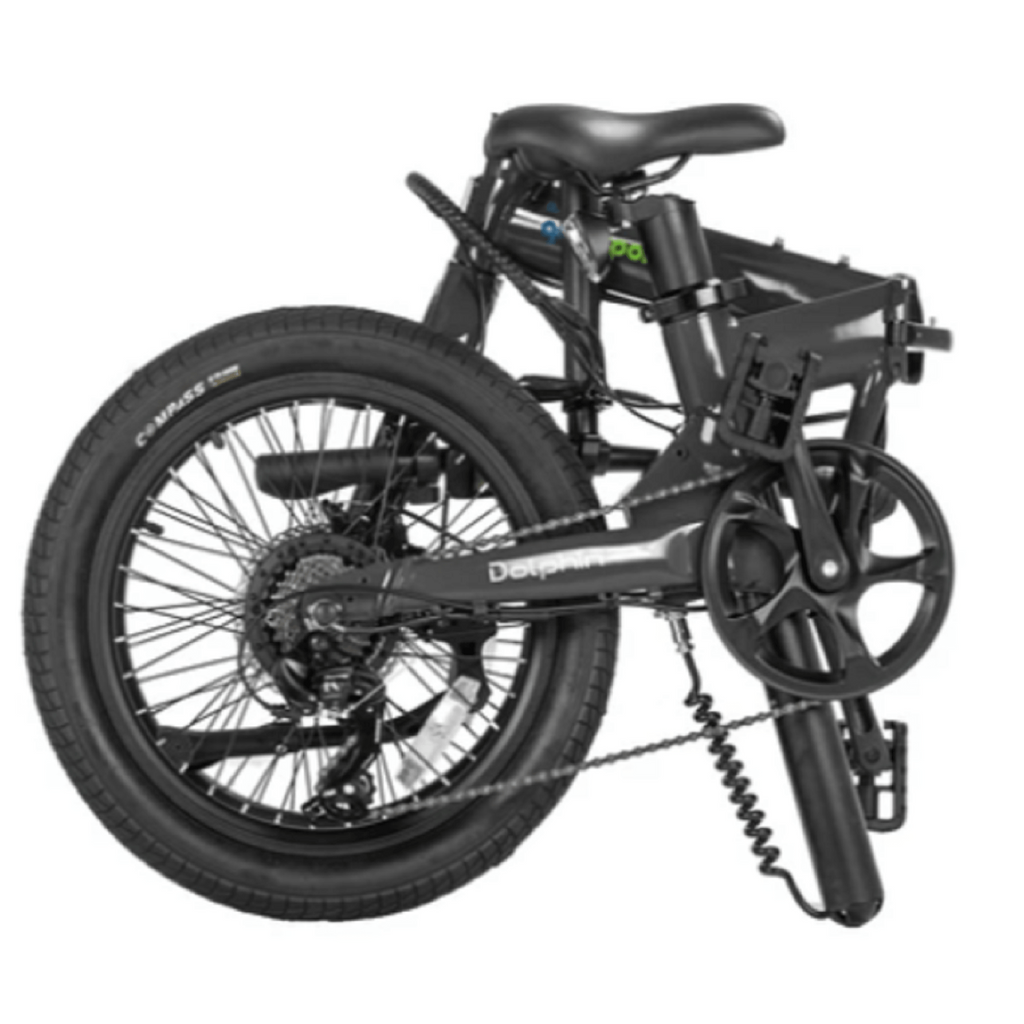

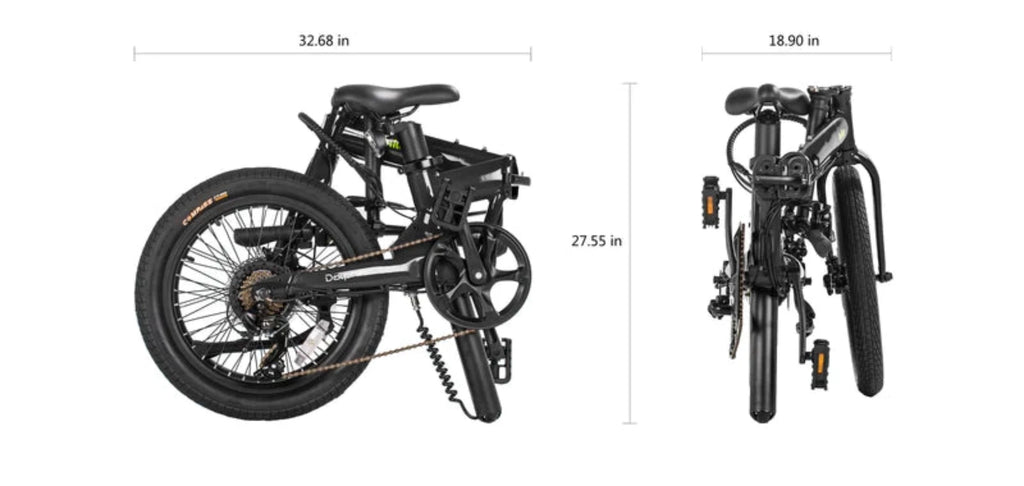

Qualisports folding structure makes the folding size only 830*480*700mm, weights only 47 lbs. It can easily fit in the back of an SUV, in the trunk of a car, RV and easily folds for ease of transportation.

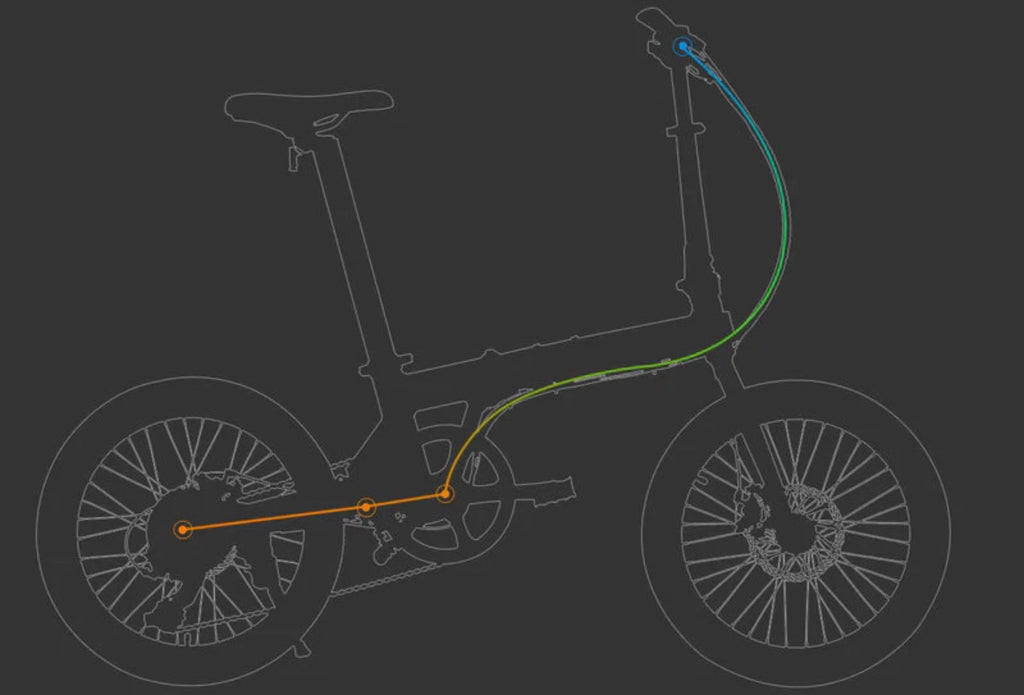

The Re-programmed FOC controller offers Quali-bikers a more enjoyable and comfortable riding experience. This is accomplished by the integration of our components mentioned above to provide a smoother fluid motor engagement.

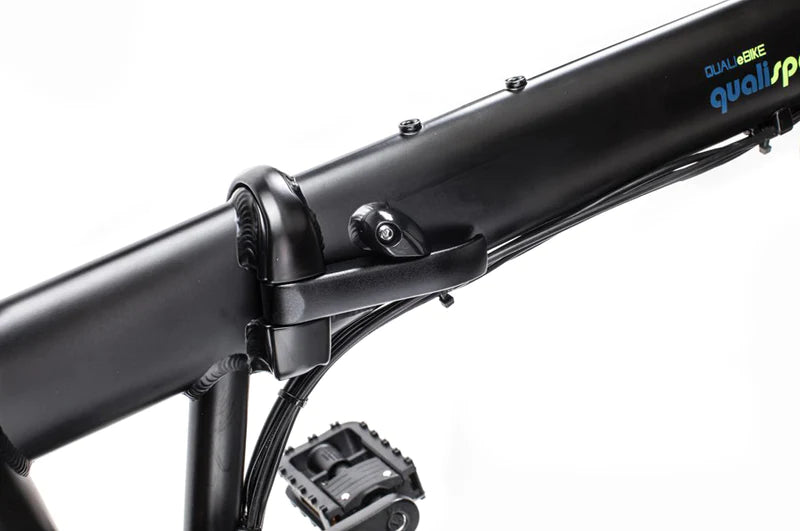

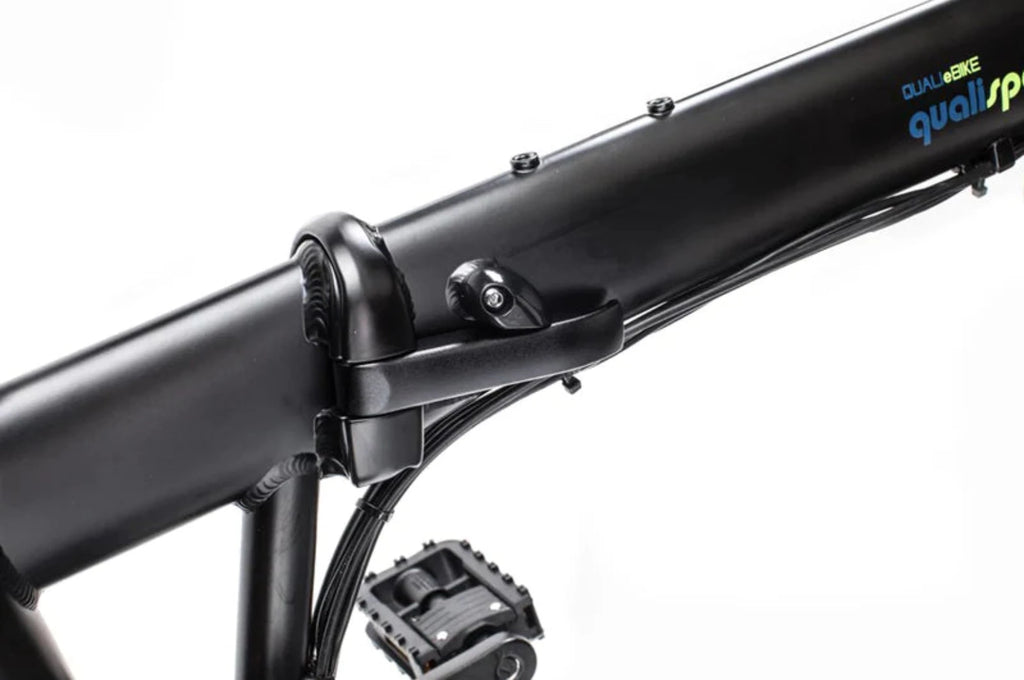

The industry standard 6061 aluminum frame is lightweight, sturdy, and can withstand shocks of the uneven roads while carrying heavier cyclists.

Motor: MXUS Brushless geared DC motor
Brakes: 160mm disc brakes
Rim: 20 inch Al-Alloy 12G36H
Size: 62.9*23.3*44.1inch
Motor efficiency: ≥85%
Tire: 20x2.35"
Folding Size: 32.6*18.9*27.5inch
Chain wheel: Prowheel 52T
Wheelbase:43.5inch
Freewheel: Shimano 14-28T
Net weight: 50lbs
Max torque: 40N.m
Derailleur: Shimano 7 speed
Range: 62.5Miles（PAS）
Overcurrent protection: 15±1A
Chain: KMC
Max. load: 300lbs
Handlebar: Promax
Display: Kunteng LCD
Charging time: 6~7 Hrs
Modes: 5 levels
Controller: Kunteng sine wave FOC
Battery type: Samsung Lithium-ion 36V 14ah
Tire diameter: 20x2.35 Inch
Brake levers: Al-Alloy e-bike lever
Frame: 20 inch 6061 Al-Alloy Foldable
Front fork: 20 inch 6061 Al-Alloy
