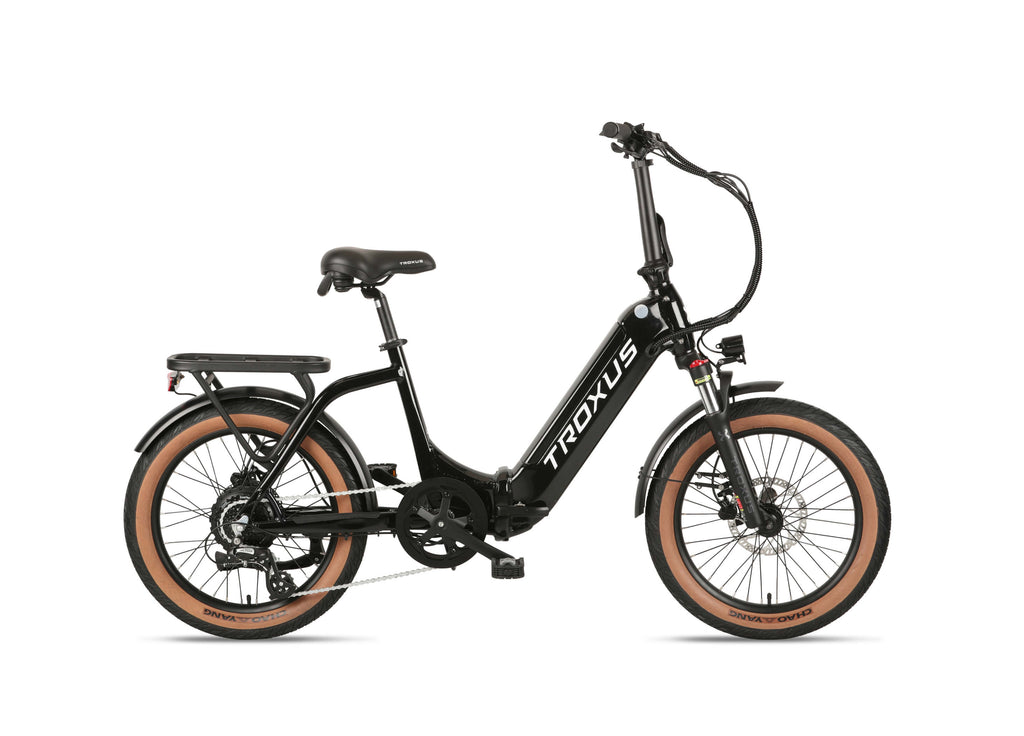

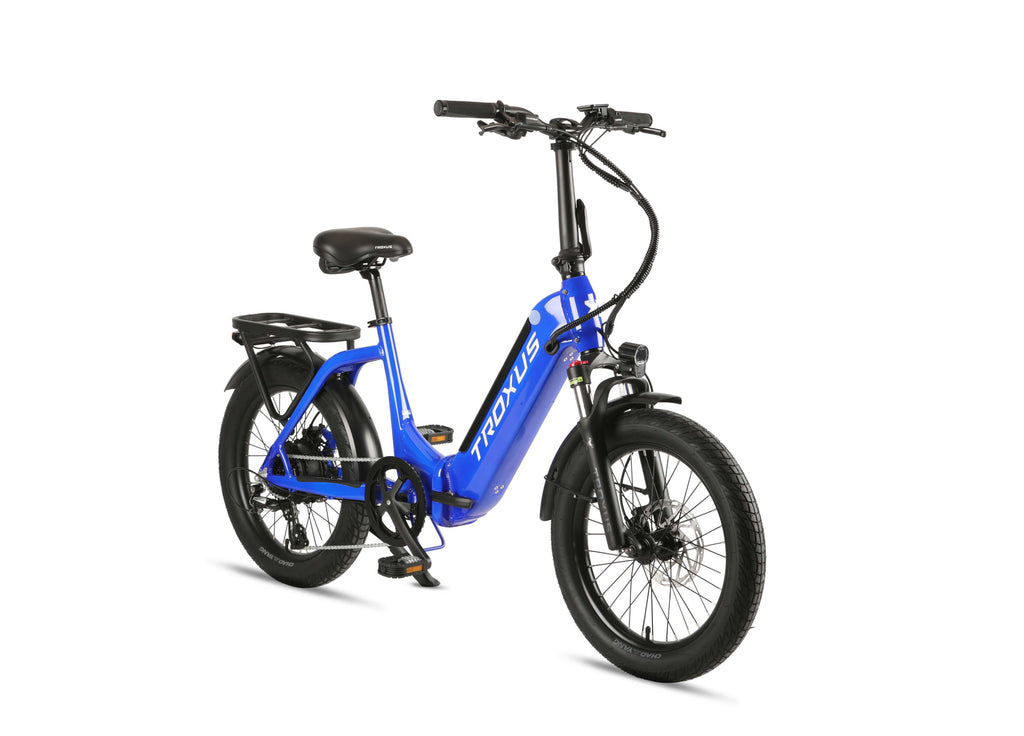

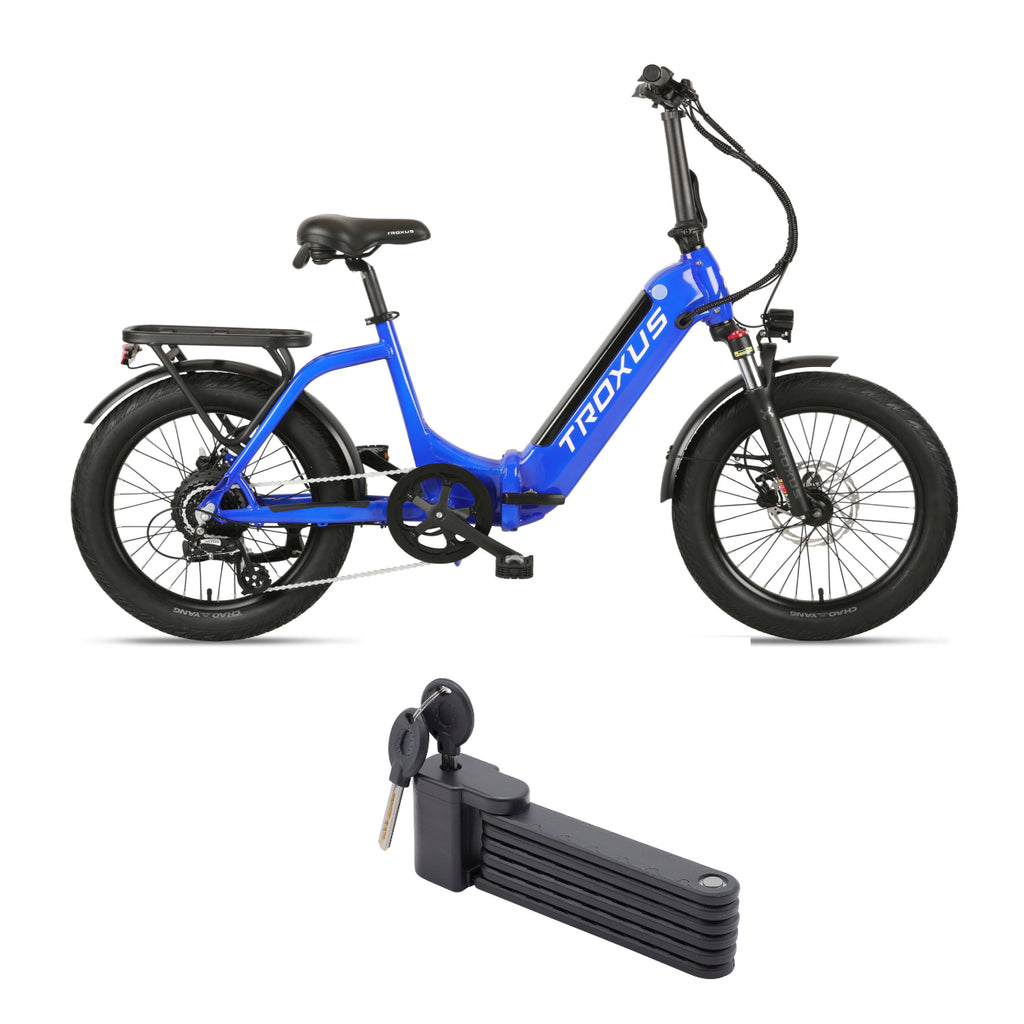

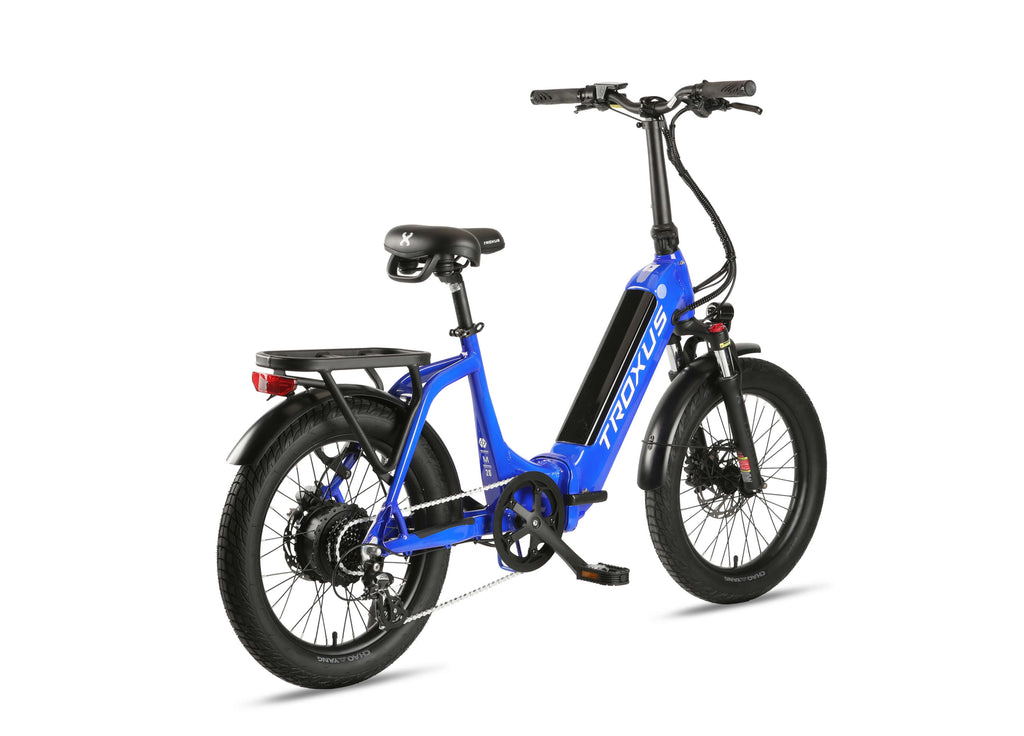

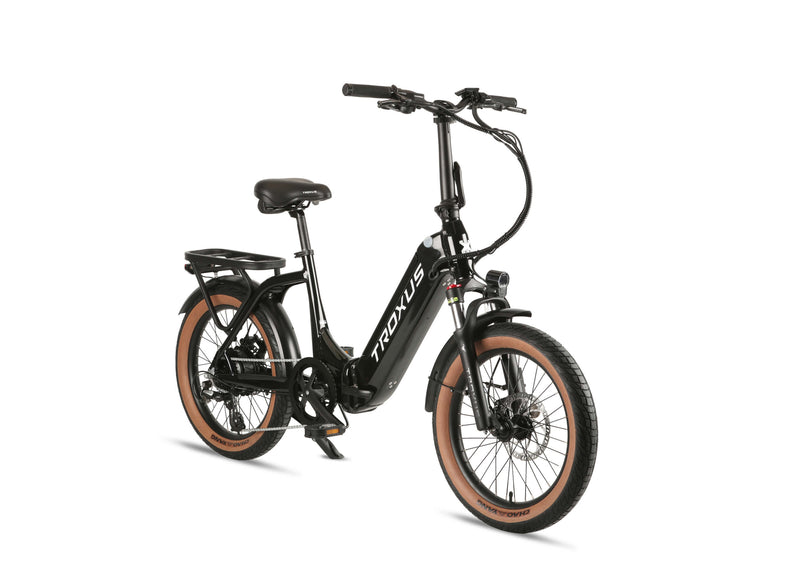

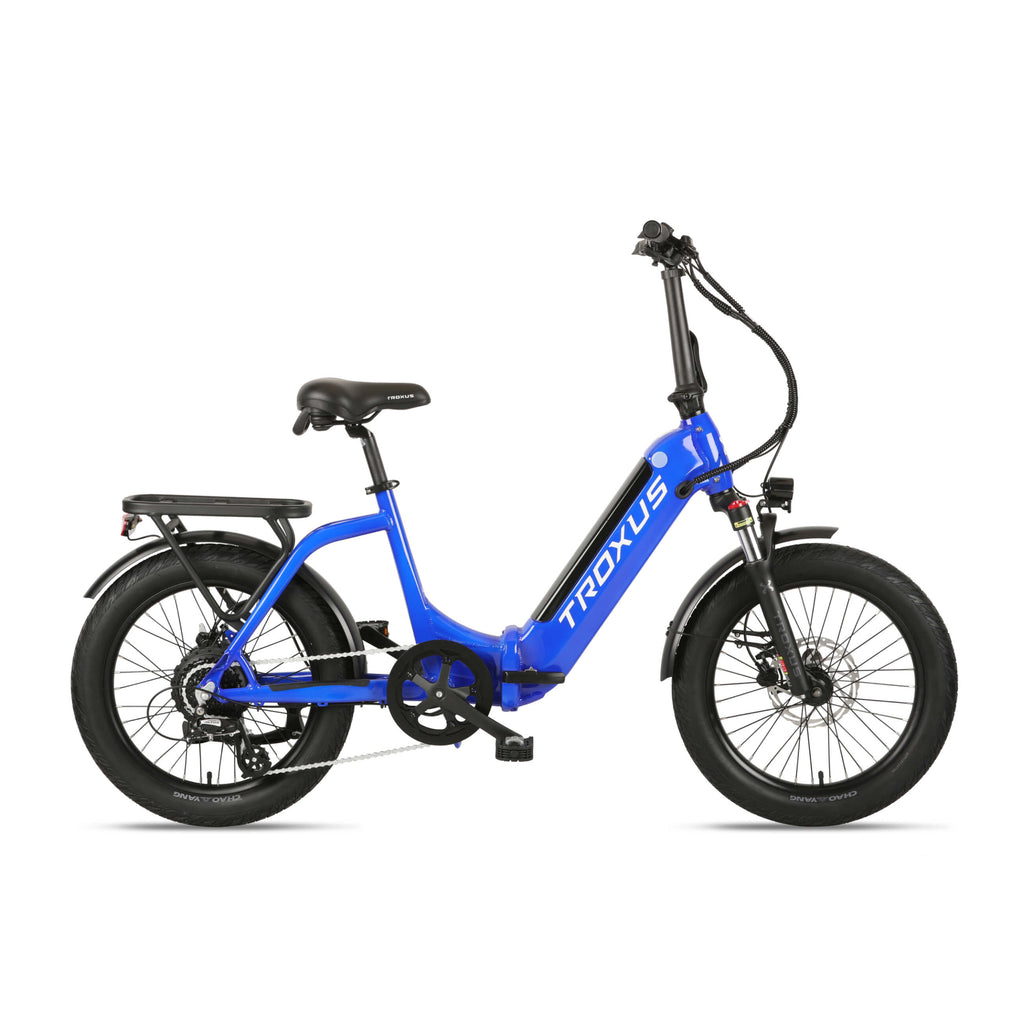

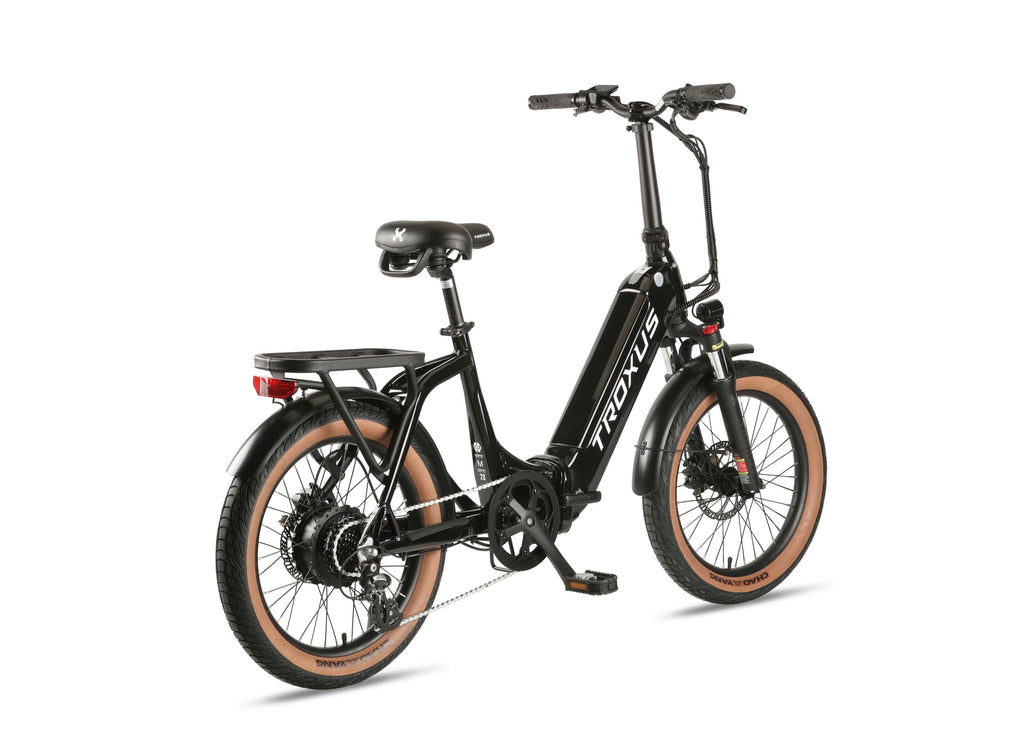

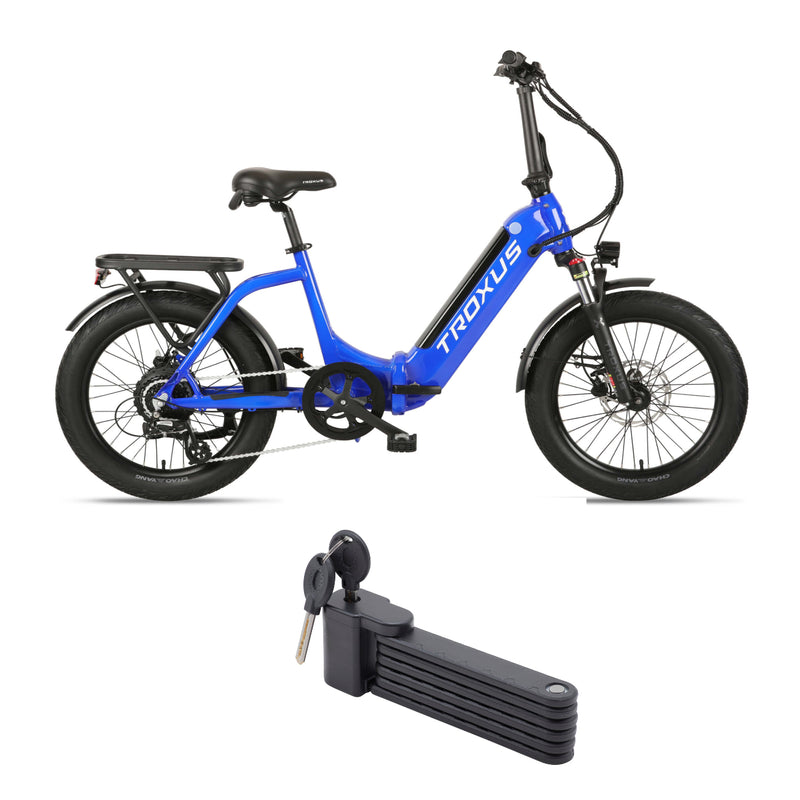

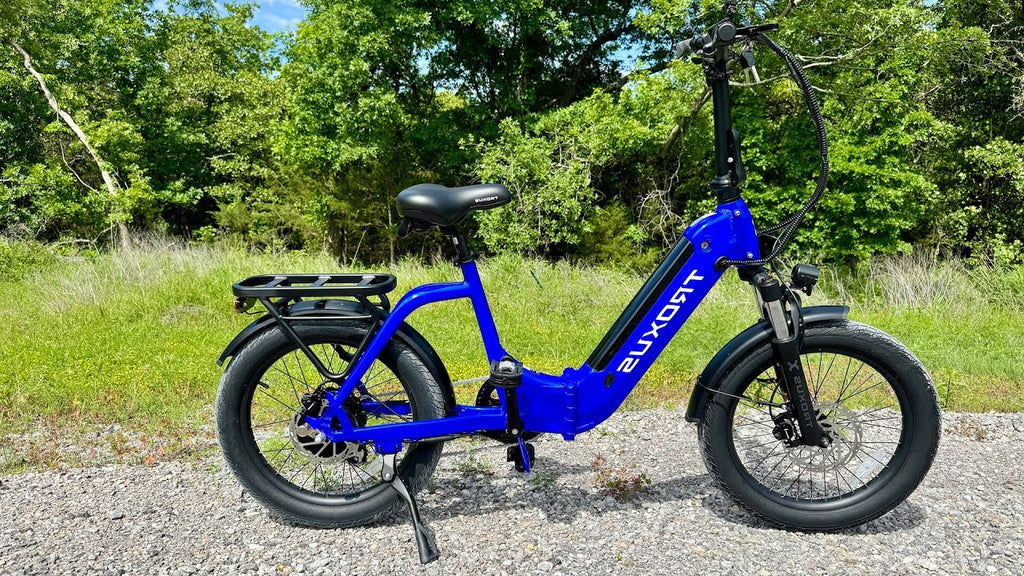

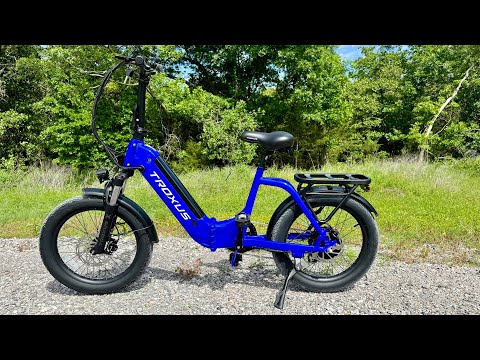

Troxus 500W Lynx Folding Electric Bike

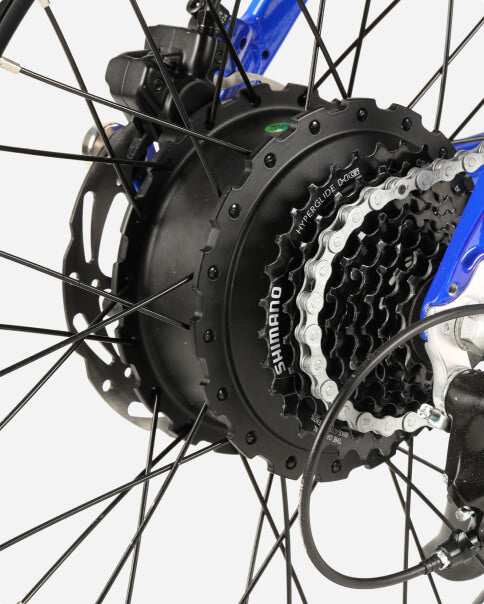

Thanks to the impressive Jiabo® $500\text{W}$ Hub Motor and optimized design, you get the power you need with a weight that makes it truly easier to manage. Performance made portable.

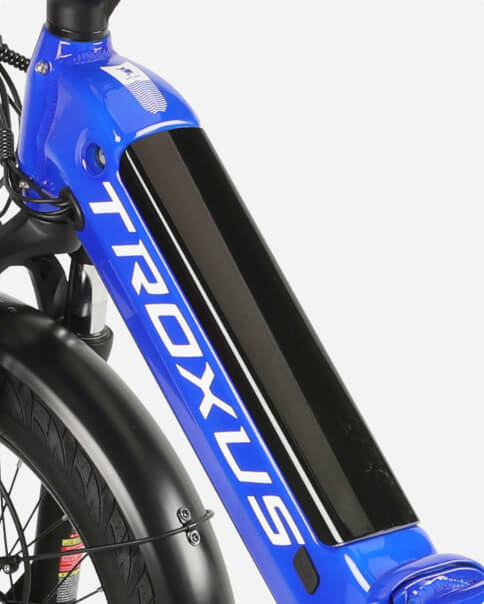

Unleash your commute with this powerful $48 \text{V} / 10 \text{Ah}$ battery. Thanks to its construction with Samsung® cells, you get both the reliability and the incredible range of up to $45 \text{ miles}$—giving you the freedom to explore longer on one charge.

Commuting made simple. Ride to the station, fold it onto the train, and stash it safely next to your desk. The freedom to travel your way, powered by the best in folding technology.

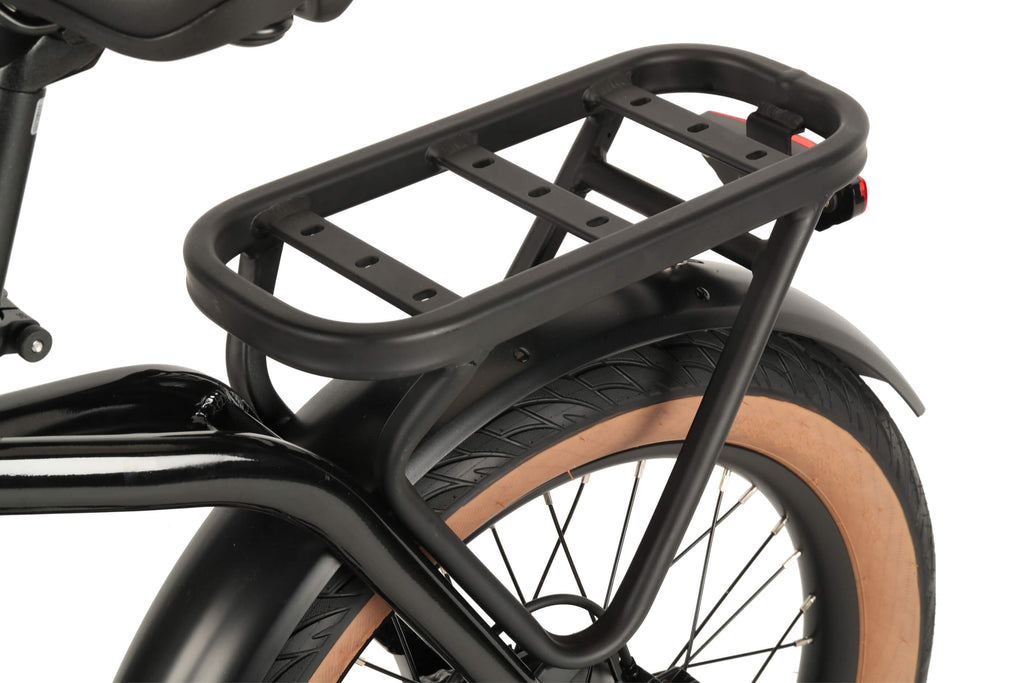

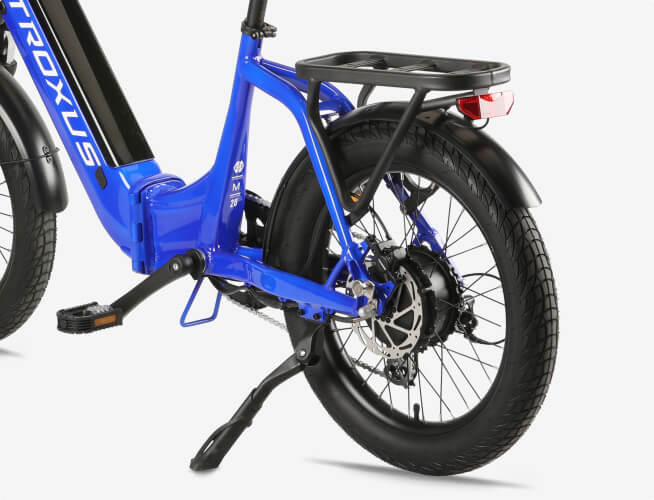

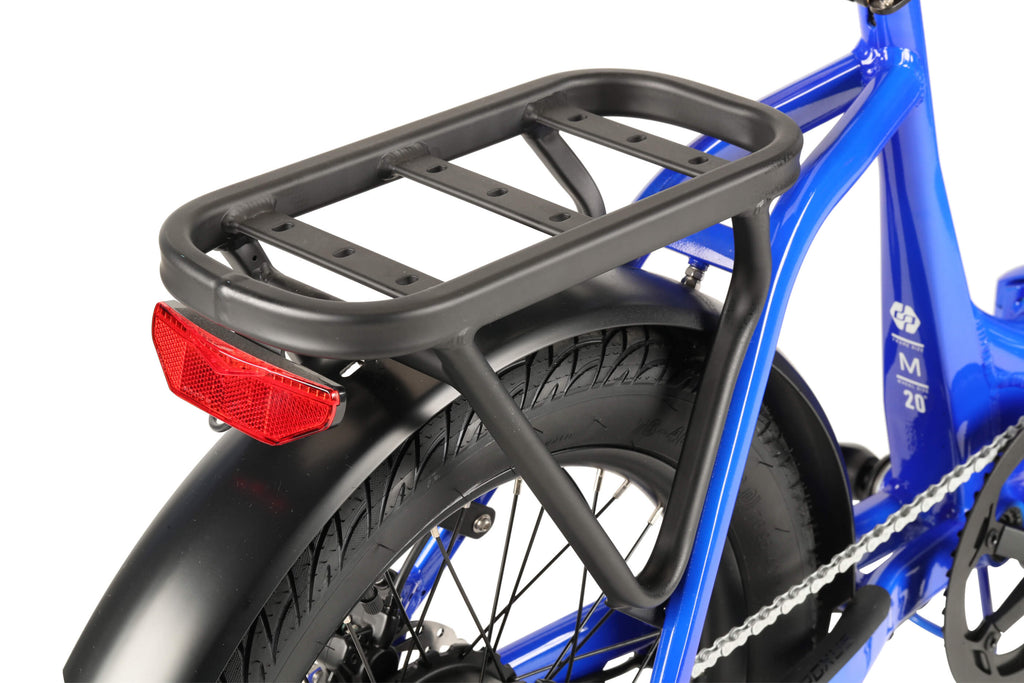

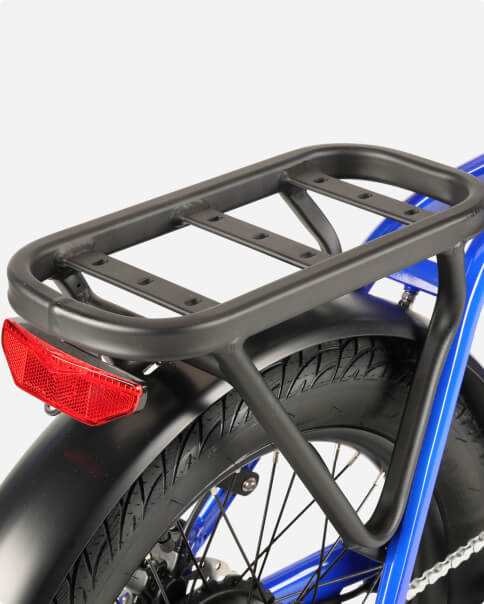

Engineered with a Heavy-Duty Rear Rack for high load capacity and full-coverage fenders to ensure a clean ride. Plus, the essential integrated taillight provides crucial safety and visibility in traffic.

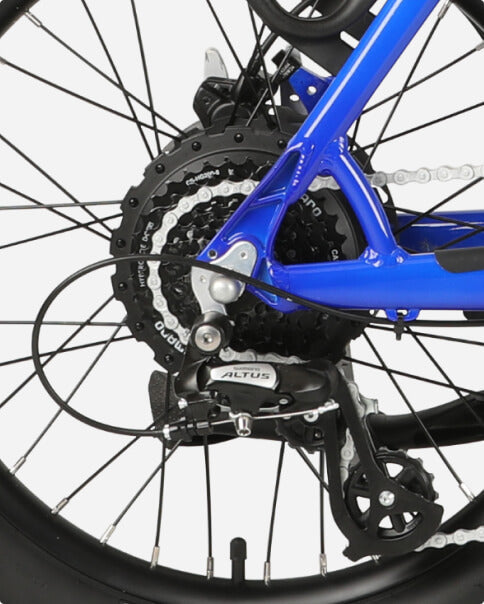

Experience smooth, reliable gear changes that put you in command. The wide-ranging 8-speed system ensures you always find the perfect gear ratio to conquer varying terrain and match your personal riding style, effortlessly.

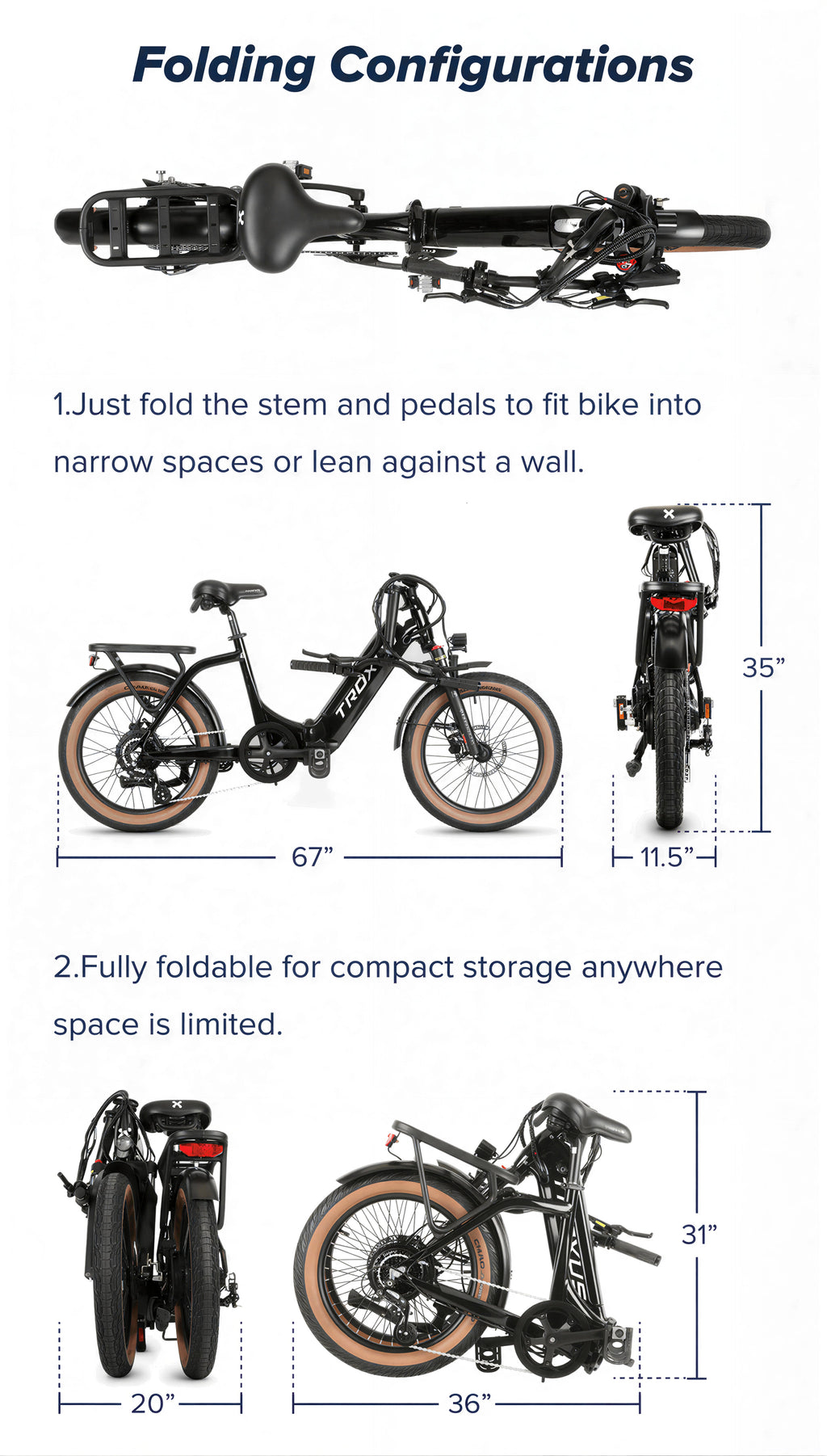

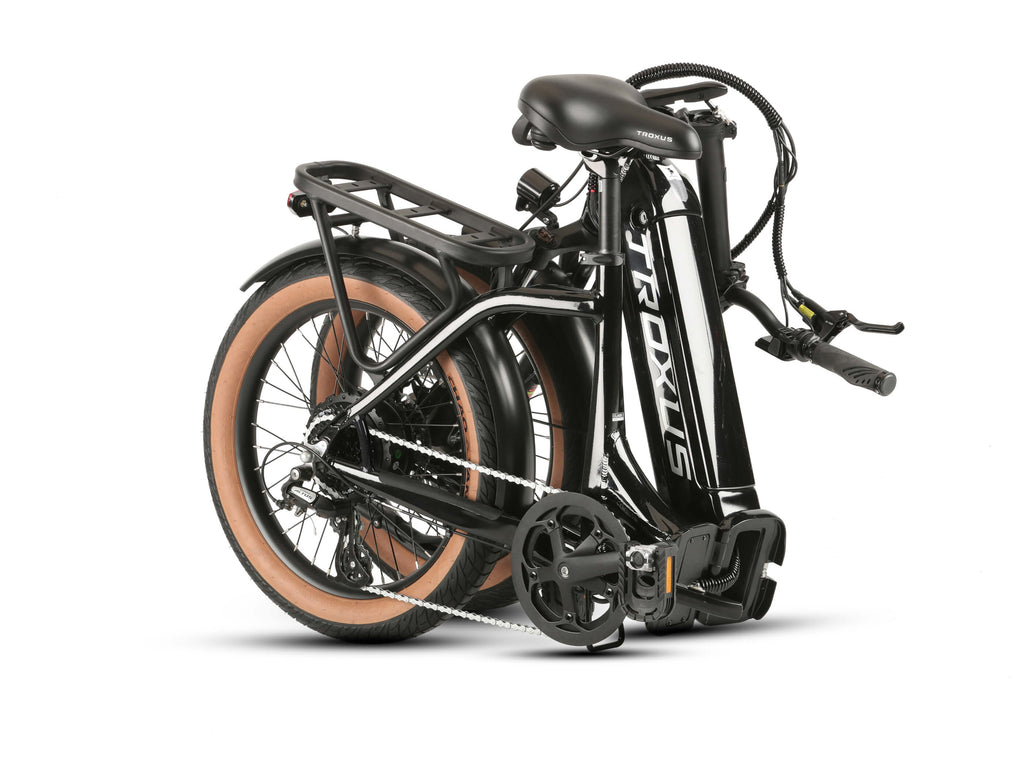

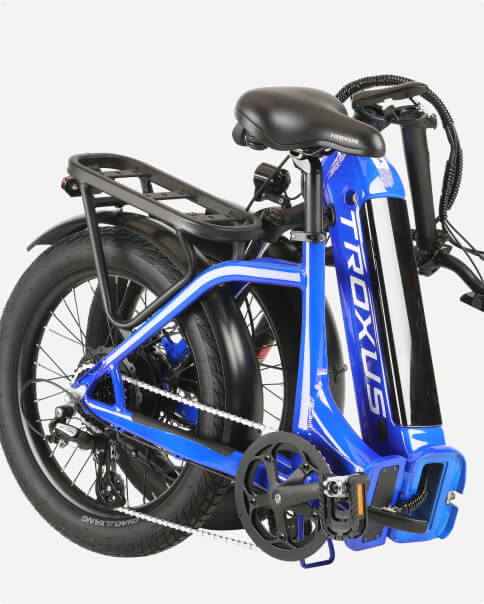

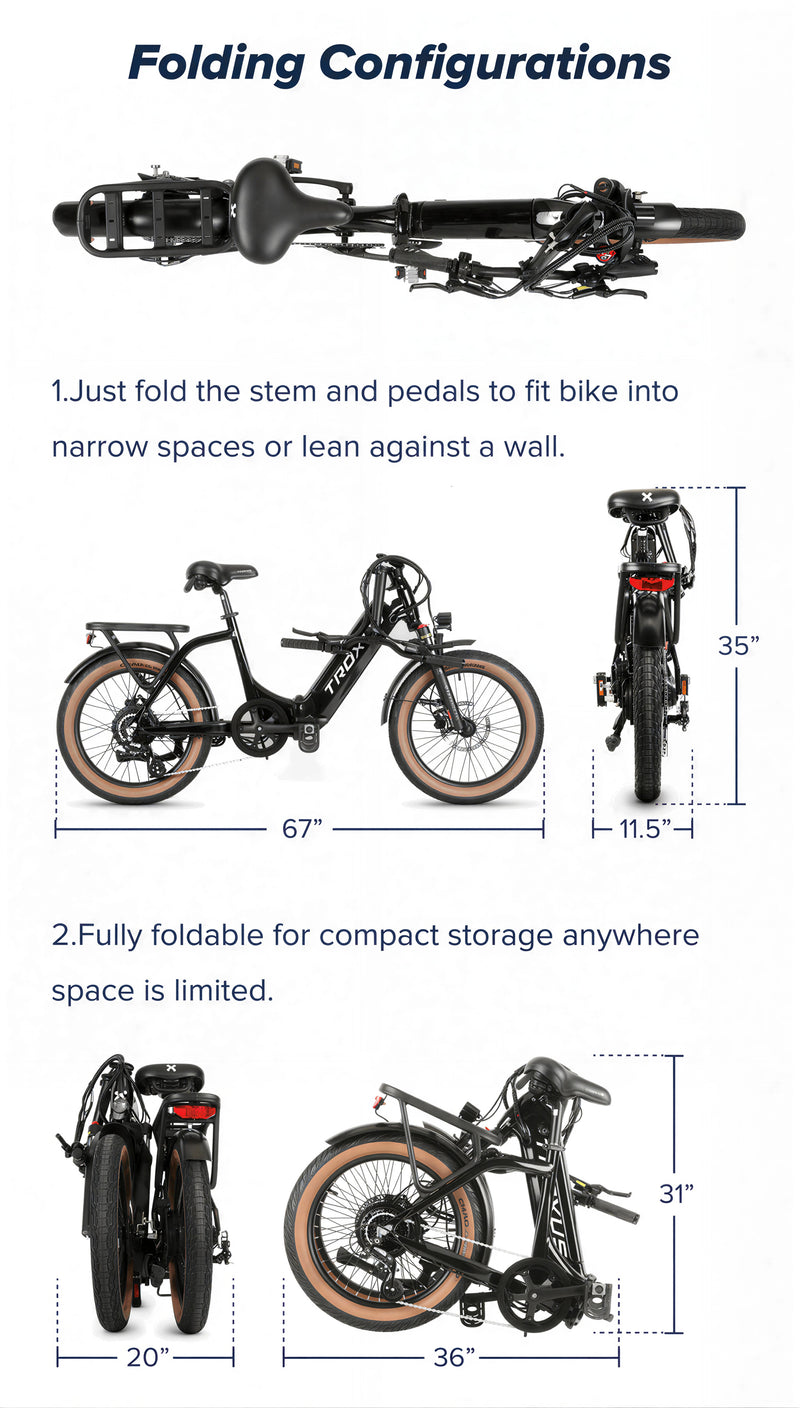

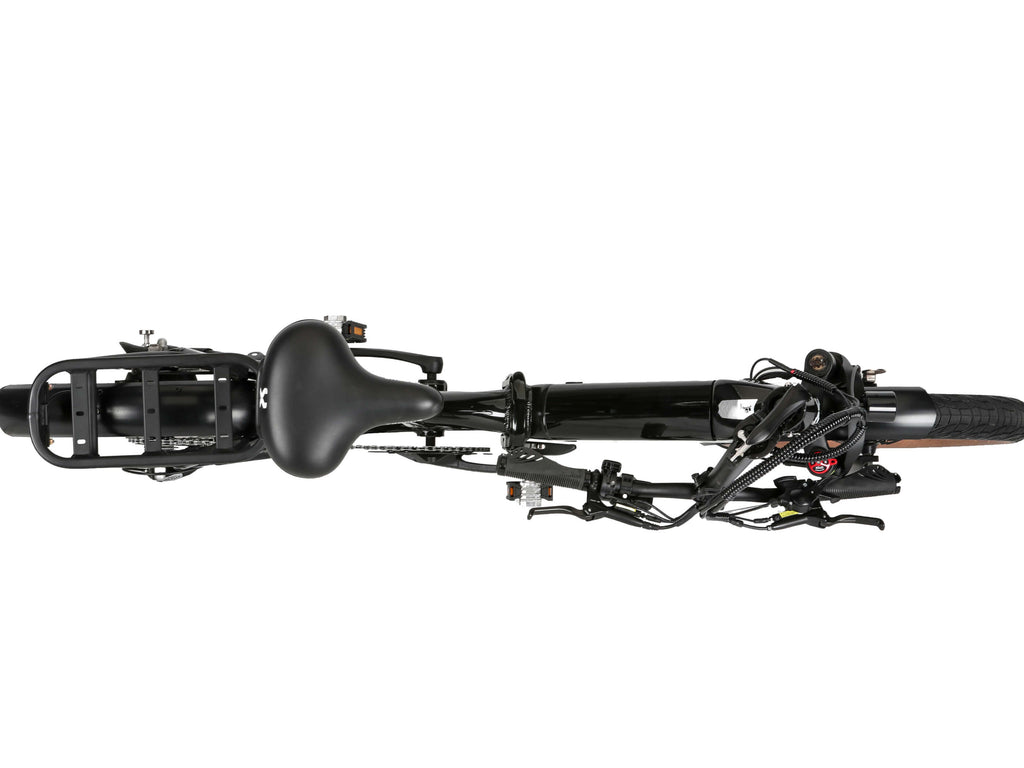

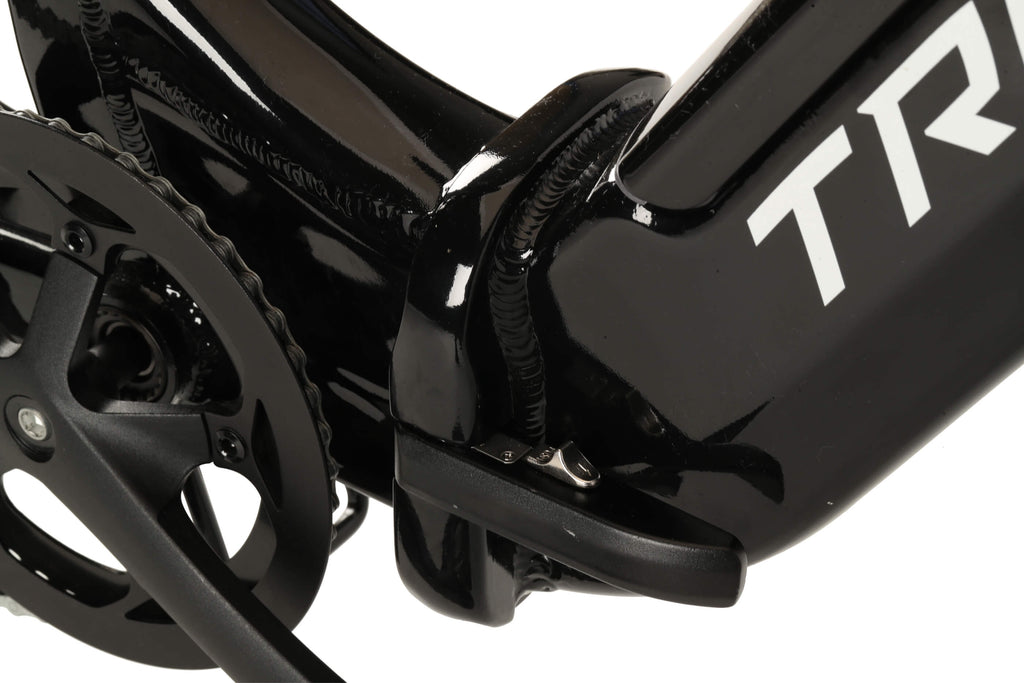

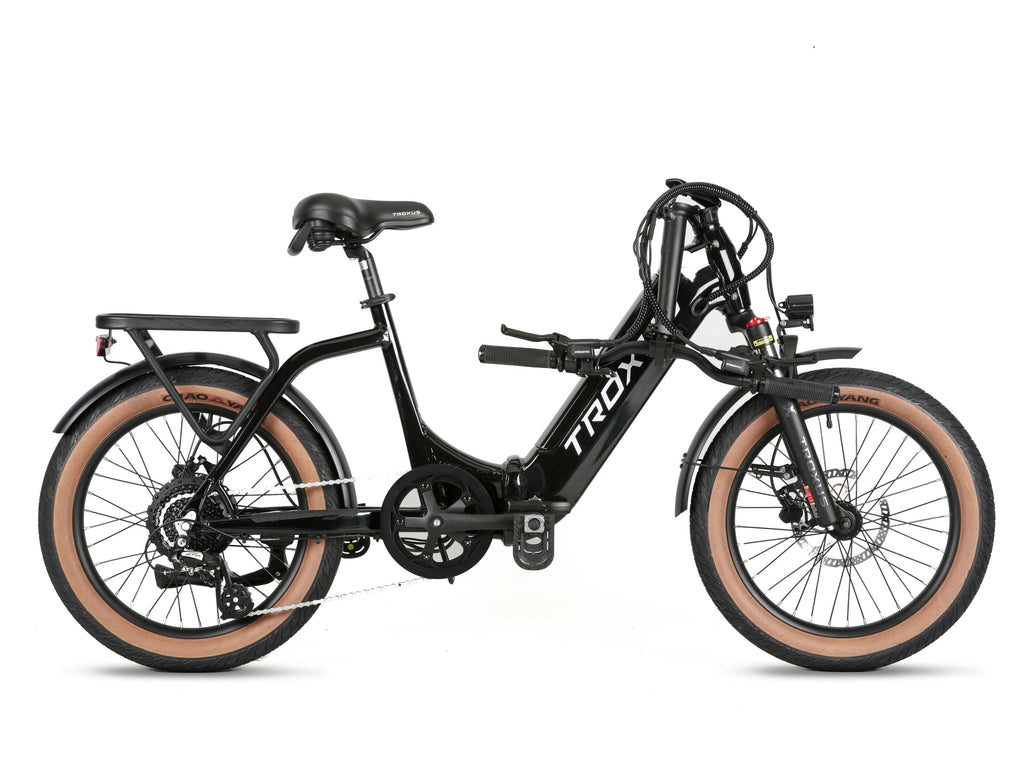

Engineered for easy mobility, this e-bike folds down instantly, making it remarkably lightweight and simple to lift and load. Your journey starts wherever you park.

That feeling of cruising past traffic and heading straight into the sunset. The Troxus E-Bike is designed for the urban rider, offering powerful assistance and effortless style. Grab your helmet, hop on, and let the good times roll.

Motor: Jiabo® 48V/500W Hub-Drive Motor, 65 Nm Max. Torque
Battery: UL-2771 Certified / Internal / Removable / Lithium Ion
Standard: 48V/10Ah(480Wh) w/ Samsung Cells Option: 15Ah(720Wh) model
Controller: 48V×18A/12V

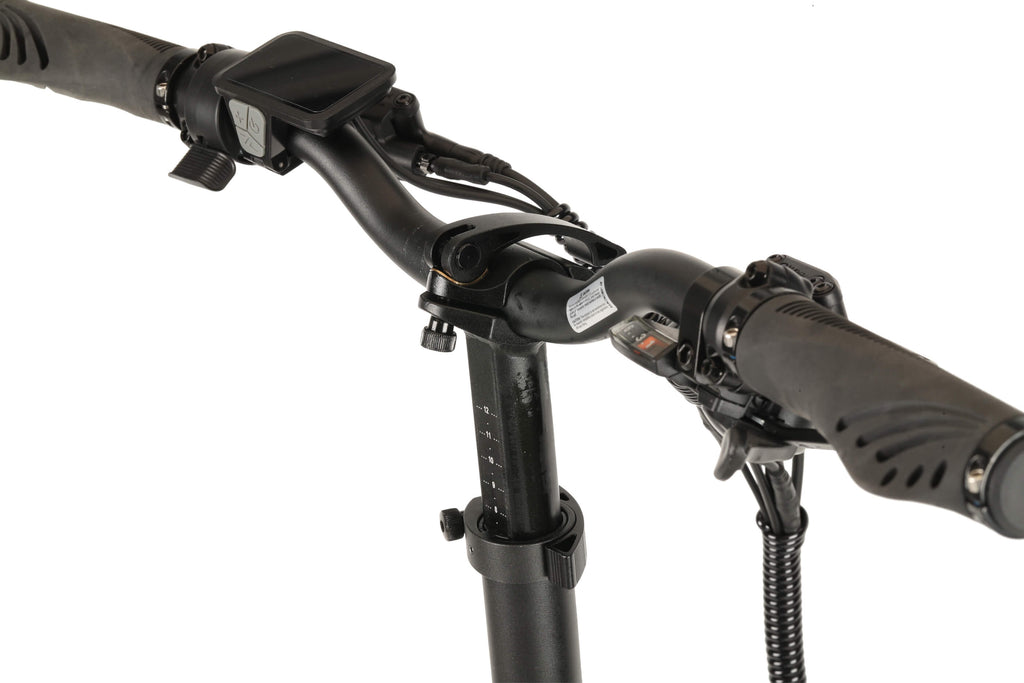

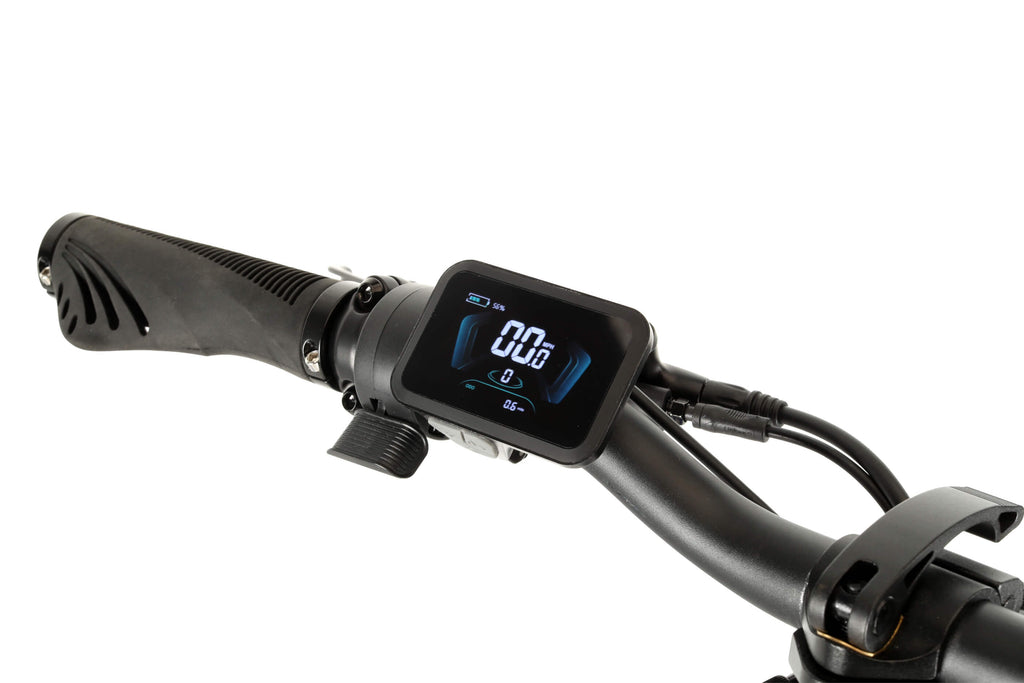

Display: Color Display, w/ Multi-Function Remote
Throttle: Thumb Throttle on Handlebar
Sensor: Cadence
Pedal Assist: 0~5 Level Pedal Assist
Charger: 2A/100−240V Input / 54.6V Output
Lights: Front & Rear Lights
Frame: 6061-T6 Aluminum Folding Step-Thru Frame
Fork: Front Suspension Fork, 50mm Travel
Tires: 20in×3.0in
Rims: Alloy Double Wall, 20in×3.0in

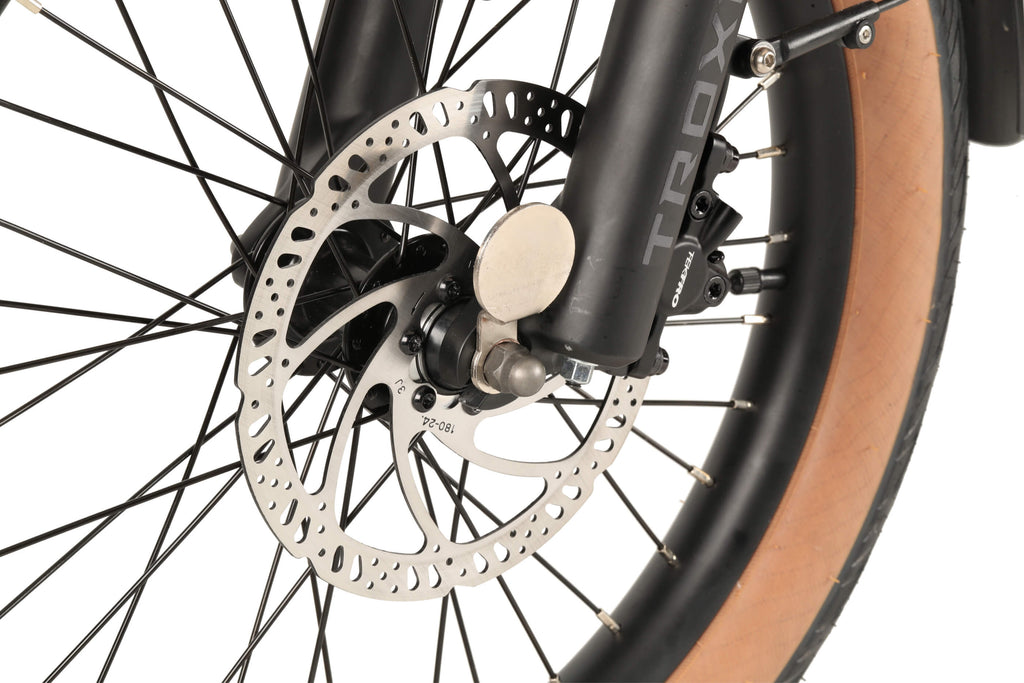

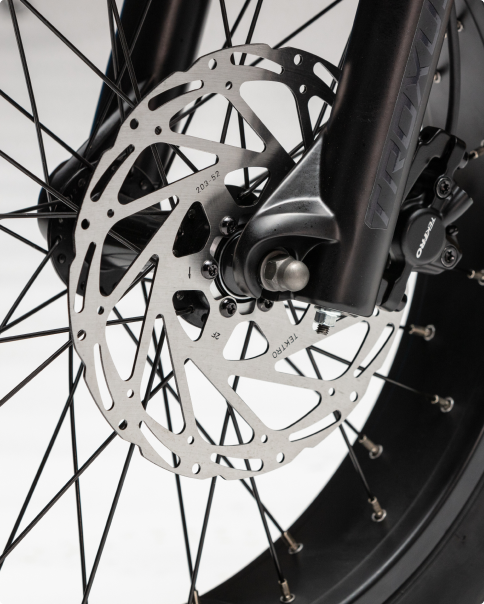

Brakes: Tektro® Hydraulic, w/ Brake Sensors Rotors: 180mm/160mm

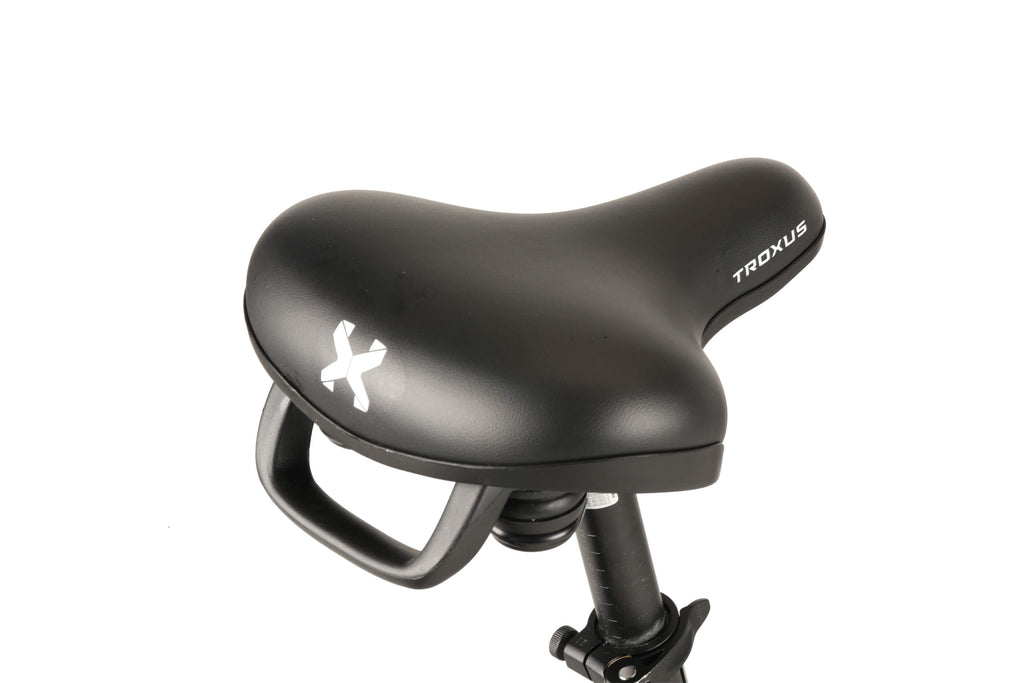

Saddle: Troxus Comfort w/ Back Handle
Seat Post: Alloy, 28.6×400mm, Adjustable
Handlebar: Alloy 6061-T6, 50mm Rise, 25.4mm×620mm Wide, 6 deg Backsweep

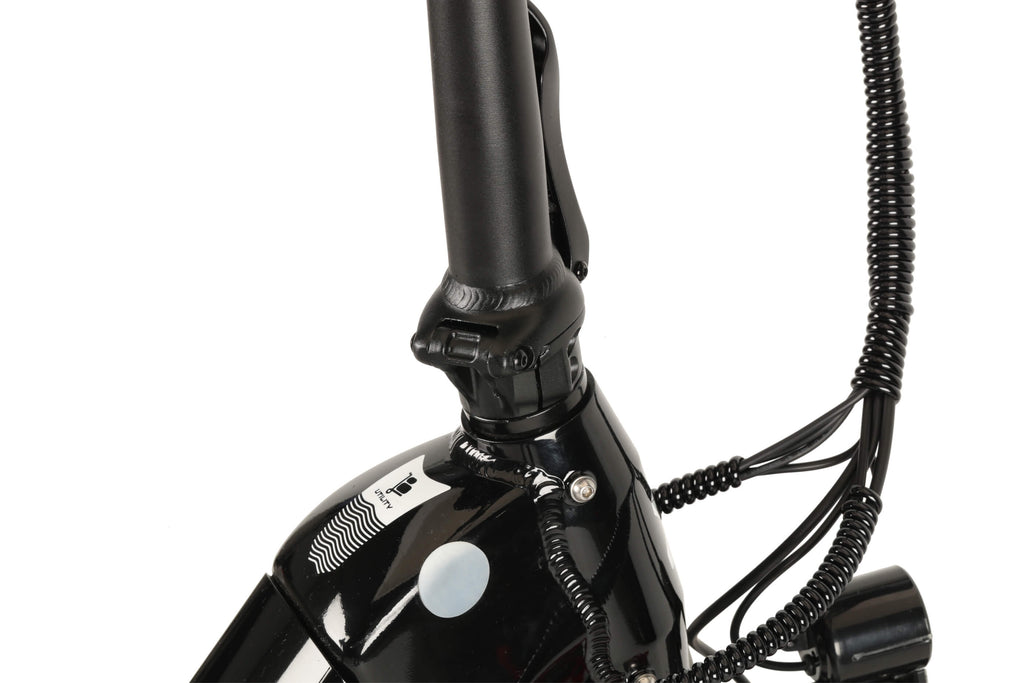

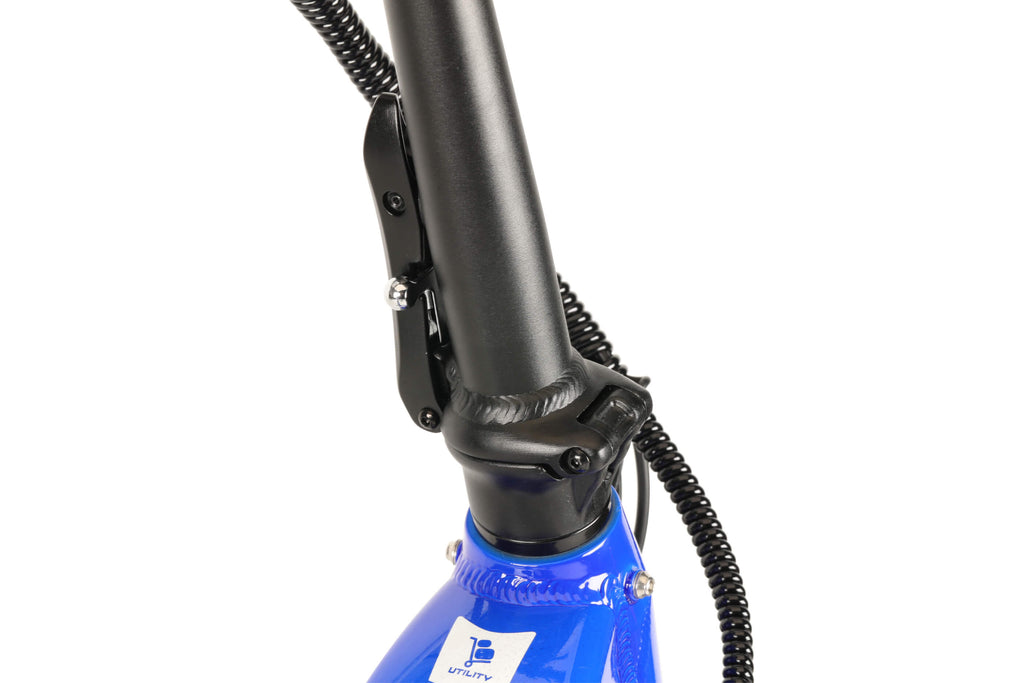

Stem: Foldable w/ QR Lock, Upper: 200mm, Lower: 240mm, Bar-bore 25.4mm

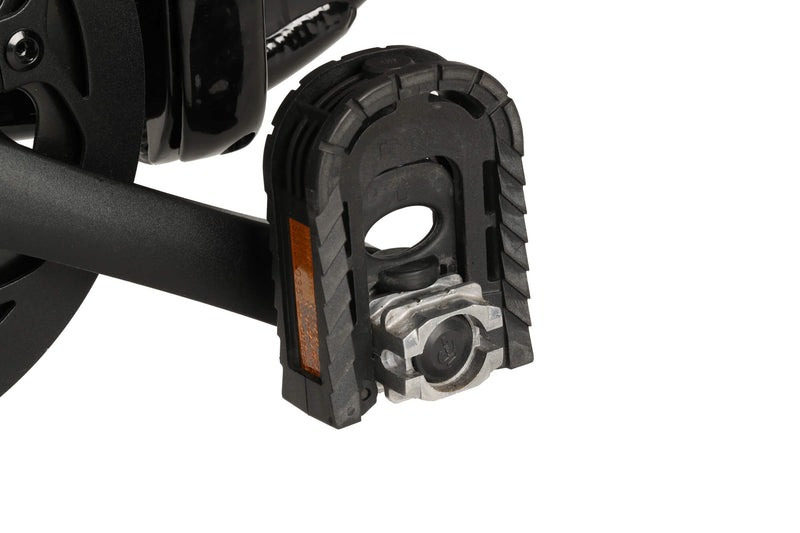

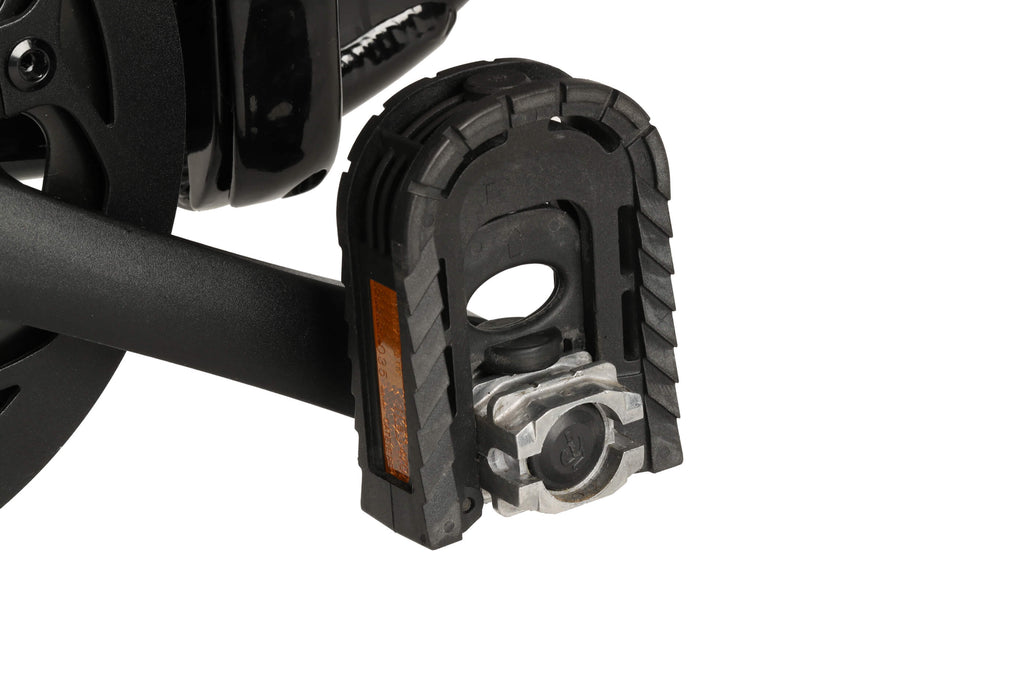

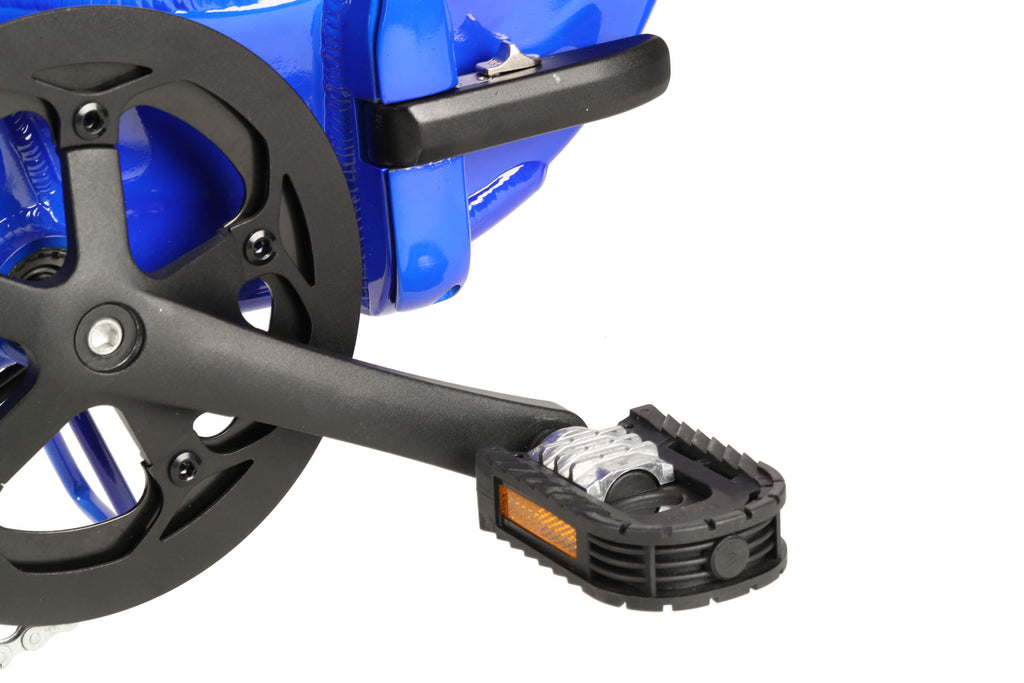

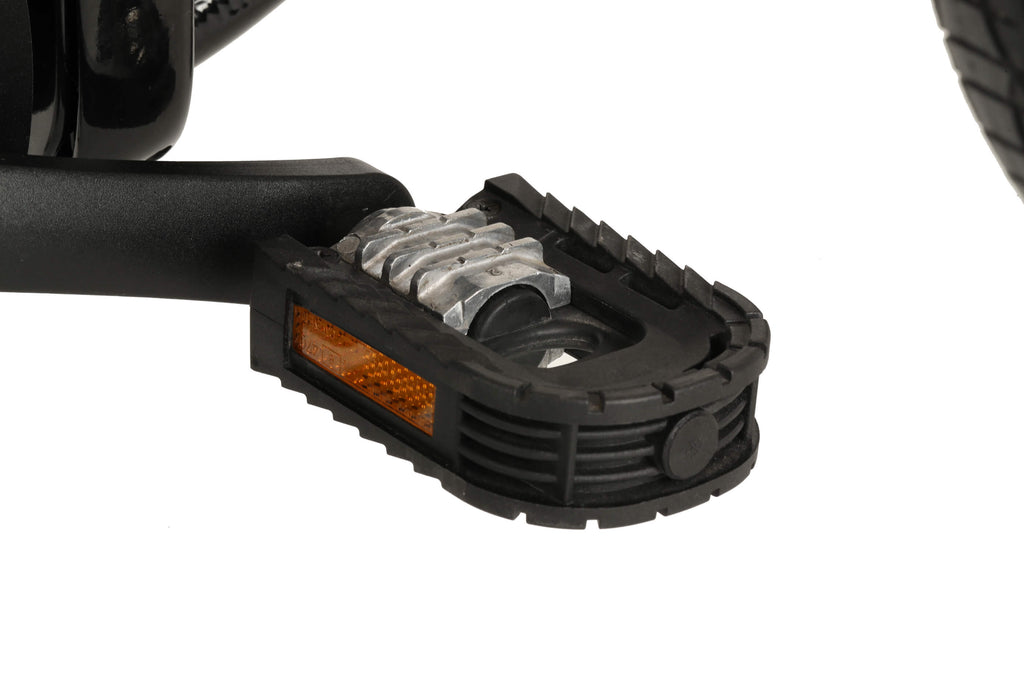

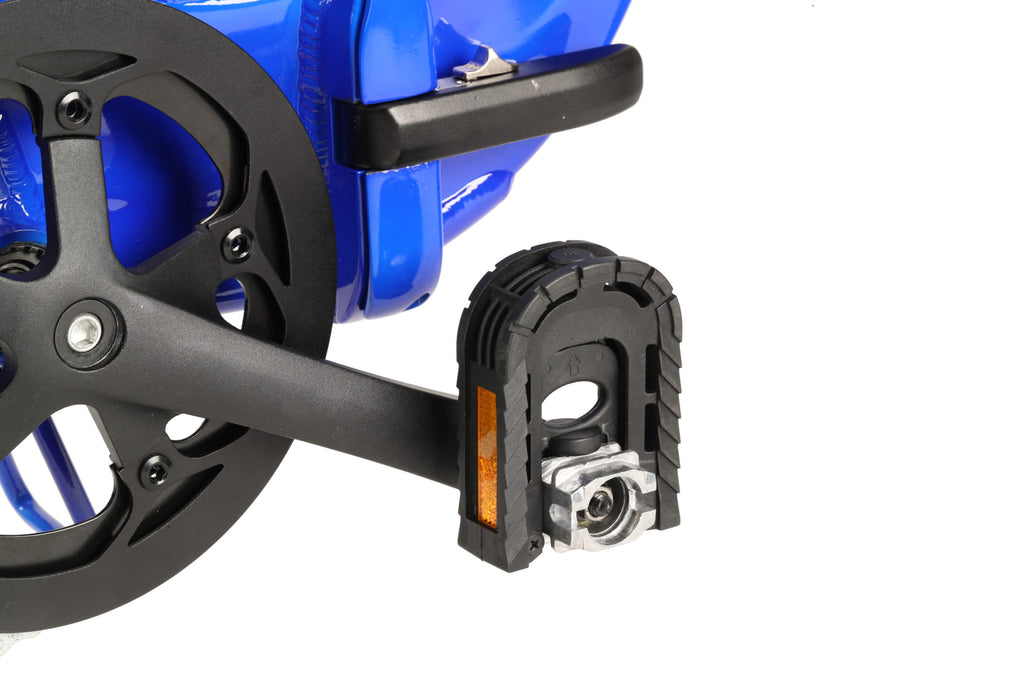

Pedals: Folding, 9/16in Alloy Platform with Reflectors
Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
Shifter: Shimano® 8-Speed
Cassette: Shimano® 8-Speed, 12-32T
Crankset: Prowheel Aluminum, 46T, w/ Alloy Outer Chainguard, Square Taper, 165mm
Chain: KMC® 1/2in×3/32in
Bottom Bracket Set: Square Taper, Sealed Bearings
Hubs:Front: Alloy, 36H, 110mm, 3/8in Axle Rear: Jiabo® 48V500W
Max Speed: Up To 20 MPH
Range (Estimated): 10 Ah: Up To 45 Miles Per Charge
Net Weight: 62 lbs
Weight Limit (Maximum Load): 300 lbs
Rack: Semi-Integrated Alloy Rear Model
Fenders: Plastic, 20in×3.0in w/ Alloy Hardware
Kickstand: Adjustable Side Kickstand
Packaged: All listed accessories are included.
