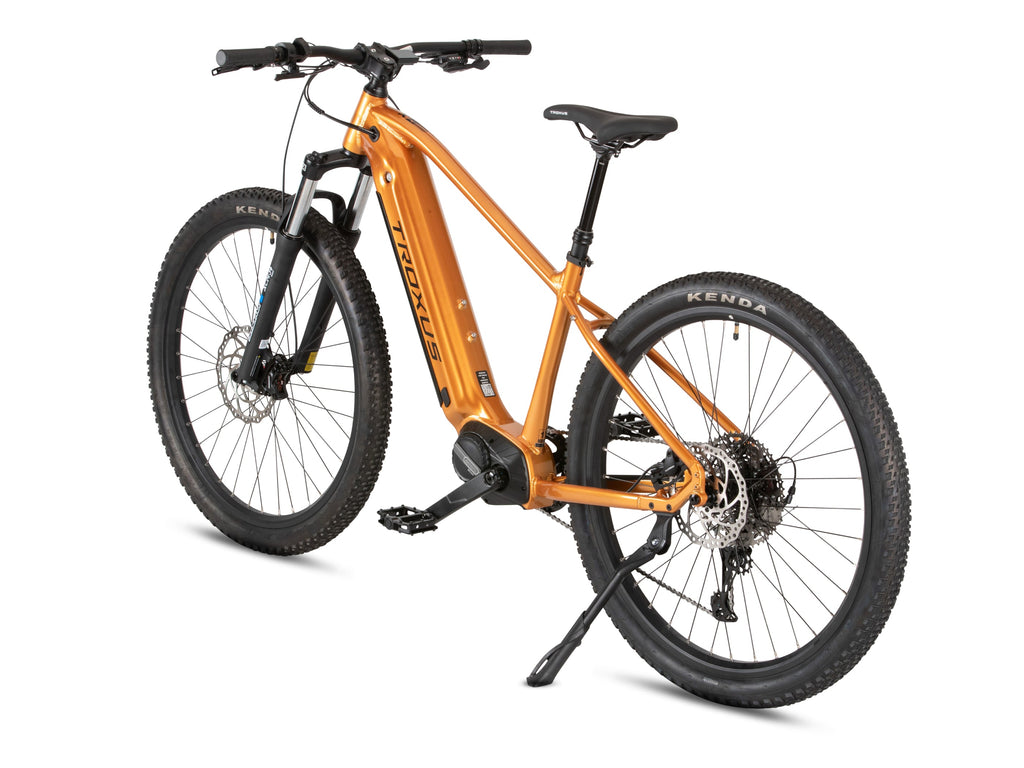

Troxus 500W T-XC Electric Bike

TroxusSKU: EB-TX-TXC-BORG-S


Color: Burnt Orange
Frame Size: Small
Price:
Sale price$3,299

    Motor Size:

    Bafang® 500W

    Battery:

    48V 15Ah SAMSUNG® Cells

    Drive Mode:

    Class II

    Frame Type:

    Trail-Ready 6061 Aluminum

    Wheel Size:

    KENDA® MTB Booster 29"x2.4"

    Motor Position:

    Mid Drive

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects

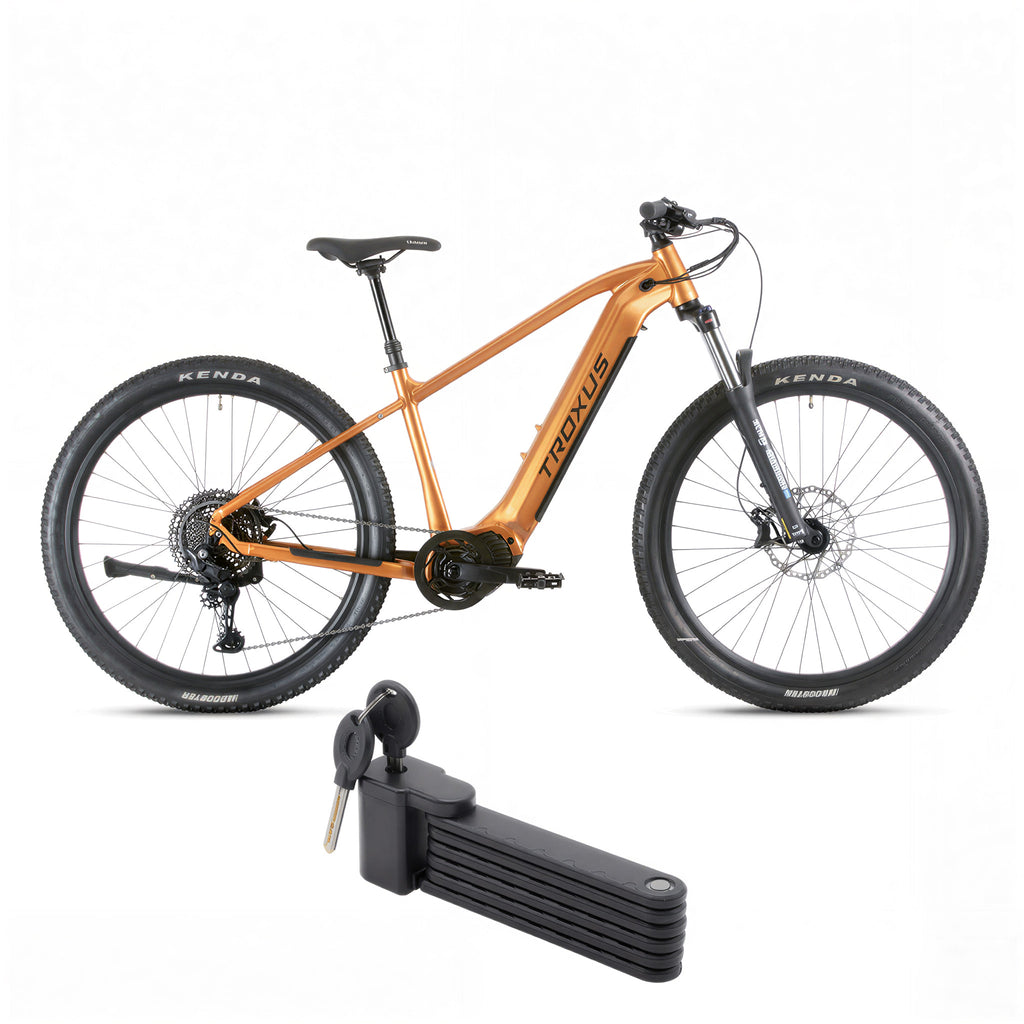

    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Troxus 500W T-XC Electric Bike ($84.95 value!)

    The Troxus T-XC E-Bike is a playful and highly capable mountain hardtail designed for serious off-road adventures. It is powered by a robust Bafang 500W mid-drive motor, which delivers an impressive 130Nm of maximum torque to confidently conquer the steepest climbs. Paired with a high-capacity 48V/15Ah (720Wh) UL-certified battery featuring premium Samsung cells, the T-XC offers an exceptional range of up to 60 miles per charge, allowing riders to explore their favorite trails and outdoor playgrounds farther and faster.

    Nimble, Fun, And Reliable

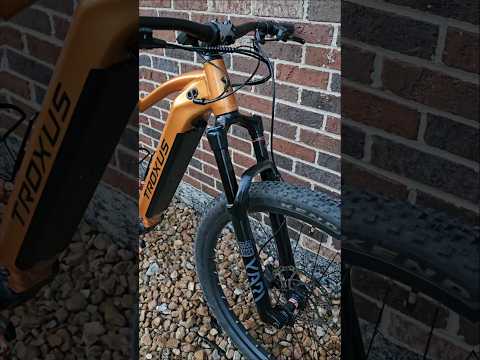

    6061 hand-crafted trail-ready aluminum frame with SR® XCM-34 120mm coil fork with lock out.

    Smooth Power For Maximum Adventure

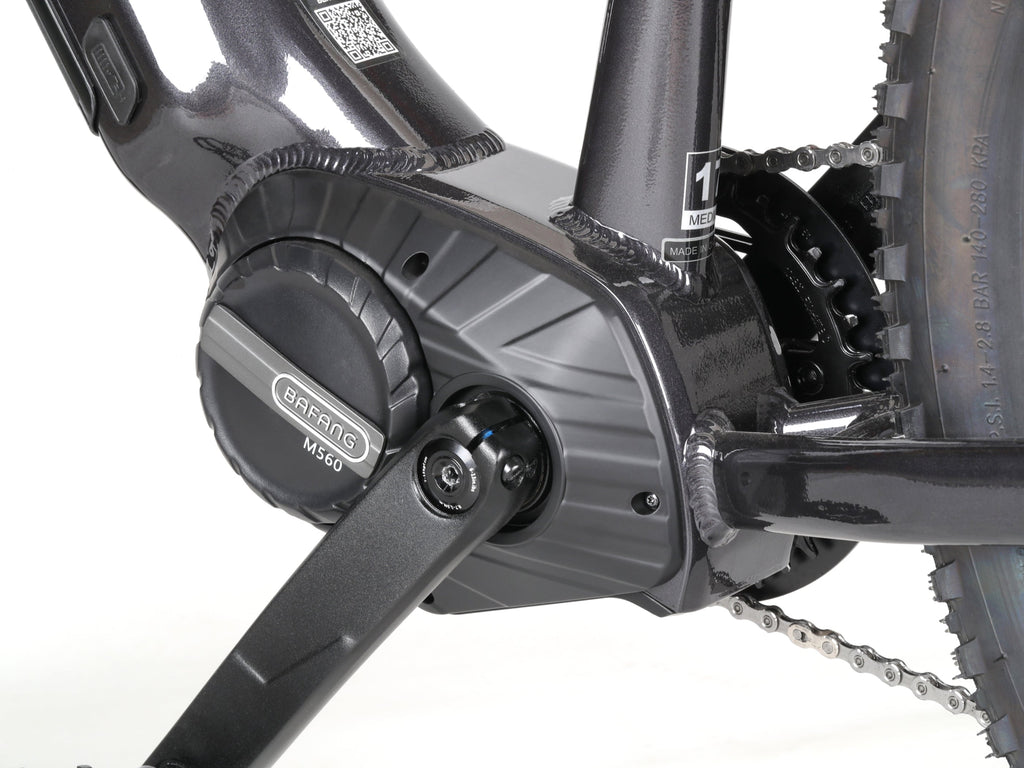

    Bafang® 500 watt mid-drive motor, with 720 Wh (15Ah) UL certified battery, provides intuitive pedal assistance with all day range, and a 130Nm peak torque to get you up the steepest climbs.

    Easy Adaptability For All Rides

    Class 1 basic specs allow legal access to your favorite trails, and the optional thumb throttle (Class 2) allows you to just sit back and cruise everywhere else.

    Never Miss A Shift

    Shimano® CUES E-bike specific 11-speed wide range drivetrain for smooth shifting and gearing for all of your needs.

    Experience the ultimate blend of power and agility

    It features a 6061 hand-crafted trail-ready aluminum frame paired with the SR® XCM-34 120mm coil fork with lock out for excellent control. Ride smoothly over obstacles, as the KENDA® MTB Booster 29"x2.4" tires feature big wheels that roll over rough terrain easily and grip loose terrain like Velcro!

    Specifications:

    Motor: Bafang® 48V/500W Mid-Motor
    Max Torque: 130Nm
    Battery (UL-2771 Certified): Internal / Removable / Lithium Ion
    Capacity: 48V/15Ah (720Wh) with Samsung® Cells

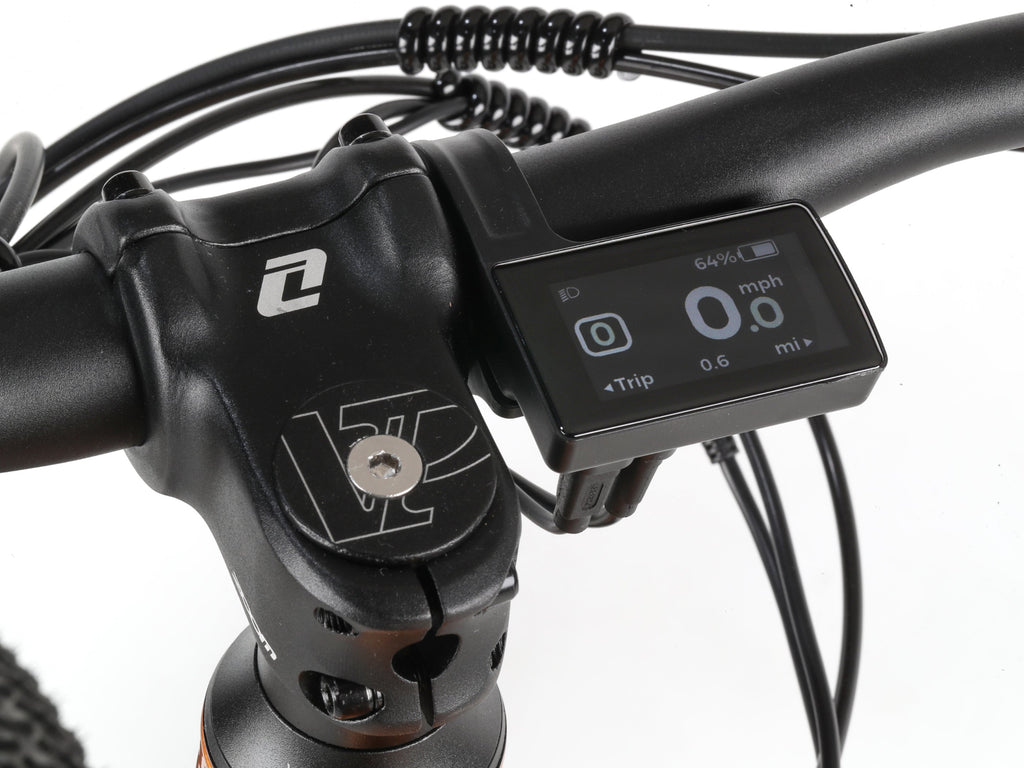

    Display: Bafang® Color Display
    Features Bluetooth and a Multi-Function Remote

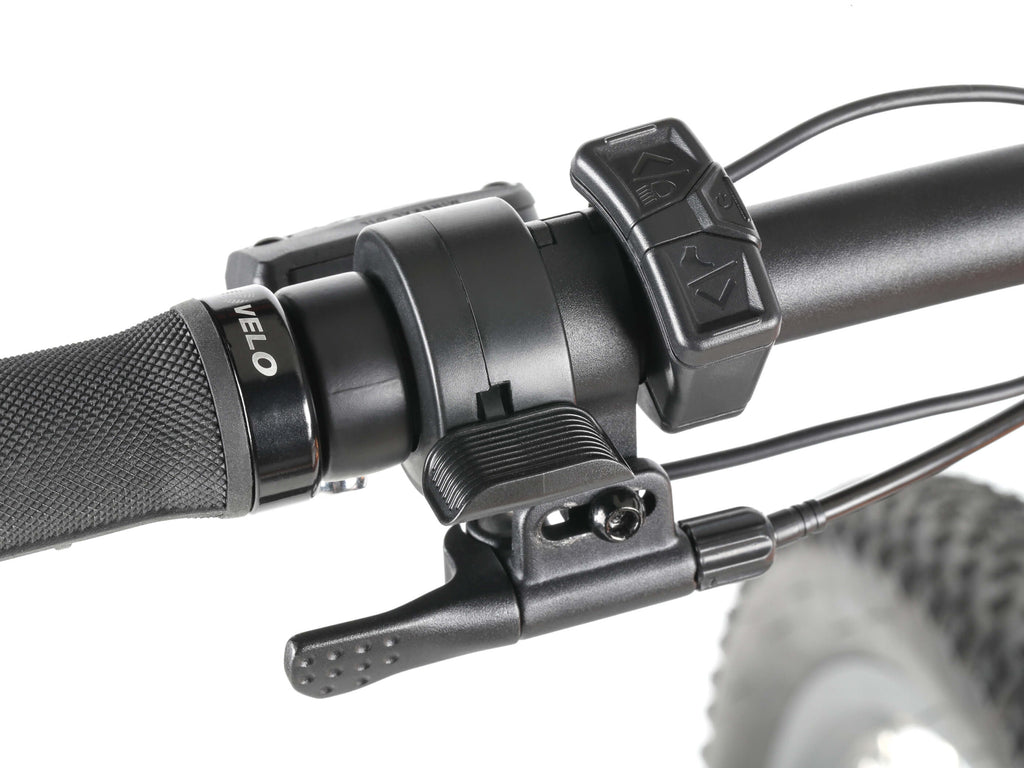

    Throttle: Optional Thumb Throttle (on Handlebar)
    Sensor: Torque & Cadence Sensors (integrated into Mid-Motor)
    Pedal Assist: 5 Levels (Eco, Tour, Sport, Sport +, Boost)
    Charger: 3A / 100-240V Input / 54.6V Output
    Controller: Located Inside the Motor
    Frame: Aluminum Frame
    Fork: Suntour® XCM 34 Suspension Fork
    Travel: 120mm
    Axle: 15mm Thru-Axle
    Chain: Shimano® 11-Speed
    Crankset: Aluminum, Bafang® 36T
    Details: Single Alloy Chainguard, Square Taper, 170mm
    Rear Derailleur: Shimano® CUES, SGS, 11-Speed
    Cassette: Shimano® 11-Speed, 11-50T
    Shifter: Shimano® CUES 11-Speed
    Bottom Bracket: Included In Motor
    Tires: KENDA® MTB Booster 29"x2.4"
    Front Hub: Novatech, Sealed Bearing, Thru-Axle 15mm, 36H, Boost 110mm
    Rear Hub: Novatech, Sealed Bearing, Thru-Axle 12mm, 36H, Boost 148mm
    Rims: Alloy, Double Wall, 30mm Inner Width, 36H
    Spokes: Stainless 13G
    Brakes: Tektro® Hydraulic, w/ Brake Sensors
    Rotors: 203mm (Front) / 180mm (Rear)


    Built on a trail-ready 6061 aluminum frame, the T-XC features top-tier components for a smooth and reliable ride. Handling is managed by a 120mm Suntour XCM-34 suspension fork and an included Zoom dropper post for technical descents and aggressive riding. Stopping power is incredible, thanks to the Tektro HD-M530 hydraulic disc brakes with large 203mm/180mm rotors. The e-bike specific Shimano CUES 11-speed drivetrain provides wide-range gearing and reliable shifting, making the T-XC a complete package ready for any mountain challenge.
