TroxusSKU: EB-TX-TRAX-SLS-WHT

FREE SHIPPING to Continental US
$375 Flat shipping to Hawaii and Alaska (Click Here)
Color: Radiant White
Frame: S - Low Step
Price:
$3,299

    Motor Size:

    Bafang® 500W

    Battery:

    SAMSUNG® Cells 48V 15Ah

    Drive Mode:

    Class II

    Frame Type:

    Aluminum Frame

    Wheel Size:

    KENDA® 27.5" x 2.2"

    Motor Position:

    Mid Drive

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects

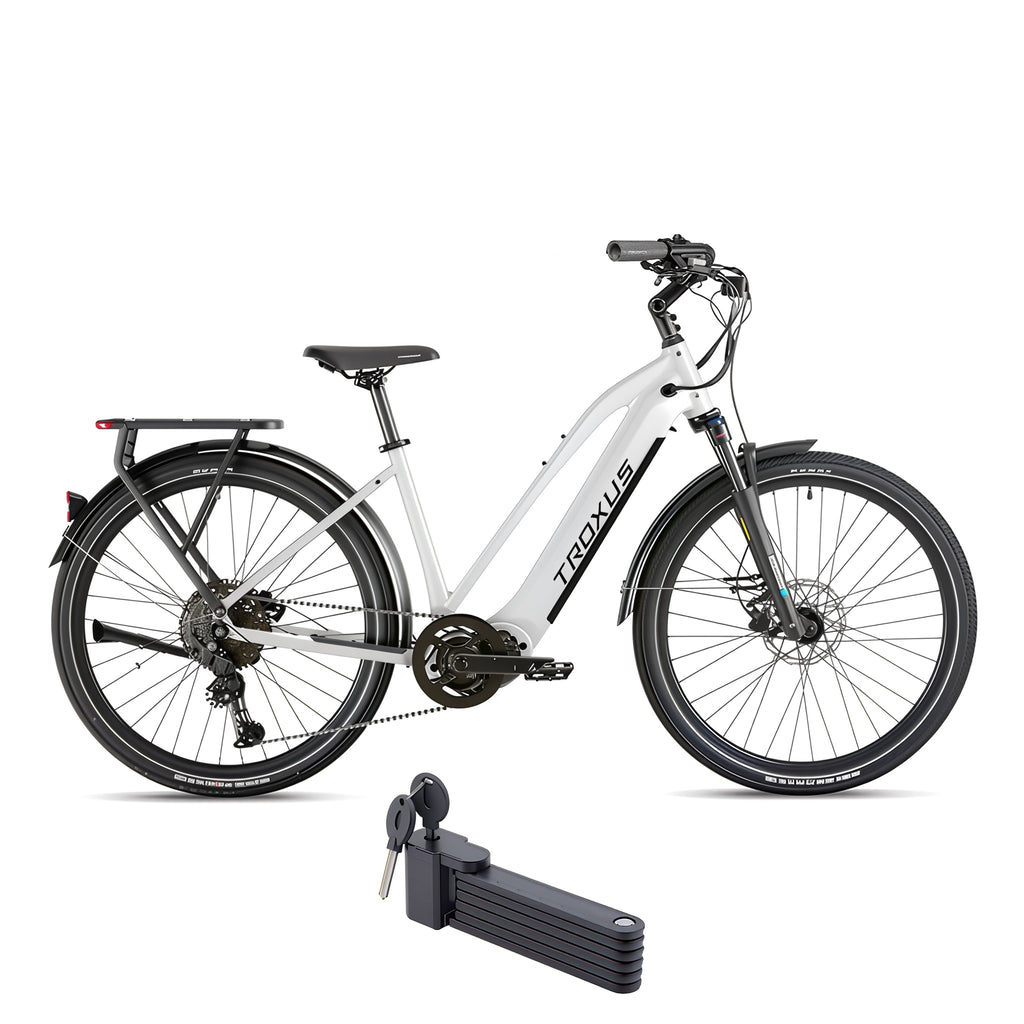

    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Troxus 500W Trax Mid-Drive Electric Bike ($84.95 value!)

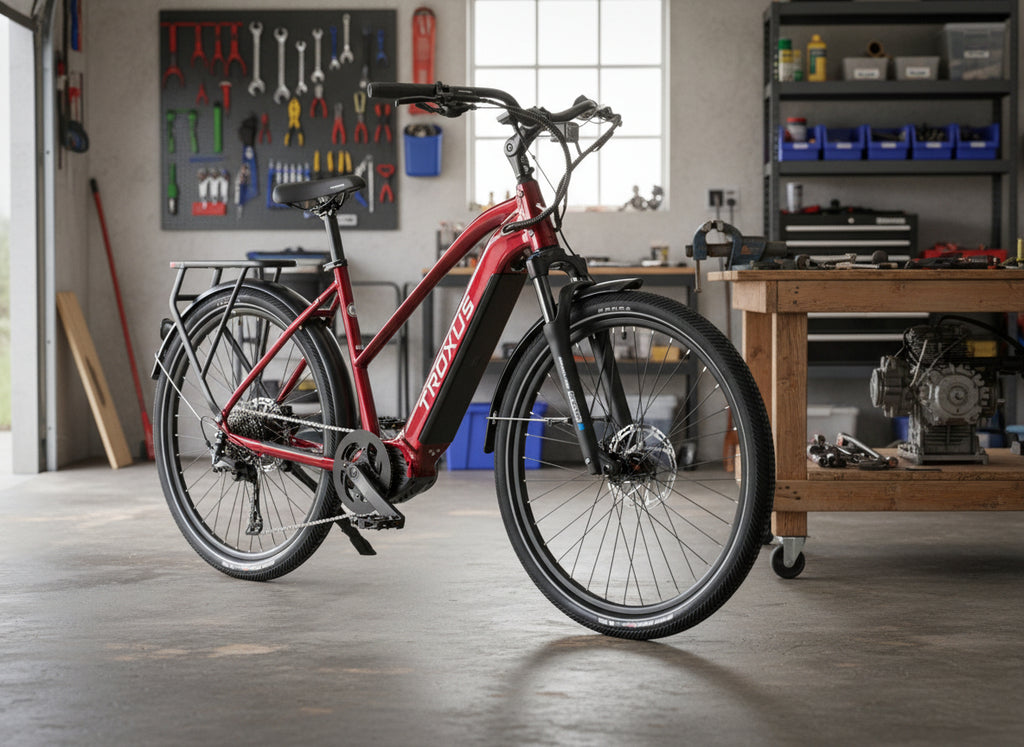

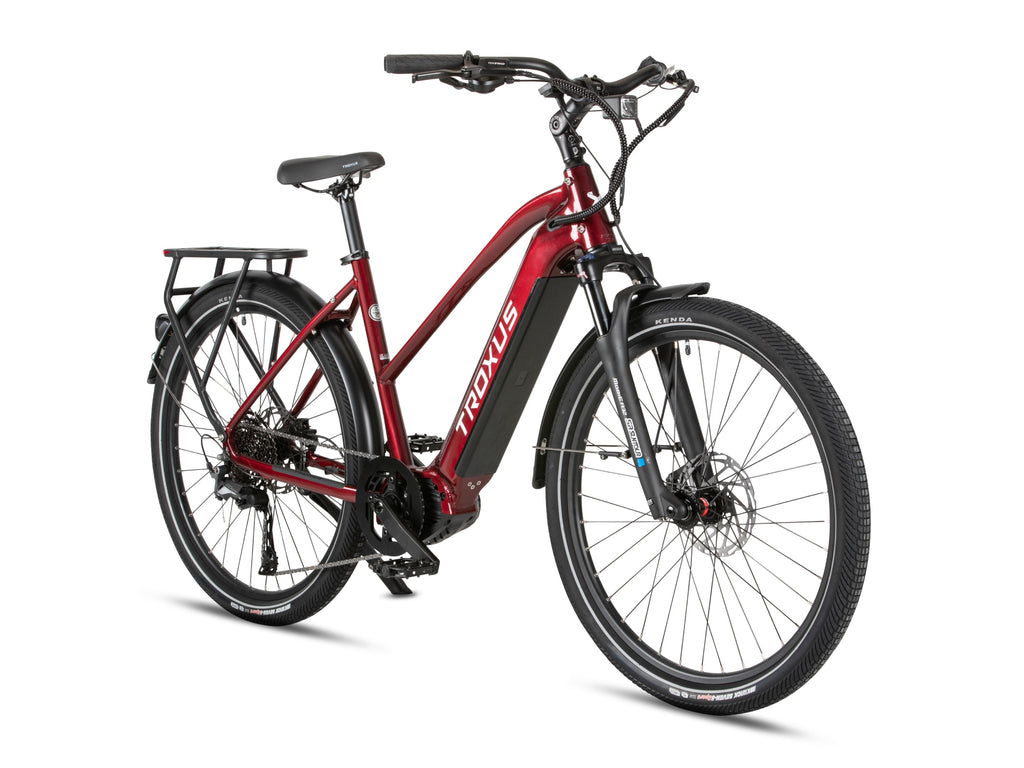

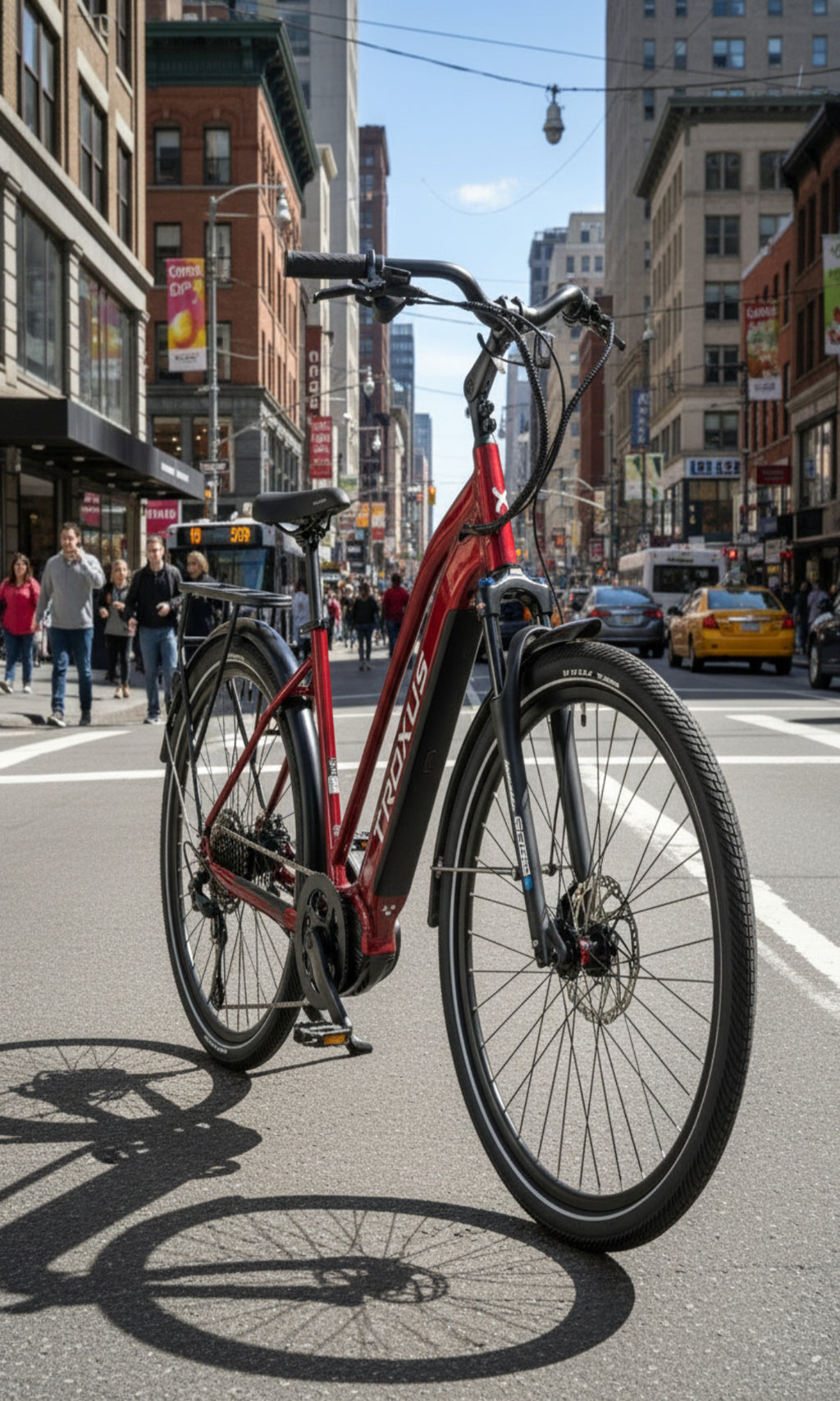

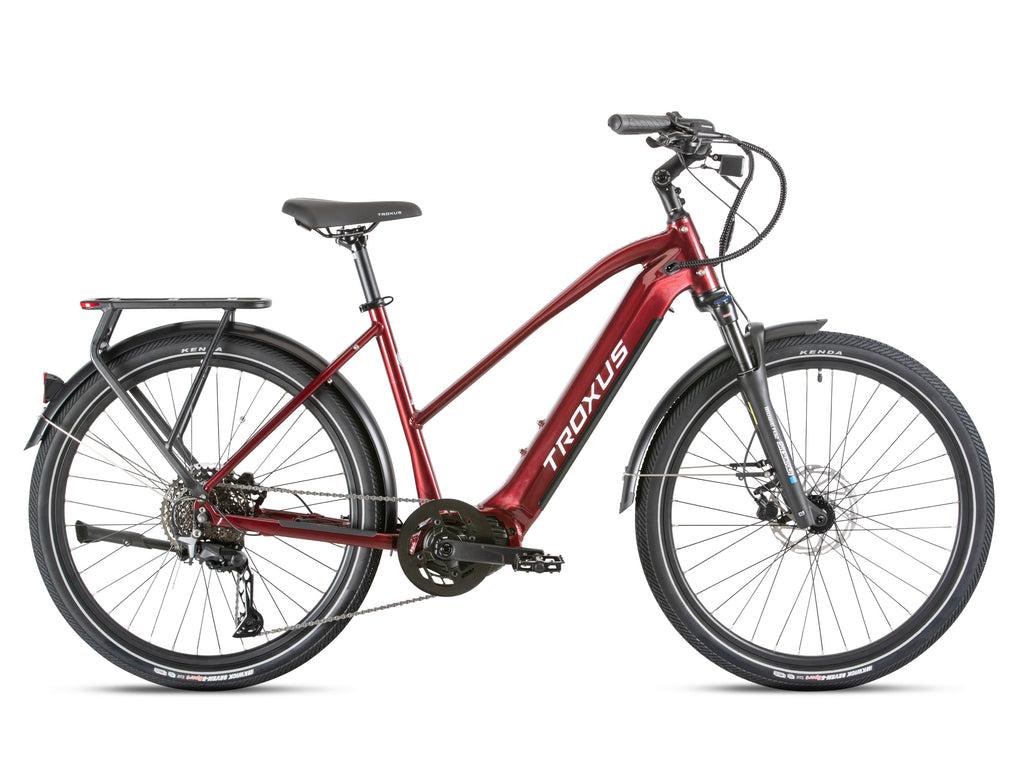

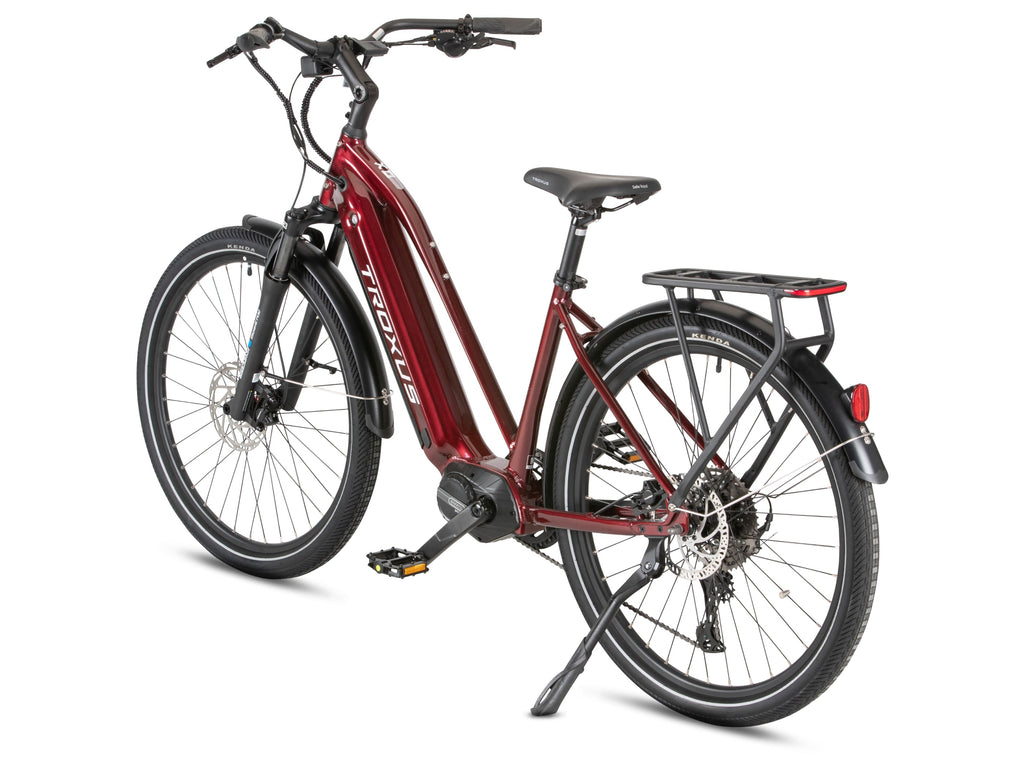

    The Troxus Trax Mid-Drive E-Bike is a premium commuter designed for a refined, efficient, and comfortable riding experience, capable of reaching speeds up to 28 MPH (Class 3) via pedal assist. It features a powerful and efficient 500W Bafang Mid-Motor that delivers an impressive 130Nm of maximum torque, coupled with both torque and cadence sensors for intuitive and natural power assistance. This lightweight model, weighing just 61 lbs, is built around a stylish 6061 Aluminum Frame, available in both Low-Step and Mid-Step options, making it accessible and comfortable for a wide range of riders.

    Power, Safety, And Range

    Features an efficient 500W Bafang Mid-Motor delivering high torque (130Nm) for superior climbing and power transfer

    Speed & Range:

    Capable of Up To 28 MPH (Pedal Assist) and offers a range of Up To 60 Miles per charge from its 720Wh battery.

    The Trax Mid-Drive delivers an amazing ride feel, with increased efficiency from the powerful 500W Bafang® motor. Coupled with the 15Ah / 750Wh battery, smooth rolling Kenda® tires, light fenders and a stylish rear rack, the Trax Mid-Drive over delivers while remaining impressively light at 61 lbs. Packed with features, such as a throttle for easy-going rides, it's the perfect bike for dedicated commuters looking for a more refined feel.

    E-Bike Specific Drivetrain

    Utilizes a reliable Shimano CUES 11-Speed system designed for flawless shifting under power.

    All-Day Comfort

    Includes a Suntour Mobie 32 Suspension Fork (75mm), adjustable stem, and ergonomic comfort grips.

    6061 Aluminum Frame With Clean Smooth Welds

    Low-step and mid-step frame options to fit different rider sizes and needs.

    Intuitive Sensing

    Equipped with both Torque & Cadence Sensors integrated into the mid-motor for a natural, responsive ride feel.

    Secure Stopping

    Fitted with high-performance Tektro Hydraulic Disc Brakes (180mm rotors) and safety-focused integrated lights.

    Specifications:

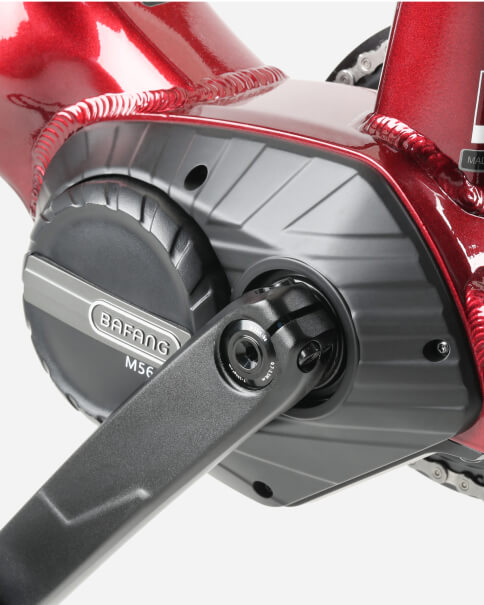

    Motor: Bafang® 48V/500W Mid-Motor, 130Nm Max. Torque

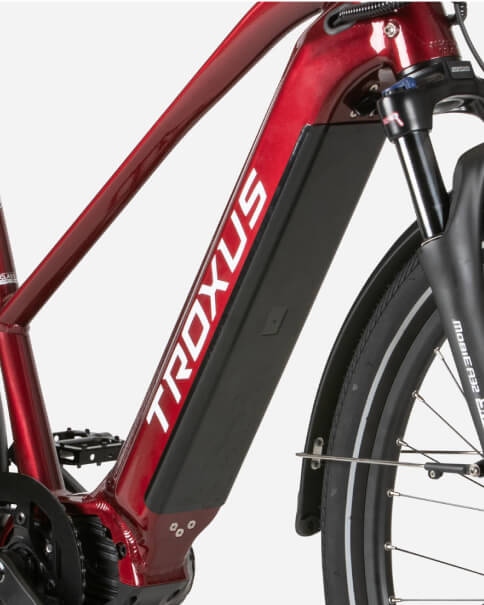

    Battery: UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells

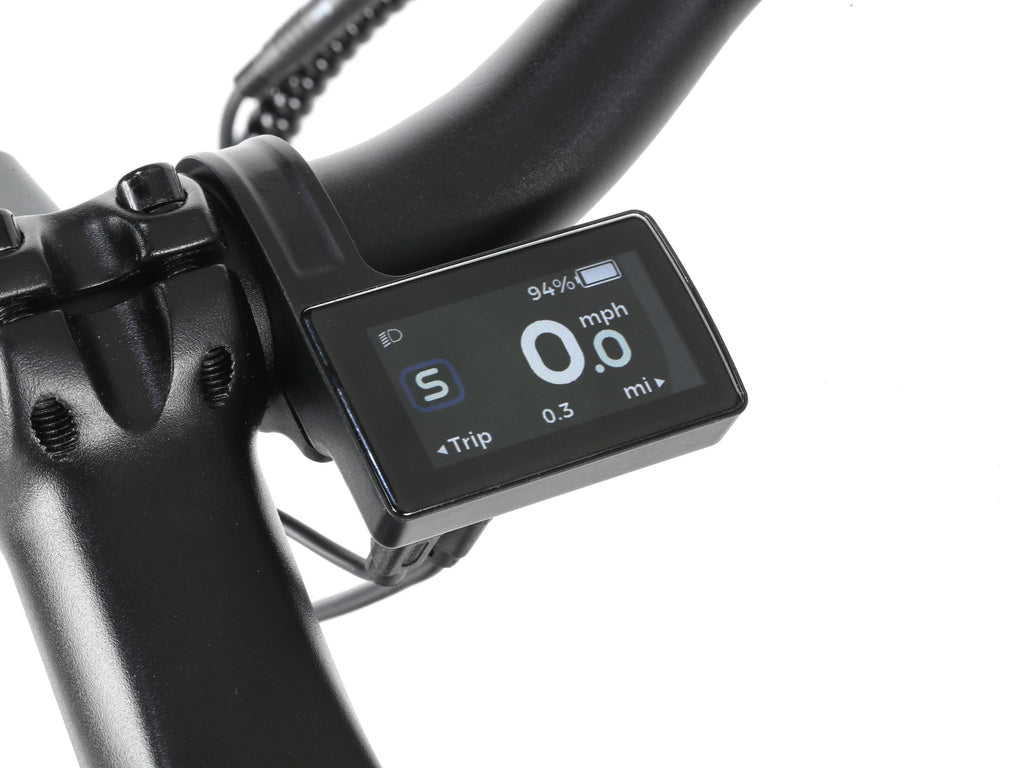

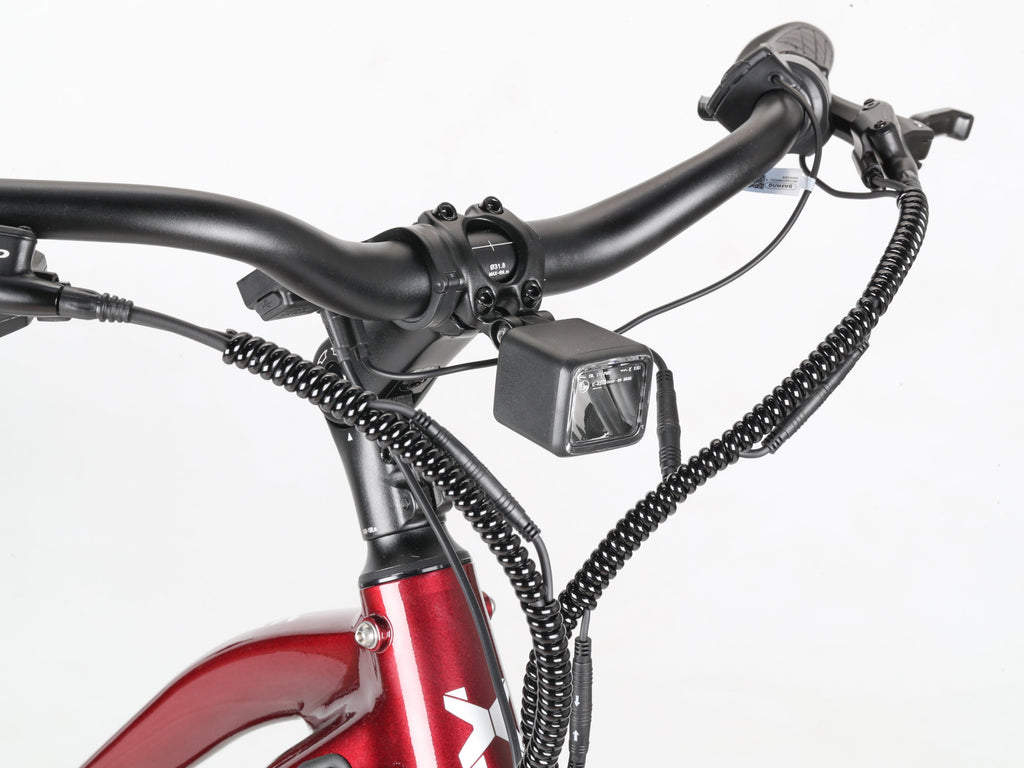

    Display: Bafang® Color Display, Bluetooth, w/ Multi-Function Remote
    Throttle: Thumb Throttle on Handlebar
    Sensor: Torque & Cadence Sensors included In Mid-Motor
    Pedal Assist: 5-Level Pedal Assist (Eco, Tour, Sport, Sport +, Boost)
    Charger: 3A / 100-240V Input / 54.6V Output
    Lights: 80 Lux Front Light & Rear Light
    Controller: Inside Motor
    Frame: Aluminum Frame

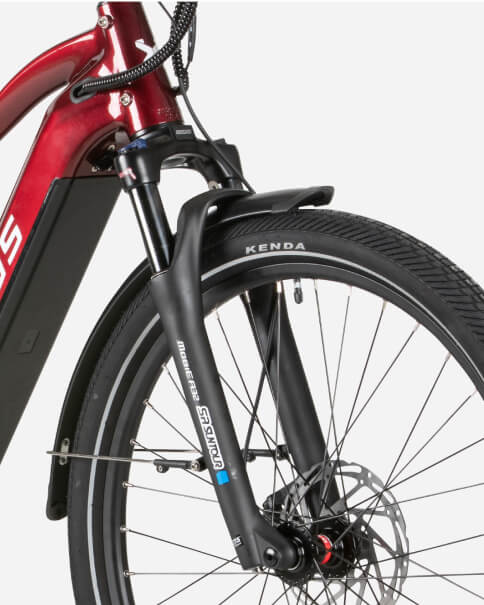

    Fork: Suntour® Mobie 32 Suspension Fork, 75mm Travel, 15mm Thru-Axle
    Chain: Shimano® 11-Speed

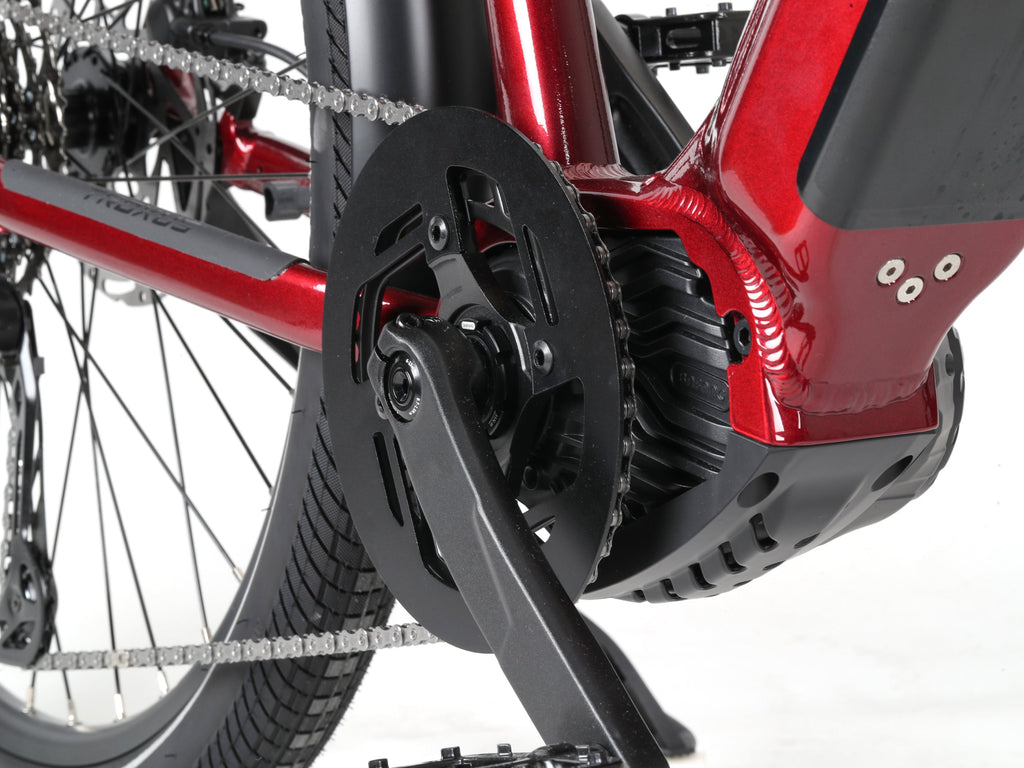

    Crankset: Aluminum, Bafang® 42T, w/ Single Alloy Chainguard, Square Taper, 170mm
    Rear Derailleur: Shimano® CUES, GS, 11-Speed
    Cassette: Shimano® 11-Speed,11-45T
    Shifter: Shimano® CUES 11-Speed
    Tires: KENDA® 27.5"x2.2", W/ Reflective Stripes, Puncture-Resistant, E-50 Rated

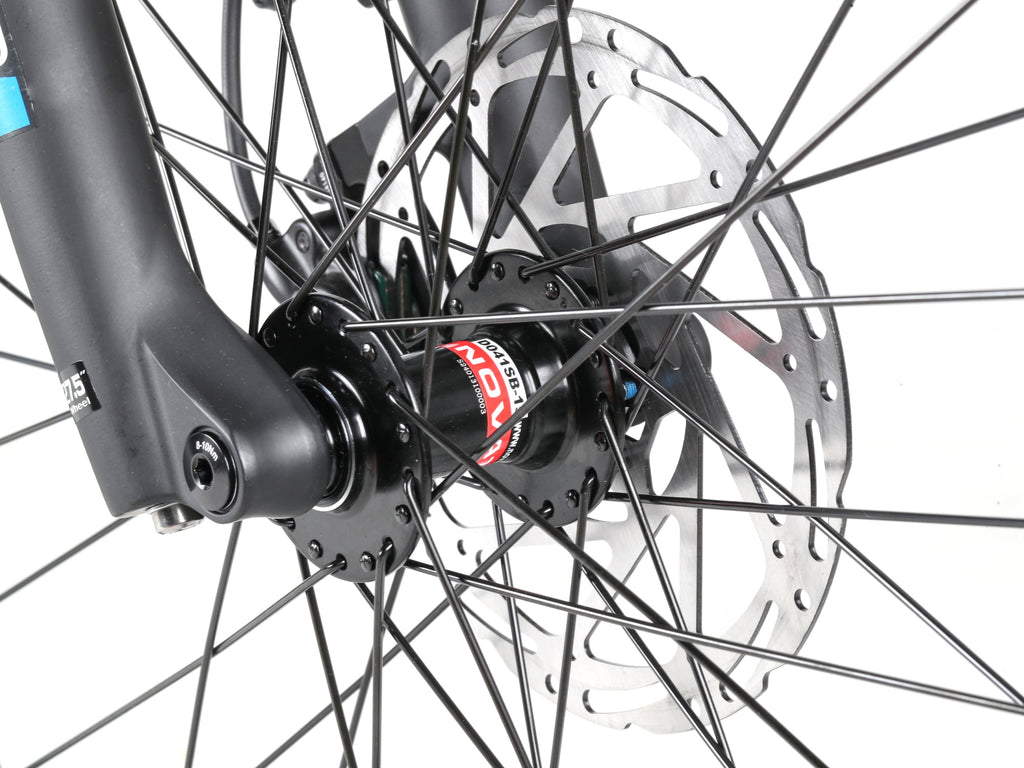

    Front Hub: Sealed Bearing, 100mm, 15mm Thru-Axle, 36H
    Rear Hub: Sealed Bearing, 135mm, 3/8" Axle w/ Nuts, Cassette Body, 36H
    Rims: Alloy, Double Wall, 20mm Inner Width, 36H
    Spokes: Stainless 13G
    Brake: Tektro® Hydraulic, w/ Brake Sensors
    Rotors: 180mm / 180mm
    Saddle: Selle Royal
    Seat Post: Alloy, 30.9x350/400mm, Adjustable
    Seat-Post Clamp: Alloy, 35mm w/ Quick Release
    Stem: Zoom® Alloy, 3D forged, Adjustable, Ext. 90mm
    Handlebar: Zoom® Alloy, 31.8mmx660mm, 35˚ Backsweep

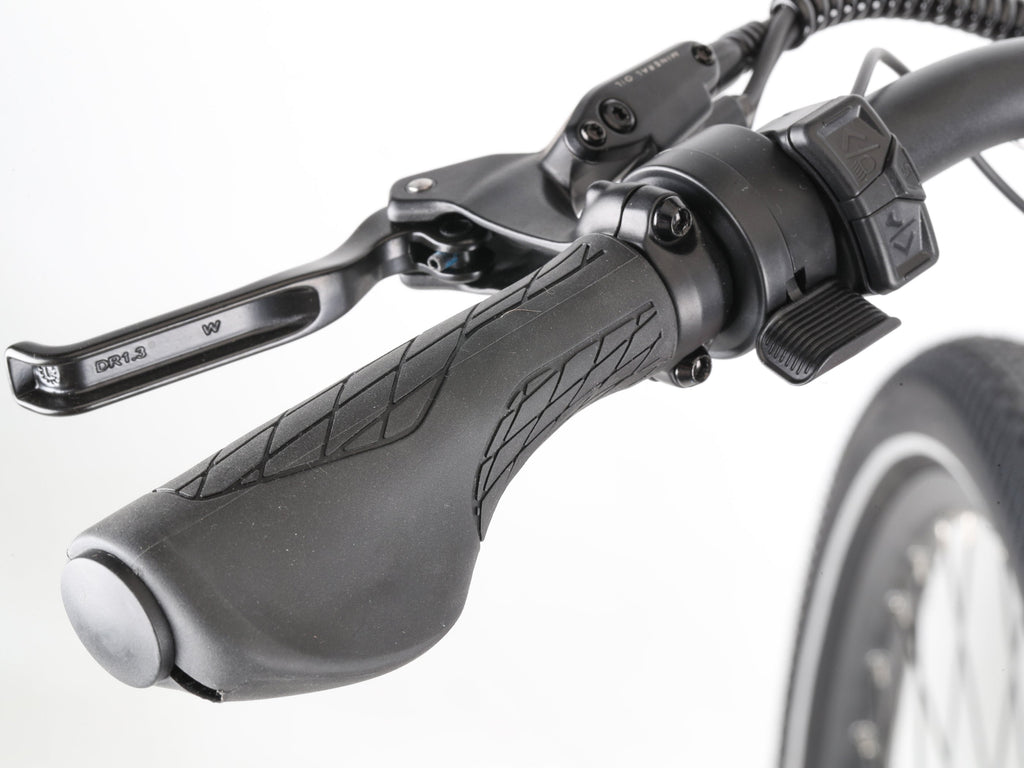

    Grips: Ergonomic Comfort
    Pedals: Aluminum Platform
    Headset: Threadless Internal, Tapered 1.5"
    Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
    Range: Up To 60 Miles Per Charge
    Weight Limit: Maximum Load: 330 lbs
    Net Weight: 61 lbs

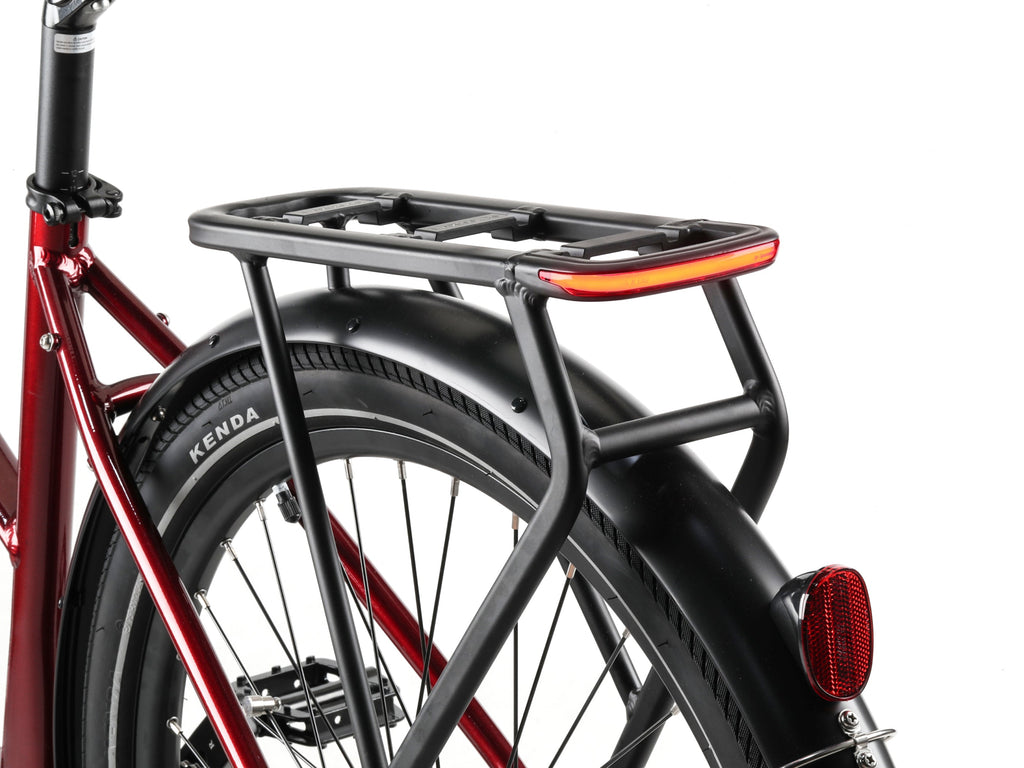

    Rack: Alloy Rear Model
    Fenders: Lightweight / 27.5"
    Kickstand: Adjustable Side Kickstand


    This e-bike ensures all-day capability and control with its robust components. Power is supplied by a UL-2771 Certified 48V/15Ah (720Wh) battery built with Samsung cells, offering a significant range of up to 60 miles per charge. Drivetrain reliability is secured by the Shimano CUES 11-Speed system, which is specifically designed for e-bikes to handle shifting flawlessly even under full power. Comfort is optimized with a Suntour Mobie 32 Suspension Fork with 75mm travel, an adjustable stem, and a plush Selle Royal saddle, while safety is ensured by Tektro Hydraulic Disc Brakes with 180mm rotors and integrated 80 Lux front and rear lights.
