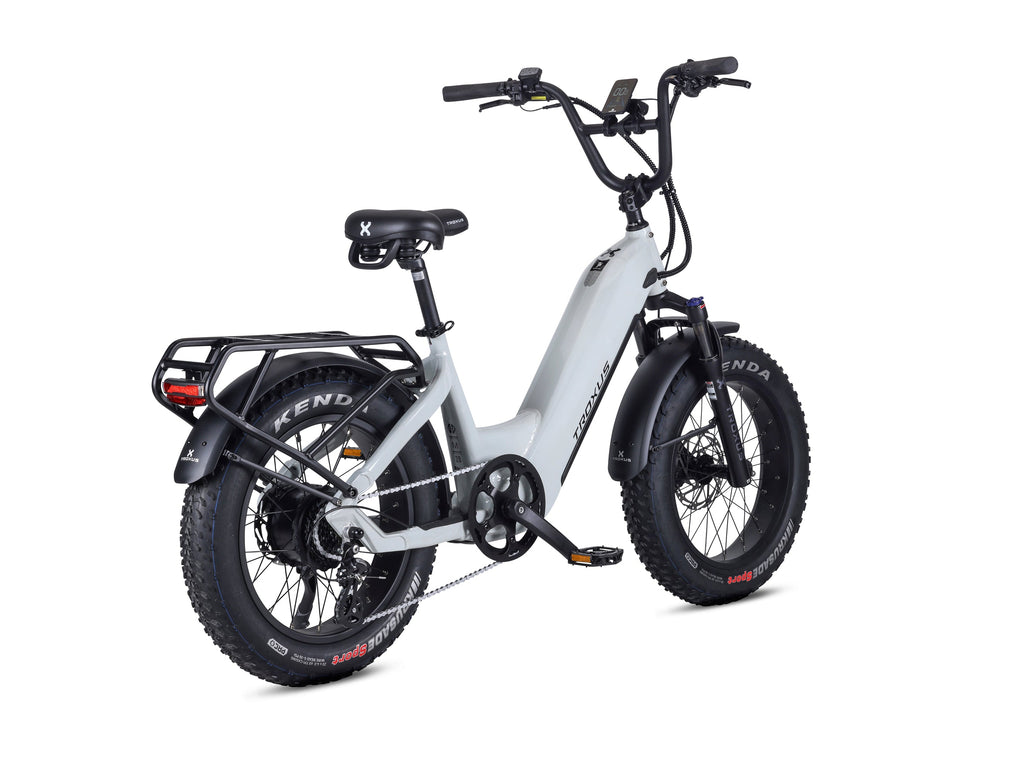

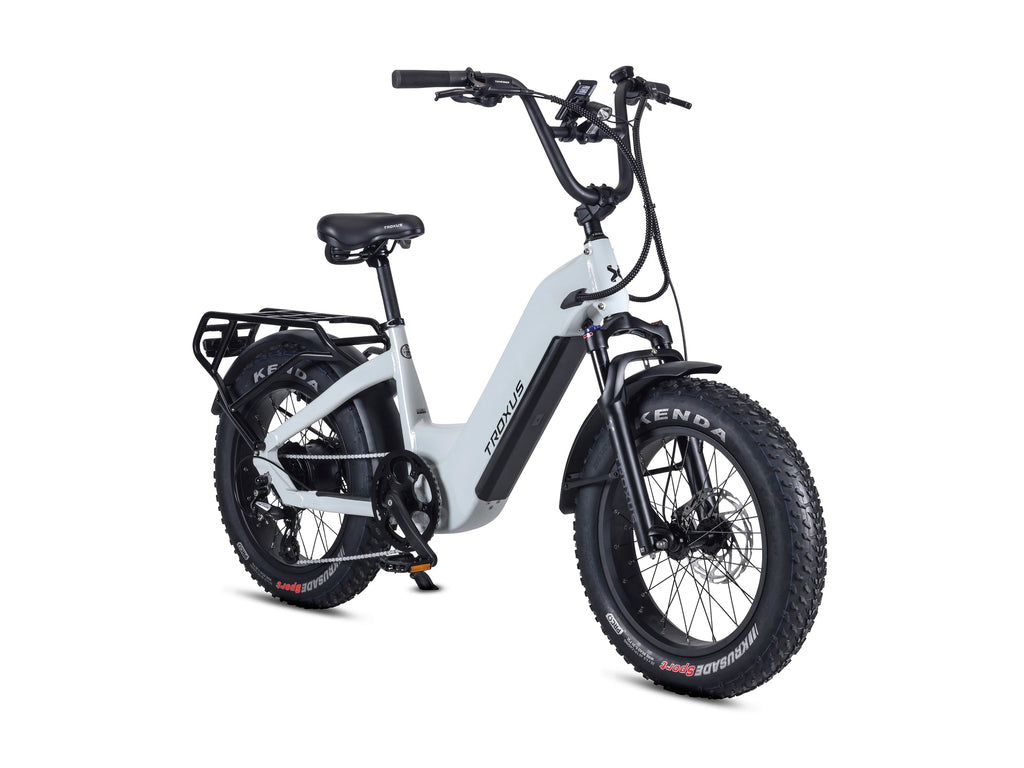

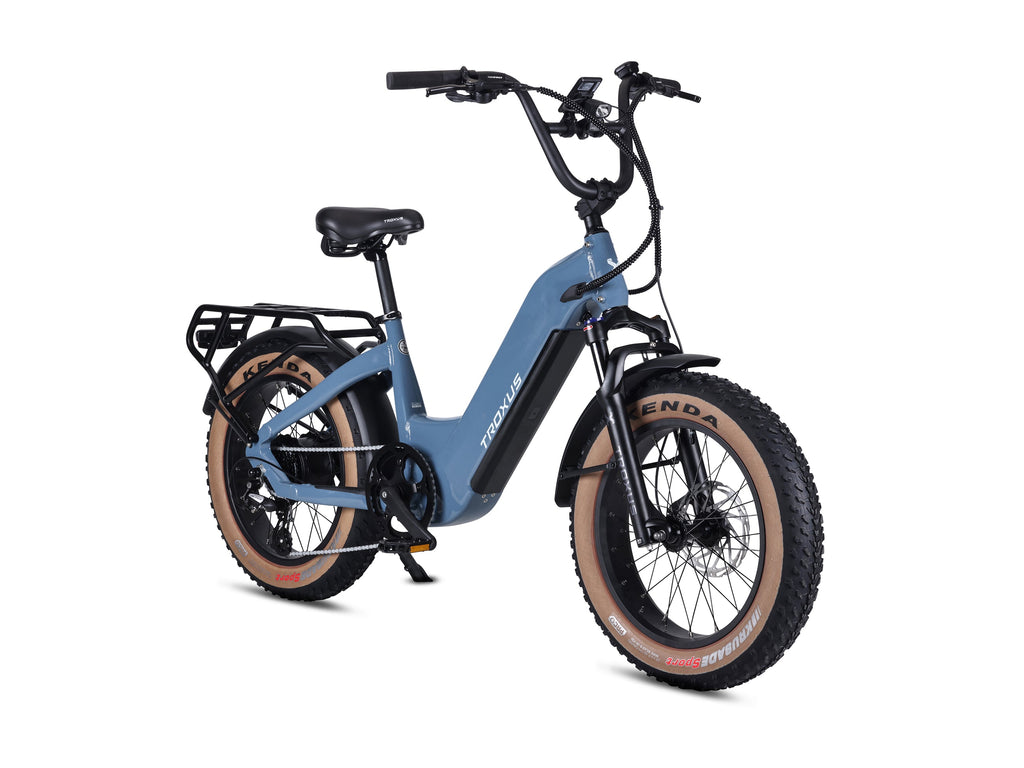

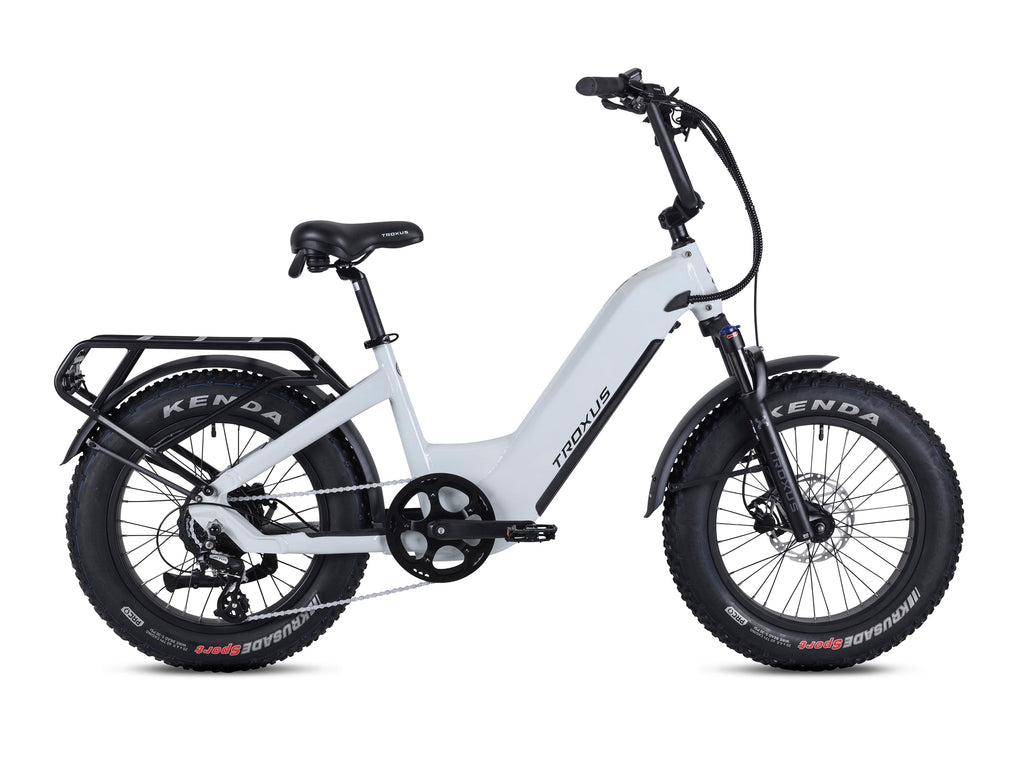

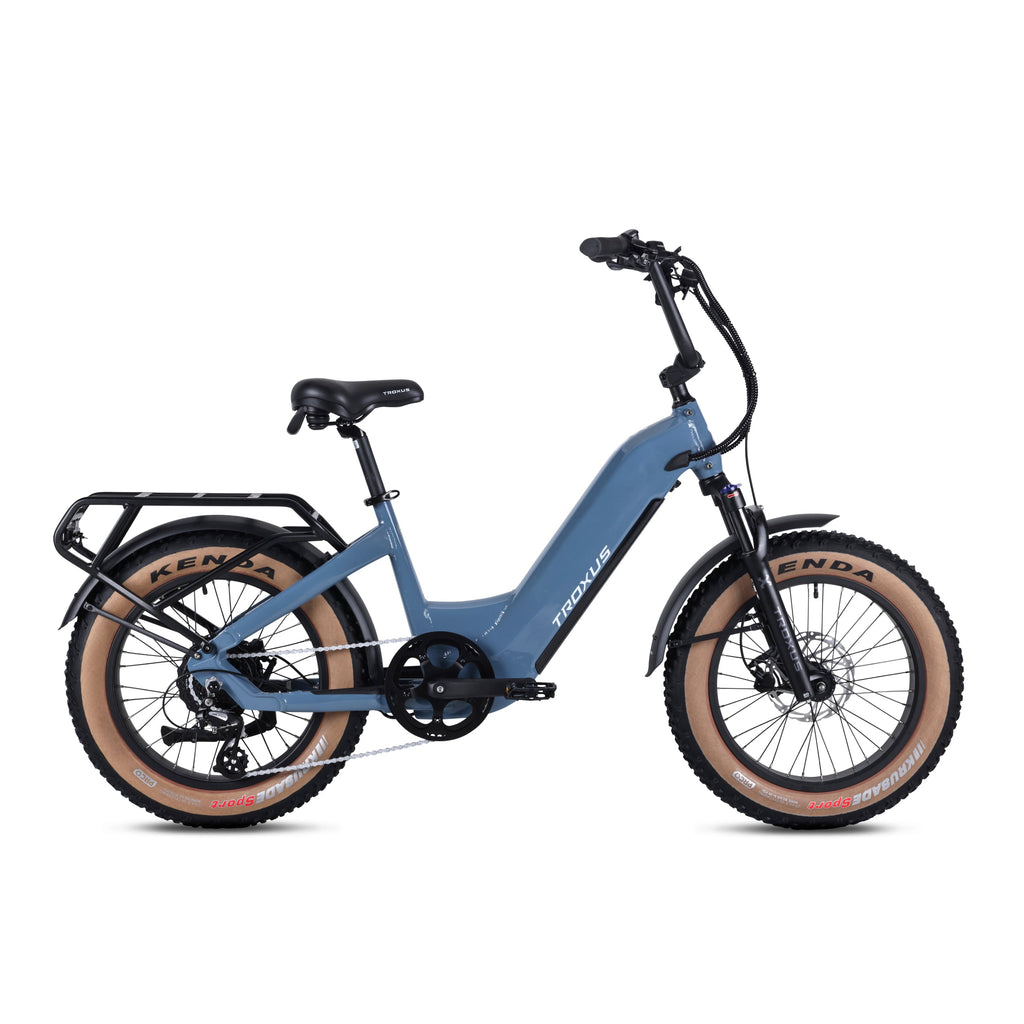

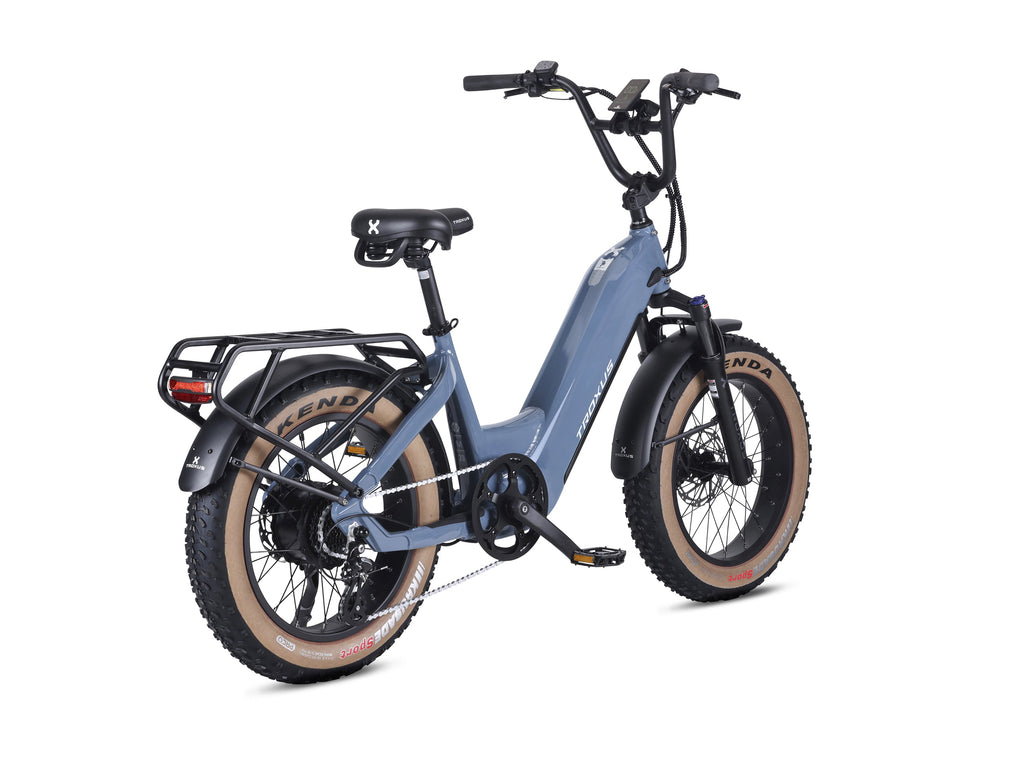

Troxus 750W 20" Lynx Step-Thru Fat Tire Electric Bike

TroxusSKU: EB-TX-LYNX-CBL

Color: Cadet Blue
Price:
Sale price$2,399

    Motor Size:

    750 Watt Bafang

    Battery:

    48V 20ah Lithium

    Drive Mode:

    Class II: Throttle Pedal Assist

    Frame Type:

    6061 Aluminum Alloy Step-Thru

    Wheel Size:

    20" x 4"

    Motor Position:

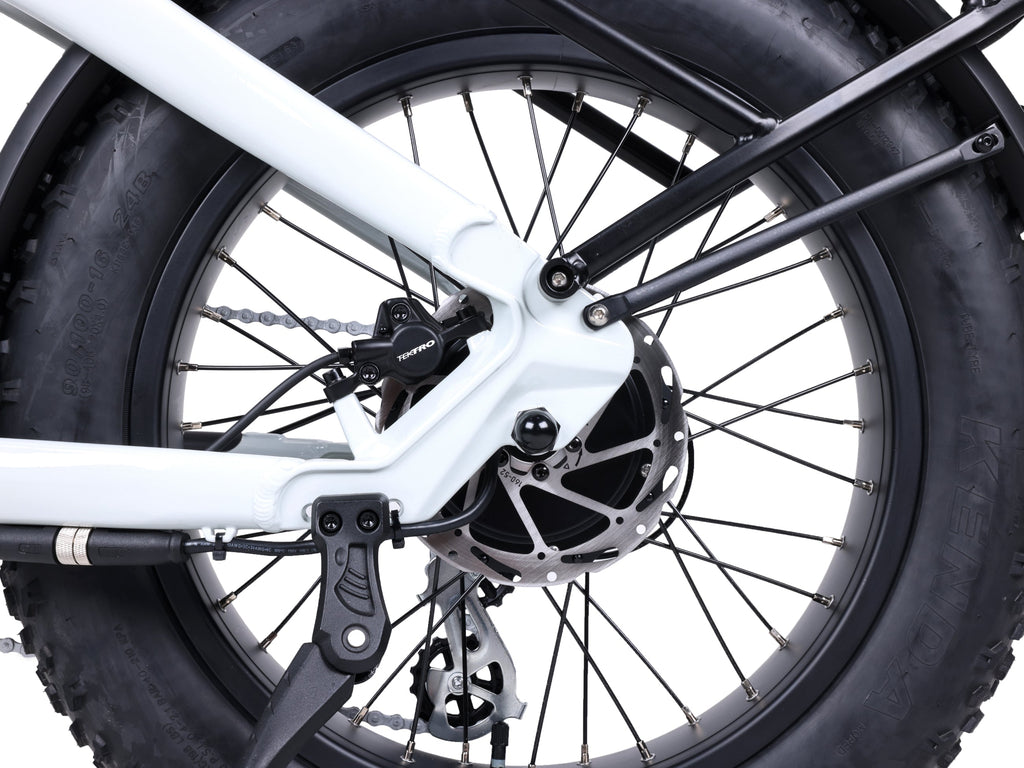

    Rear Hub

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects

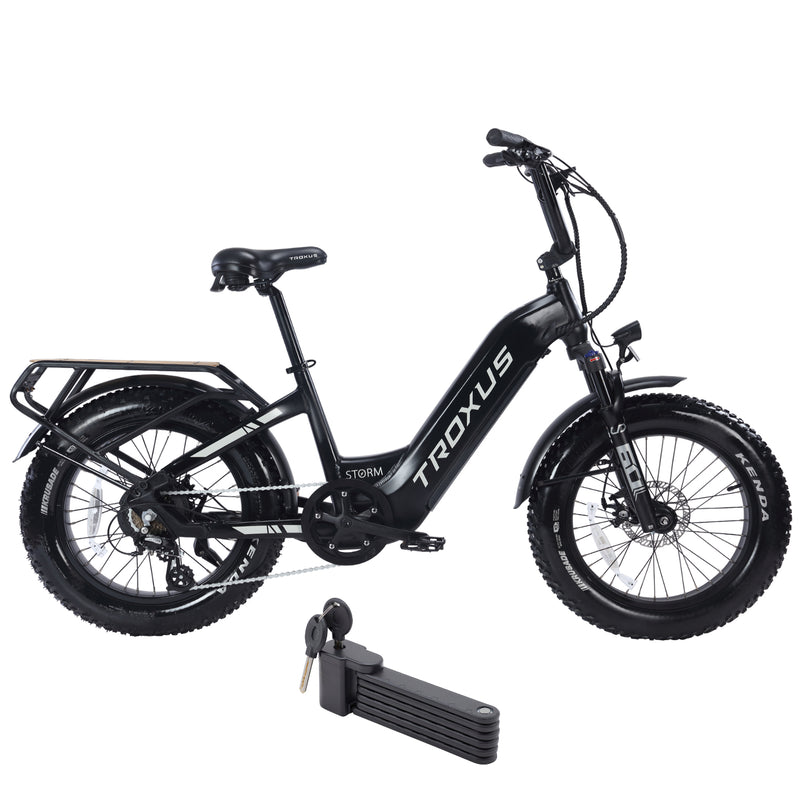

    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Troxus 750W 20" Lynx Step-Thru Fat Tire Electric Bike ($84.95 value!)

    The Troxus Lynx Plus 20" E-Bike is an updated, ultra-capable fat tire electric bike designed as a highly maneuverable mini cargo hauler, perfect for both urban commuting and off-road exploration. It is powered by a sustained 750W Bafang hub-drive motor that delivers 86Nm of torque, allowing it to reach speeds up to 28 MPH with pedal assist. This power is sustained by a high-capacity, UL-2771 certified 48V/20Ah (960Wh) Samsung cell battery, which provides an exceptional maximum range of up to 90 miles per charge, making it ideal for long-distance utility and adventure riding.

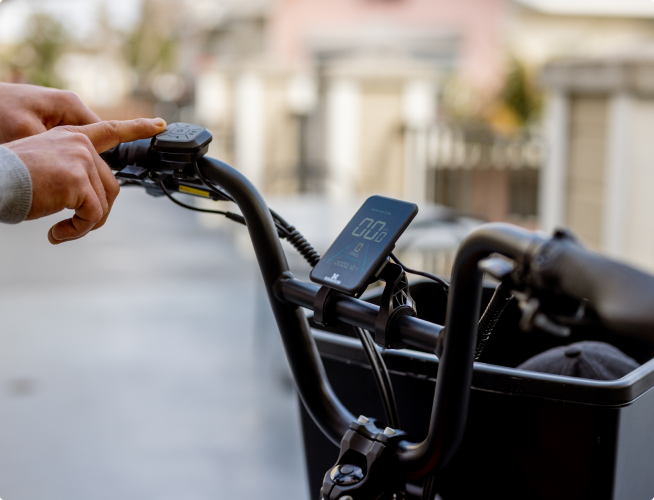

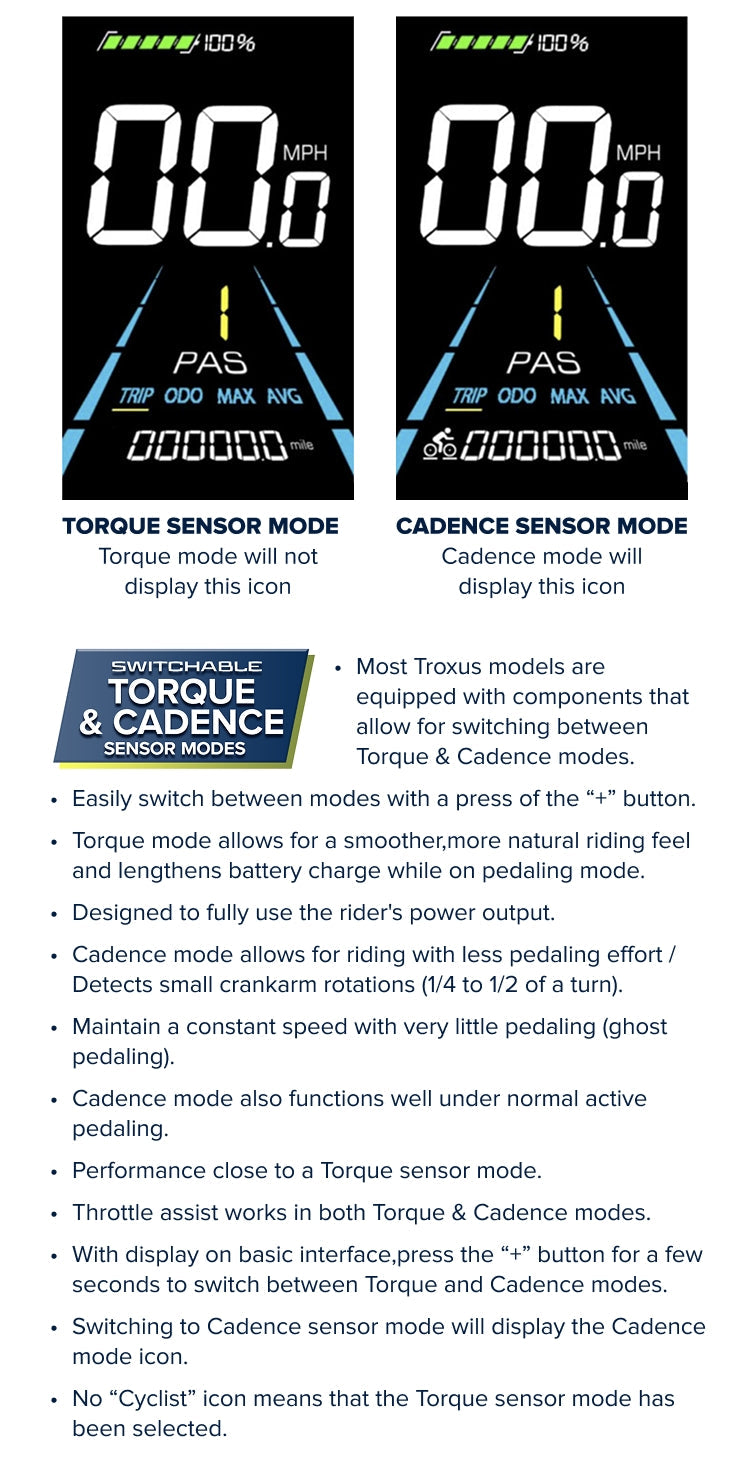

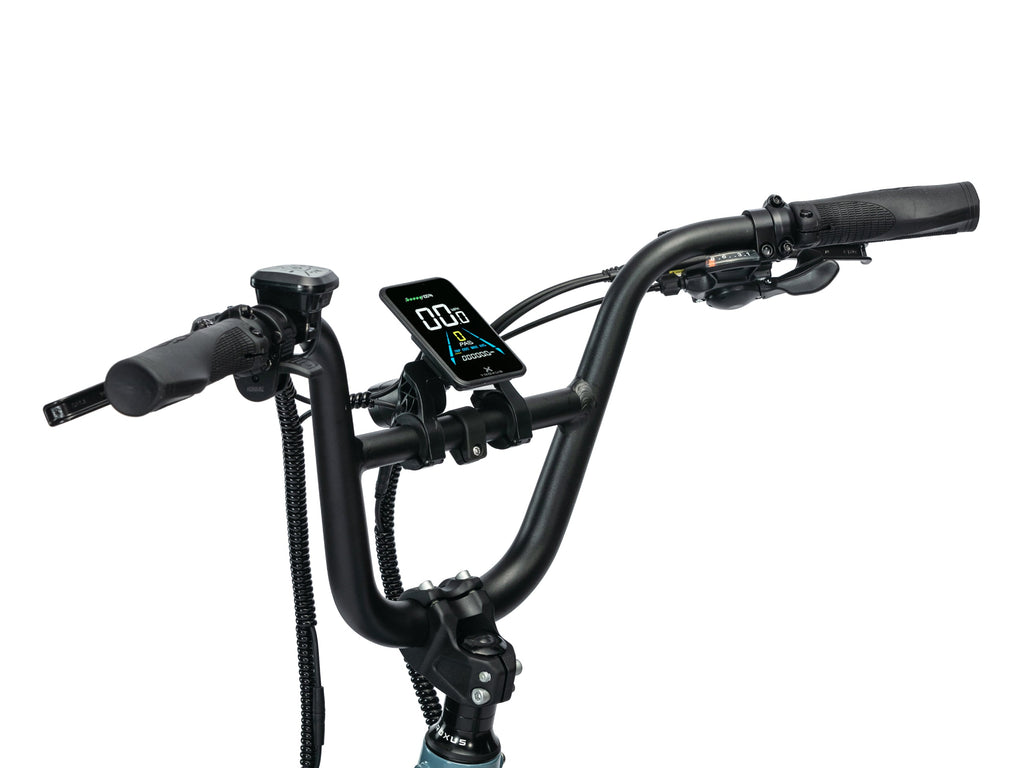

    Smart Display

    With Explorer Smart Display You can easily check your stats like Speed, Battery, Assistance level, and Trip Distance. The backlit LCD display lets you check the info at a glance so you can keep your eyes on the road.

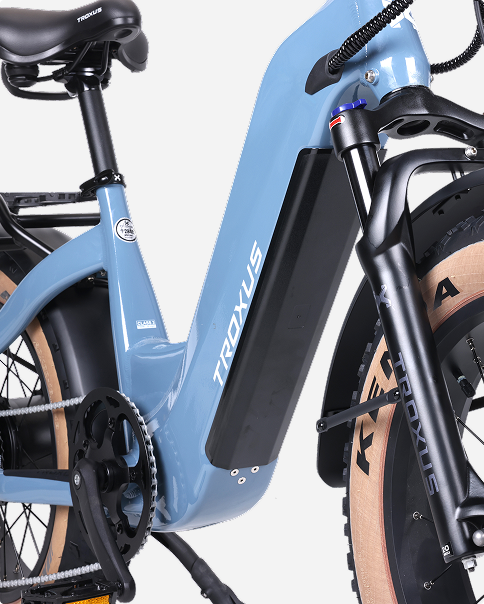

    Samsung Battery

    Powerful Motor needs a Great Battery and the Samsung 48V/20Ah Battery is ready to deliver. It provides an estimated range of up to 60+ miles. This battery is also easily removable and very portable - you can take it with you on brakes and thanks to its USB-Port it can be used to charge your phone and accessories.

    Unleash the Lynx Plus! This mini cargo beast packs a 750W motor and a massive 90-mile max range. Ready for city streets or off-road adventures on its 20" fat tires. Carry everything you need with a 400 lbs payload!

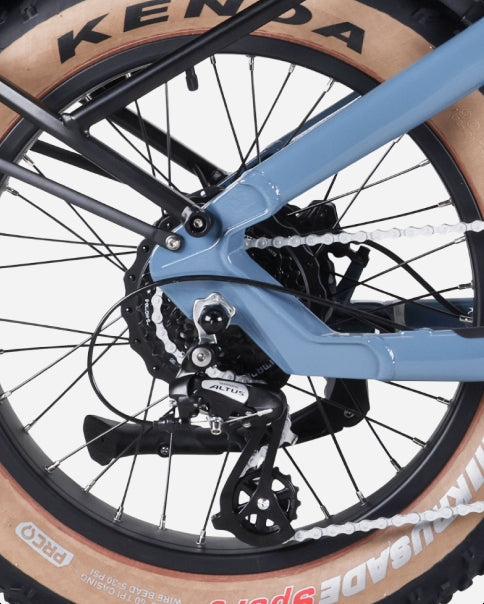

    Shimano 8 Speed Gear Shift System

    The Shimano 8-speed freewheel means you can shift to larger gears for uphill riding and smaller gears for higher speeds. Combined with Pedal Assist, you can adjust the right speed for your ride.

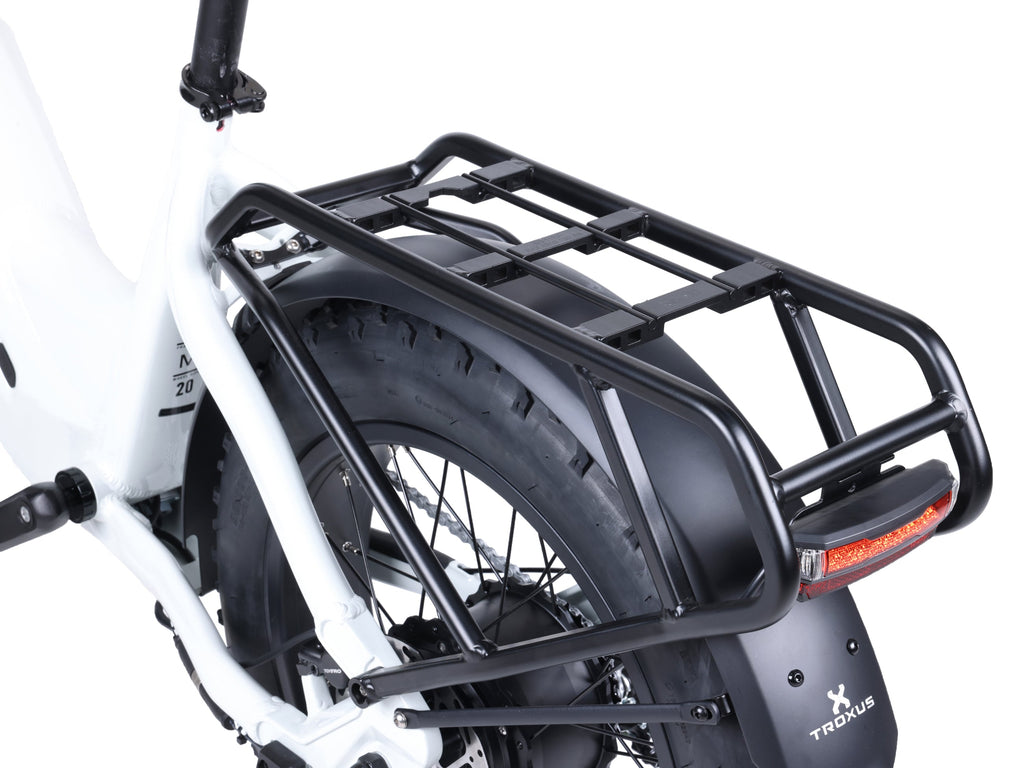

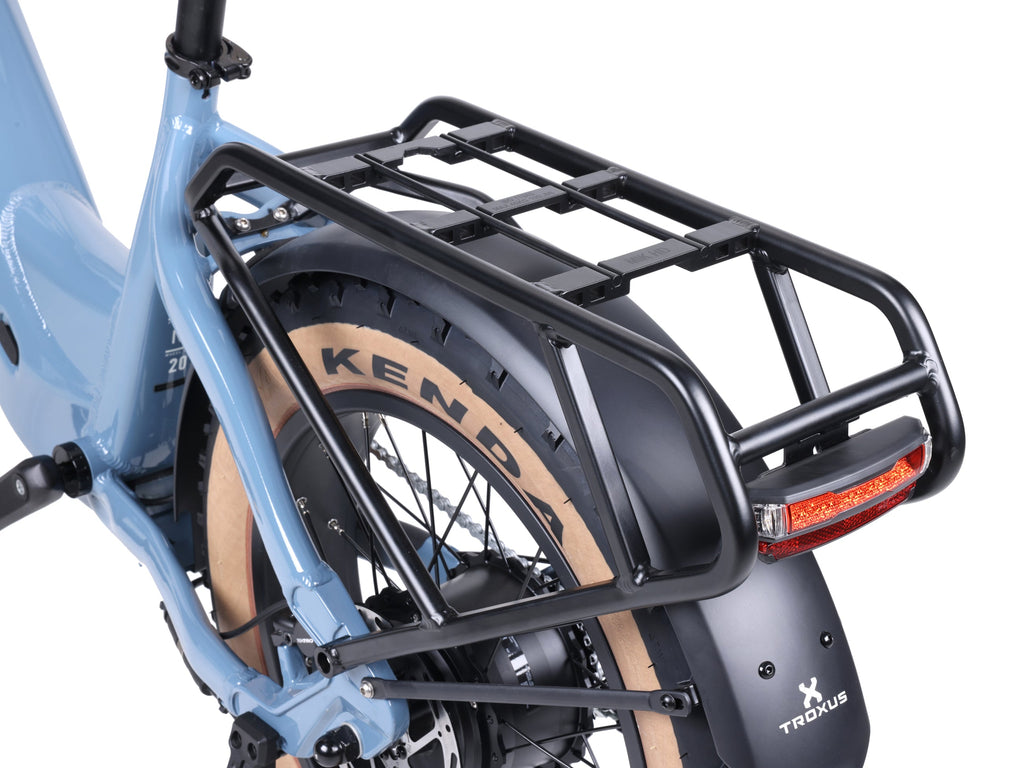

    Integrated Equipment

    The Troxus Electric Bike is equipped with a rear rack therefore the bike can carry your cargo easily. What’s more, you can install a child seat and enjoy riding with your children.

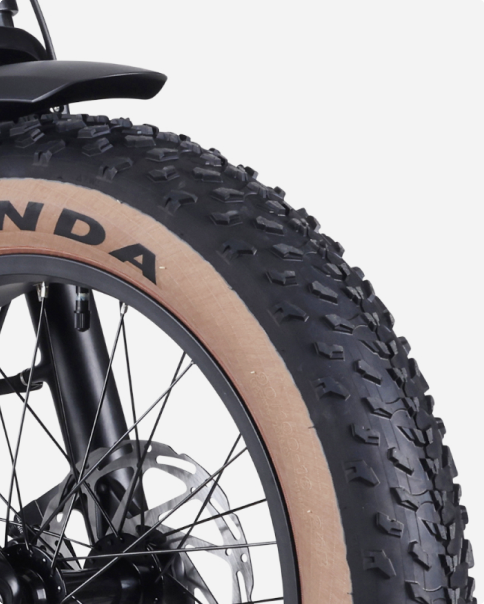

    20'' Kenda Fat Tires

    The Kenda-tire liners are made from a layer of aramid and ceramic particles built-in under the tread area and along the sidewalls. This material forms a defense line that can provide effective protection against punctures from glass and other small materials. Not only are they durable but they look great too!

    Specifications:

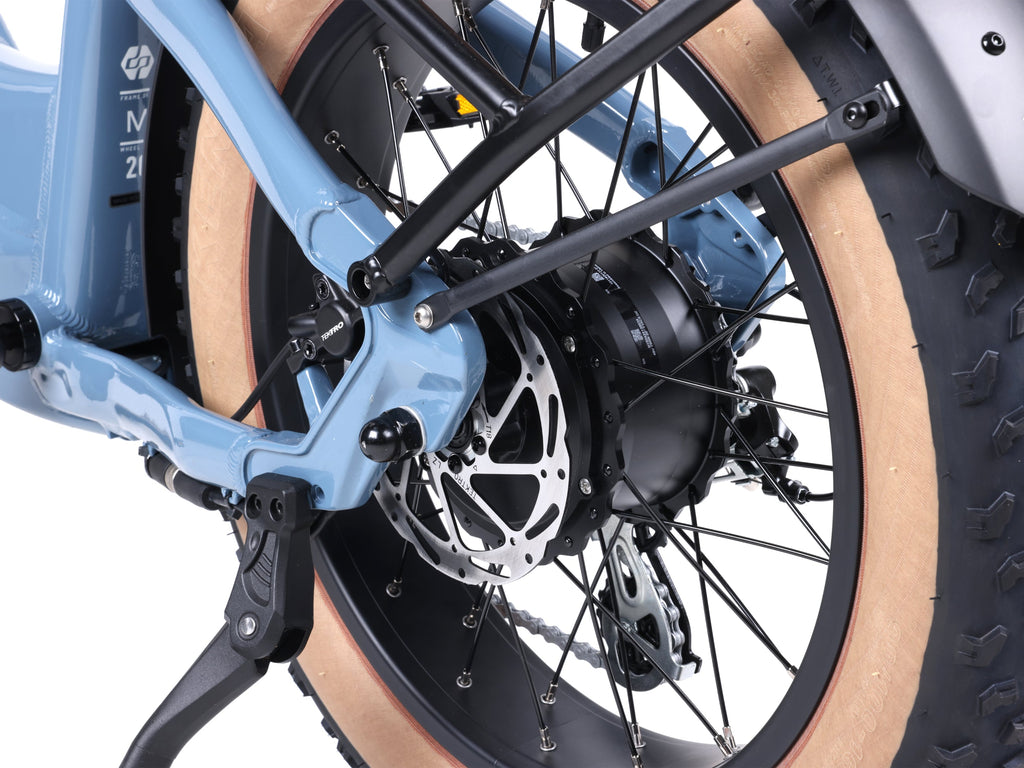

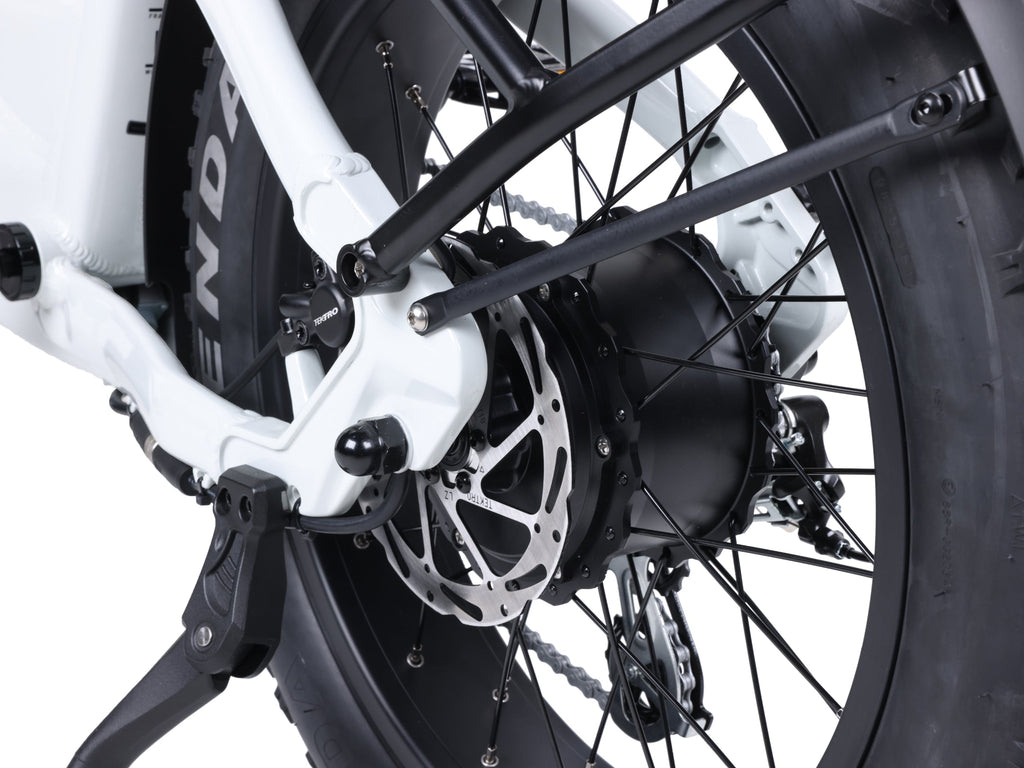

    MOTOR: 48V 750W Hub motor, Bafang
    THROTTLE: Throttle on demand throttle from a complete stop
    DISPLAY: L401 LCD
    BATTERY: 48V/20Ah, Lithium
    SENSORS: Speed sensor
    PEDAL ASSIST: 5 Levels
    CHARGER: 54.6V 3A
    RANGE: 80-130KM
    FRAME: 6061 Aluminium alloy
    WEIGHT: 76.6LB
    PEDALS: 9/16'' Alloy Platform

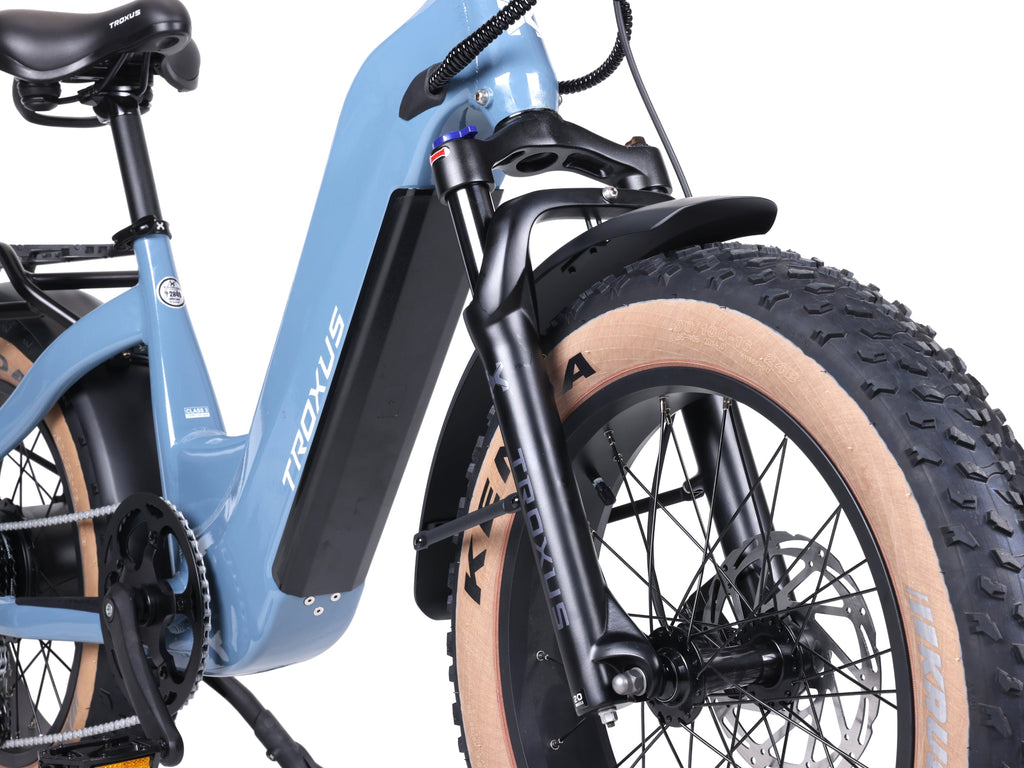

    FORK: Aluminum alloy, Suspension Fork
    WEIGHT LIMIT: 275LB
    KICKSTAND: Included, Rear Mount
    BOTTOM BRACKET: Square Taper,Sealed
    CRANKSET: 165mm w/46T
    REAR DERAILLEUR: Shimano 7 speed
    CASSETTE: 14-28T, 7 Speed Cassette
    SHIFT LEVER: 7 Speed

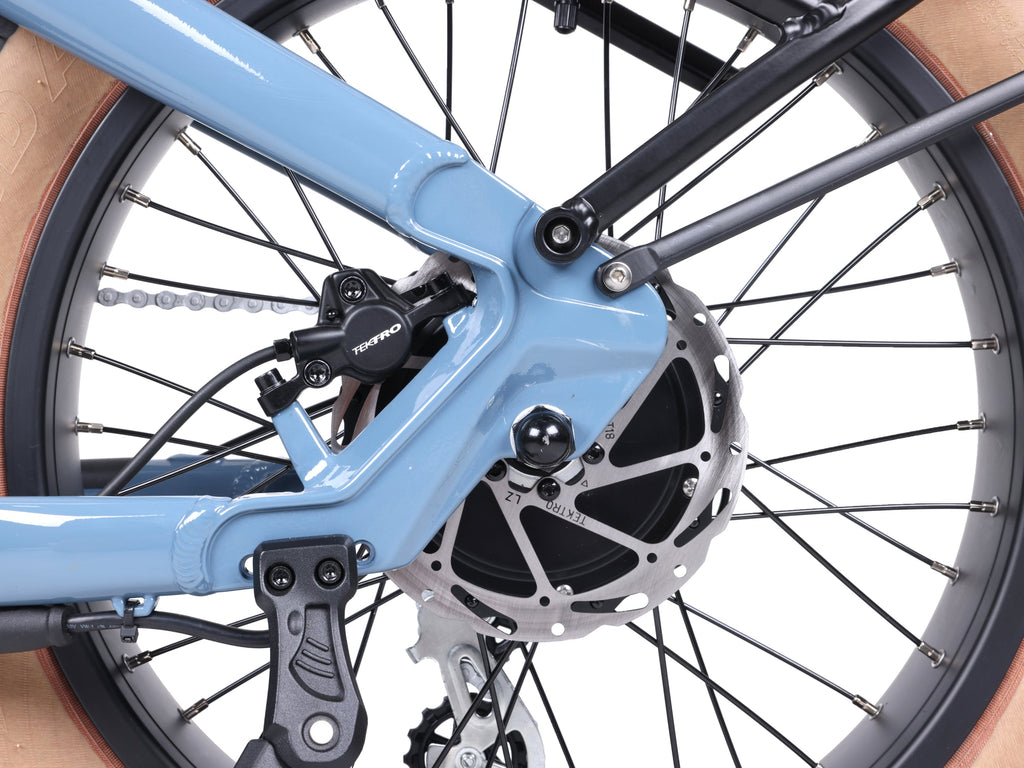

    BRAKES: Tektro M280 Mechanical disc brake
    CHAIN: KMC Z7
    RIM: Front: Single wall Aluminum 36h Rear: Double wall Aluminum 36h
    SPOKES: Front wheel: black stainless 13 Gauge Rear wheel: black stainless 12 Gauge
    TUBES: Butyl Rubber
    HUBS: 36H Disc Thru-axle Fronts, Nutted Rear
    TIRES: KENDA 20"*4.0
    SEATPOST: Forged Alloy, 30.9*350mm,2 Bolt Clamp
    STEM: Threadless, 35mm,30 Degree rise
    SEAT CLAMP: Quick release
    HANDLEBARS: Aluminum 31.8mm, 620mm
    HEADSET: GINEYEA Sealed Bearing Headset
    GRIPS: Ergonomic Comfort


    The Lynx Plus excels in utility and safety, featuring an impressive 400 lbs total payload capacity, supported by a strong, semi-integrated MIK-compatible rear rack capable of carrying 100 lbs. Riding comfort and control are ensured by 20"x4.0" Kenda Krusade fat tires for all-terrain stability, 80mm of front suspension, and a low-profile 6061 Aluminum step-thru frame for easy access. Furthermore, it incorporates advanced safety elements, including powerful Tektro Hydraulic Disc Brakes and an integrated lighting system complete with front and rear lights, as well as turn signals.
