TroxusSKU: EB-TX-LYNX-CRGO-MNGO

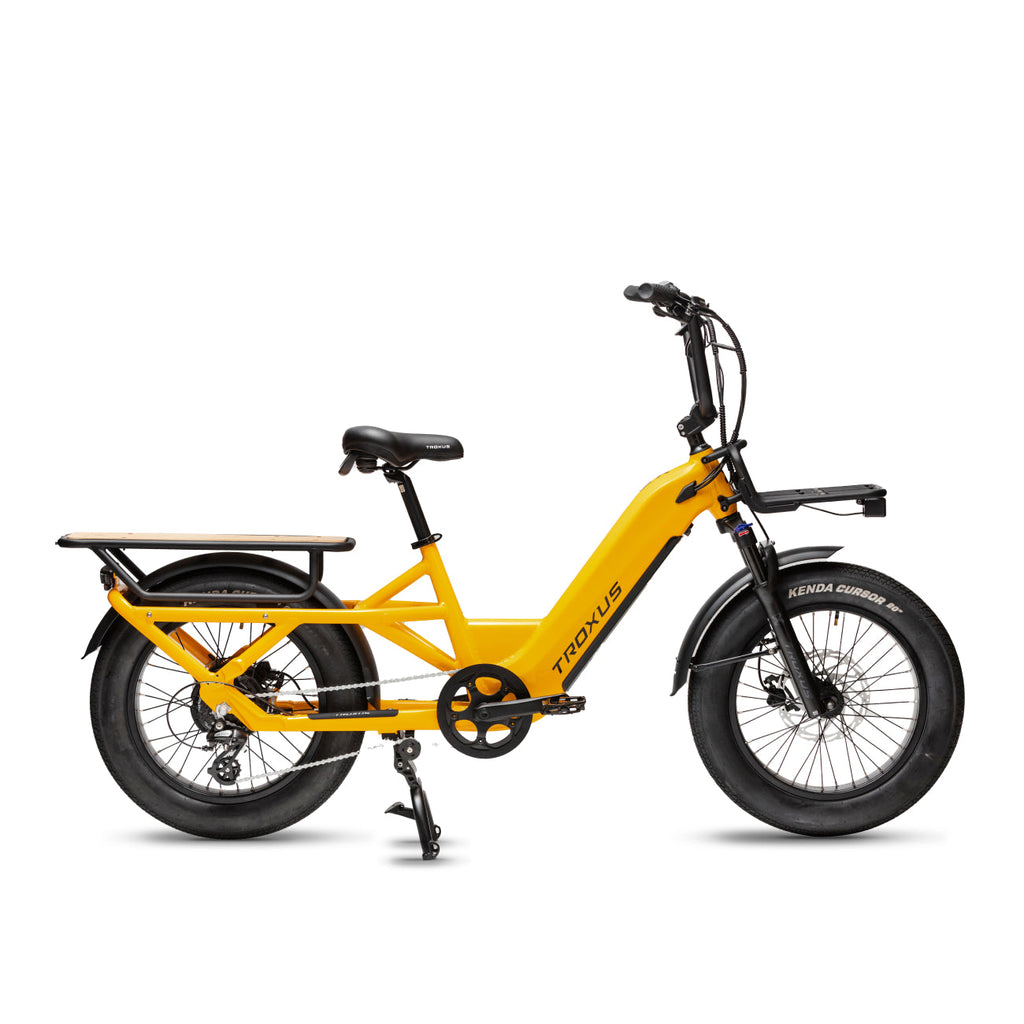

Color: Gloss Mango
Price:
$2,599

    Motor Size:

    Bafang® 750W

    Battery:

    Samsung® Cells, Lithium Ion, 48V/20Ah

    Drive Mode:

    Class II

    Frame Type:

    6061-T6 Aluminum Step-Thru Cargo Frame

    Wheel Size:

    KENDA® 20"x4.0"

    Motor Position:

    Hub-Drive

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects

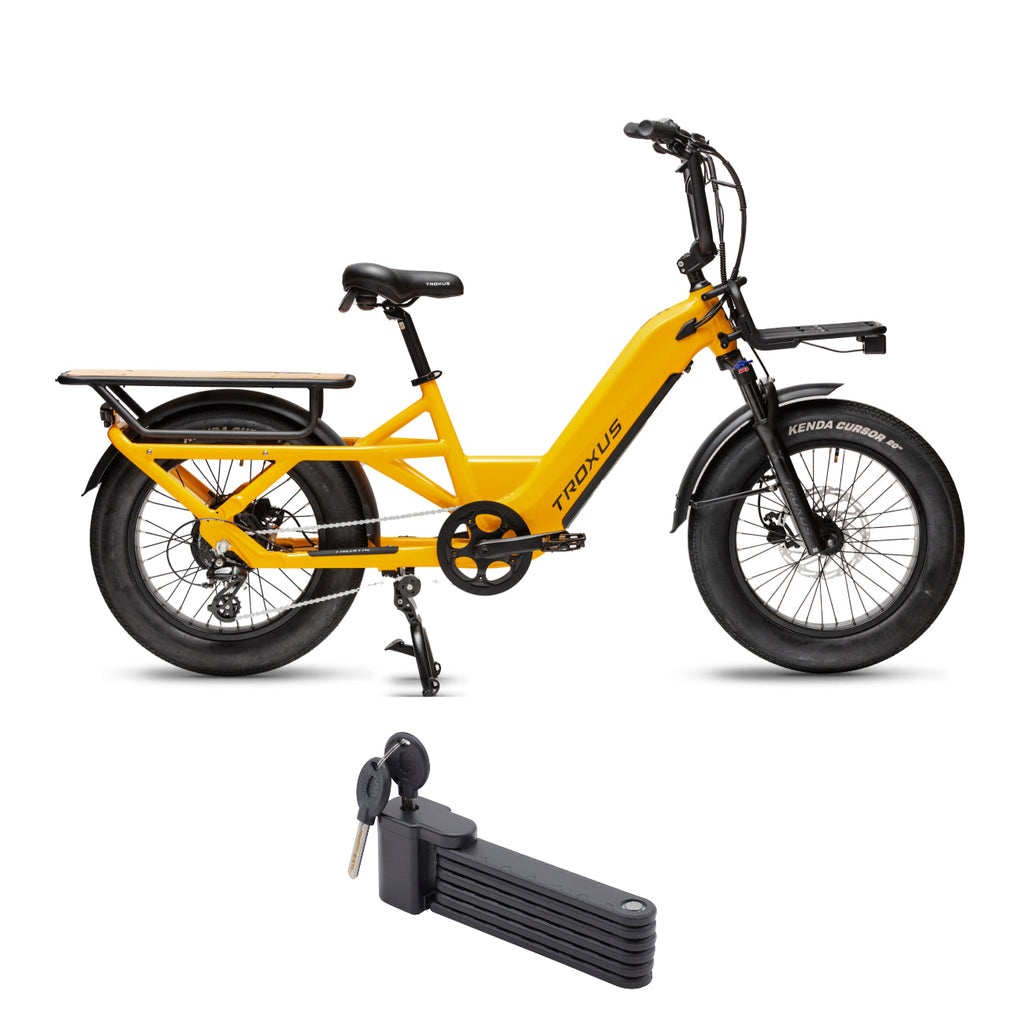

    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Troxus 750W Lynx Cargo Electric Bike ($84.95 value!)

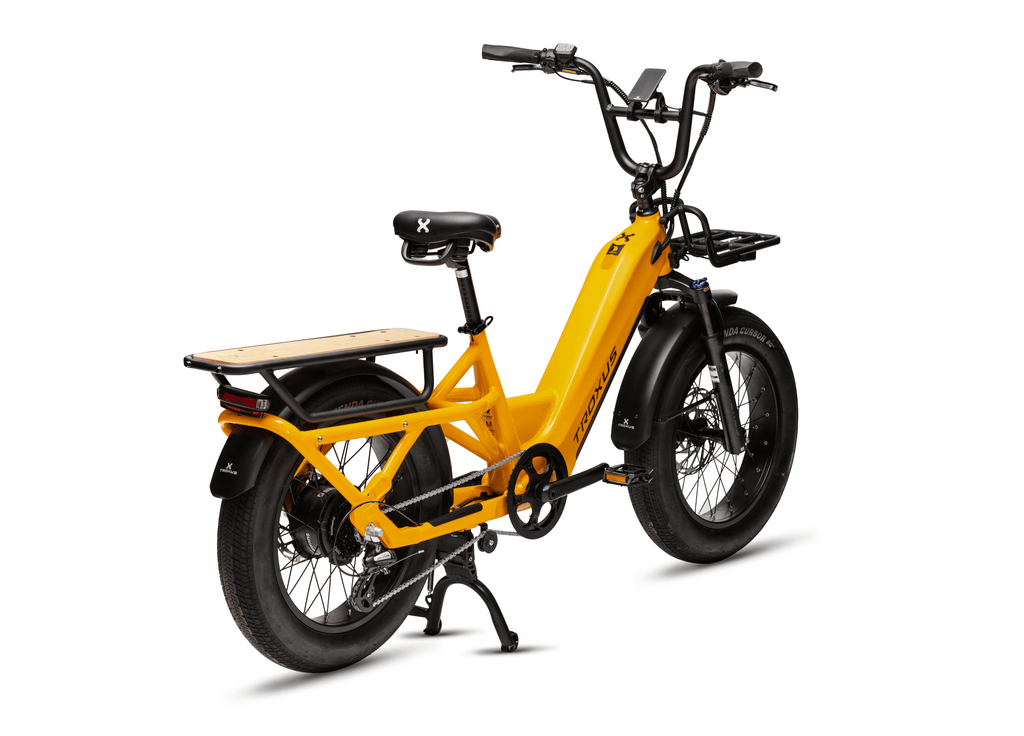

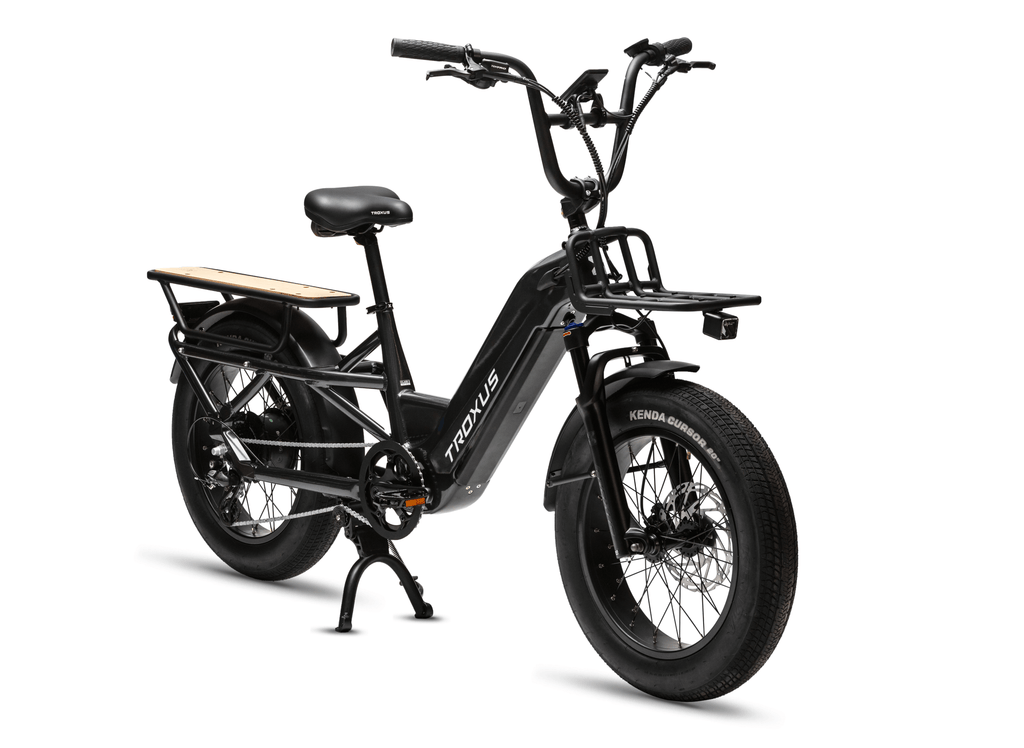

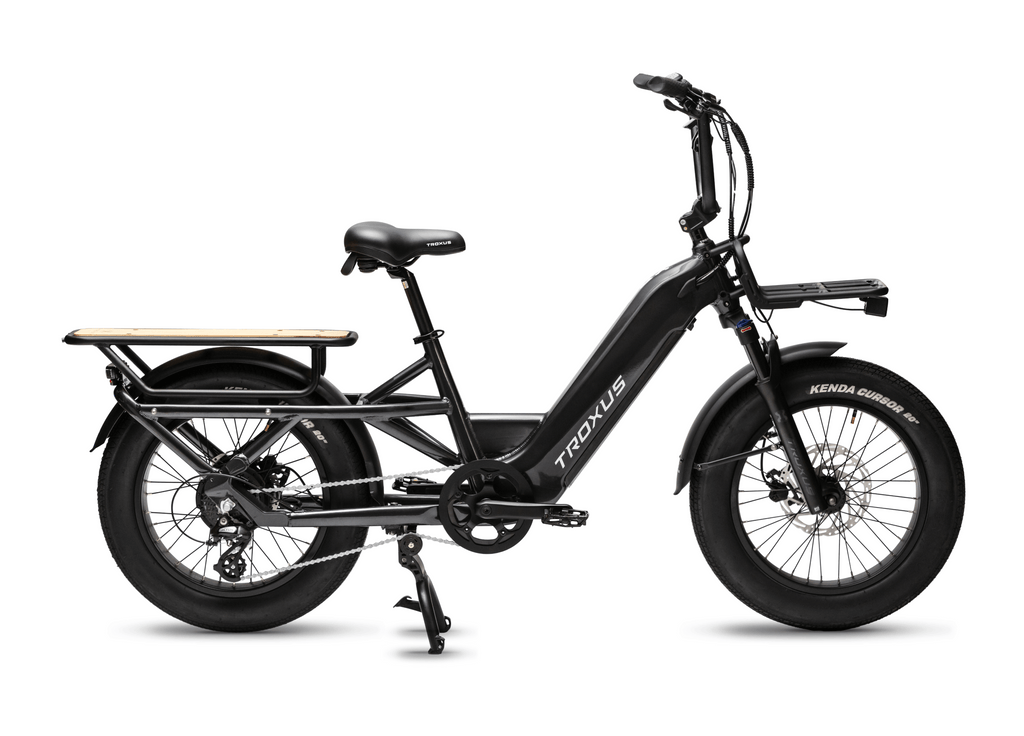

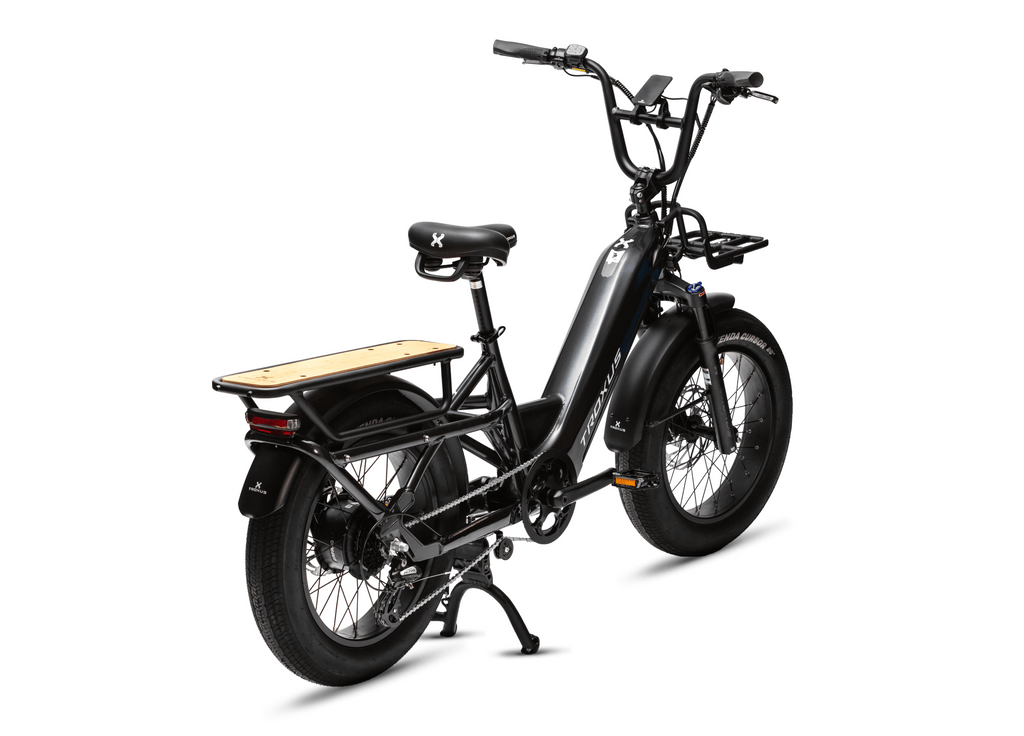

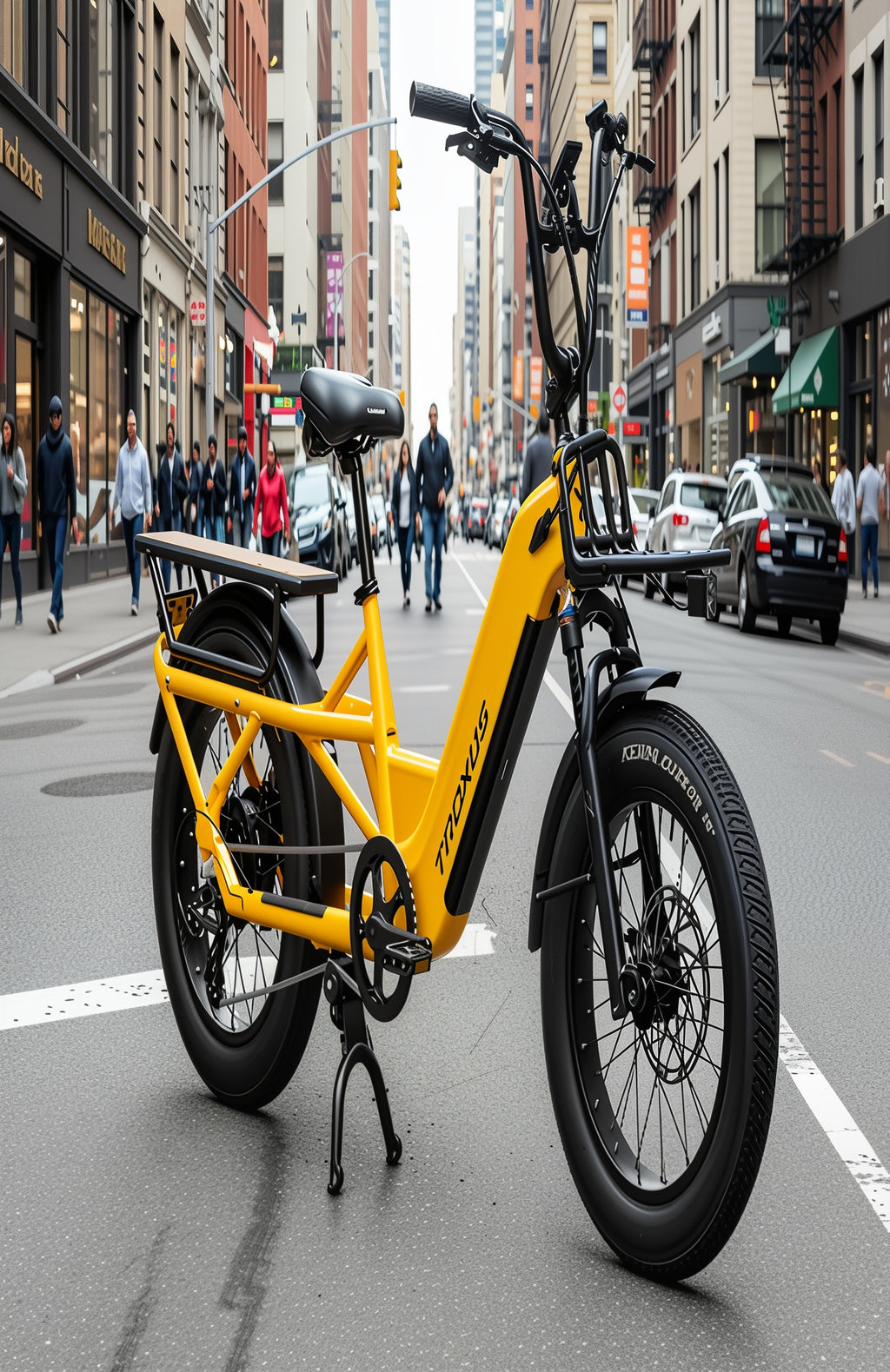

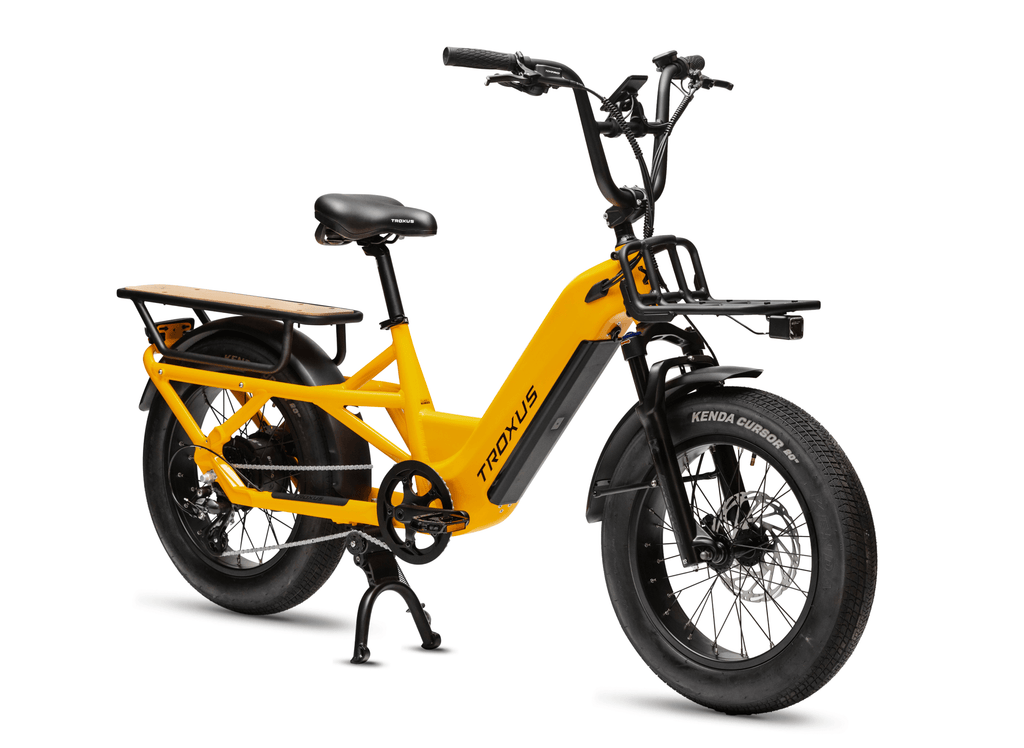

    The Troxus Lynx Cargo E-Bike is a versatile utility vehicle designed for hauling everything from children to groceries with exceptional stability and range. This highly maneuverable short-tail cargo hauler boasts a massive 500 lbs payload capacity, making it a true replacement for a car or SUV for urban errands and family trips. It's built on a durable 6061-T6 Aluminum Step-Thru frame and features a powerful 750W Bafang hub motor with an outstanding 86Nm of maximum torque to easily manage heavy loads, even on steep inclines.

    Powerful Performance

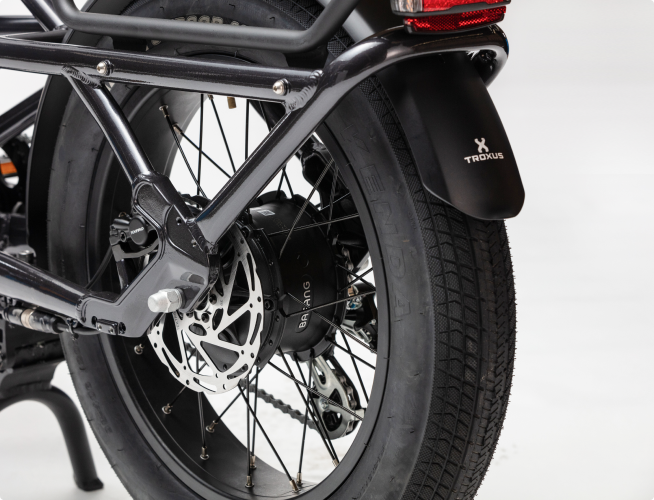

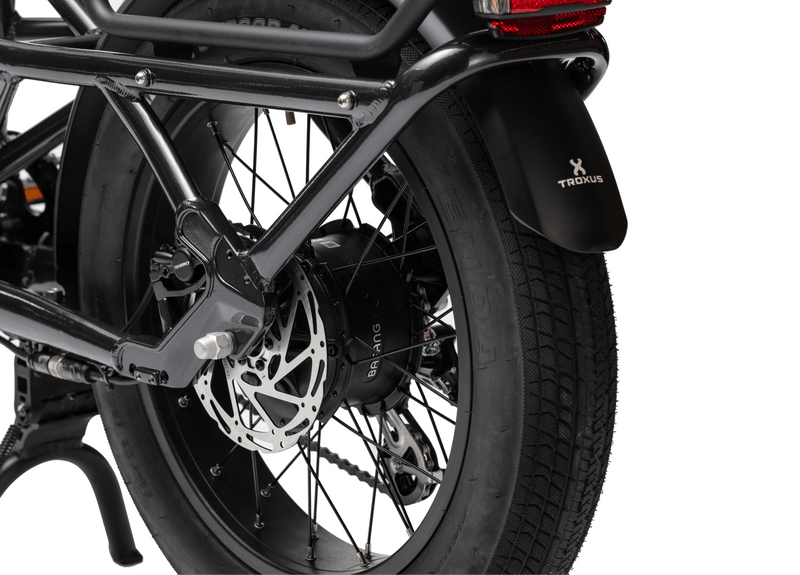

    Equipped with a 750W Bafang Hub-Drive Motor producing 86Nm of Max. Torque for effortless hill climbing with heavy loads.

    Ultimate Cargo Hauler

    Engineered with a maximum load capacity of 500 lbs, suitable for kids, friends, groceries, and supplies.

    Short tail highly maneuverable cargo hauler with up to 500 pounds of carrying capacity with heavy-duty front and rear racks included. Build it your way for hauling kids, cargo, or fun!

    Extended Range

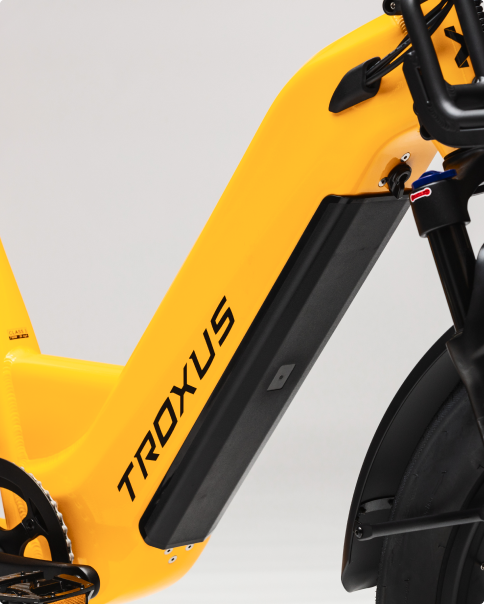

    Features a large 48V/20Ah (960Wh) battery with Samsung® cells, providing a range of up to 90 miles per charge.

    Enhanced Safety

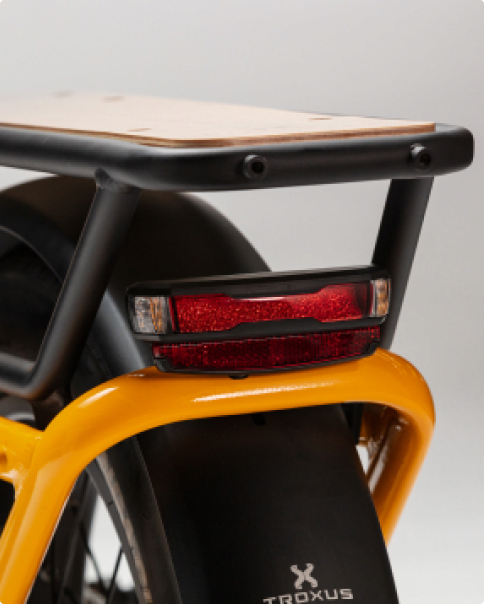

    Includes a comprehensive integrated lighting system with front light, rear light, and dedicated turn and hazard signals.

    Reliable Components

    Fitted with Tektro Hydraulic Disc Brakes for superior stopping power and control, and Shimano 8-Speed Shifting for dependable gearing.

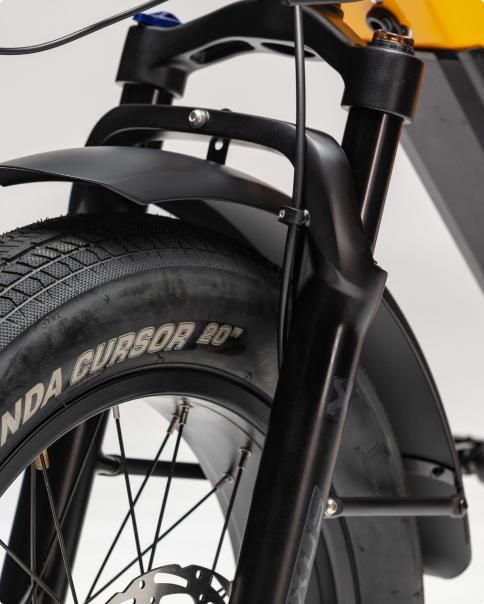

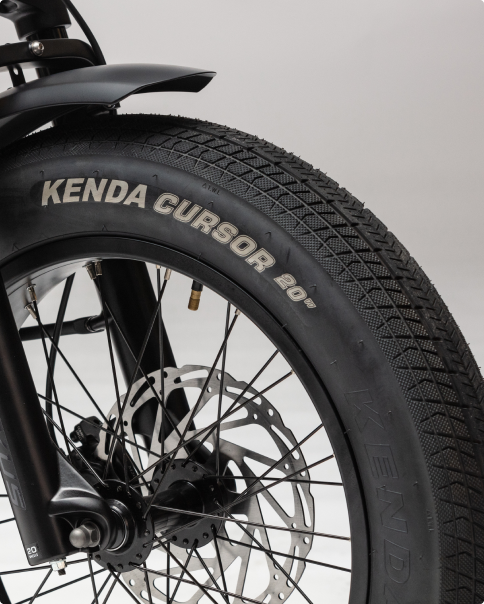

    Kenda® Cursor 20" x 4" Tires

    Smooth tread tires with excellent puncture resistance for speed, efficiency, and durability.

    Dual Sensor Control

    Offers Switchable Torque and Cadence Sensor Modes to customize power assistance based on the riding situation.

    Specifications:

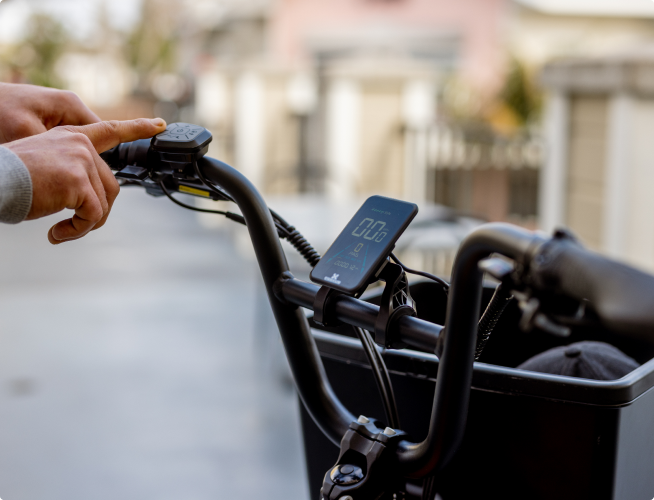

    Display: Color Display, Bluetooth, Turn Light Signals, Multi-Function Remote, USB Charging
    Throttle: Thumb Throttle on Handlebar
    Sensor: Switchable Torque And Cadence Sensor Modes
    Pedal Assist: 0~5 Level Pedal Assist
    Charger: 3A / 100-240V Input / 54.6V Output

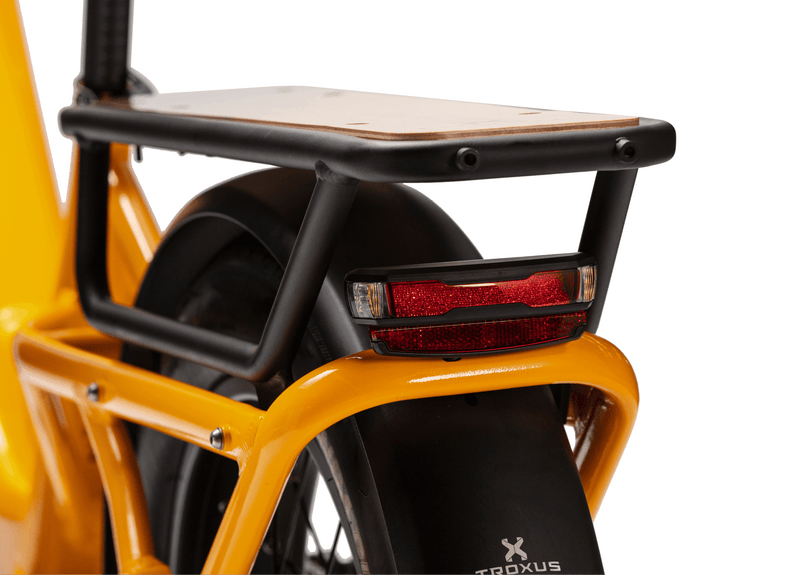

    Lights: Front Light, Rear Light w/ Turn & Hazard Signals
    Controller: 48Vx22A/12V

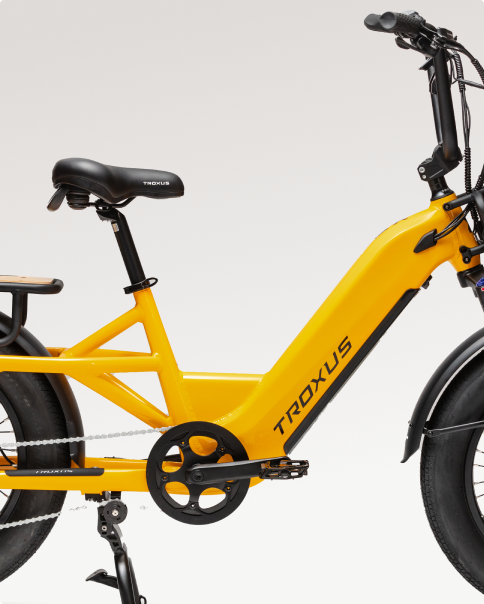

    Frame: 6061-T6 Aluminum Step-Thru Cargo Frame
    Fork: Front Suspension Fork, 80mm Travel
    Chain: KMC® 1/2"x3/32"
    Crankset: Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm

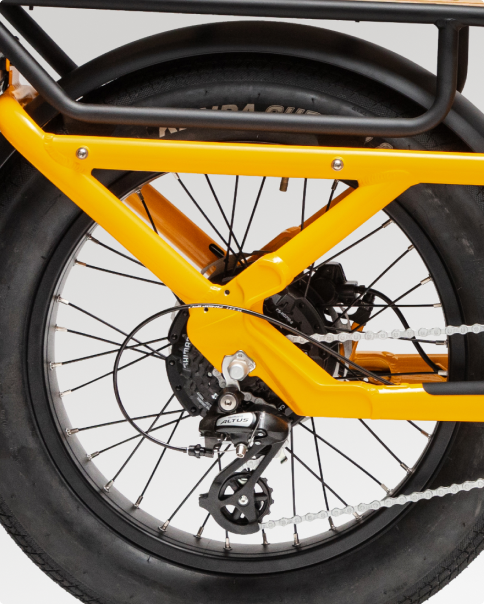

    Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
    Cassette: Shimano® 8-Speed, 12-32T
    Shifter: Shimano® 8-Speed
    Bottom Bracket Set: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
    Tires: KENDA® 20"x4.0"
    Front Hub: Alloy, 36H, 110mm, 3/8" Axle
    Rear Hub: Bafang® 48V 750W/ 28 MPH. 86Nm
    Rims: Alloy Double Wall, 20"x4.0" w/ Eyelets
    Spokes: Stainless 13G. Front / 12G. Rear

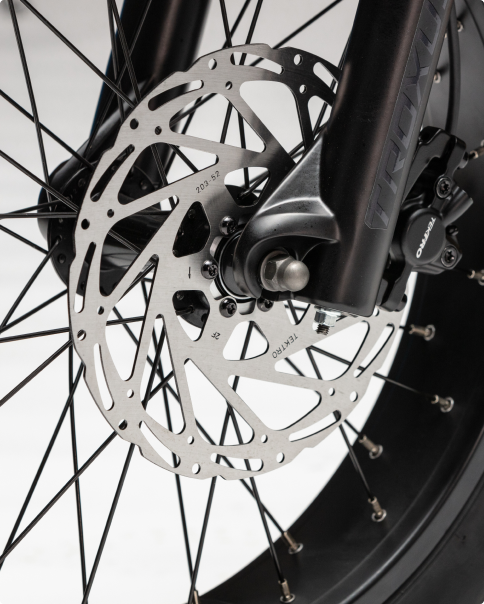

    Brakes: Tektro® Hydraulic, w/ Brake Sensors
    Rotors: 203mm / 180mm
    Saddle: Troxus Comfort w/ Back Handle
    Seat Post: Alloy, 30.9x400mm, Adjustable
    Seat-Post Clamp: Alloy, 35mm w/ Quick Release
    Stem: Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
    Handlebar: Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise
    Grips: Ergonomic Comfort
    Pedals: 9/16″ Alloy Platform with Reflectors
    Headset: Threadless, Locking Internal 1-1/8"
    Max Speed: Up To 20 MPH
    Range: Up To 90 Miles Per Charge
    Weight Limit: Maximum Load: 500 lbs
    Net Weight: 80.5 lbs
    Rack: Alloy / Front & Integrated Rear Models
    Fenders: Alloy, 20"x4.0" w/ Alloy Hardware
    Kickstand: Central Kickstand
    Packaged: Above All Accessories Are Included.


    Quality Components and Craftsmanship

    The bike prioritizes safety and convenience, featuring an extensive integrated lighting system with front and rear lights, plus dedicated turn signals and a hazard setting. Powering this system is a high-capacity, UL-2771 Certified 48V/20Ah (960Wh) battery with Samsung cells, capable of delivering a substantial range of up to 90 miles per charge. Furthermore, the Lynx provides riders with complete control by offering switchable Torque and Cadence sensor modes, allowing for fine-tuned power delivery tailored to the rider's preference or the current cargo load. The inclusion of Tektro Hydraulic Disc Brakes ensures reliable stopping power for safe operation, regardless of the cargo size.
