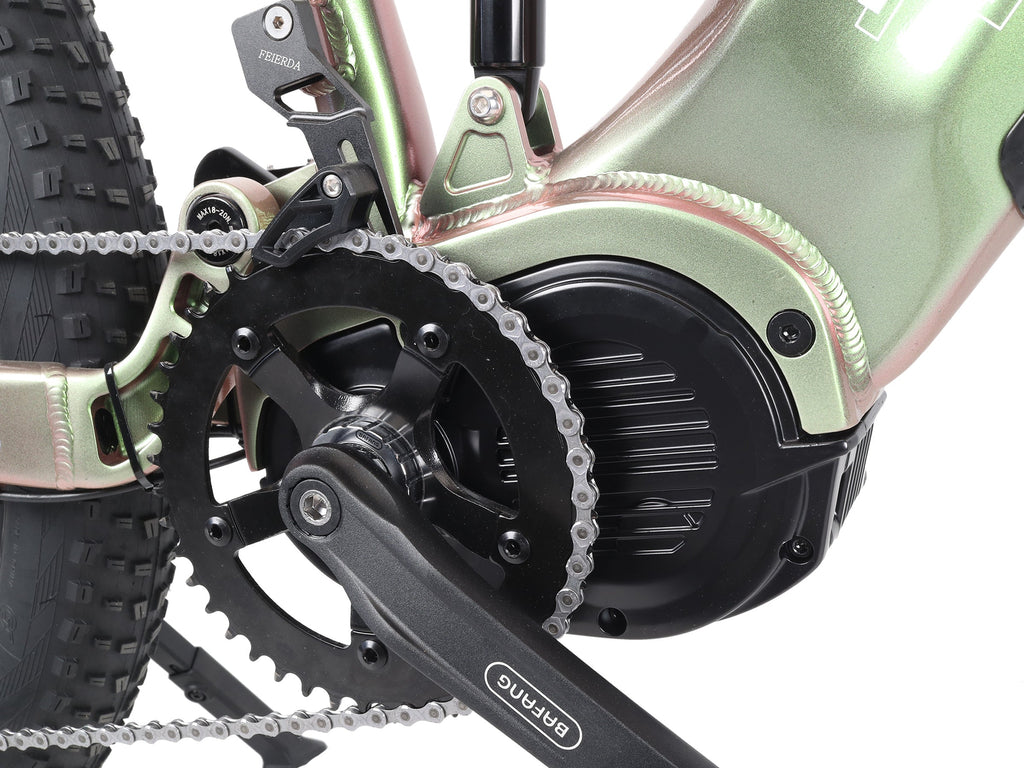

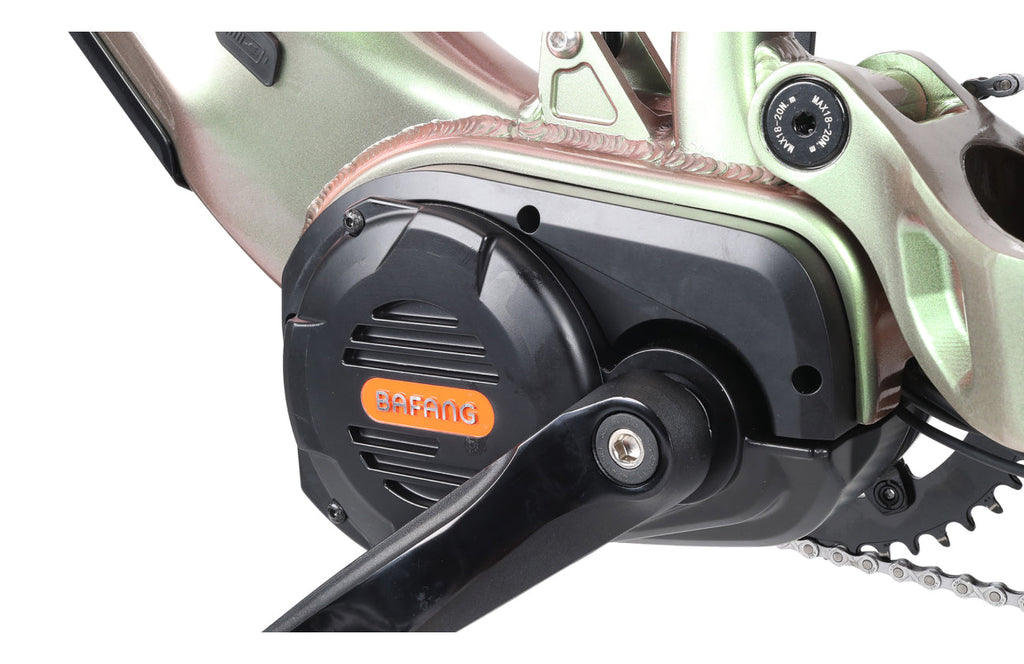

With 1000W of peak power and 200Nm of torque, the Bafang® Mid-Drive motor will get you up and over the steepest climbs. The torque sensor matches your efforts, making every pedal stroke feel easy and natural.

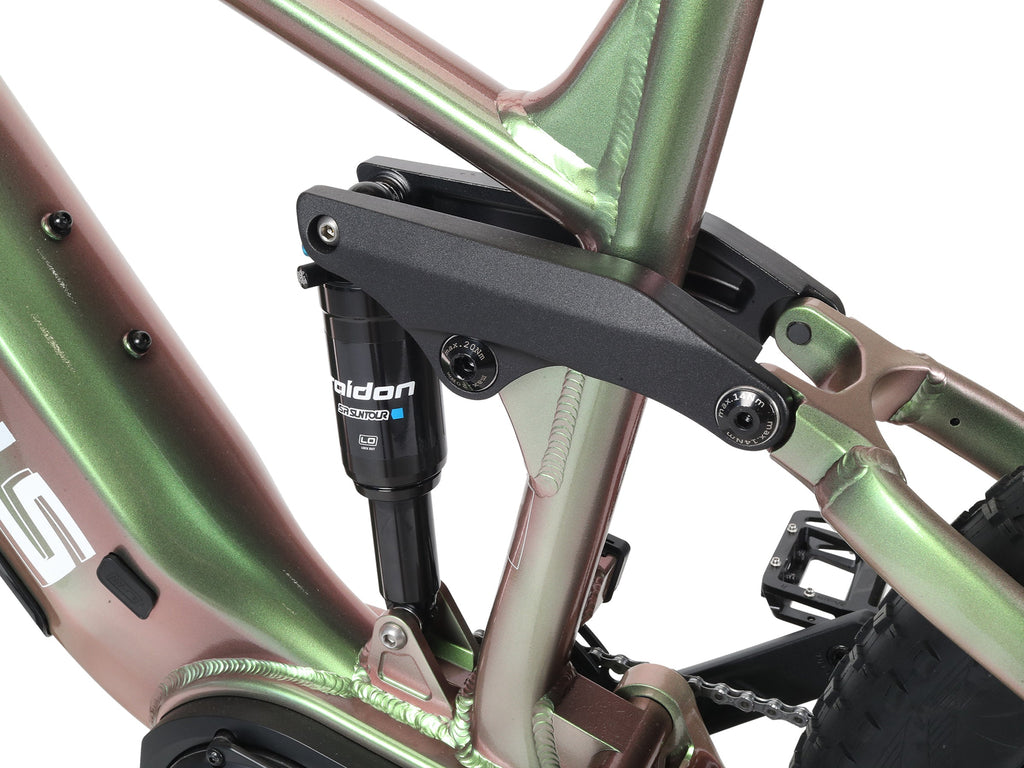

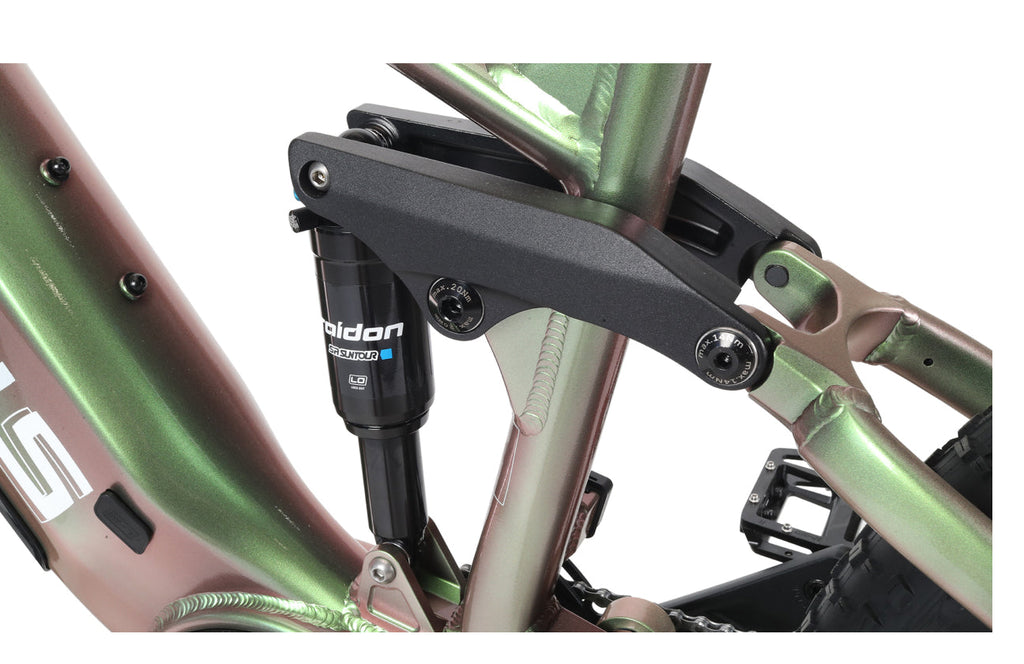

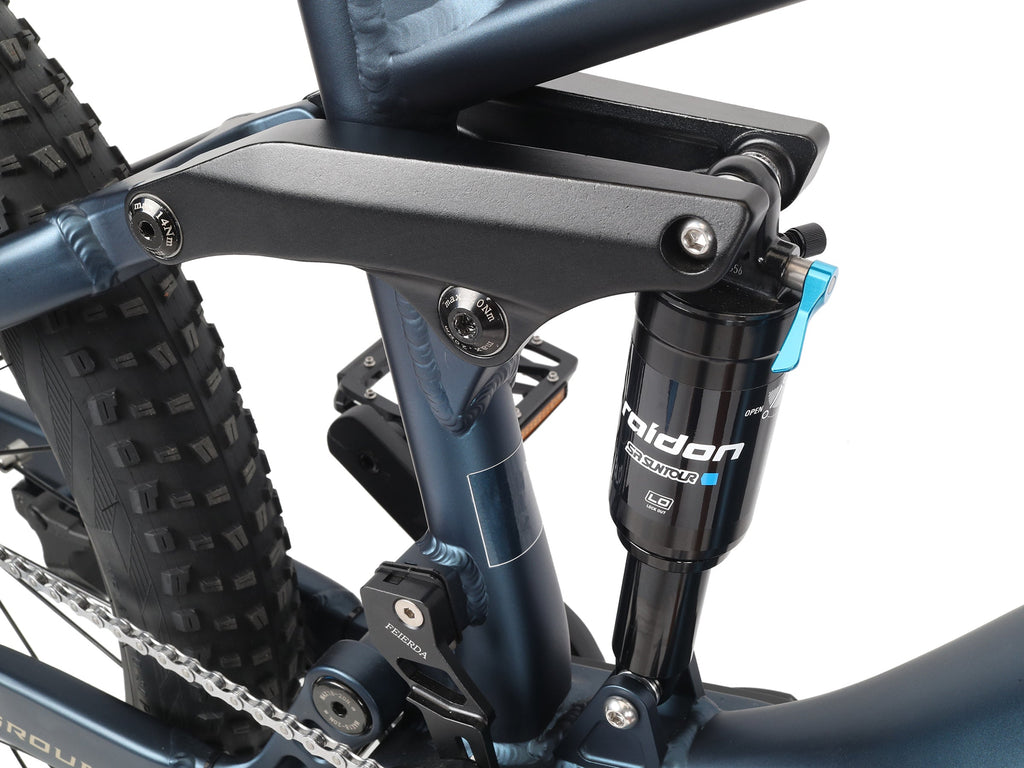

High quality aluminum dual-suspension frame, mated to SR® Suntour air shock for 110mm of buttery smooth travel. Rugged and reliable performance on rough trails or the worst city streets.

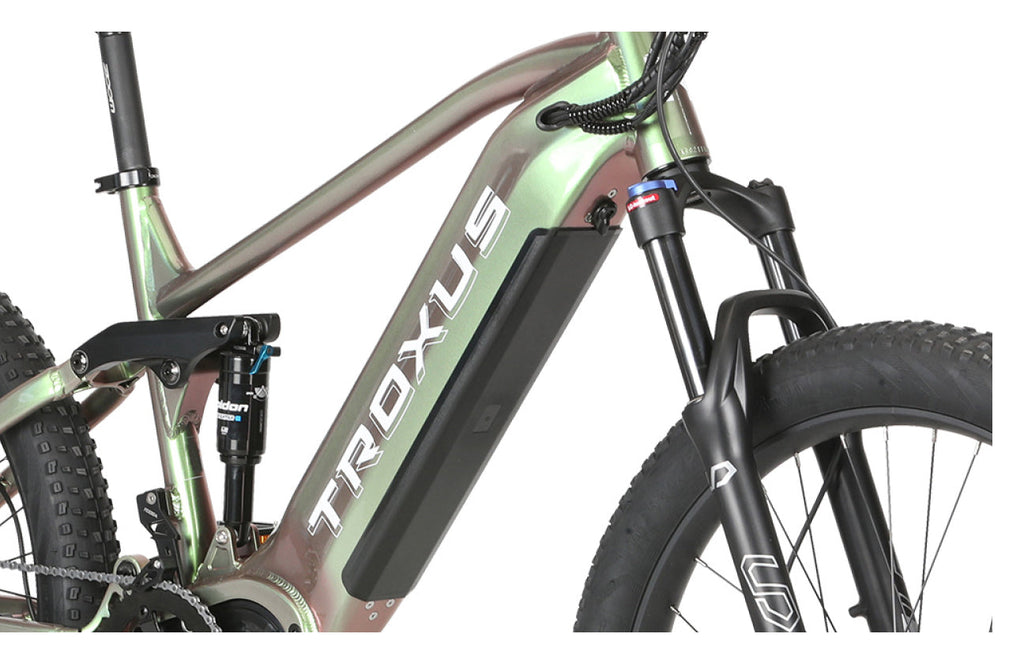

The ultra-dependable Samsung® battery cells deliver up to 80 miles of range on a single charge, and the UL approval is an extra level of safety and security.

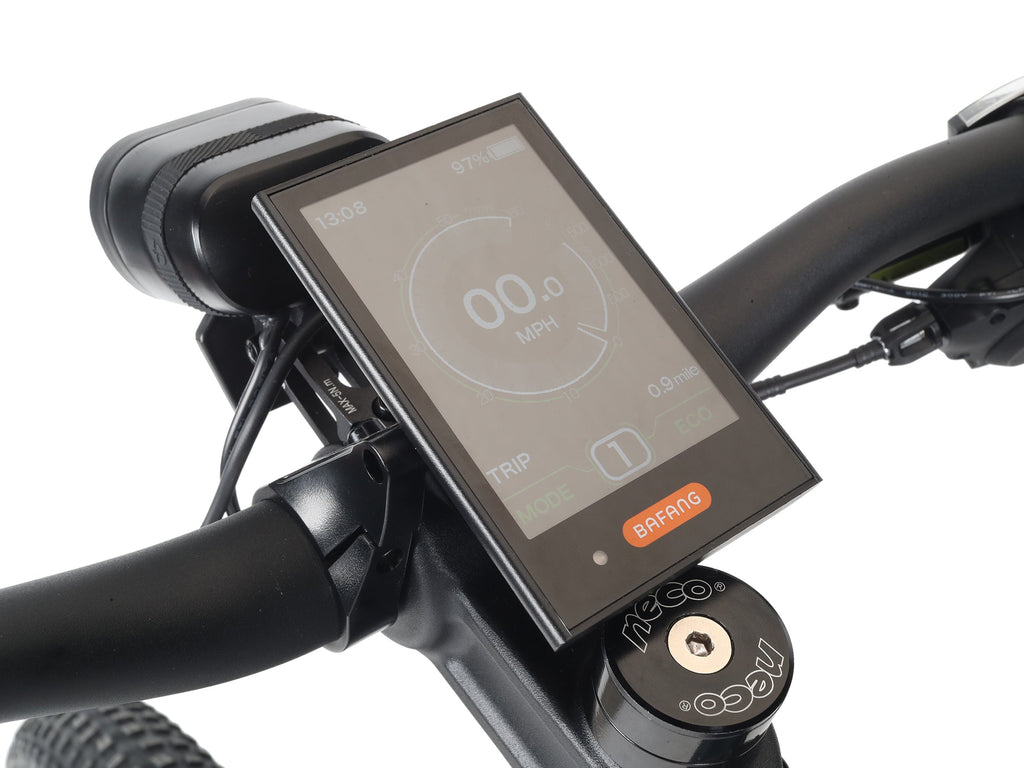

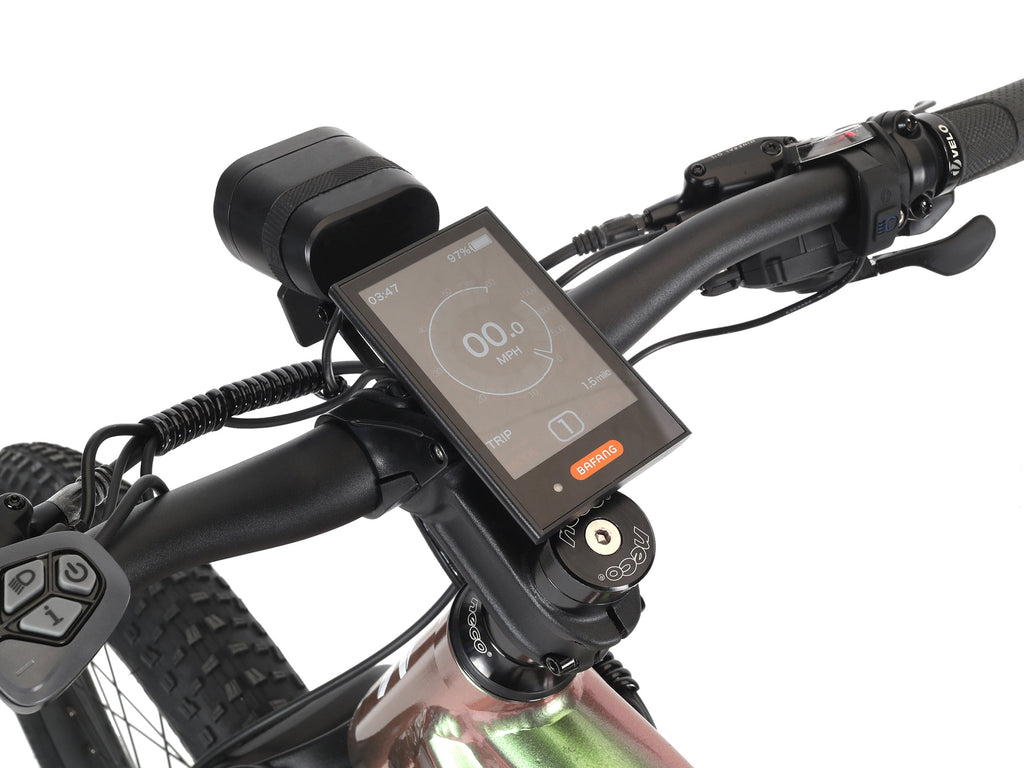

With a vibrant full-color display, you can easily view all the important ride and system data you need. Bluetooth connectivity pairs with compatible devices, and the built-in USB charging port means you can keep things like your phone powered too.

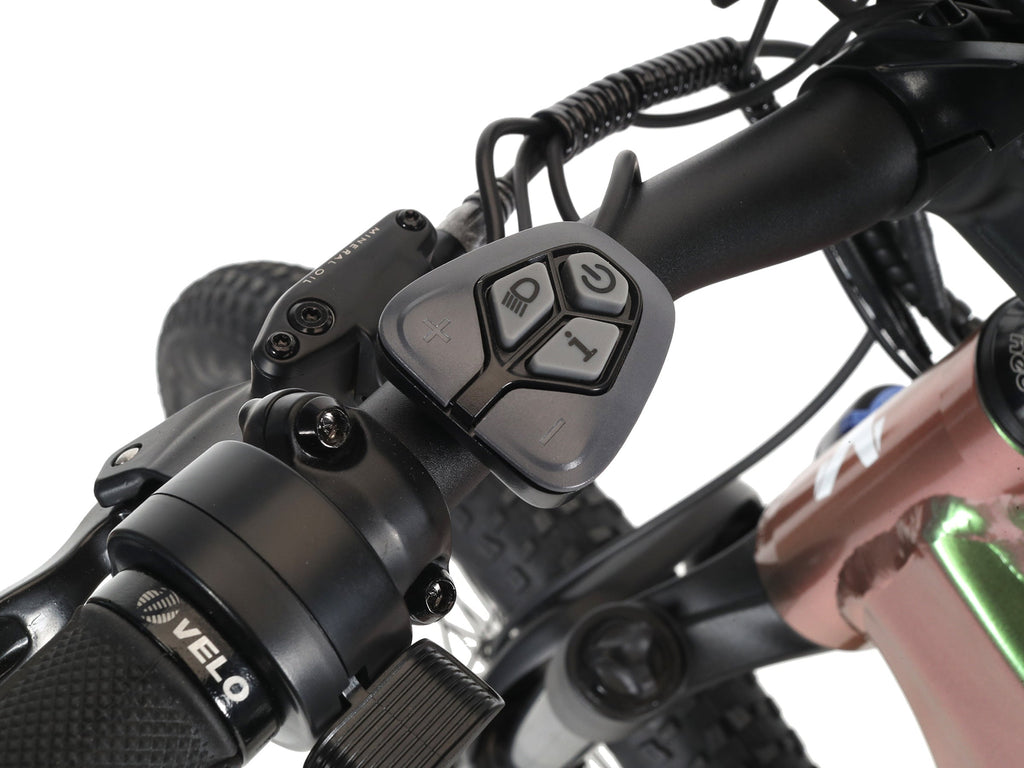

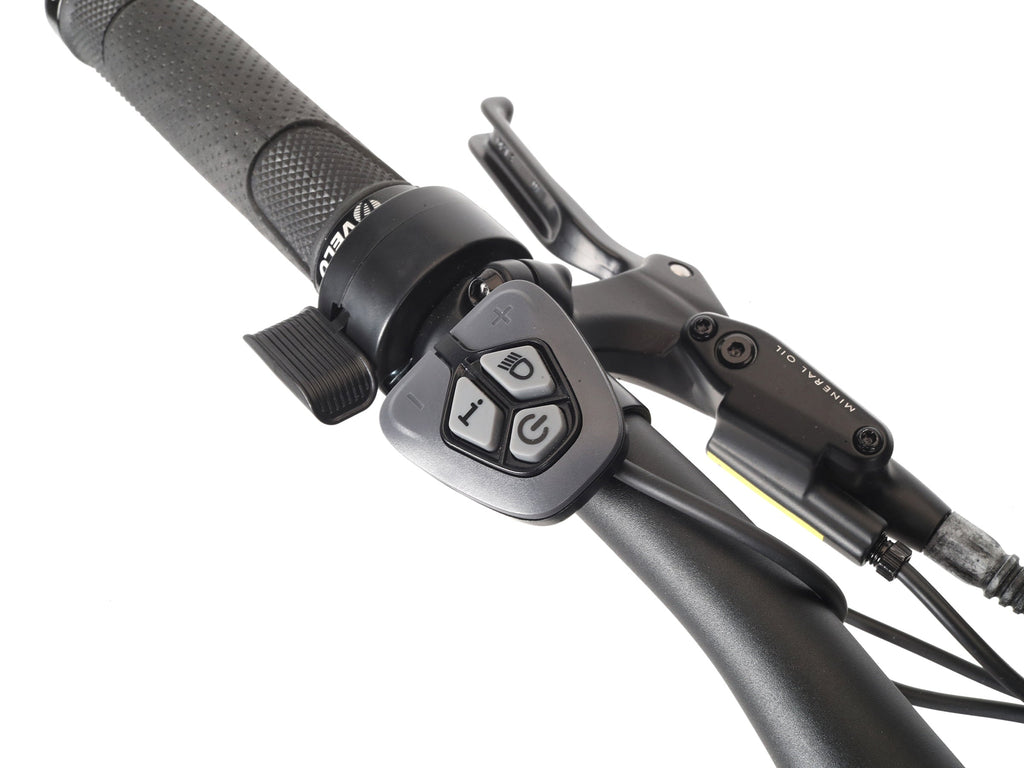

The thumb throttle makes accessing the power of the mid-drive motor easy, while keeping the cockpit uncluttered. Simple operation keeps the riding experience natural and intuitive, and eliminates the wrist soreness associated with twist throttles.

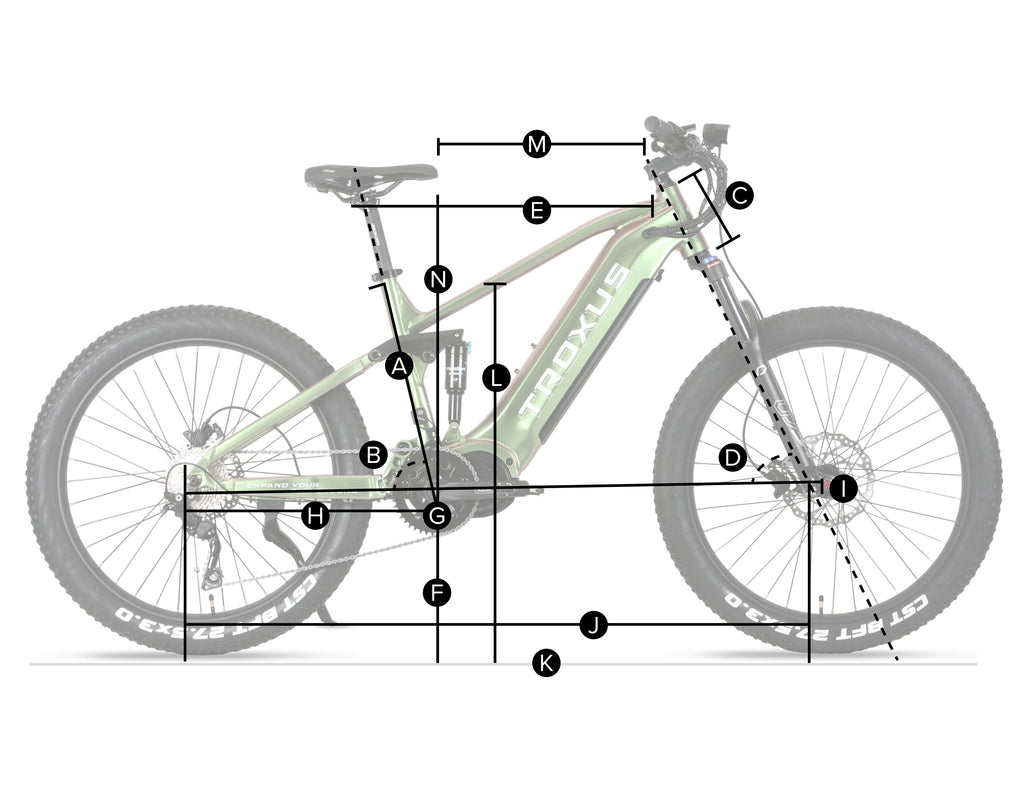

Frame Size M (mm) L (mm)

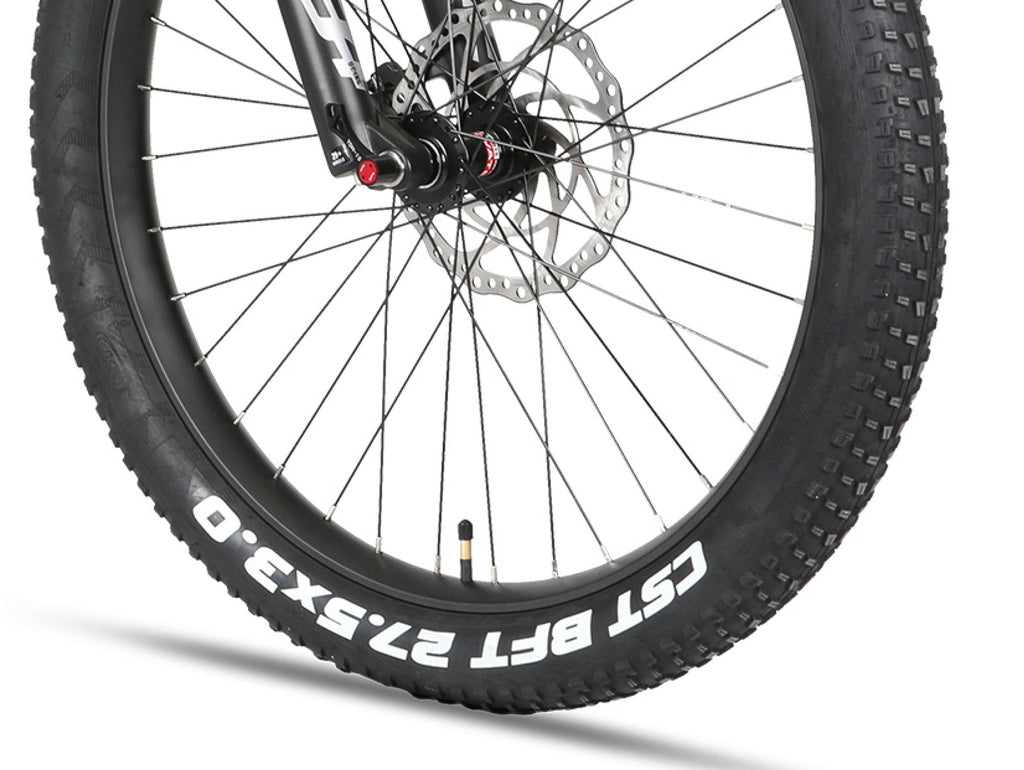

Wheel size 27.5"*3.0" 27.5"*3.0"
A ─ Seat tube 432 470
B ─ Seat tube angle 74.5° 74.5°
C ─ Head tube length 150 150
D ─ Head angle 65° 65°
E ─ Effective top tube 630 640
F ─ Bottom bracket height 348 348
G ─ Bottom bracket drop 37 37
H ─ Chainstay length 500 500
I ─ Offset 51 51
J ─ Trail 123 123
K ─ Wheelbase 1303 1313
L ─ Standover 750 750
M ─ Frame Reach 469 479
N ─ Frame Stack 636 636

Shimano®'s legendary Deore MTB group provides flawless shifting performance and a wide range of gears to meet all your needs for climbing, descending, or powering on the flats.

Motor: Bafang® M620, 48V/1000W (Peak Power), 160Nm Mid-Drive Motor
Throttle: Thumb Throttle on Handlebar
Display: Bafang®, DP C18.CAN, Color screen with USB charging port,
Speed: Up to 20 MPH on throttle / Up to 28 MPH on Pedal Assist
Battery: Removable Internal Lithium Ion, 48V/20Ah (960Wh)
Sensors: Torque in Motor, Speed Sensor at rear wheel
Weight (Net/Gross): 81.57 LB (Net) / 101.41 LB (Gross)
Weight Limit: Standard 275 LB / Maximum 353 LB
Fork: Uding® Coil, Boost 110x130mm Travel
Crankset: Alloy, Bafang® ISIS, 44T N/W Chainring, 170mm
Rear Derailleur: Shimano® Deore RD-M6000, SGS 10-Speed
Cassette: Shimano® CS-HG500-10, 10-Speed, 11-34T
Shift Lever: 10 Speed

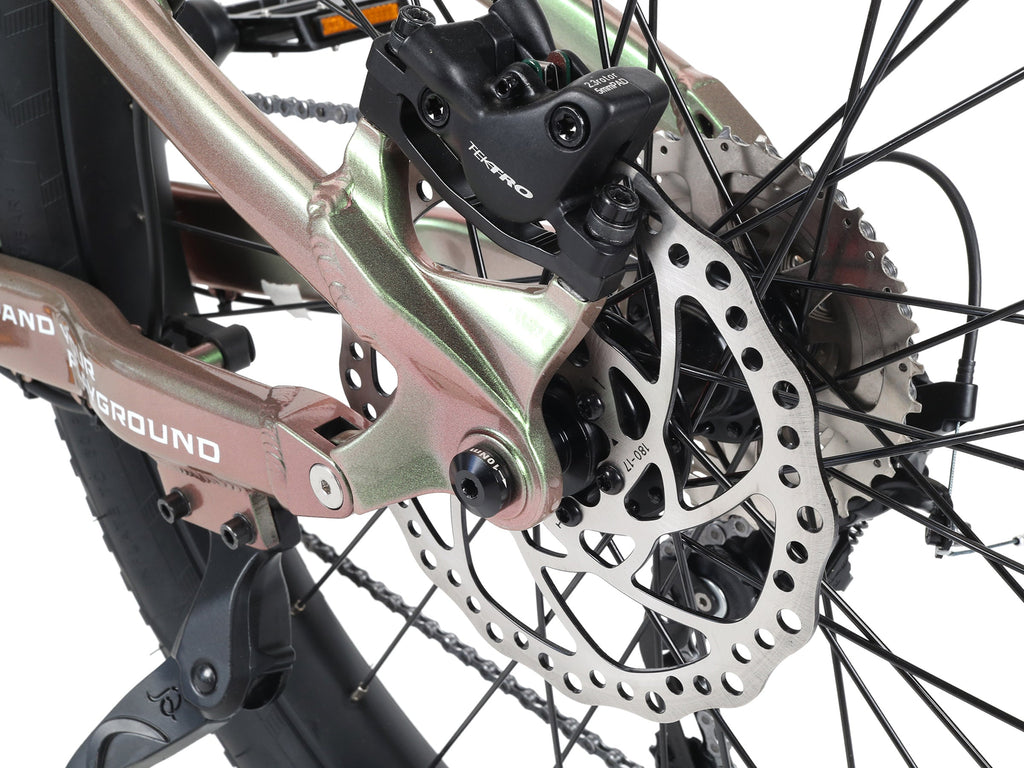

Brakes: Tektro® HD-E350 Hydraulic Brakes
Chain: KMC® e10X, 10-speed / E-bike specific
Rims: Alloy Double Wall 50mm Width, 36H
Hubs: Thru-Axles Front and Rear, Q/R Front
Handlebars: Alloy, 31.8×680 or 760mm, 25mm rise
Saddle: MTB Comfort Plus w/ cut-out
Seatpost: Alloy, 31.6 × 350mm, Adjustable
Kickstand: Included, Rear Mount
Headset: Threadless Internal, Tapered 1.5"
