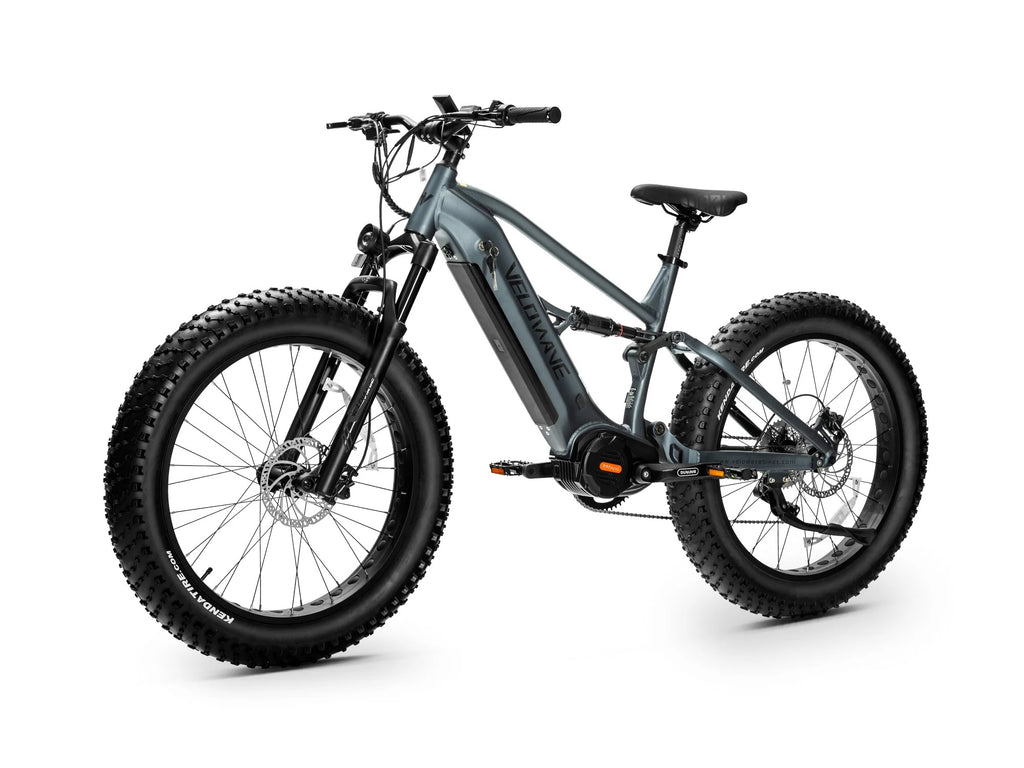

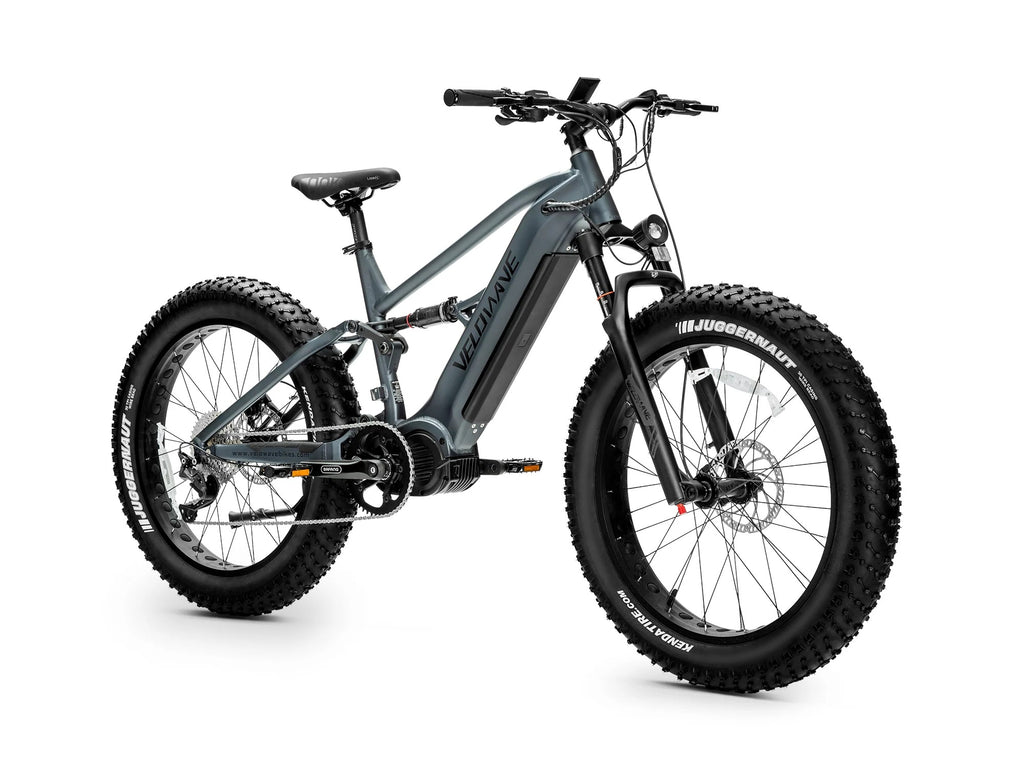

Velowave 1000W Brawny XM MTB 20Ah Mountain Electric Bike

VelowaveSKU: EB-VW-BXM-MTB-OG17


Color: Olive Green
Size: 17"
Price:
Sale price$3,499

    Motor Size:

    1000W

    Battery:

    48V 20AH

    Drive Mode:

    Class II and III

    Frame Type:

    6061 Alluminum Alloy

    Wheel Size:

    Kenda 26" x 4.8"

    Motor Position:

    Mid - Drive

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects


    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Velowave 1000W Brawny XM MTB Mountain Electric Bike ($84.95 value!)

    Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.

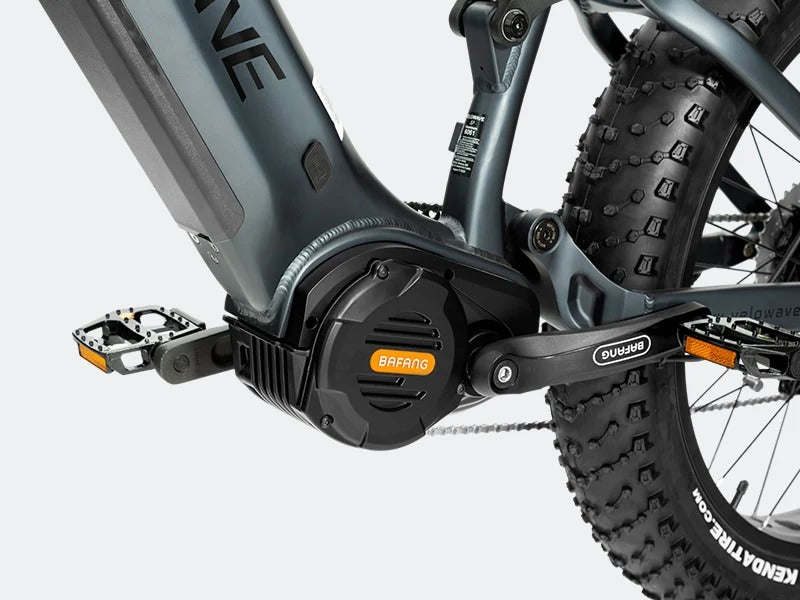

    Velowave Brawny XM Motor

    Unstoppable Power

    Equipped with a robust 1000W motor (peaking at 1200W) and delivering an impressive 160Nm of torque, the Brawny effortlessly powers through inclines and rough landscapes, making every ride exhilarating.

    Suspension and Brake

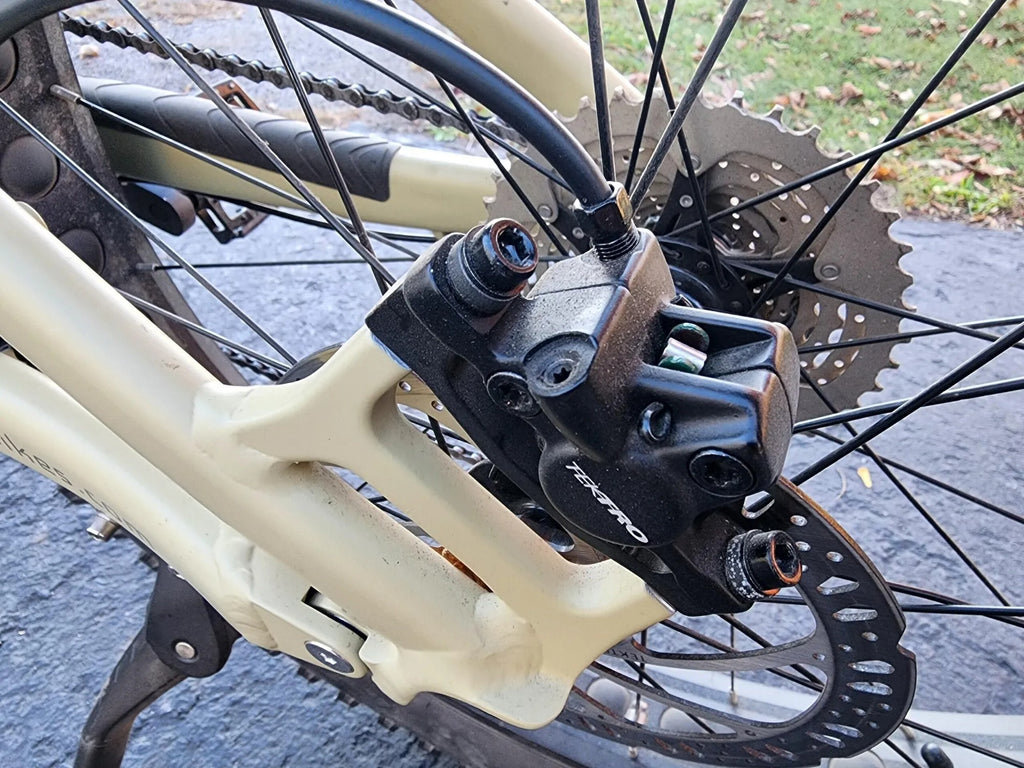

    Take on rough terrains with confidence thanks to the air suspension fork with 100mm travel and lockout feature, coupled with a Rockshox RS-MNR-R-C4 rear suspension for 44mm travel and external rebound adjustment. Tektro hydraulic disc brakes with 180mm discs and a power-cut-off function ensure reliable stopping power under any conditions.

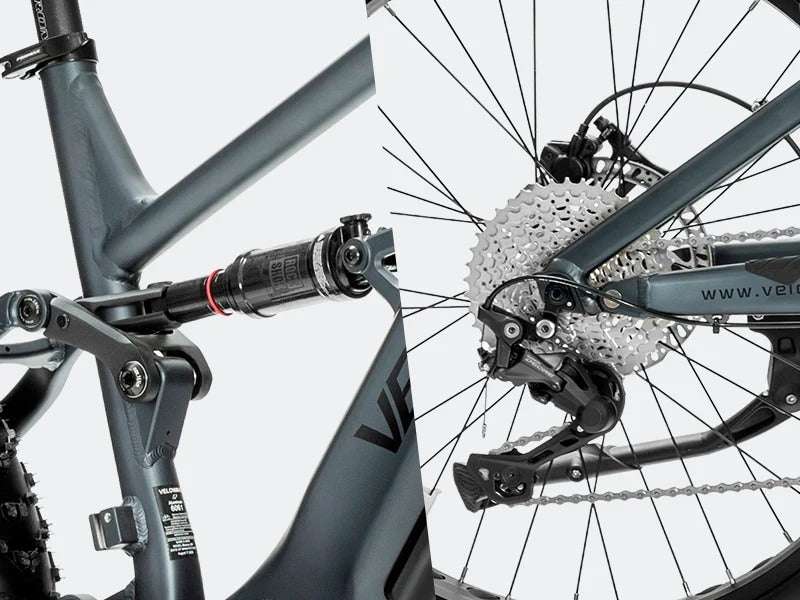

    Velowave Brawny Gear And Frame Shock

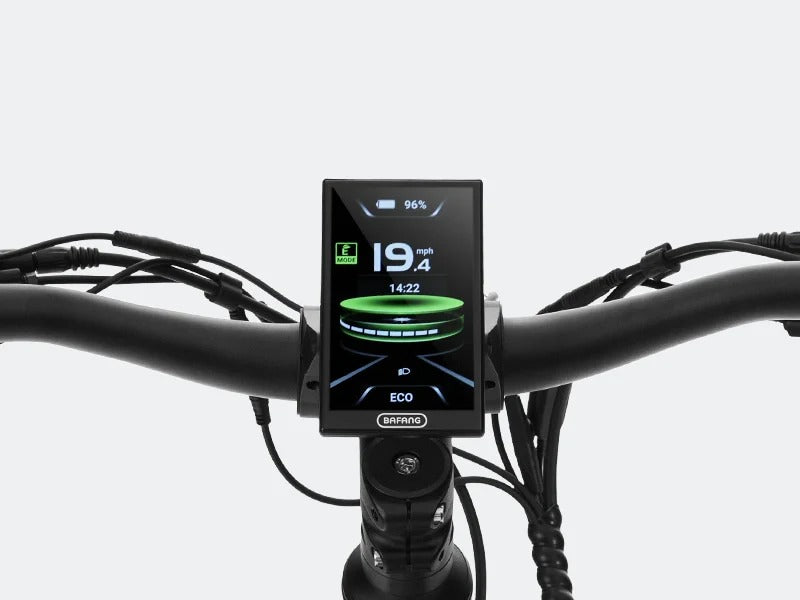

    Velowave Brawny LED Screen

    Smart Display and Speed

    Navigate with confidence using the TFT Smart Easy Read Display, featuring a colorful screen and backlight for easy readability in all conditions. Enjoy speeds up to 37 MPH with pedal assist and up to 20 MPH on throttle mode, ensuring a swift and responsive ride.

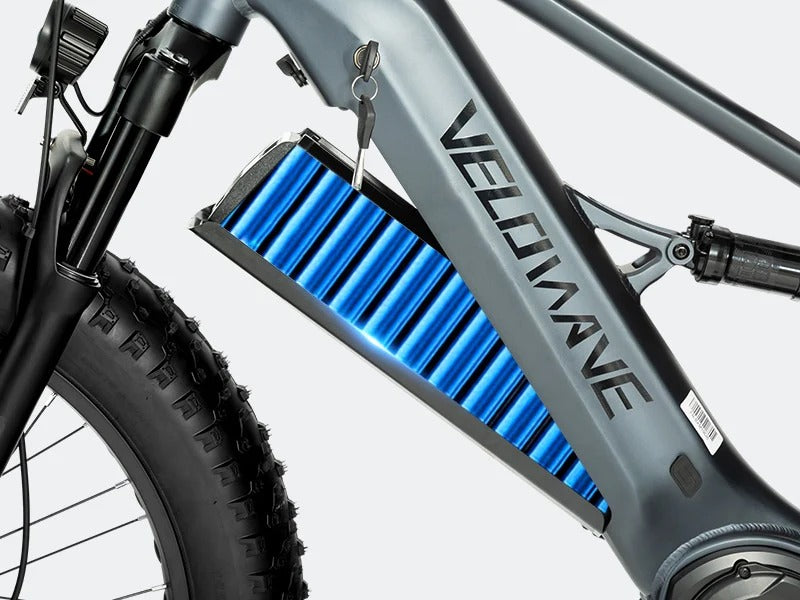

    Long-Lasting Battery

    The Brawny boasts a removable 48V 20Ah Lithium-ion battery with LG cells, providing up to 85 miles on pedal assist and 60 miles on throttle mode on a single charge. The included 48V 3 Amp charger replenishes the battery in approximately 7 hours, keeping you ready for your next adventure.

    Velowave Brawny Battery

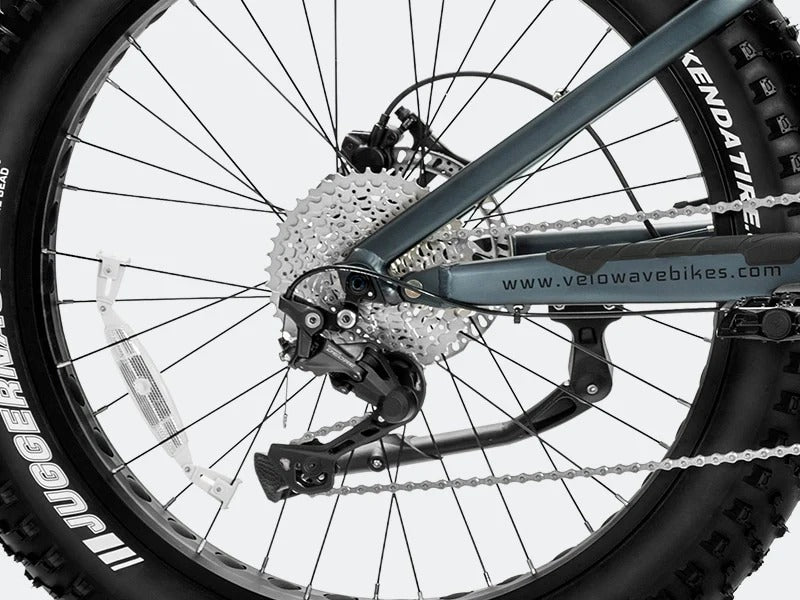

    Velowave Brawny Gear

    Pedal & Gear System

    Tailor your ride with 6 levels of pedal assist, seamlessly integrated with a Shimano Deore 10-speed rear derailleur, Shimano 10-speed thumb shift lever, and a 48T crankset for smooth shifting and efficient power transmission.

    Specifications:

    Class: Off-Road (up to 37 mph with pedal assist)
    Max Speed: 37 MPH (Pedal Assist) / 20 MPH (Throttle)
    Range: * Average: 75 miles
    Level 1 PAS: Up to 85 miles
    Throttle Only: 60 miles
    Weight: 82 lbs (Net) / 111 lbs (Gross)
    Max Load Capacity: 385 lbs
    Motor: 1000W (1200W Peak) with 160Nm torque
    Battery: 48V 20Ah (960Wh) Removable Internal Lithium-ion (LG cells)
    Charger: 48V 3 Amp (approx. 7-hour charge time)
    Sensor: Torque Sensor
    Display: TFT Smart Colorful Display with Backlight
    Pedal Assist: 6 Levels
    Throttle: Throttle on demand (works from a complete stop)
    Lighting: 80 LUX LED Front Light; Blinking Rear Light
    Frame: 6061 Aluminum Alloy with internal battery and 139mm travel
    Fork: Air Suspension Fork (100mm travel) with lockout
    Rear Suspension: Rockshox RS-MNR-R-C4 Air Spring (44mm travel)
    Tires: Kenda 26" x 4.8" Fat Tires
    Rims: Aluminum 26" 36H
    Handlebar: Aluminum (Width 740mm)
    Saddle: Comfortable Wide Saddle
    Seatpost: Forged Alloy (31.6mm diameter)
    Pedals: Alloy Platform
    Accessories: Kickstand included; Fenders and Rear Rack not included
    Product Size: 2100 x 1158 x 745 mm
    Packing Size: 1700 x 350 x 900 mm

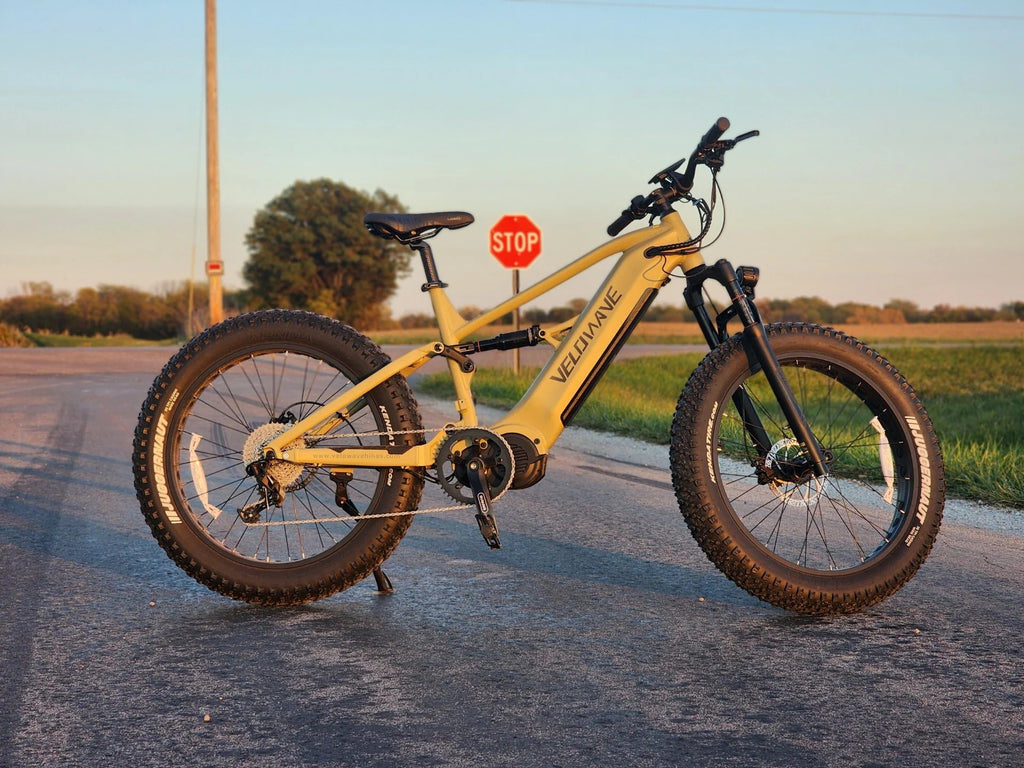

    Velowave Brawny Model 1

    Designed for long-distance adventure, the Brawny XM is equipped with a high-capacity 48V 20Ah LG-cell battery, offering an impressive range of up to 85 miles on a single charge. Its advanced torque sensor provides a natural, responsive pedaling experience, while the Shimano Deore 10-speed drivetrain and Tektro hydraulic disc brakes offer precise control and reliable stopping power. Whether you are navigating technical trails or cruising off-road, this e-bike combines raw power with premium components for the ultimate outdoor experience.
