Velowave 1000W Forest XM MTB 20Ah Step Over Electric Bike

VelowaveSKU: EB-VW-FXM-MTB-SO17-DGRN


Color: Dark Green
Frame Size: 17"
Price:
Sale price$3,199

    Motor Size:

    1000W

    Battery:

    48V 20AH

    Drive Mode:

    Class II and III

    Frame Type:

    Alluminum Alloy Full Suspension

    Wheel Size:

    Kenda 27.5" x 2.8"

    Motor Position:

    Rear Hub

    Financing Available

    Pay in 4 interest-free payments.

    Free Shipping

    Enjoy free shipping to the continental US.

    We're Here To Help

    Lifetime customer & technical support

    Premium Warranty

    Every bike comes backed by a warranty against manufacturing defects


    Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Velowave 1000W Forest XM MTB Step Over Electric Bike ($84.95 value!)

    The Velowave Forest-XM is a premium, high-performance electric mountain bike designed for riders who seek ultimate power and control on the most challenging terrains. This "beast" of an e-MTB distinguishes itself with a massive 1000W motor (1200W Peak) that delivers a class-leading 160Nm of torque, allowing you to conquer steep inclines and technical trails with effortless acceleration.

    Power & Performance

    Exceptional Motor: Boasting a powerful 1000W motor (with a peak of 1200W) and 160Nm torque, the Forest XM allows you to conquer steep hills and rough paths effortlessly.

    High-Speed Capabilities: Reach speeds of up to 37 MPH with Pedal Assist and 20 MPH with the throttle alone, making it suitable for both leisurely rides and brisk commutes.

    Long-Range Battery: Equipped with a removable 48V 20Ah Lithium-ion battery featuring LG cells, providing substantial range and reliability.

    Extended Journeys: Enjoy up to 85 miles on PAS and 60 miles on throttle mode, providing ample distance for extended journeys.

    Premium Suspension & Handling

    Front Suspension: Features an air suspension fork with 140mm travel and lockout for customizable handling.

    Rear Suspension: Paired with a Rockshox rear suspension for superior comfort and control.

    Adjustable Settings: The 185X45 rear air suspension offers adjustable settings for a smooth ride over any bumps.

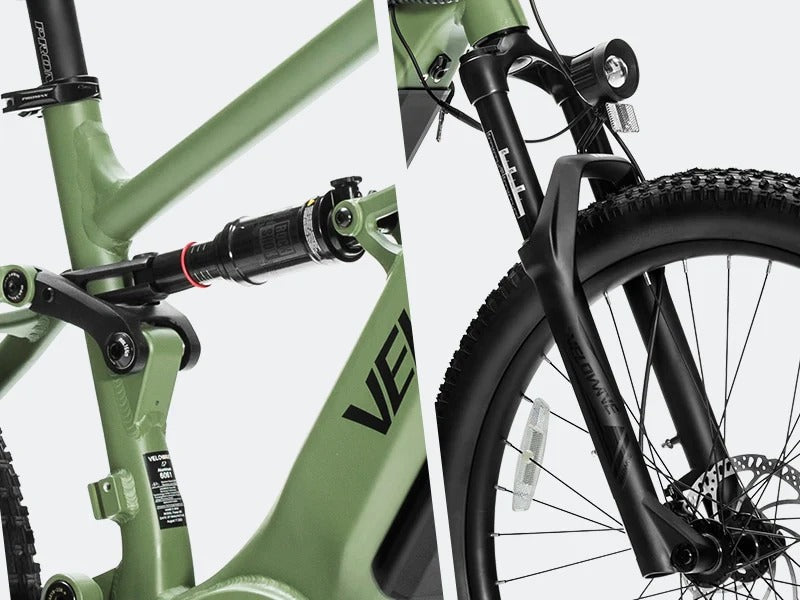

    Velowave Forest XM Step Over Dual Shock

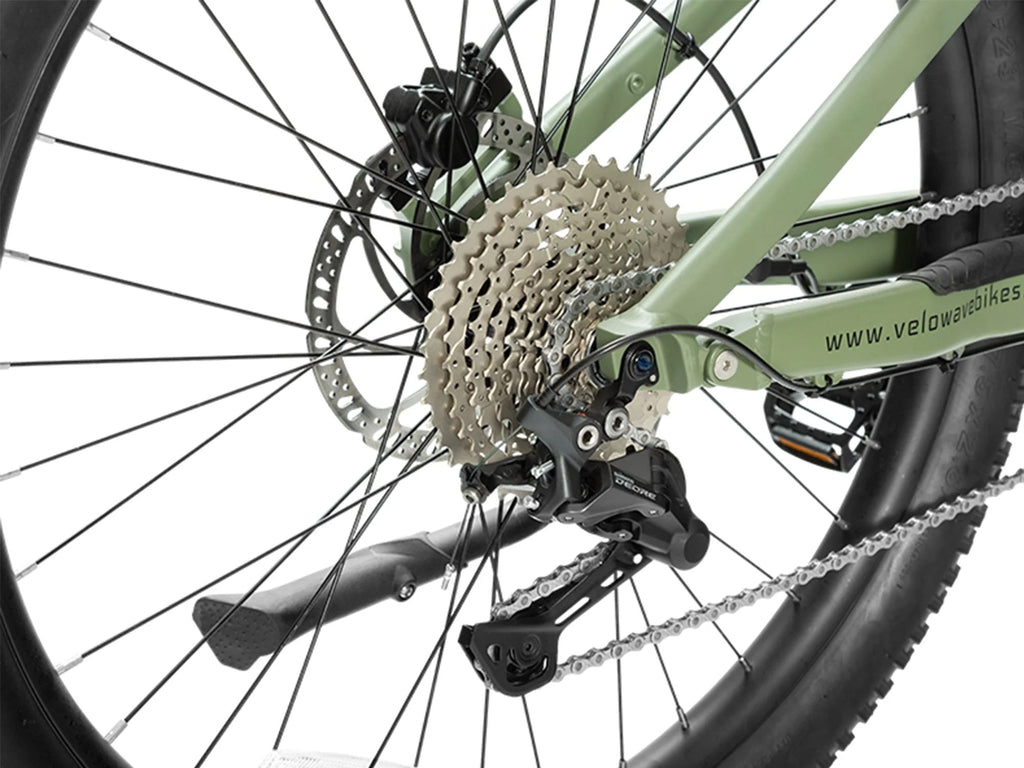

    Velowave Forest XM Step Over Gear

    Drivetrain & Braking

    Precision Drivetrain: Features a Shimano Deore 10-speed rear derailleur, Shimano 11-42T cassette, and a 10-speed thumb shift lever for smooth, precise gear changes.

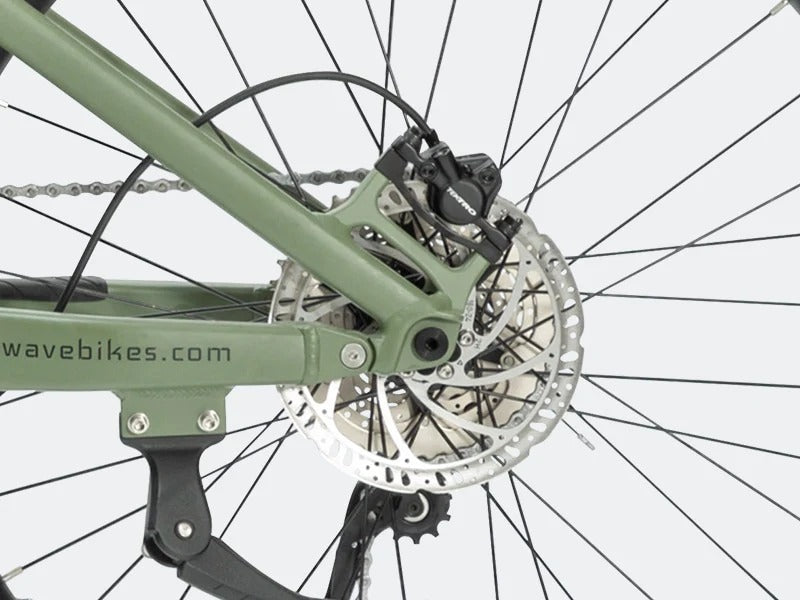

    Reliable Braking: Tektro hydraulic disc brakes with 180mm discs and a power-cut-off function deliver reliable stopping power in all conditions.

    Display & Conveniences

    Dynamic Display: Stay informed with the vibrant TFT Smart Display, offering clear visibility and intuitive controls even in bright sunlight.

    Convenient Additions: Includes a rear-mounted kickstand for easy parking and alloy platform pedals for secure footing.

    Enhanced Visibility: Illuminate your path with the powerful 48V LED front light (80 LUX) and rear blinking light, enhancing visibility in low-light conditions.

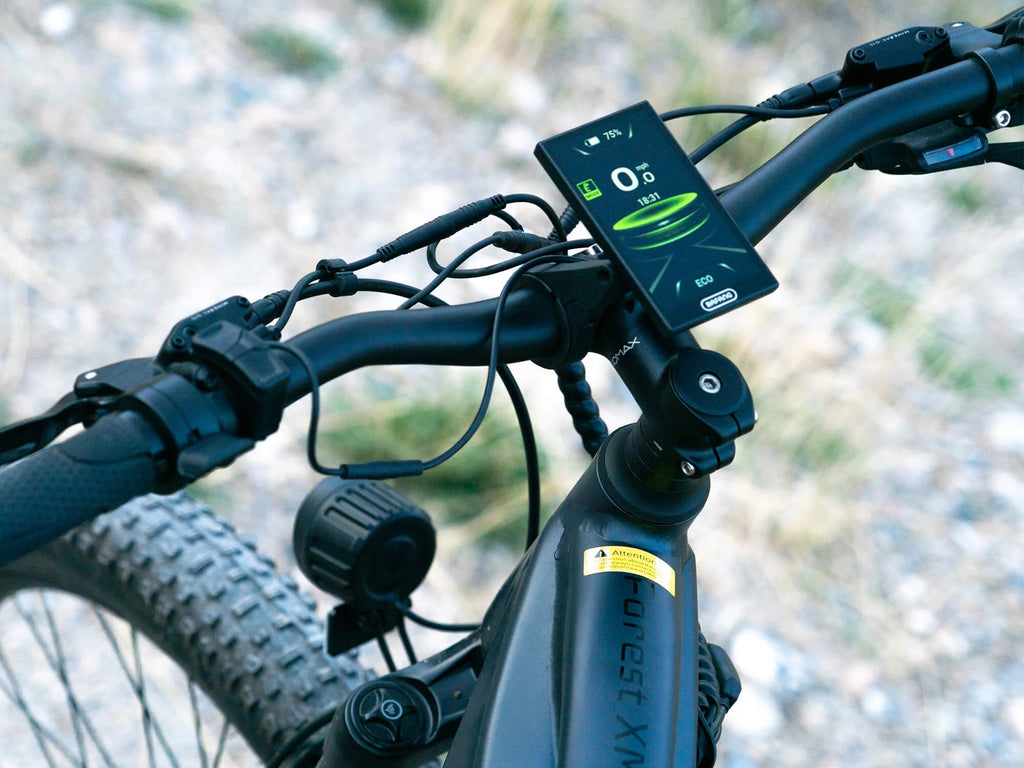

    Velowave Forest XM Step Over Digital Meter

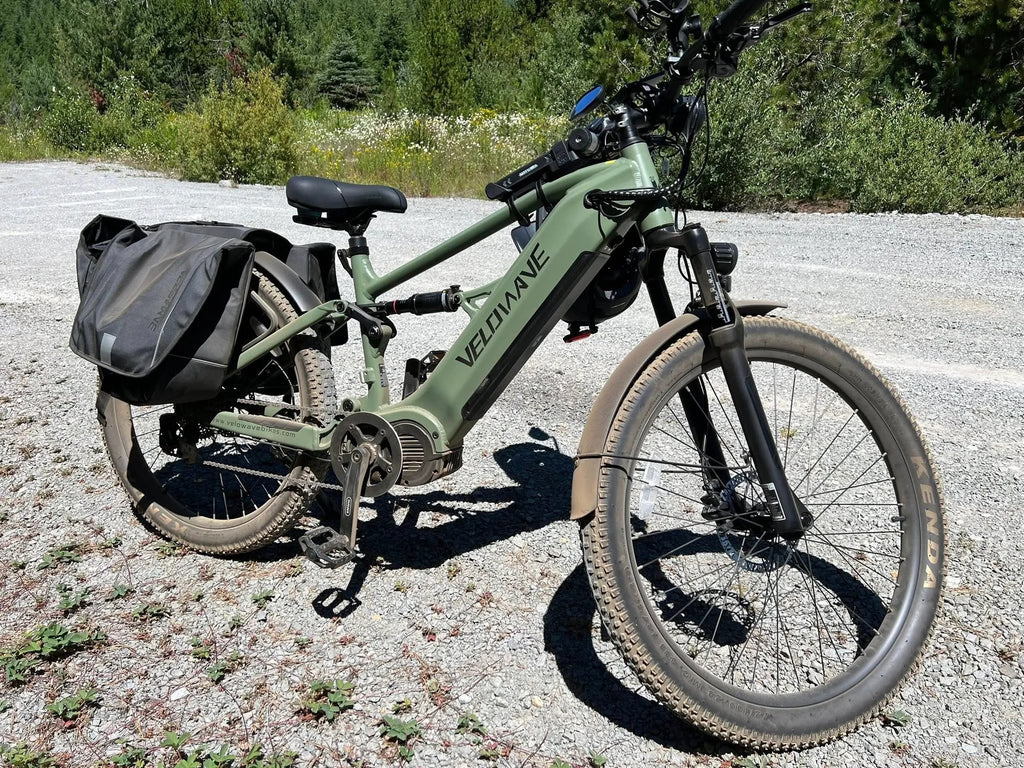

    Velowave Forest XM Step Over Model 3

    Specifications:

    Class & Speed: Capable of up to 37 MPH on Pedal Assist and 20 MPH on throttle.

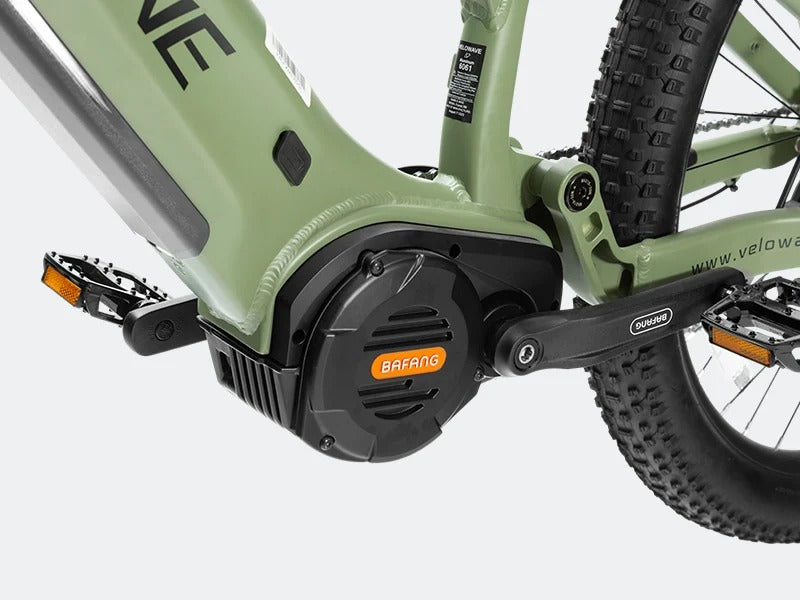

    High-Torque Motor: Features a 1000W motor with a peak output of 1200W and 160Nm of torque.

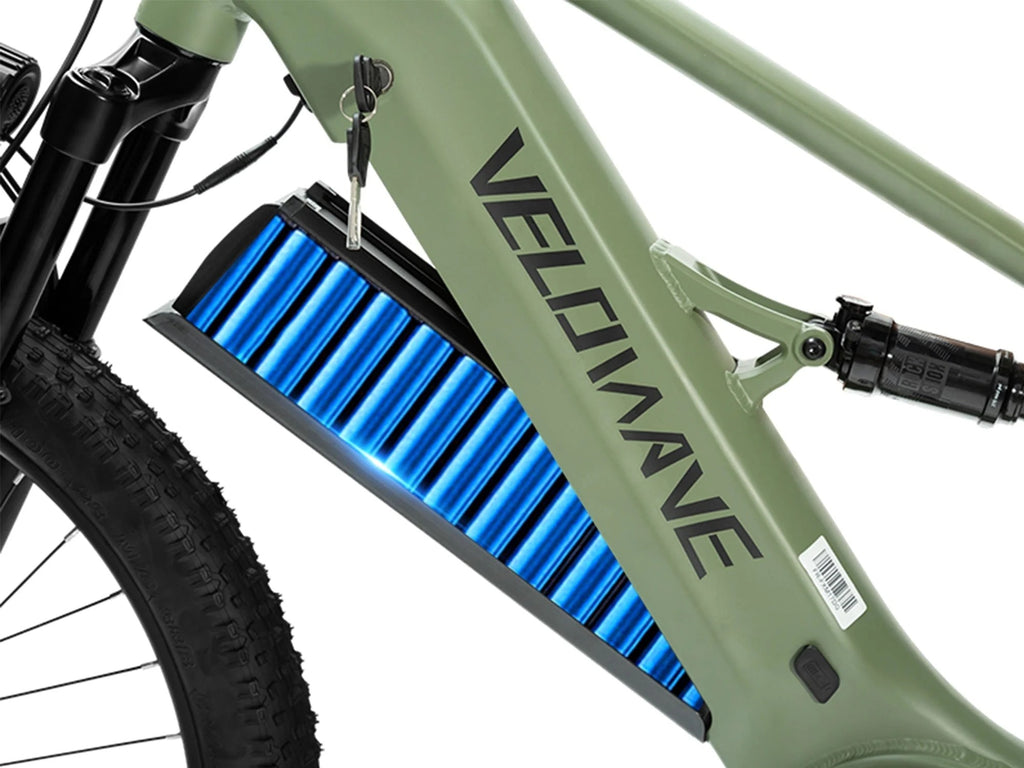

    Premium Battery: Equipped with a removable 48V 20Ah (960Wh) internal battery using LG cells.
    Extended Range: Provides an average of 75 miles on Pedal Assist (up to 85 miles on Level 1) and 60 miles on throttle.
    Advanced Sensing: Includes a Torque Sensor for natural, responsive power delivery.
    Smart Interface: Features a TFT colorful smart display with backlight and 6 levels of pedal assist.
    Charging: Includes a 48V 3 Amp charger with a charging time of approximately 7 hours.
    Safety Lighting: Equipped with an 80 LUX LED front light and a rear blinking light.
    Rugged Frame: Built with 6061 Aluminum Alloy, featuring an internal battery and 133mm of frame travel.
    Front Fork: Air suspension fork with 140mm of travel and a lockout function.

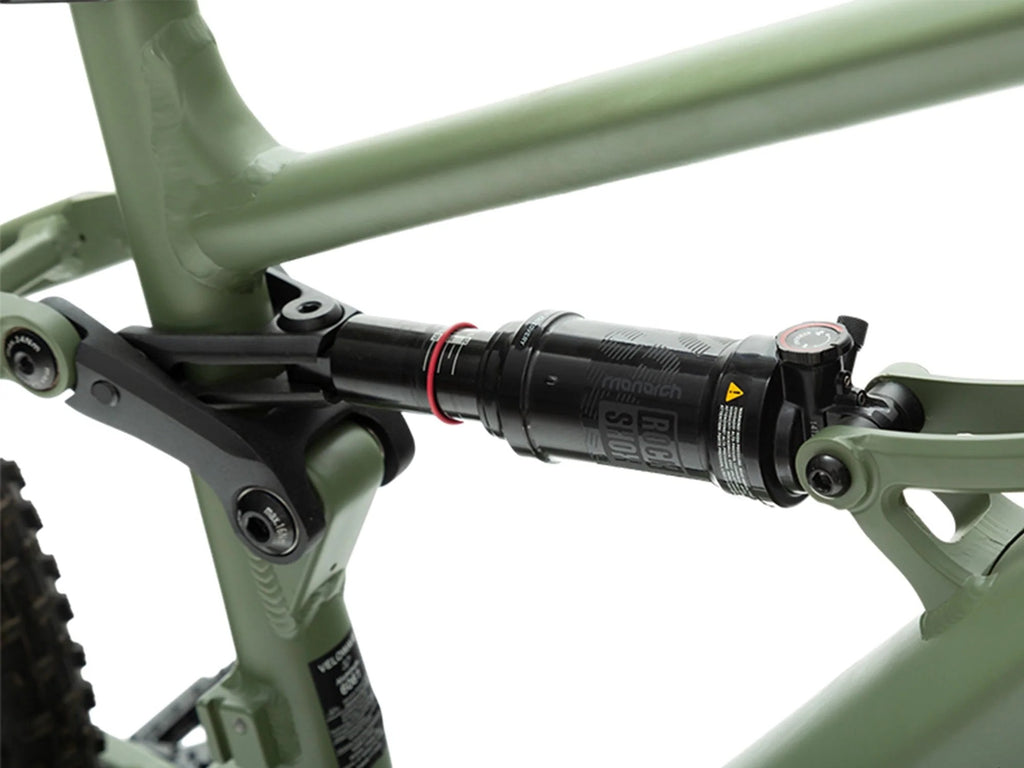

    Elite Rear Shock: Features a Rockshox RS-MNR-R-C4 air spring with 44mm travel and external rebound adjustment.
    Wheels & Tires: 27.5" x 2.8" Kenda tires mounted on 36H aluminum rims with stainless 13G spokes.
    Gearing: Shimano Deore 10-speed rear derailleur with an 11-42T cassette.
    Precision Shifting: Operated via a Shimano 10-speed thumb shift lever.
    Hydraulic Brakes: Tektro hydraulic disc brakes with 180mm discs and a motor power-cut-off function.
    Chain & Crank: Uses a KMC 134-link 10-speed chain and a 170mm crankset with a 40T chainring.
    Max Load Capacity: Designed to support up to 385 lbs (175 kg) including cargo.
    Bike Weight: Net weight is 76 lbs (34.5 kg), with the battery alone weighing 11.4 lbs.
    Comfort Components: Includes a comfortable wide saddle, ergonomic comfort grips, and alloy platform pedals.

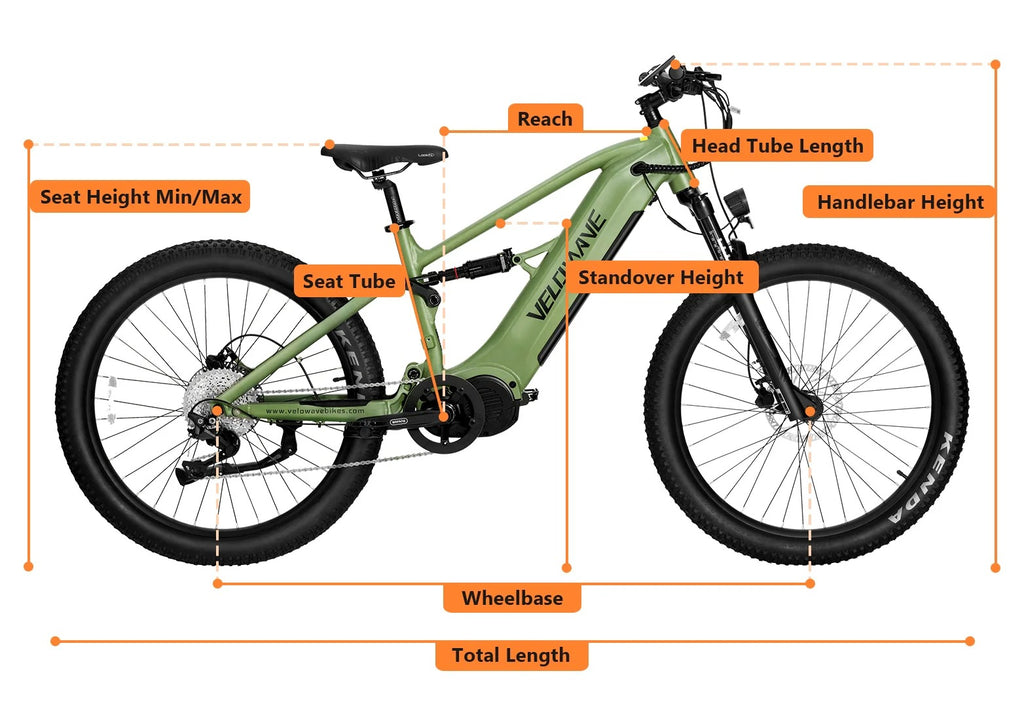

    Dimensions: Product size measures 2043 x 1135 x 745 mm.


    Engineered for both comfort and precision, the Forest-XM features a high-end dual suspension system, including a RockShox rear shock and a 140mm front air fork. Paired with a long-range 48V 20Ah LG battery, this bike is built for long-distance exploration, offering a smooth, responsive ride that bridges the gap between rugged trail performance and high-speed urban commuting.
