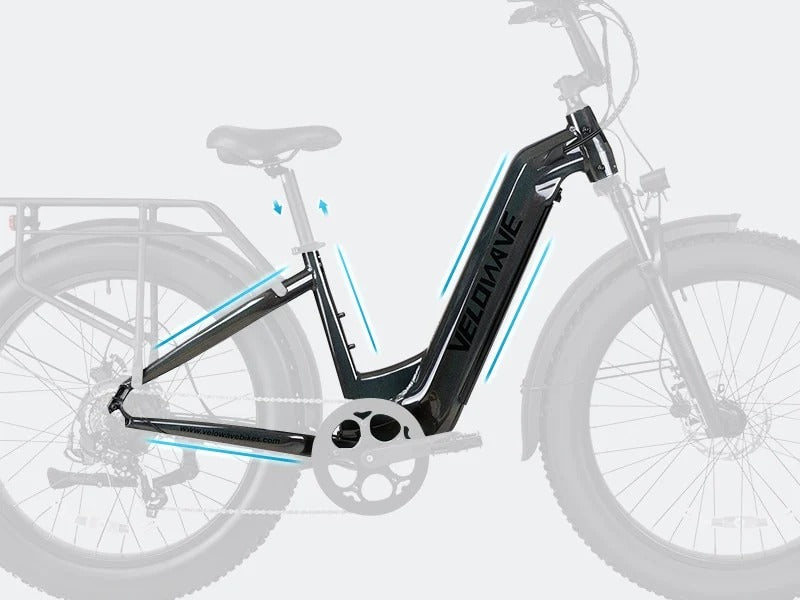

Constructed from 6061 aluminum alloy, the Ranger 3.0 offers exceptional durability and stability, providing a solid and reliable ride even on the toughest off-road terrains. Whether for commuting or adventure, it makes you the center of attention.

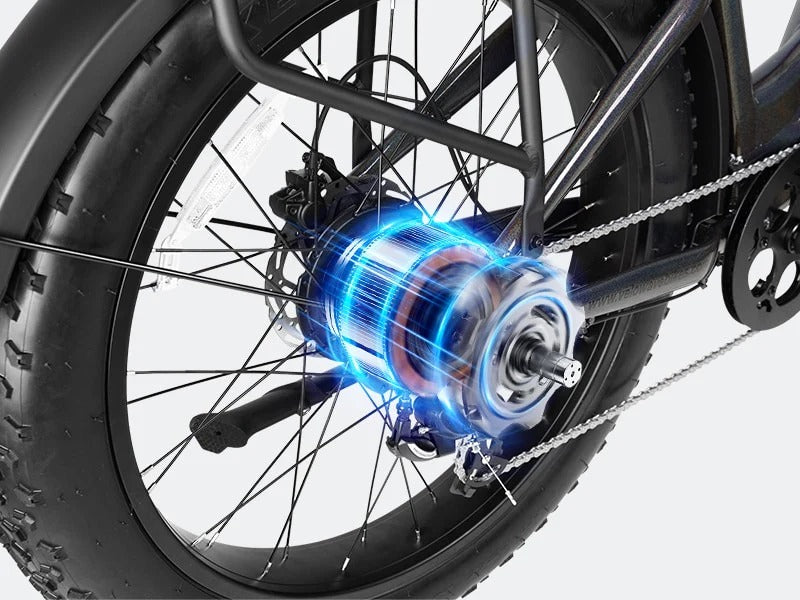

Feel the adrenaline with the Ranger 3.0’s powerful 750W motor, capable of peaking at 1000W with 85Nm of torque. Reach speeds of up to 28 MPH with Pedal Assist, making every ride an exhilarating experience.

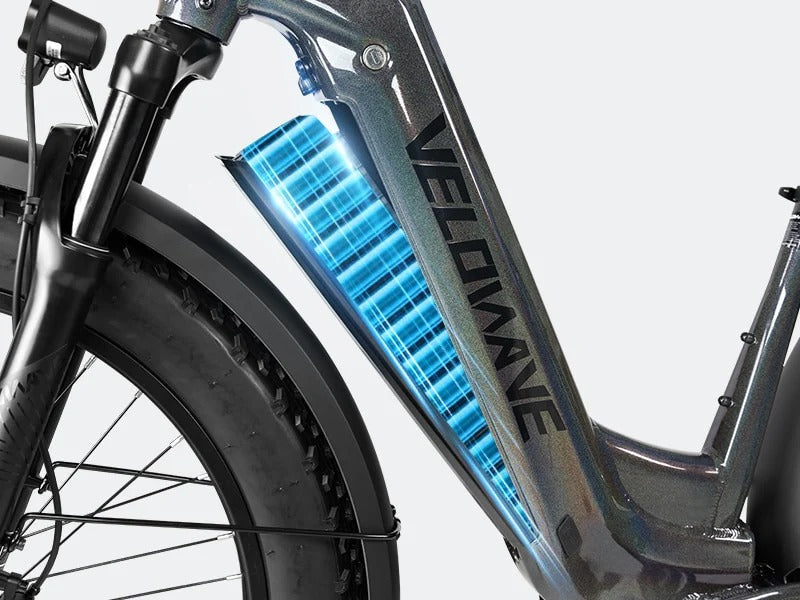

Equipped with a removable 48V 15Ah battery featuring LG cells, it provides an impressive range of up to 90 miles on PAS. The battery is seamlessly integrated into the frame, ensuring optimal performance while maintaining a sleek aesthetic.

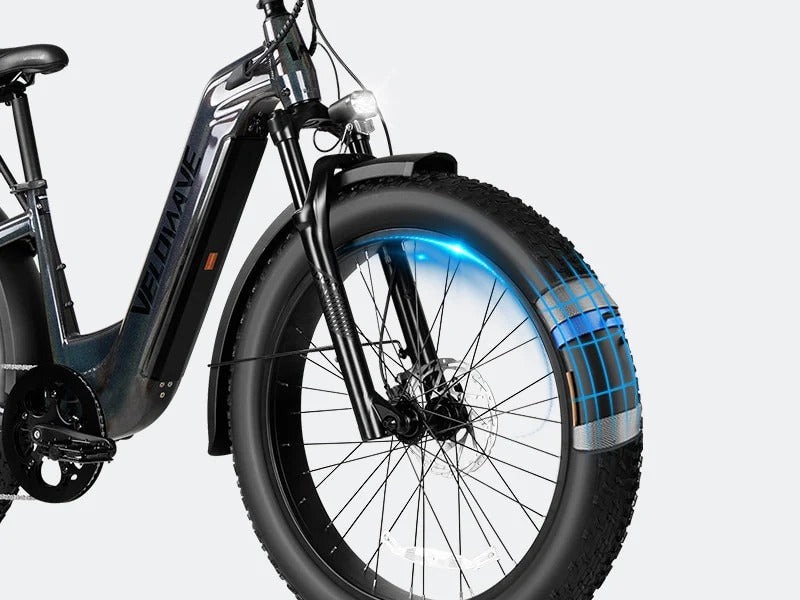

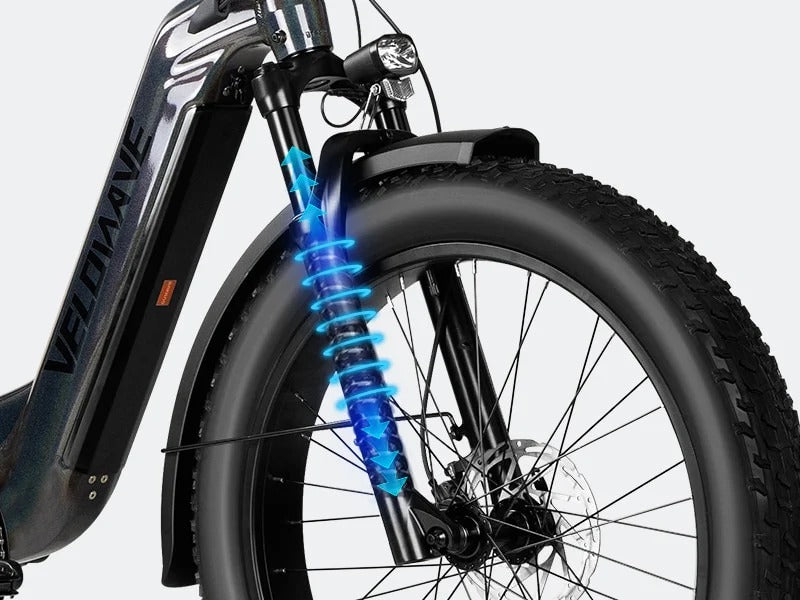

Enjoy a smooth and comfortable ride with the hydraulic suspension fork, offering 60mm of travel and a lockout capability. This system absorbs bumps and shocks, delivering a stable experience across all types of terrain.

The rear brake light, with a brightness of 12V 20 LUX, enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you, adding an extra layer of safety and confidence to your ride.

The torque sensor measures your pedaling force allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.

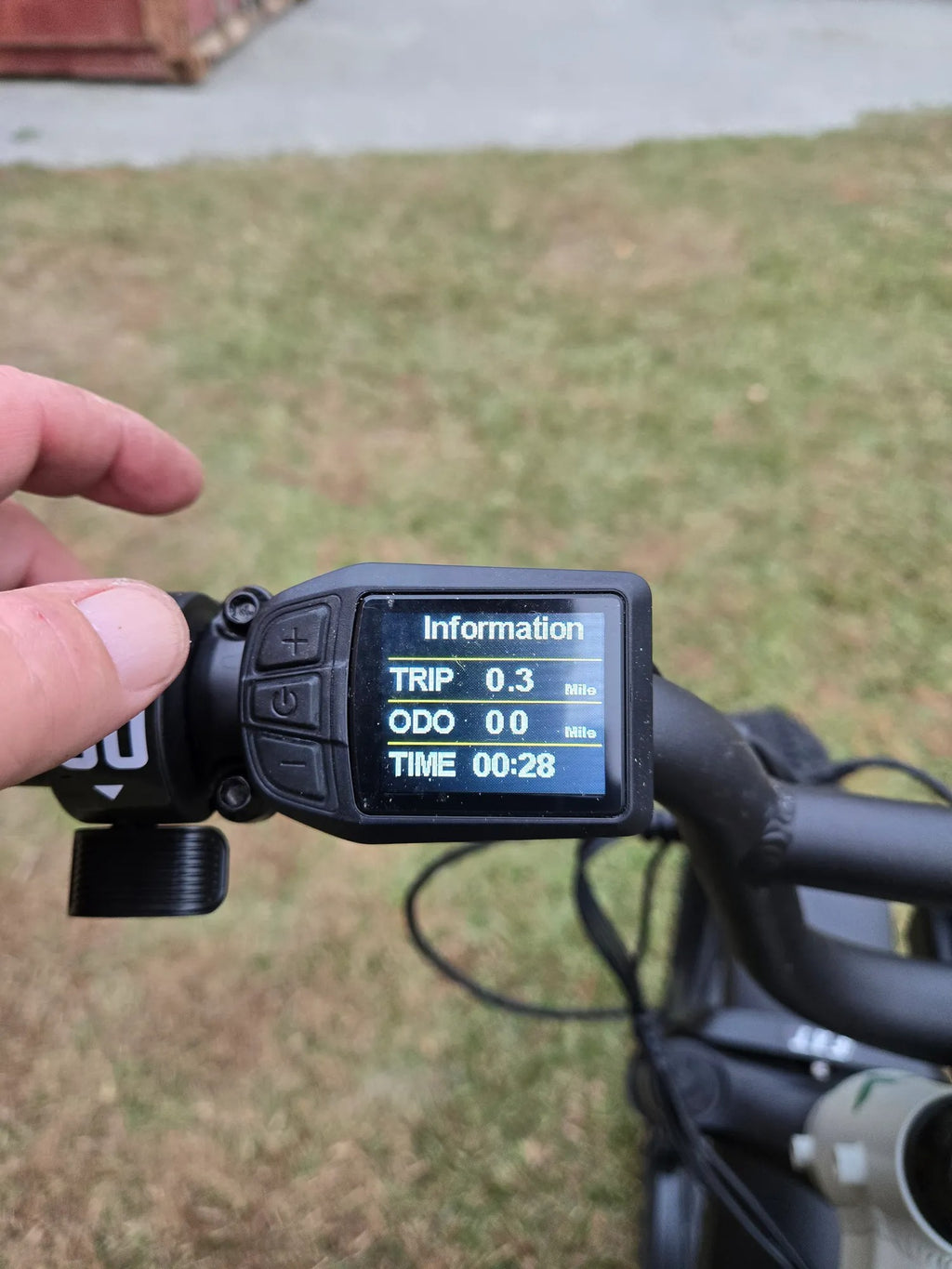

Includes a TFT Smart Display with a colorful, backlit screen for clear visibility in any lighting condition.

Classification: Class 3 (Up to 28 MPH with pedal assistance)
Max Speed: 28 MPH (Pedal Assist) | 20 MPH (Throttle)
Estimated Range: * Average: ~65 Miles
Maximum: Up to 90 Miles (PAS Level 1)
Throttle Only: ~30 Miles
Note: Range varies based on load (75kg test), terrain, and weather.
Motor: 750W (1000W Peak) Geared Hub Motor | 85Nm Torque
Battery: 48V 15Ah (720Wh) Removable Internal Lithium-ion (LG Cells)
Charger: 48V 2 Amp (Approx. 8-hour charge time)
Sensor: Integrated Torque Sensor
Display: TFT Smart Easy-Read Colorful Display with Backlight
Pedal Assist: 5 Levels
Throttle: On-demand (works from a complete stop)
Lighting: 48V LED Front Light (75 LUX) | 12V Rear Brake Light (20 LUX)
Frame: 6061 Aluminum Alloy with Internal Battery Routing
Fork: Hydraulic Suspension Fork | 60mm Travel | Lockout Feature
Shifter: Shimano 7-Speed RevoShift
Rear Derailleur: Shimano ARDTY500D 7-Speed

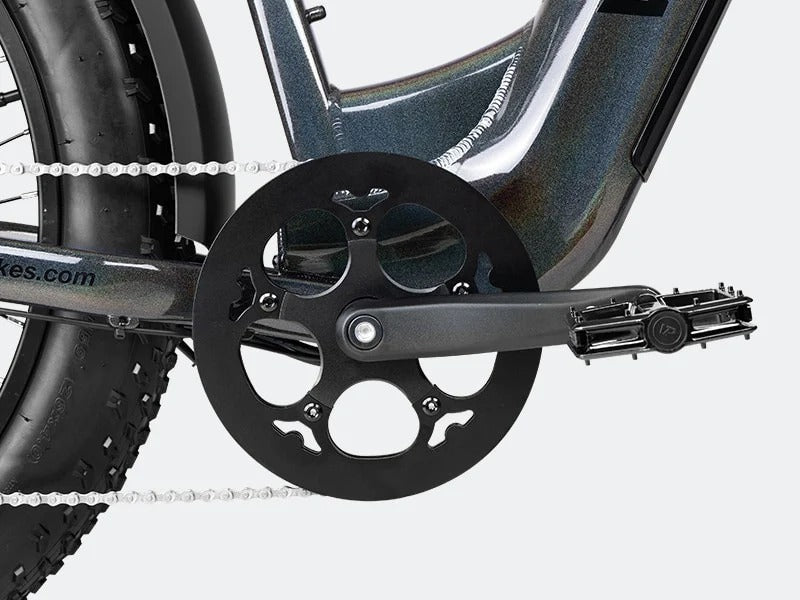

Crankset: 170mm with 52T
Freewheel: Shimano 14-28T, 7-Speed
Chain: KMC 124 Link

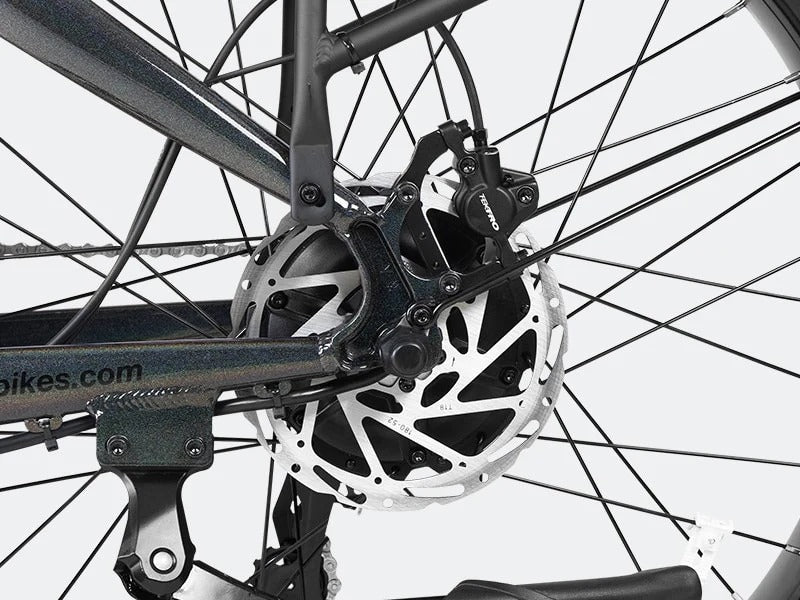

Brakes: Hydraulic Disc Brakes | 180mm Discs | Power-cut-off function
Handlebars: Aluminum Ø31.8mm | 740mm Width
Saddle: Comfortable Wide Saddle with Forged Alloy Seatpost
Tires: Kenda 26" x 4.0" Fat Tires
Rims: Aluminum 26" 36H (Front & Rear)
Spokes: Black Stainless Steel (13G Front / 12G Rear)
Tubes: Butyl Rubber with Schrader Valve
Fenders: Plastic (26" x 110mm)
Rear Rack: Aluminum Alloy
Kickstand: Alloy Rear Mount
Pedals: Alloy Platform
Net Weight: 82.67 lbs (37.5 kg) with battery
Battery Weight: 8.82 lbs (4 kg)
Max Payload: 300 lbs

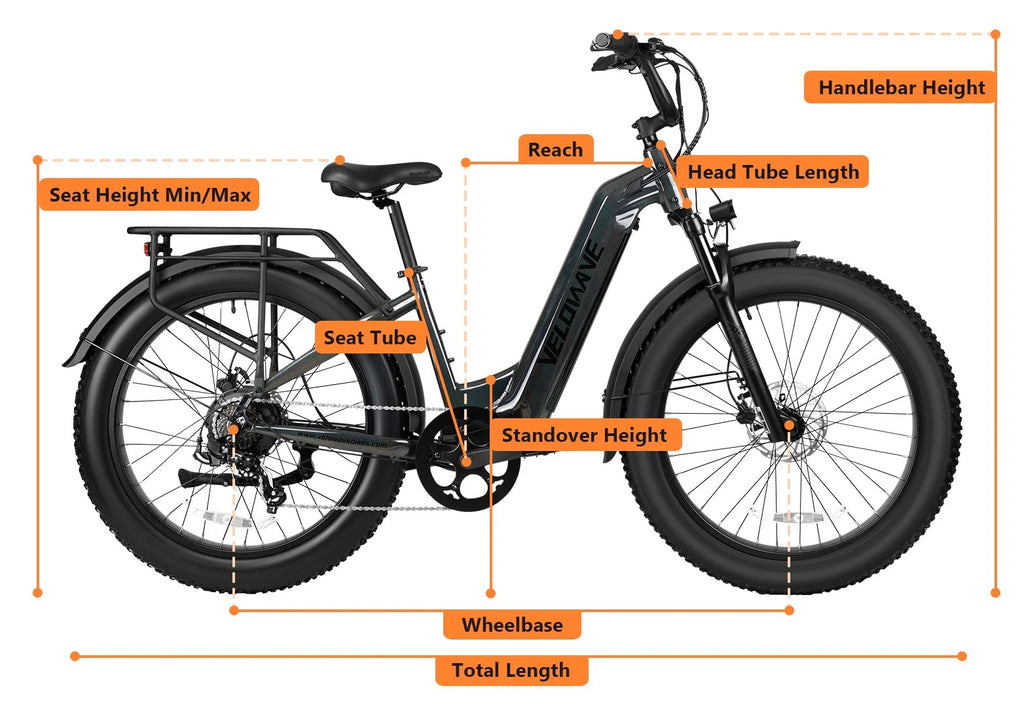

Product Size: 1930 x 755 x 1110 mm
Packing Size: 1590 x 325 x 895 mm
