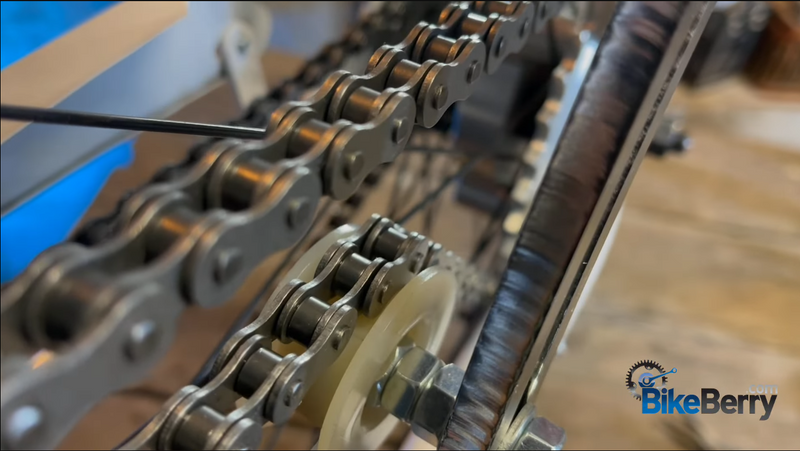

a photo of a bike chain BikeBerry

If you're passionate about keeping your bicycle in top-notch condition, you understand how every component plays a pivotal role in your bike's performance. One such critical element is the chain path. This seemingly minor aspect can have a major impact on your ride's smoothness, efficiency, and overall enjoyment.

Understanding the Chain Path

At the heart of a smooth bike ride is the chain path – a crucial component in your bike's anatomy. But what exactly is a chain path, and why is it so important? Let's break it down.

The chain path is the route your bike chain takes from the front chainring(s) to the rear cog(s) and back again. It's a continuous loop that transfers the power from your pedaling to the rear wheel, propelling your bike forward. This path includes several components: the chainrings, the chain itself, the derailleurs (if your bike has gears), and the cassette or freewheel on the rear wheel.

The Role of Chain Path in Bicycle Mechanics

A straight and properly aligned chain path is vital for several reasons:

  1. Efficiency: A straight chain path ensures efficient transfer of power from your pedals to the wheels. Any misalignment can lead to power loss, making your pedaling less effective.

  2. Smooth Operation: A well-aligned chain path allows for smoother gear shifting and overall operation. Misalignment can cause skipping, slipping, or jumping of the chain, leading to a rough and unpredictable ride.

  3. Minimizing Wear and Tear: Keeping the chain path straight helps in evenly distributing wear across the chain and the gears. This increases the longevity of your bike's drivetrain components.

  4. Safety: A misaligned chain can unexpectedly slip off the gears, potentially leading to accidents, especially in high-speed or technical situations.

Common Chain Path Issues

Misalignment in the chain path can stem from various issues:

  • Bent or worn-out chainrings or cogs.
  • Improperly adjusted derailleurs.
  • Stretched or damaged chains.
  • Misaligned gears due to impact or wear.

a photo of a straight chain path

Tools Needed for Chain Path Alignment

Ensuring a straight chain path is a task that requires precision and the right tools. Luckily, the tools needed are not only effective but also easily accessible for both amateur and professional cyclists. Here’s a rundown of the essential tools you'll need to adjust and maintain a straight chain path:

1. Chain Checker

A chain checker is a simple tool used to measure chain wear. Since a worn chain can affect the alignment, it's crucial to check your chain's condition regularly. This tool will help you determine if it's time to replace your chain before it starts affecting the chain path.

2. Chain Tool

This is used for removing and installing links in the chain. Adjusting the length of your chain is sometimes necessary for proper alignment, especially if you've replaced other drivetrain components.

3. Derailleur Hanger Alignment Gauge

A must-have for cyclists with geared bikes, this tool helps in ensuring that the derailleur hanger is perfectly aligned. A misaligned derailleur hanger can lead to shifting problems and misalignment of the chain path.

4. Cassette and Chainring Checker

Over time, the teeth on the cassette and chainrings can wear down, leading to a misaligned chain path. This tool helps you assess the wear and determine if these components need replacement.

5. Screwdrivers and Allen Wrenches

These are essential for adjusting the derailleurs and other components of the bike. Having a set of these in various sizes is crucial for any bicycle maintenance task.

6. Torque Wrench

This tool ensures that all bolts and components are tightened to the manufacturer's specifications. Over-tightening can warp or break parts, while under-tightening can lead to loose components, both of which can affect the chain path.

7. Lubricants and Cleaners

Keeping your chain clean and well-lubricated is essential for maintaining a straight path and the overall health of your bike's drivetrain.

BBR Tuning Chain Cleaner ToolMaxima Clean Up Chain CleanerThe Grunge Brush Chain Cleaner Tool

Step-by-Step Guide to Checking Chain Path Alignment

A misaligned chain path can lead to inefficient riding and increased wear on your bike's components. Here's a step-by-step guide to help you ensure that your chain path is correctly aligned, enhancing your cycling experience.

Step 1: Prepare Your Bike

  • Position Your Bike: Place your bike in a stand or upside down so that you can freely rotate the pedals and wheels.
  • Clean the Chain and Drivetrain: Before checking the alignment, it's essential to clean your chain and drivetrain. This will make it easier to spot any issues.

Step 2: Inspect the Chain for Wear

  • Use a Chain Checker: Use the chain checker tool to measure the wear on your chain. If the chain is significantly worn, it's time to replace it.

Step 3: Check the Derailleur Hanger Alignment

  • Use the Derailleur Hanger Alignment Gauge: This is crucial for bikes with a rear derailleur. Ensure the hanger is perfectly aligned with the gauge. If not, adjust it according to the manufacturer's instructions.

Step 4: Examine the Chainrings and Cogs

  • Look for Wear and Damage: Check the teeth of the chainrings and cogs for wear or damage. If they are worn or bent, they need to be replaced.

Step 5: Assess the Chain Tension and Alignment

  • Check the Tension: The chain should have the correct tension. Too loose, and it can skip; too tight, and it can cause wear.
  • Observe the Chain Line: The chain should run straight from the front chainring to the rear cog. Any sideways bending indicates a problem.

Step 6: Test the Gears

  • Shift Through All Gears: While rotating the pedals, shift through all the gears. The chain should move smoothly from one gear to the next without jumping or making noise.

Step 7: Make Adjustments as Needed

  • If you notice any issues during these steps, make the necessary adjustments using the tools mentioned in the previous section. This may include adjusting the derailleur, replacing worn components, or realigning the chain.

Step 8: Perform a Test Ride

  • After making adjustments, take your bike for a short test ride to ensure everything is working smoothly.

Adjusting the Chain Path for Optimal Performance

Once you've identified any issues with your chain path during the inspection process, it's time to make the necessary adjustments. Here's a step-by-step guide to fine-tuning your chain path, ensuring your ride is efficient and enjoyable.

Step 1: Adjusting the Rear Derailleur

  • Position the Derailleur: Ensure the derailleur is aligned vertically beneath the selected gear.
  • Adjust the Limit Screws: These screws control how far the derailleur can move. Adjust them to ensure the chain doesn't fall off the gears at either end.
  • Tune the Cable Tension: If shifting isn't smooth, adjust the cable tension. Tighten or loosen the cable until shifting between gears is seamless.

Step 2: Aligning the Front Derailleur

  • Check the Derailleur's Height and Angle: The front derailleur should be parallel to the chainrings and at the correct height.
  • Adjust the Limit Screws: Similar to the rear derailleur, adjust these to prevent the chain from dropping off the chainrings.

Step 3: Correcting the Chain Length

  • Determine the Correct Length: If you've changed the size of your chainrings or cassette, you might need to adjust your chain's length.
  • Remove or Add Links: Use a chain tool to adjust the length. A chain that's too long or too short can affect shifting and overall performance. Links include 415 Chain Master Link415 Half Link410 Chain Master Link, and 410 Half Link.

Step 4: Addressing Bent Chainrings or Cogs

  • Inspect for Bends: If you notice any bent teeth or misshapen rings, they will need to be straightened or replaced.
  • Use Appropriate Tools: In some cases, a professional tool or a visit to a bike mechanic might be necessary for this adjustment.

Step 5: Lubricating the Chain

  • Clean the Chain: Before lubricating, ensure your chain is clean.
  • Apply Lubricant: Use a quality bike lubricant, applying it to each link while slowly rotating the pedals.

Step 6: Final Checks and Test Ride

  • Double-check All Adjustments: Go through all the adjustments you've made to ensure everything is in place.
  • Take a Test Ride: The best way to confirm your adjustments is by taking a test ride. Pay attention to shifting smoothness and any unusual noises.

Adjusting the chain path might seem daunting at first, but with the right tools and a bit of practice, it becomes a routine part of bicycle maintenance. For detailed guides on each step and the best maintenance tools, head over to BikeBerry.com.

Preventive Maintenance Tips for a Straight Chain Path

Maintaining a straight chain path is not only about making adjustments when issues arise, but also about preventing these issues from occurring in the first place. Here are some essential preventive maintenance tips to keep your bike's chain path in top condition.

Regular Cleaning and Lubrication

  • Clean Your Chain Regularly: Dirt and grime on your chain can cause wear and affect its alignment. Clean it with a proper degreaser and a brush.
  • Lubricate After Cleaning: Once clean, apply a suitable lubricant. This reduces friction and wear, and helps maintain a straight chain path.

Routine Inspections

  • Check Chain Wear: Use a chain checker tool to regularly monitor the wear of your chain. Replace it before it starts to affect the chain path.
  • Inspect Gears and Derailleurs: Look for signs of wear or damage in the chainrings, cogs, and derailleurs. Early detection of issues can prevent more significant problems down the line.

Correct Storage and Handling

  • Store Your Bike Properly: Avoid leaving your bike in damp or dirty conditions, as this can accelerate wear and misalignment.
  • Handle with Care: Be mindful of how you handle your bike. Rough handling can lead to misalignment and other mechanical issues.

Timely Adjustments and Replacements

  • Adjust Derailleurs as Needed: Keep an eye on your derailleurs and adjust them if you notice any shifting issues.
  • Replace Worn Parts Timely: Don’t wait too long to replace worn-out components. Delaying this can cause further issues and affect your chain path.

Professional Check-ups

  • Regular Service Appointments: Even if you're diligent with your maintenance, it's a good idea to have a professional bike mechanic check your bike annually. They can spot issues you might miss and perform more complex adjustments.

Troubleshooting Common Issues with the Chain Path

Even with regular maintenance, you might encounter issues with your bike's chain path. Here, we'll address some common problems and provide practical solutions to keep your rides smooth and hassle-free.

Problem 1: Chain Slipping or Skipping

  • Causes: This is often due to a worn chain, misaligned derailleur, or worn cogs/chainrings.
  • Solution: Check and replace the chain if necessary. Adjust the derailleur alignment and tension. Inspect the cogs and chainrings for wear and replace them if needed. There should only be about 1/8 on an inch - 1/4 of an inch of play in the chain

Problem 2: Difficulty Shifting Gears

  • Causes: This can be caused by a misaligned derailleur, improper cable tension, or a dirty and unlubricated chain.
  • Solution: Adjust the derailleur and cable tension. Clean and lubricate the chain. If the problem persists, a professional tune-up may be necessary.

Problem 3: Chain Rubbing Against the Derailleur Cage

  • Causes: This is often due to an improperly adjusted front derailleur or a bent derailleur cage.
  • Solution: Adjust the position and limit screws of the front derailleur. If the cage is bent, it may need to be straightened or replaced.

Problem 4: Chain Dropping Off the Chainrings or Cogs

  • Causes: This could be due to a misaligned derailleur, worn chainring or cog teeth, or an incorrect chain length.
  • Solution: Check and adjust the derailleur alignment and limits. Inspect and replace any worn chainrings or cogs. Ensure the chain is the correct length for your drivetrain.

Problem 5: Unusual Noises from the Chain Area

  • Causes: Noises can be due to a dirty chain, loose components, or misalignment.
  • Solution: Clean and lubricate the chain. Tighten any loose components such as chainring bolts. Check for and correct any misalignments.

When troubleshooting, it's important to be methodical and patient. Often, issues with the chain path are interconnected, and solving one problem may help alleviate others. If you're unable to diagnose or fix the issue, consulting a professional bike mechanic is always a wise decision.

Remember, regular maintenance and prompt attention to issues can prevent most of these problems from arising. For further guidance and quality maintenance supplies, make sure to visit BikeBerry.com.
