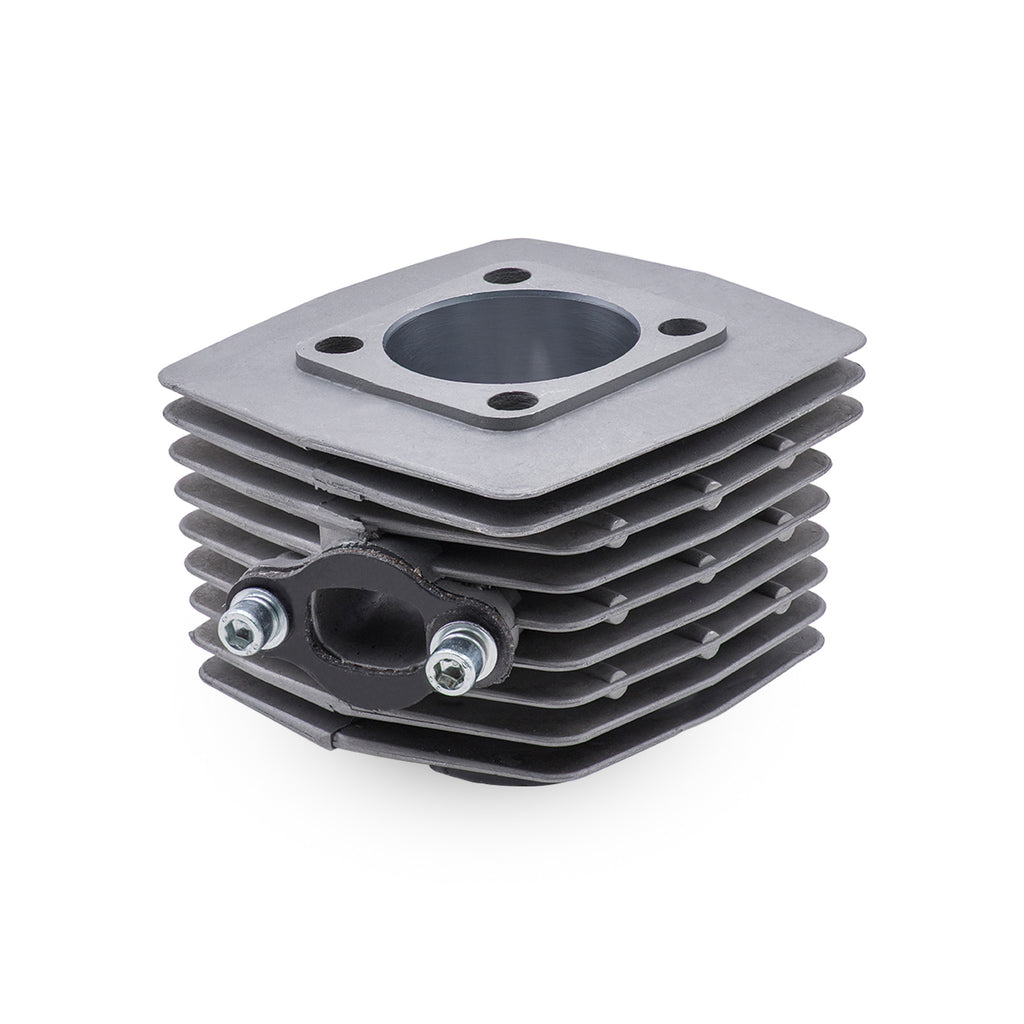

66_80CC CYLINDER BODY - Exhaust Port Profile
66/80cc Cylinder Body

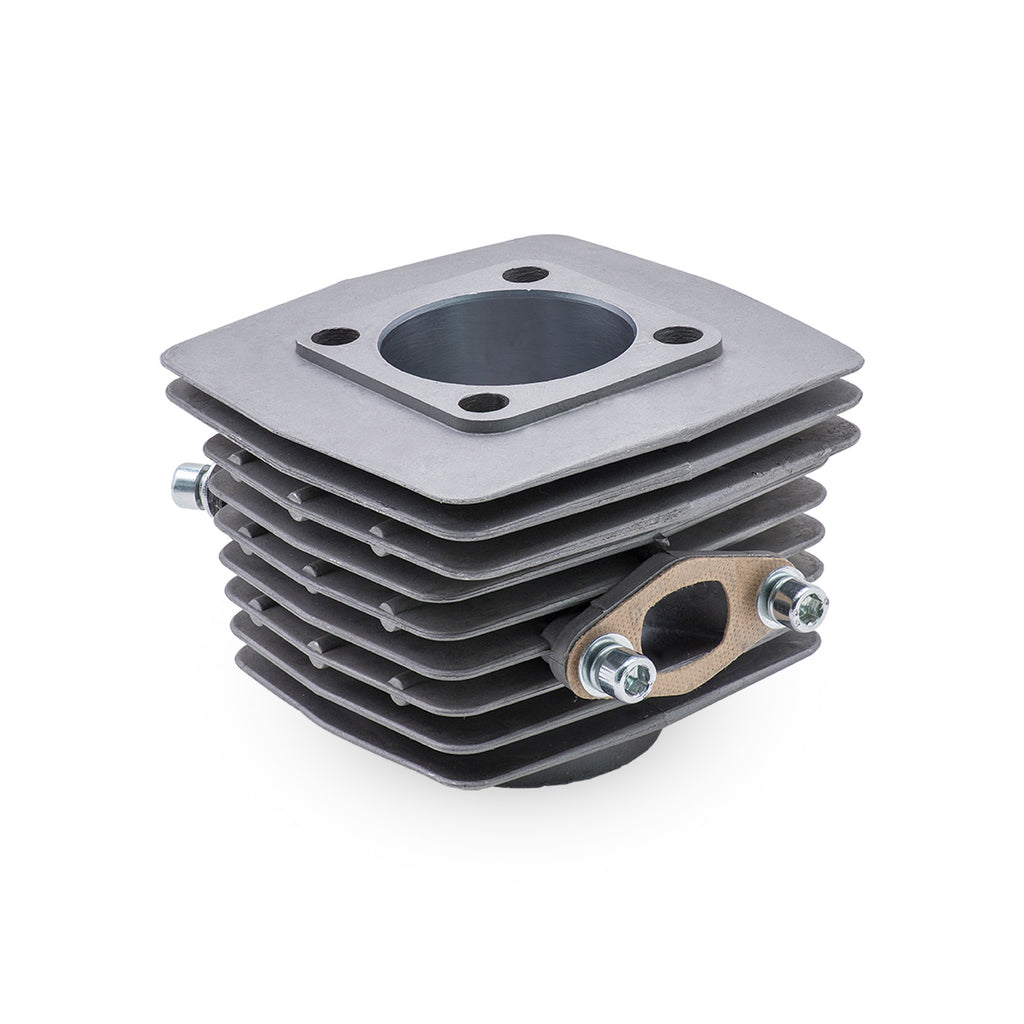

66_80CC CYLINDER BODY - Intake Port Profile

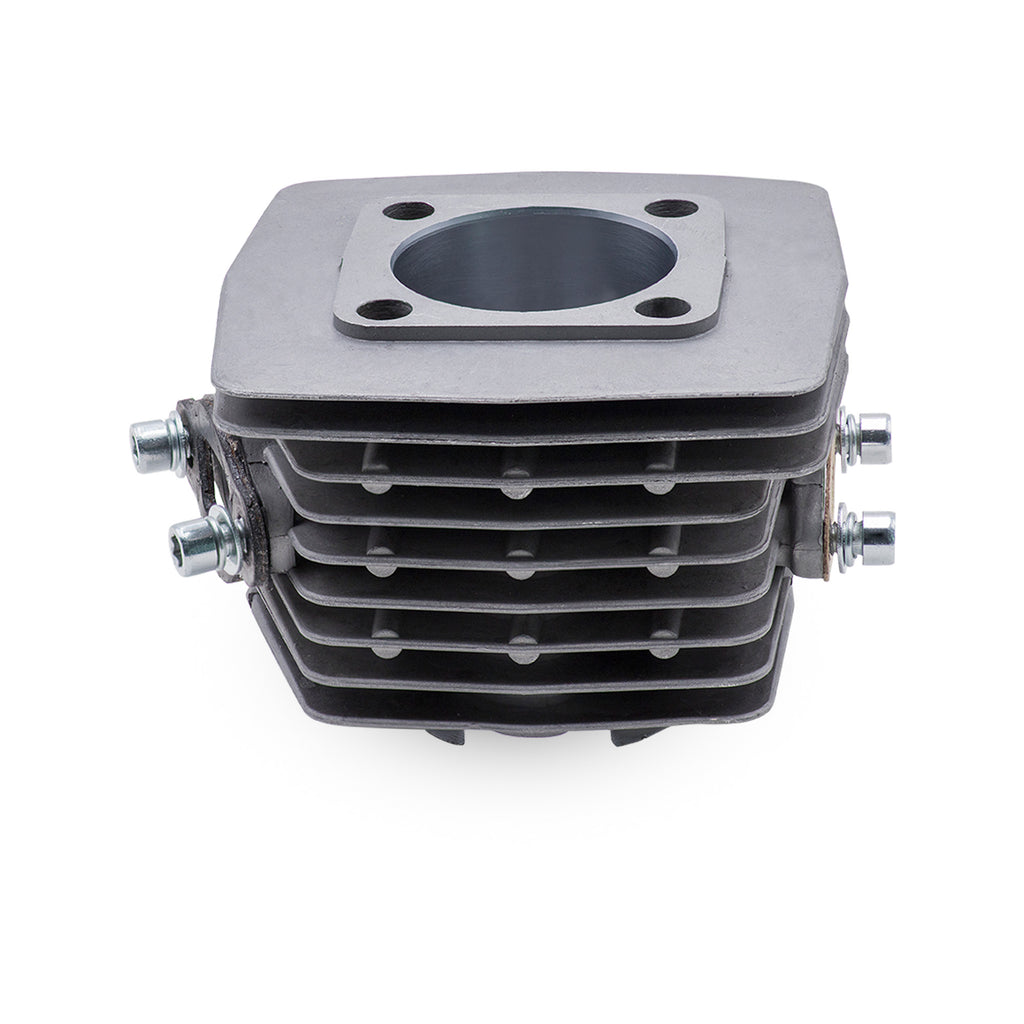

66_80CC CYLINDER BODY - Side view

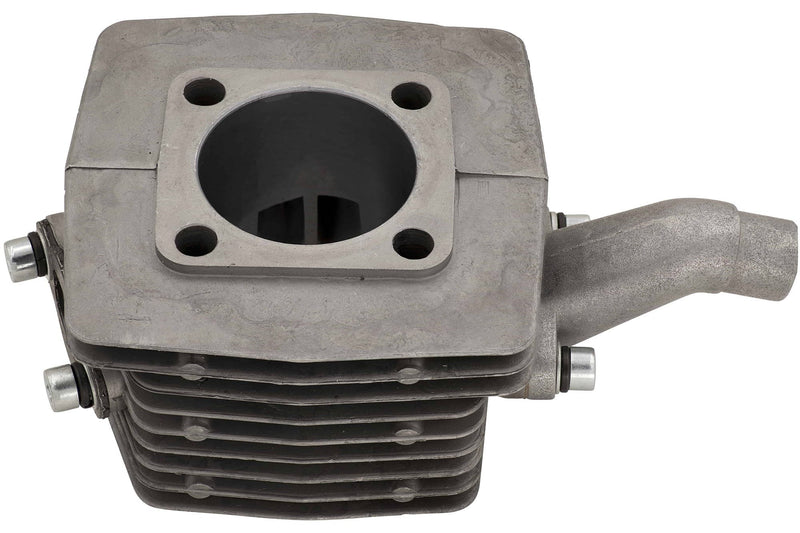

66_80CC CYLINDER BODY - Side view w/ 40mm manifold

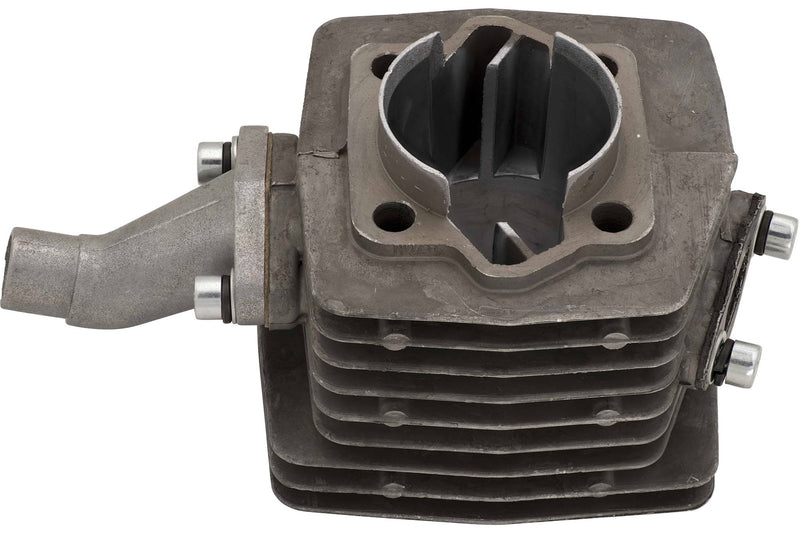

66_80CC CYLINDER BODY - Bottom open transfer port view w/ 40mm manifold

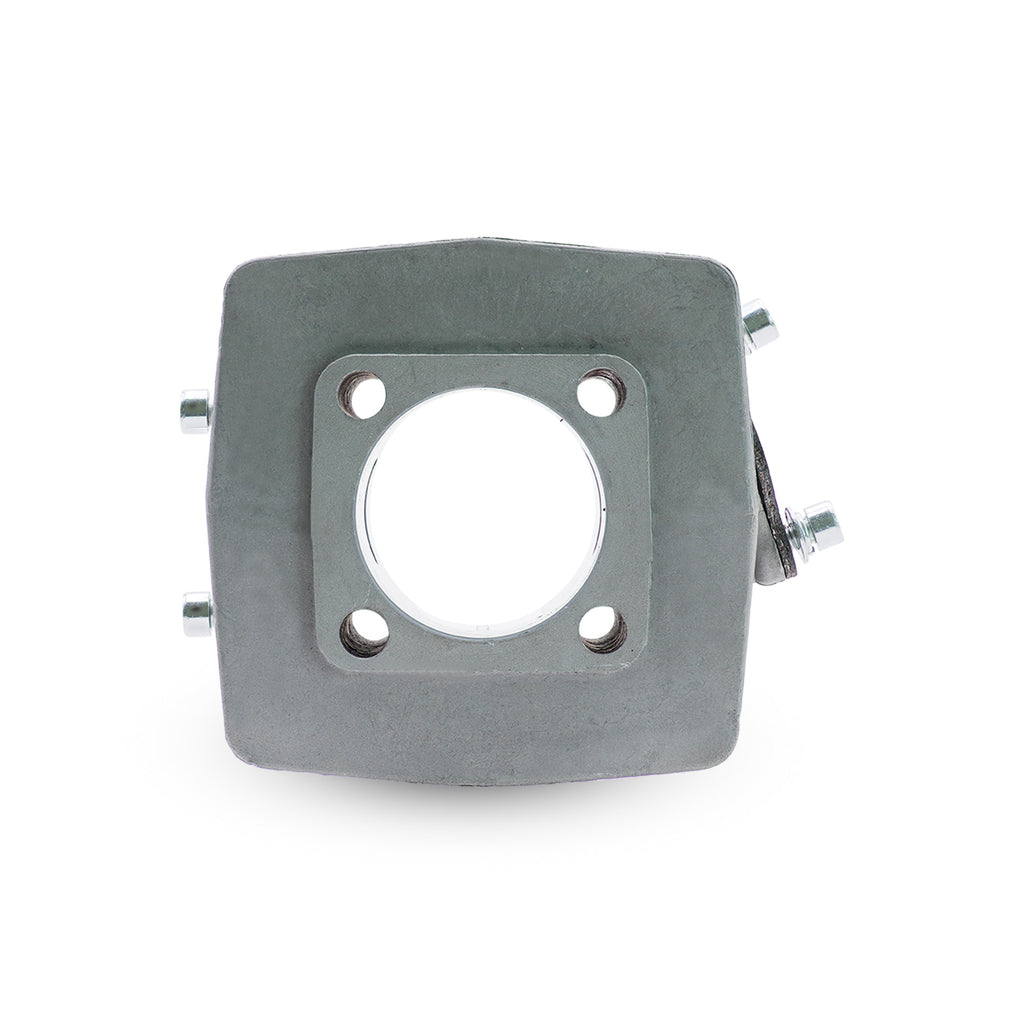

66_80CC CYLINDER BODY - Top View

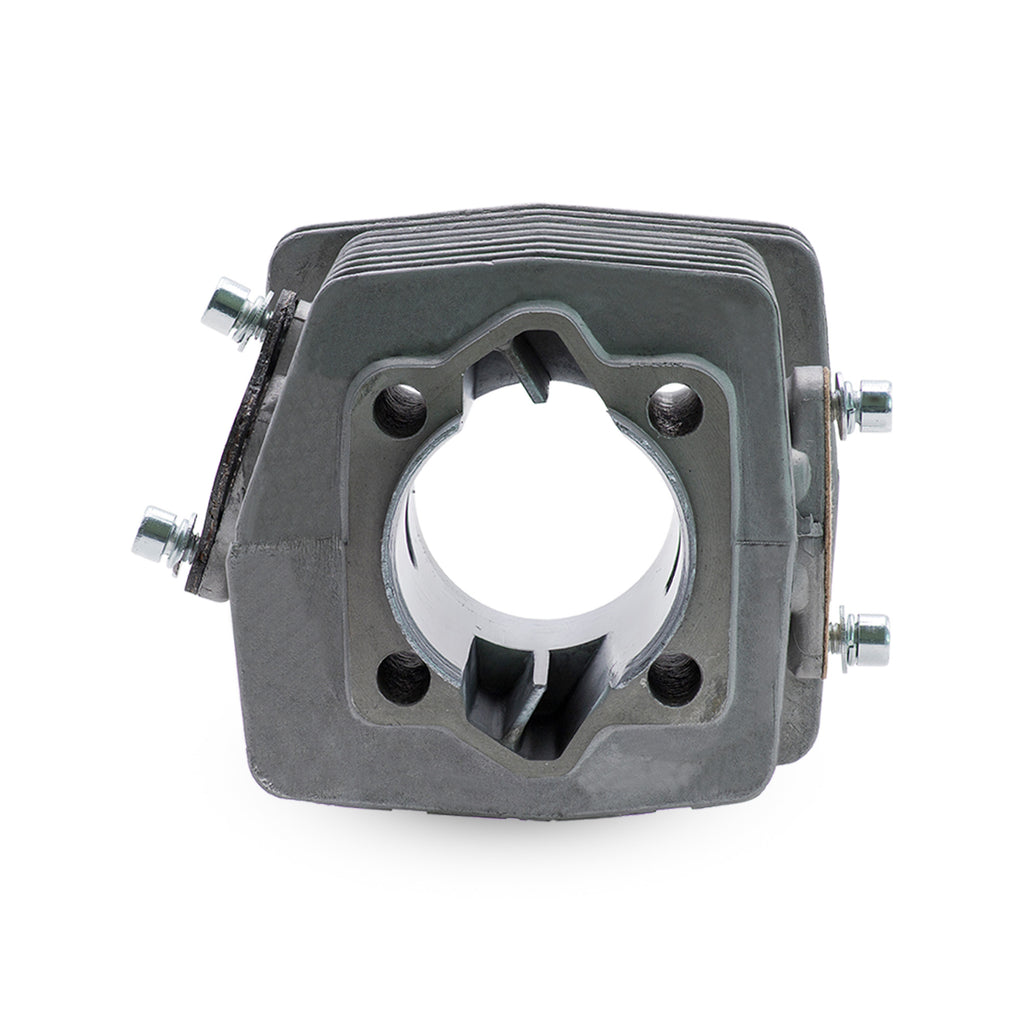

66_80CC CYLINDER BODY - Bottom open transfer port view
66_80CC CYLINDER BODY - Engine Profile
66_80CC CYLINDER BODY - cylinder diagram
Roll over image to zoom in Click on image to zoom
66_80CC CYLINDER BODY - Exhaust Port Profile
66/80cc Cylinder Body
66_80CC CYLINDER BODY - Intake Port Profile

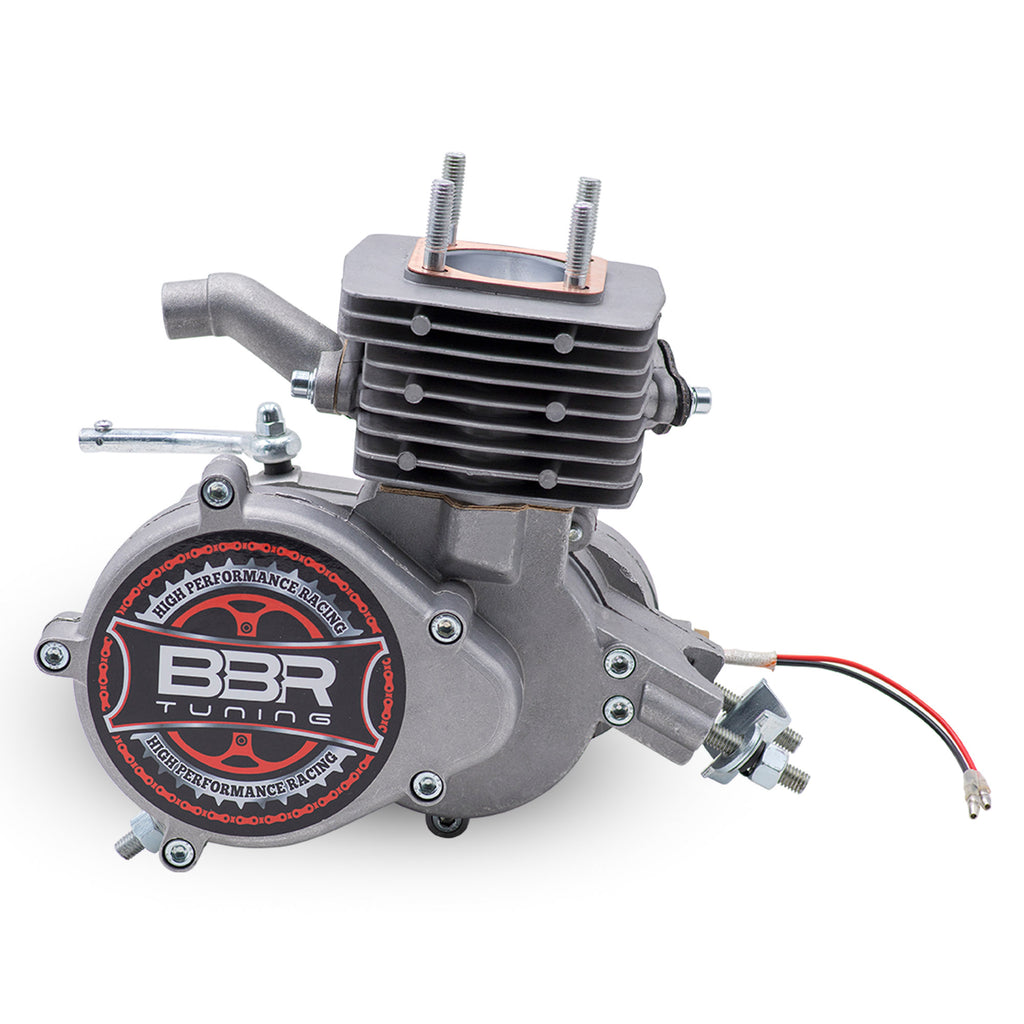

66_80CC CYLINDER BODY - Side view
66_80CC CYLINDER BODY - Side view w/ 40mm manifold
66_80CC CYLINDER BODY - Bottom open transfer port view w/ 40mm manifold
66_80CC CYLINDER BODY - Top View
66_80CC CYLINDER BODY - Bottom open transfer port view
66_80CC CYLINDER BODY - Engine Profile
66_80CC CYLINDER BODY - cylinder diagram

66/80cc Cylinder Body

Early Black FridaySave 30%
BBR TuningSKU: FH-CYLBODY-80-30

FREE SHIPPING on Orders $99+
Support For Life Guarantee
Size: 30MM
Price:
$19.57 $27.95
  • Description

Description

Engineered to optimally handle a multitude of tasks, the 2-Stroke 66/80cc Cylinder Body is one of the largest and most vital components of your motorized bike engine. Located in between the crankcase and the cylinder body cap, this part is directly responsible for a large array of tasks. From providing intake of fuel to keeping the piston compressed, this part offers the most versatility out of any other cylinder component. It even features large fins perfect for heat dispersion. So whether your cylinder body is damaged or you are looking to completely overhaul your engine, the 2-Stroke 66/80cc Cylinder Body will provide the dependability you need and the performance you deserve.

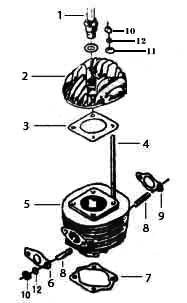

Part #5 on the Cylinder Head Diagram

This cylinder body comes in 30mm and 40mm intake manifold stud spacings.

Package includes

  • 80cc Cylinder Body

  • Part Number (See Parts Manual): 1-5

  • 30MM Intake Stud spacing: Compatible with Flying Horse and Mega Motors Engines.

  • 40MM Intake Stud spacing: Compatible with Grubee SkyHawk Engines. Note: Will not compatible with Manic Mechanic aftermarket intake manifolds.

Intake Manifold NOT Included

Recently viewed

  • 5 stars: 2 (67%)
  • 4 stars: 1 (33%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
John Mathis
Easy A++++

Everything fit and as worked as it should. Actually came with stuff I didn't think was coming like gaskets and piston!! Thanks!!!!

D
Dean Pieropan

bike Barry S being awesome I have had no problems with them at all customer service is great and they are great and replace in parts I would recommend them to anybody

J
Justin Keffer

Easy to install and use. It did require honing to remove a small patch of rust/corrosion in the bore. Well worth it's price.

S
Superflyer

What's the stud spacing between the mounting studs of the cylinder. 44mm or 45mm?

BikeBerry

40 mm

M
Max Deters

The intake space is measured from center of stud to center of stud right? Mine is about 1.57 inches or 40 mm, that would make my intake studs 40mm apart right?

BikeBerry

Great Question! That is the correct way to measure which size intake manifold you need. 1.57 inch would be 40MM and 1.18 inch would be 30MM

F
Funek Imre

If I buy this 80cc upper engine, with 80cc head, gaskets for the 80cc, and a 80cc piston, can I bolt it on my 48cc body?

BikeBerry

Unfortunately 48cc engines are only compatible with 48cc components.

T
Tracy Olson

dose the jug come in black?

BikeBerry

Our 66/80cc Cylinder Body does come in either silver and black, our black 66/80cc Cylinder Body is only available in 30mm.

C
Christian

Sorry I just asked this same question but I am going to provide more information: piston type style #4 (47mm, 5mm from cylinder port etc, 23mm skirt etc) with a 40mm stroke. Will this cylinder body work with the dimensions I have outlined above? Thanks in advance.

BikeBerry

Yes, our 66/80cc Cylinder Body will be compatible with your specifications.
