Description

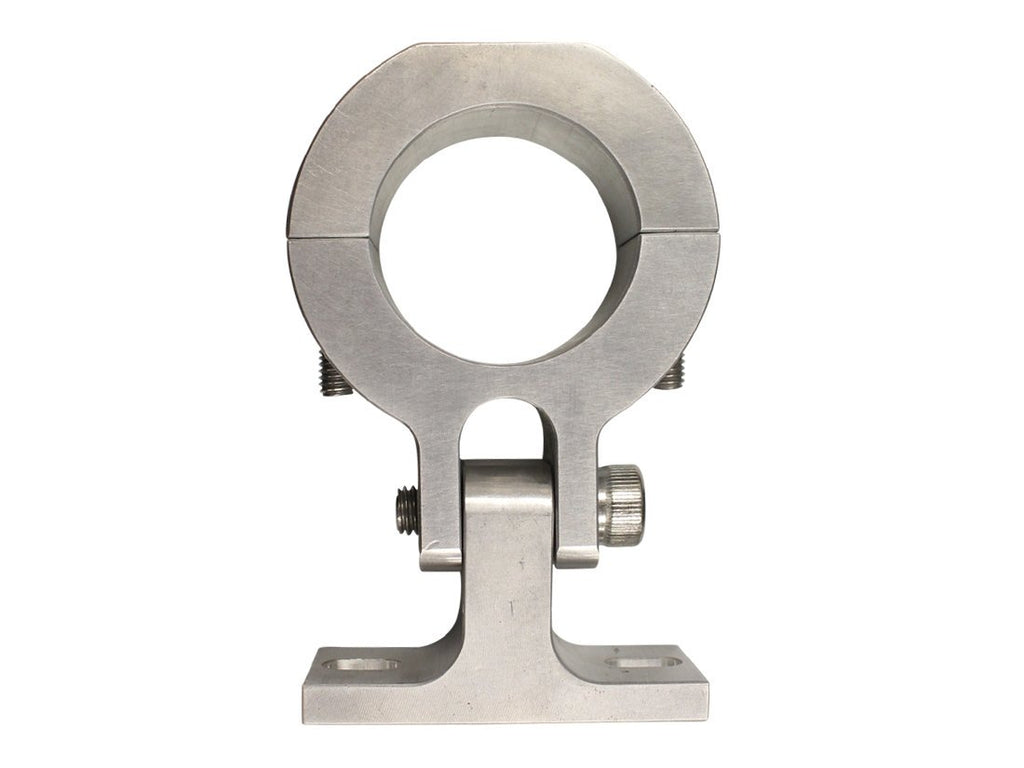

If you're looking for a stronger, more secure way to mount your 2-stroke motorized bike engine to a bike frame, look no further than the BBR Tuning CNC Universal Front Motor Mount. Made from CNC aluminum, these mount will help make mounting your engine a lot easier and a whole lot safer.
These mounts will fit frames with 1.5" tubing, which means you can mount your motor on nearly any cruiser or motorized bike frame around. Unlike your engine's stock motor mounts, the Universal Mount here doesn't require you to drill in to your frame with a t-bracket. You can use one for your rear motor mount, too, and get an even better fit.
If you're used to using a u-bracket to mount your engine, you'll be surprised by how much of an improvement this bracket is to your build. When you use this mount instead of a u-bracket your engine will no longer sit on a plate that's resting on your frame. This bracket will raise your motor off of the frame and actually give you a perfect fit, opposed to most u-bolts that can cause the engine to tilt when loosening from vibration.
One of the greatest features about these mounts is their customability. Once you put these mounts on your engine you have the ability to make your engine sit a little higher than it had with its stock mounts. If you've got a bike with a cranks in the front of your frame (like a chopper bike), you don't have to worry about getting custom chopper mounts. Just loosen the bolt in the center of the mount, angle your engine as needed, tighten the bolt back down, and your engine's ready to ride!
Specifications:
Mount Size: 1.5in. (38mm)
Motor Mount Bolt Size: 1.5-2in motor mount stud spacing
Compatible with most 2-stroke 66/80cc and 48cc motorized bicycle engines
Recently viewed
Customers praised the mount as "heavy duty" and well-made, noting it raises the motor higher and reduces vibration. However, fit varies by bike - works best on 29" frames but may be too large/small for some cruisers. Several shoppers reported carburetor clearance issues with the top bar and noted the two-piece connection can be loose, requiring adaptation for proper fitment.
- Heavy duty and would hold a full sized motorcycle motor in place.
- Raised the motor higher, took a lot of vibration out of the build, sturdy, looks good.
- High-quality and true to the specs and description.
I really like motor mount it looks really clean and takes motor up higher
I love the mount, but could'nt use it because My 26" beach cruser didn't give it enough room. It moved My carberator too close to the top bar of the bike. Believe it would work well on a 29" bike. Outside of that, its a great mount.
I bought this thinking that I might need it for my first ever build but I didn’t. This thing is heavy duty and would hold a full sized motorcycle motor in place. Into the spare parts box for later!
I tried them on the bikes and on one frame is too big for it to fit, the other frame is too small to fit it unless there is a spacer to go in between the mounting bracket.
The engine mount that I order was shipped and arrived quicker than promised, also the engine mount was high-quality and true to the specs and description.
Good product I just wish the mountain whole to the engine more bigger just a little bit so I wouldn't have to use extra plate but other than that its good
It worked out great with the bike frame I have
BBR Tuning CNC Universal Front Motor Mount
It is so purdy, and cool looking, I had to give it 5 starz! Nicely made, Something is not quite right with the design, as far as fitment of the 2 mating parts- seems loose, and I would use a long stud and 2 nuts for the connection of both parts, the engine side is not wide enough, and the mounting holes do not line up with wide front motor mounts. I am thinking of using a length of pipe flattened strategically on each end and through stud/nuts on each side. Will elongate the engine side holes. So all in all, I think we can adapt this little beauty to work!
It's okay Was delivered quickly. Too much of a gap where the 2 pieces attach, was not able to actually tighten the mount in the middle. Also raised the motor so high that it won't even work, carb hits the top rail. Was also too small to fit on my beach cruiser frame.

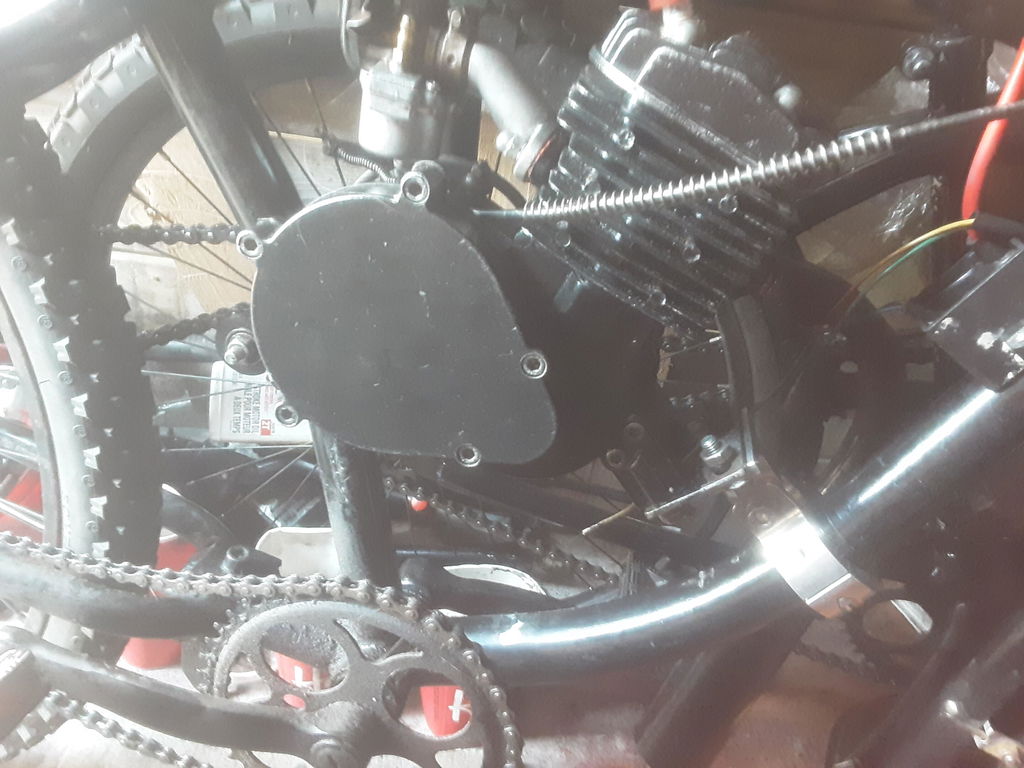

Highly recommended came fastperfect fit Raised the motor higher but was with it took allot of vibration out of the build, sturdy, looks good, less worry about broken studs on the front motor mount.
These mounts are without a doubt durable enough to get thru the apocalypse. These mounts are without a doubt durable enough to get thru the apocalypse.Bad news is they will not fit any engine with a 48mm mounting flange such as the mighty PK-80. Soon enough most all engines will be coming with the larger front mount (48mm++) in order to mount to the bikes being made today.So if you are using an older engine with the small 40-44mm mounting pads, these mounts are for you. Anything larger and youll have to mock something up to use these for front mounts on your engine.
the Manic Mechanic delivers! As usual, the Manic Mechanic delivers! This product is well worth it, and I'm in fact surprised that there are still any in stock, the way his stuff usually sells out and all. Yes, as you can tell I'm a fan, but there is one aspect I would change if I had the ability and skill of this fella: lower profile! The engine sits way high in the frame with this, so you'd better have a big bike. For fit, center-of-gravity issues, and asthetics, it needs to be slimmed down a tad. but it does grab the frame perfect, and looks awesome, in my opinion.
Is there a smaller version of this mount for smaller diameter frame tubes?
Unfortunately our BBR Tuning CNC Universal Front Motor Mount come in one size.
Will this work with the bullet train electric start motor
No, our BBR Tuning CNC Universal Front Motor Mount is not compatible with the bullet train electric start motor
Does this go in the front, or the back Mont. The biggest problem I am having is the front mount
Our BBR Tuning CNC Universal Front Motor Mount is specifically designed for the front motor mount.
Will this work with my 4 stroke flying horse 49 cc?
Our BBR Tuning CNC Universal Front Motor Mount is specifically designed for 2 stroke engines.
