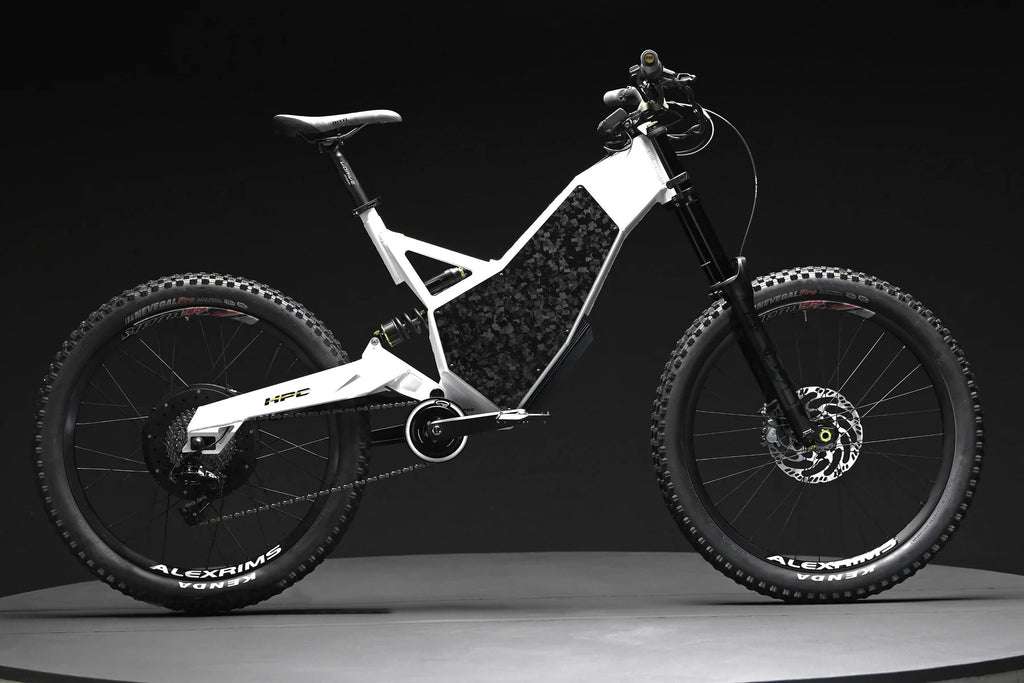

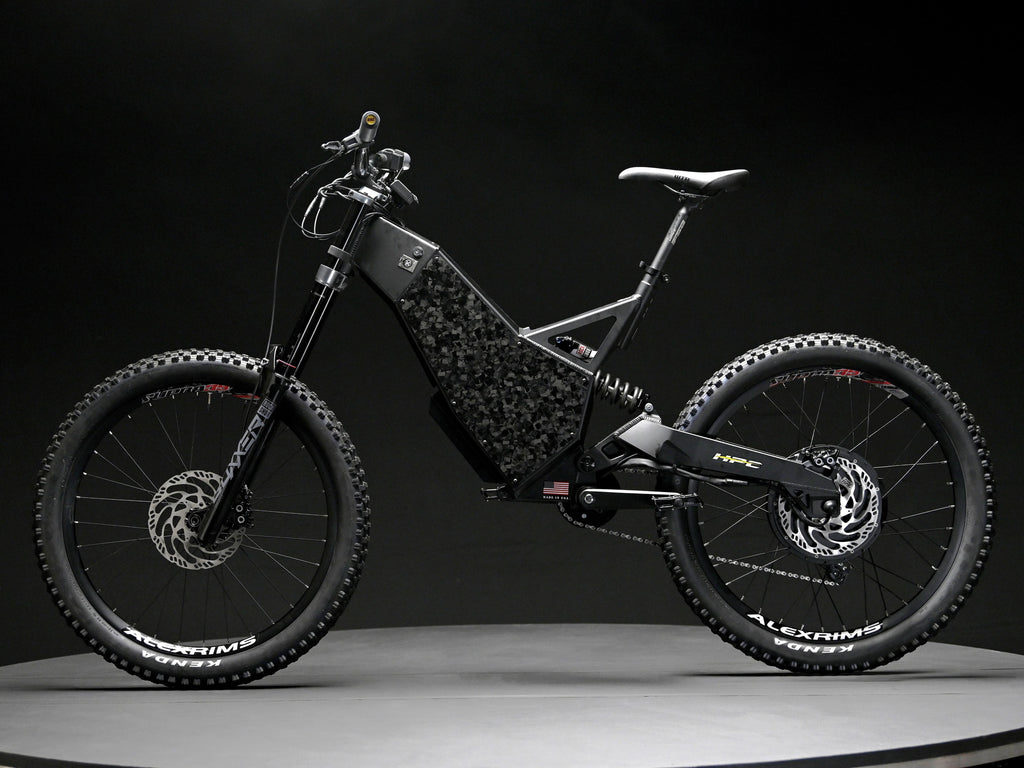

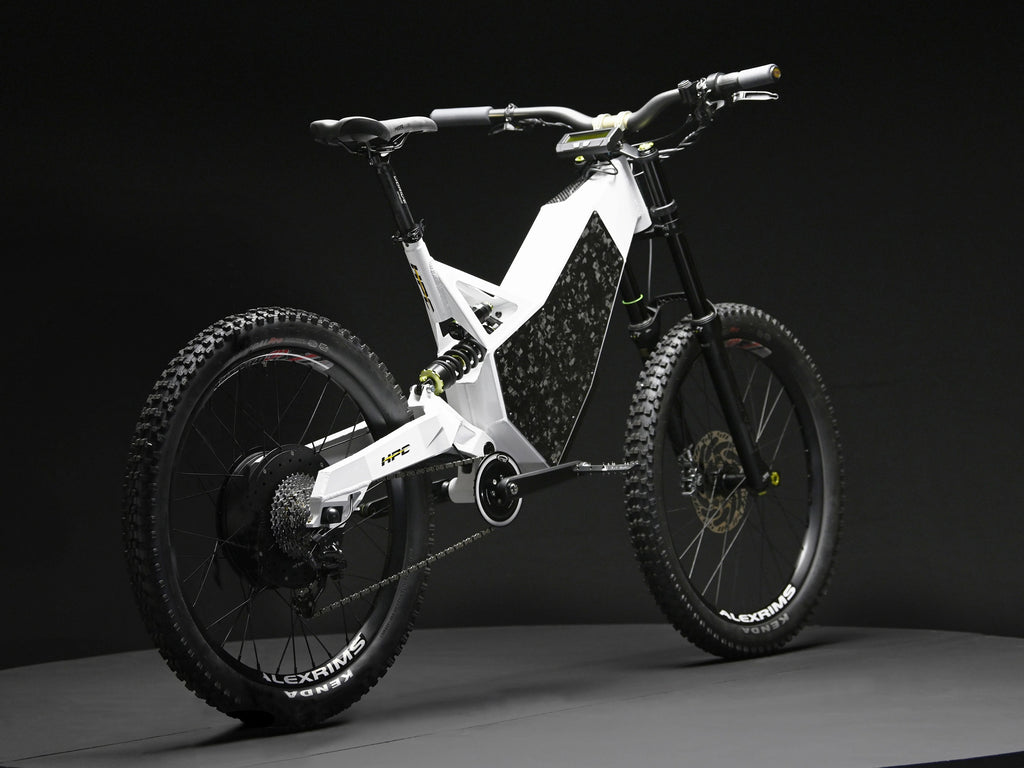

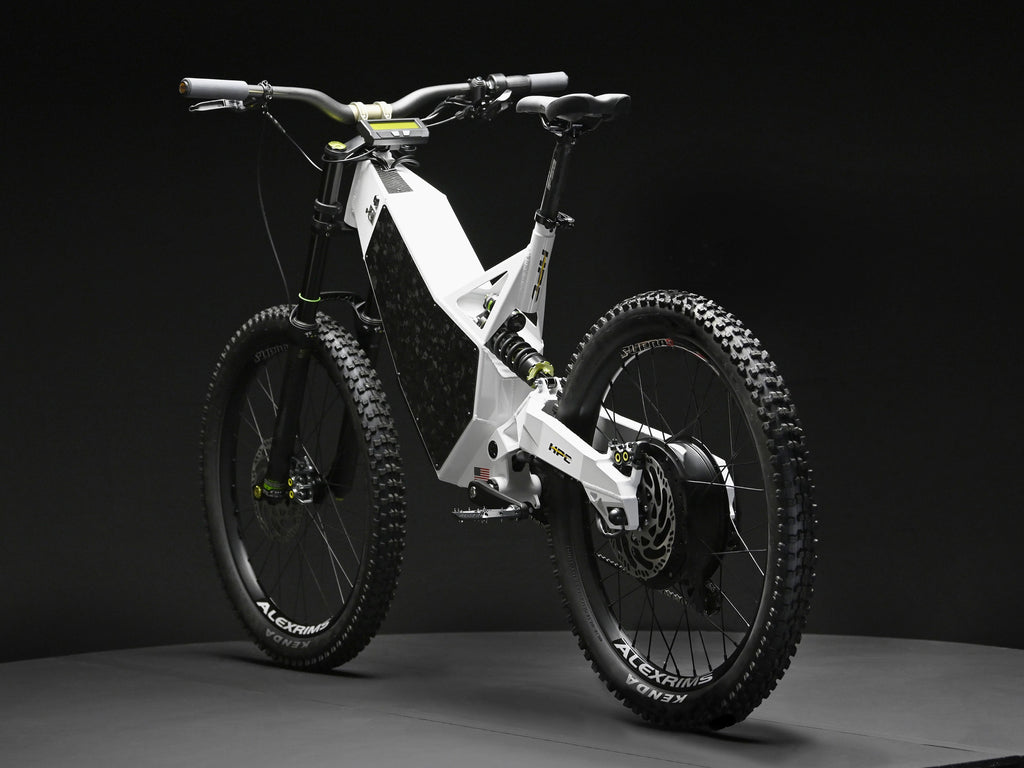

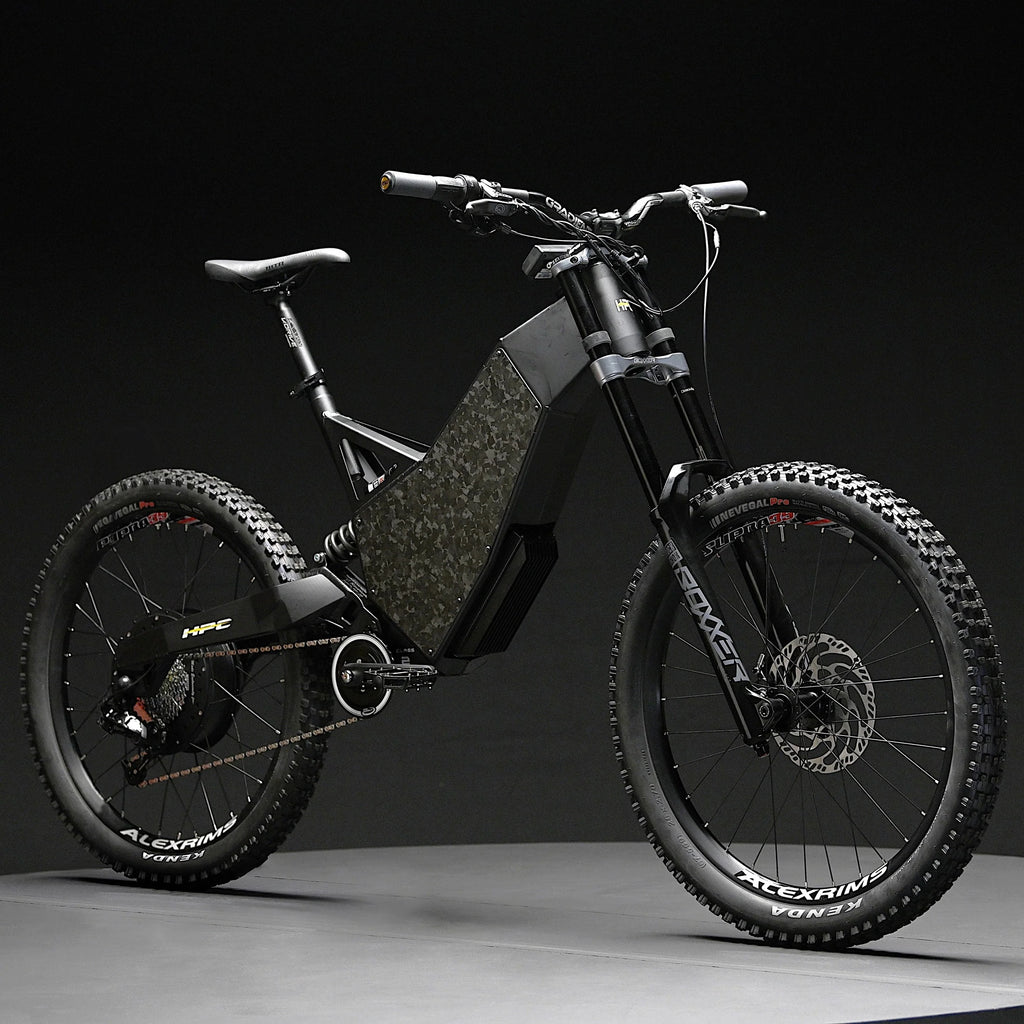

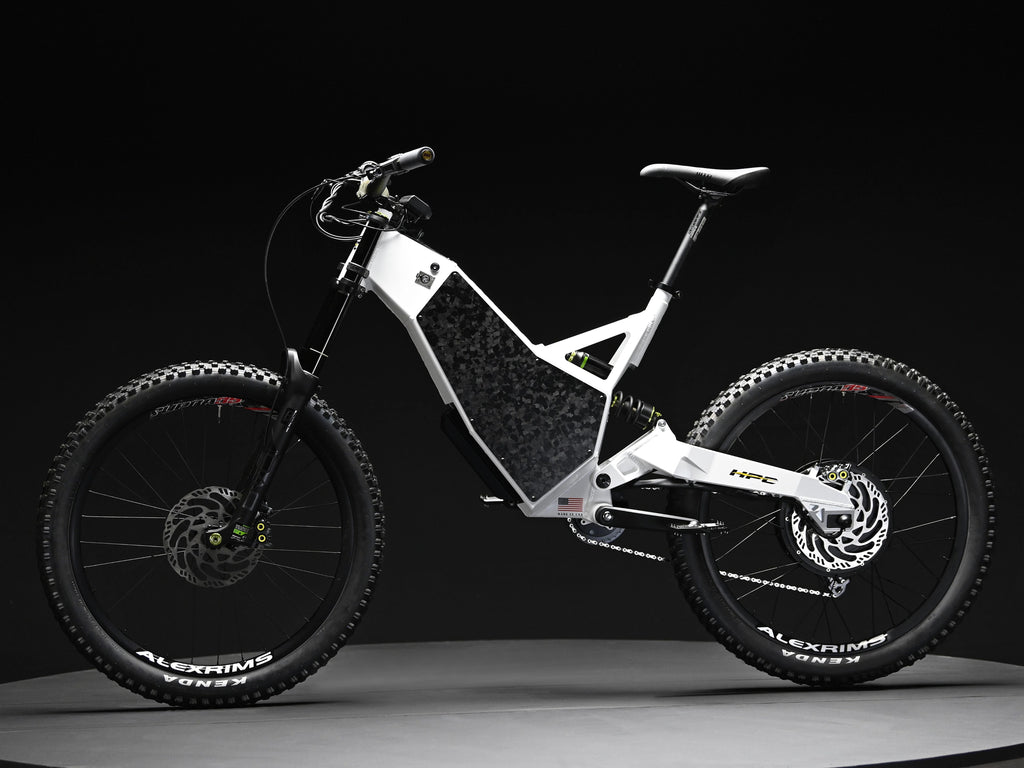

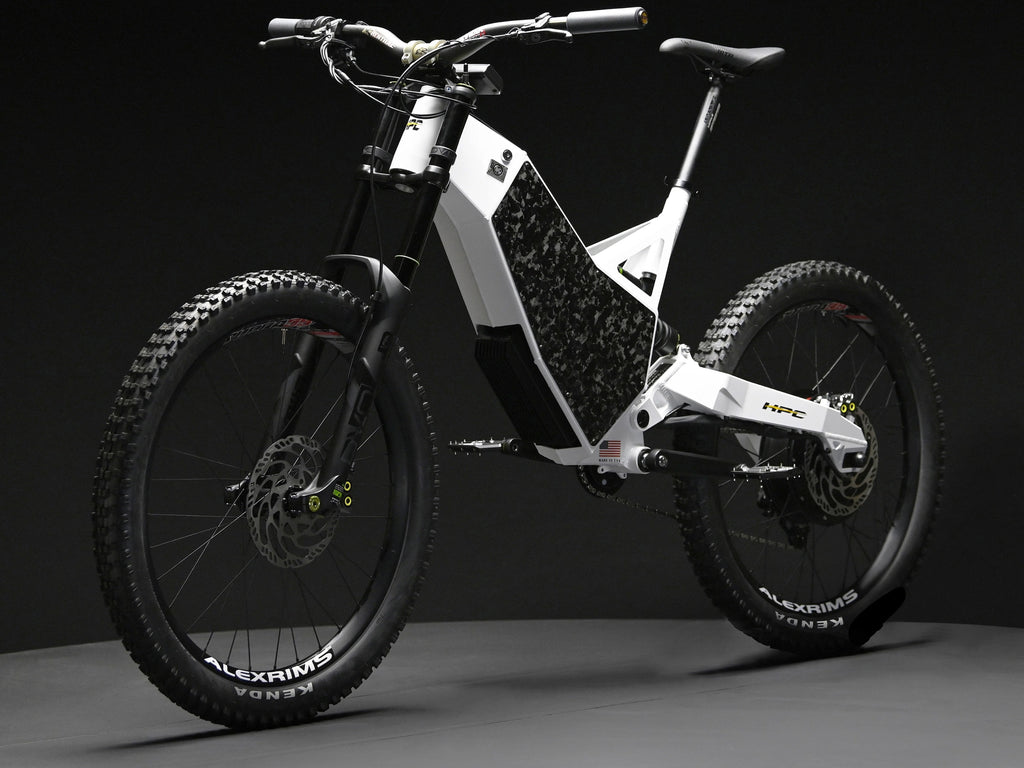

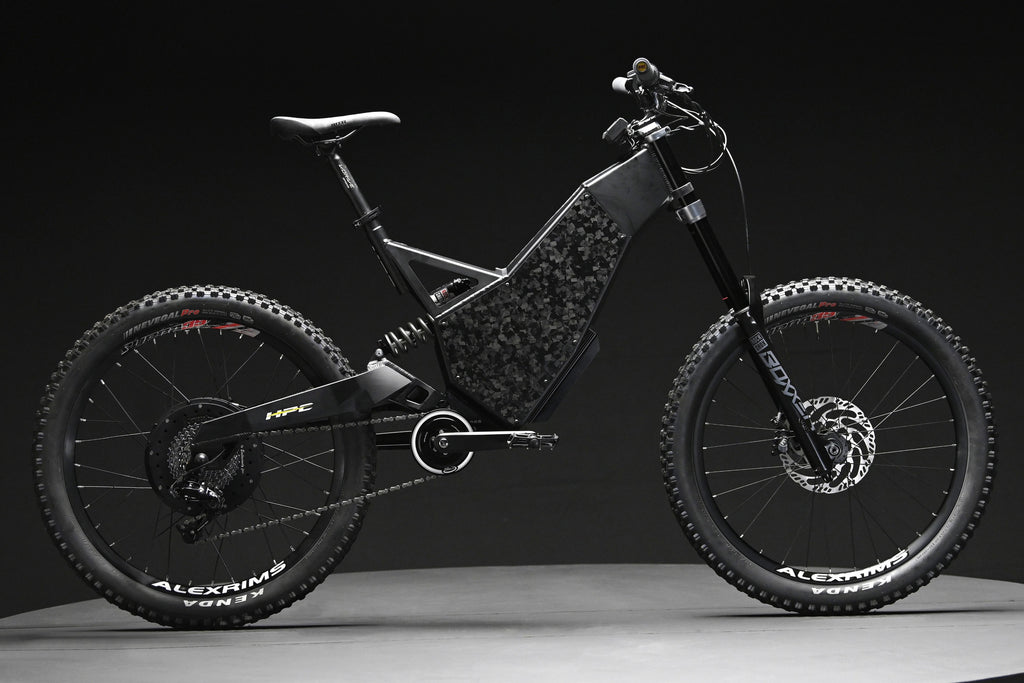

Thanks to an ultra-light and incredibly powerful motor system, the Revolution X is capable of up to 10000W while weighing less than 90lbs

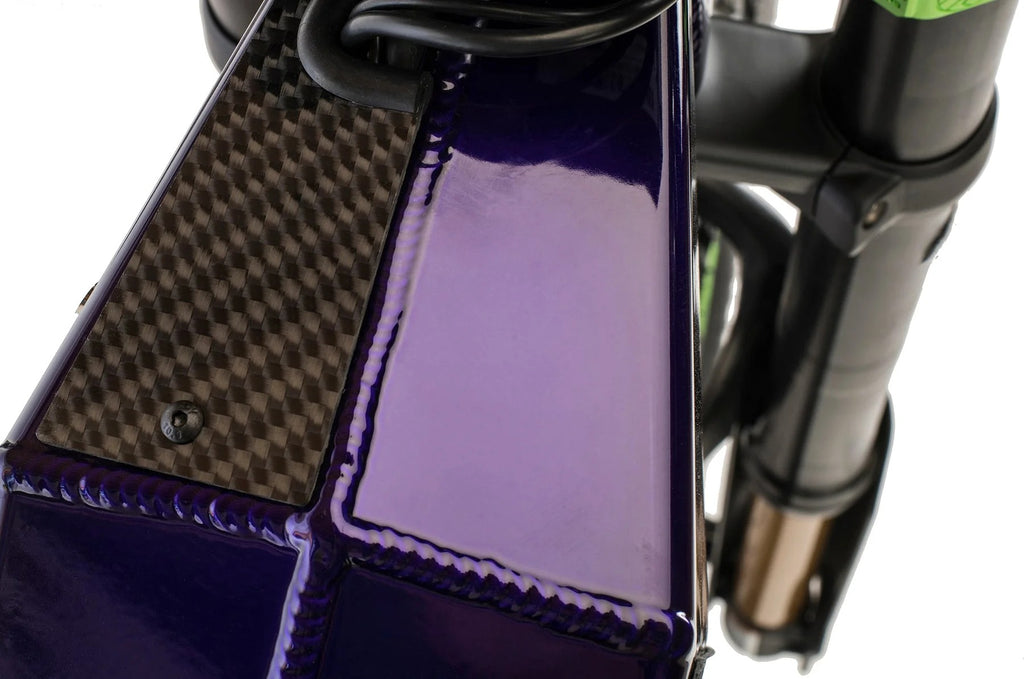

The Revolution is built from the ground up using the most exotic materials and CNC workmanship. There is not one off the shelf component. It is a rolling piece of art!

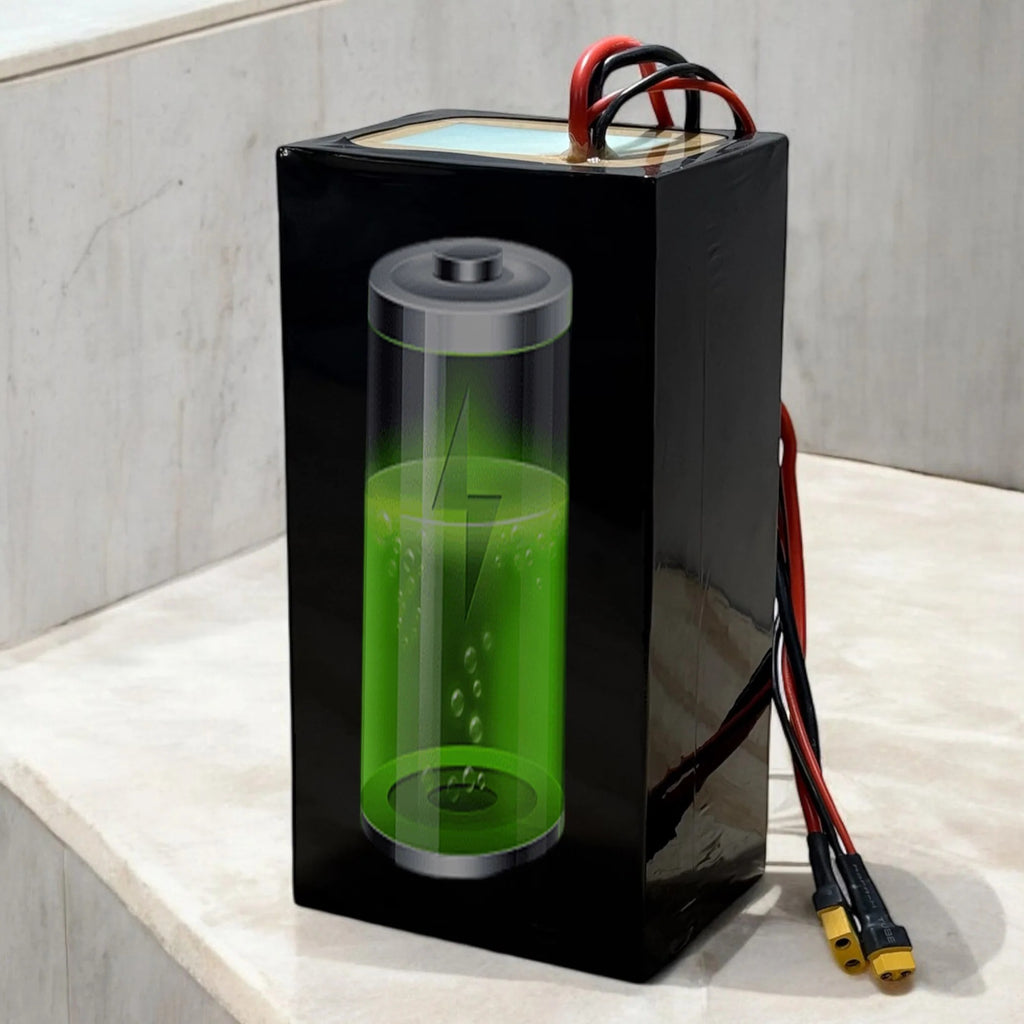

Tired of cutting your ride short? With up to 2400wh of battery juice, you can get 100+ miles of range. Every battery is proudly built in the USA!

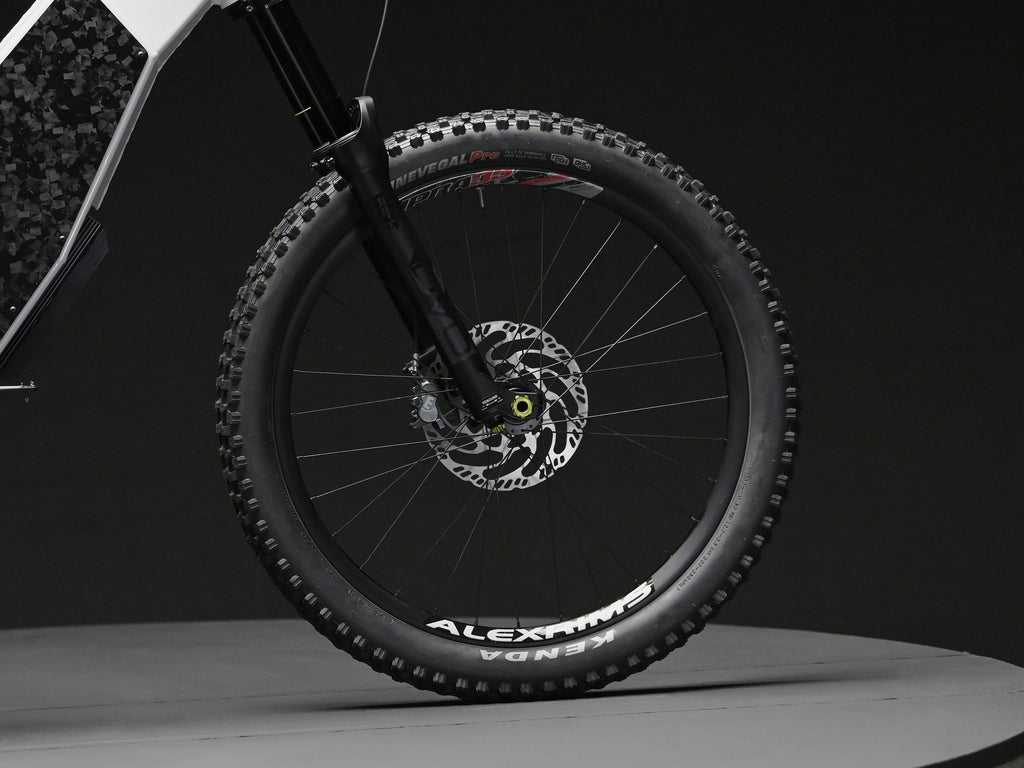

With 200m of travel up front and a mind boggling 9.5" in the rear, the Revolution X offers pro level performance!

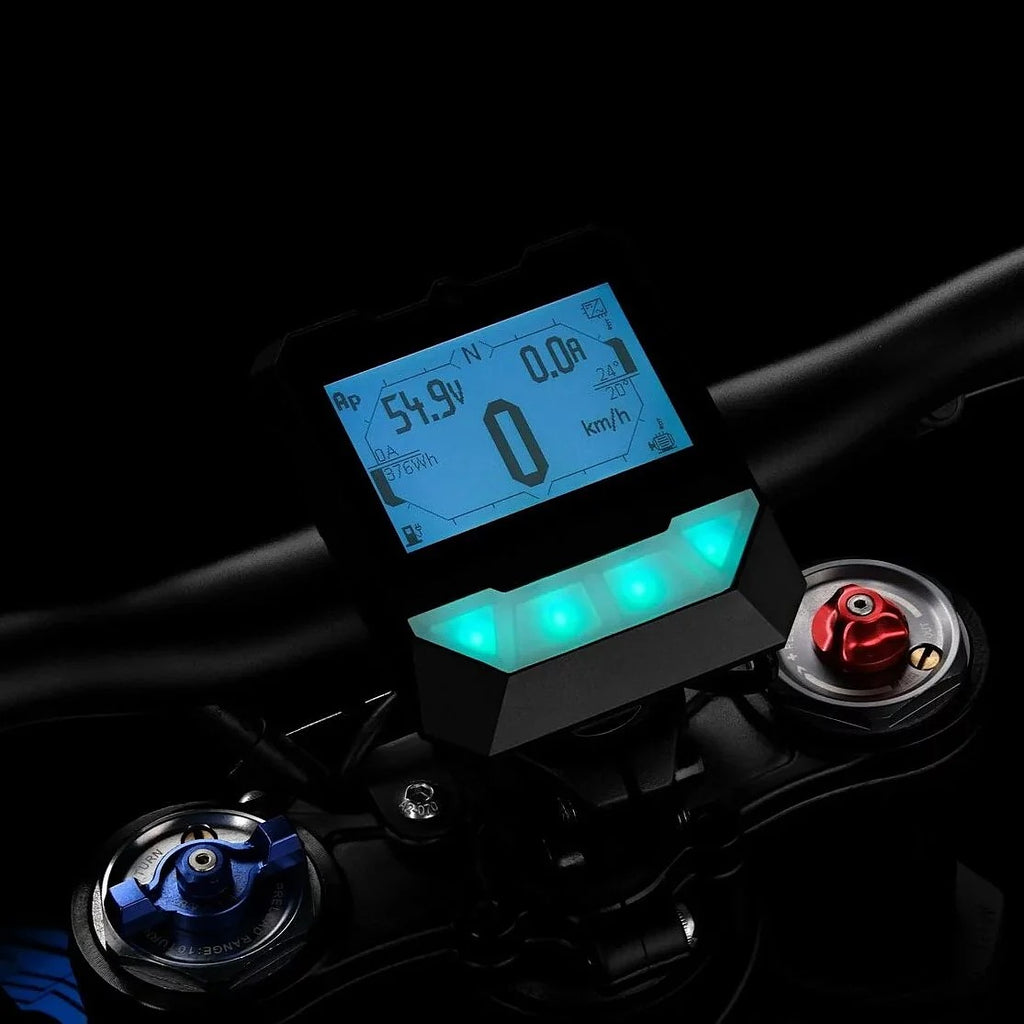

The intelligent display shows everything you want to know at your fingertips! You can change your speed limits, power limits, and throttle ramping.

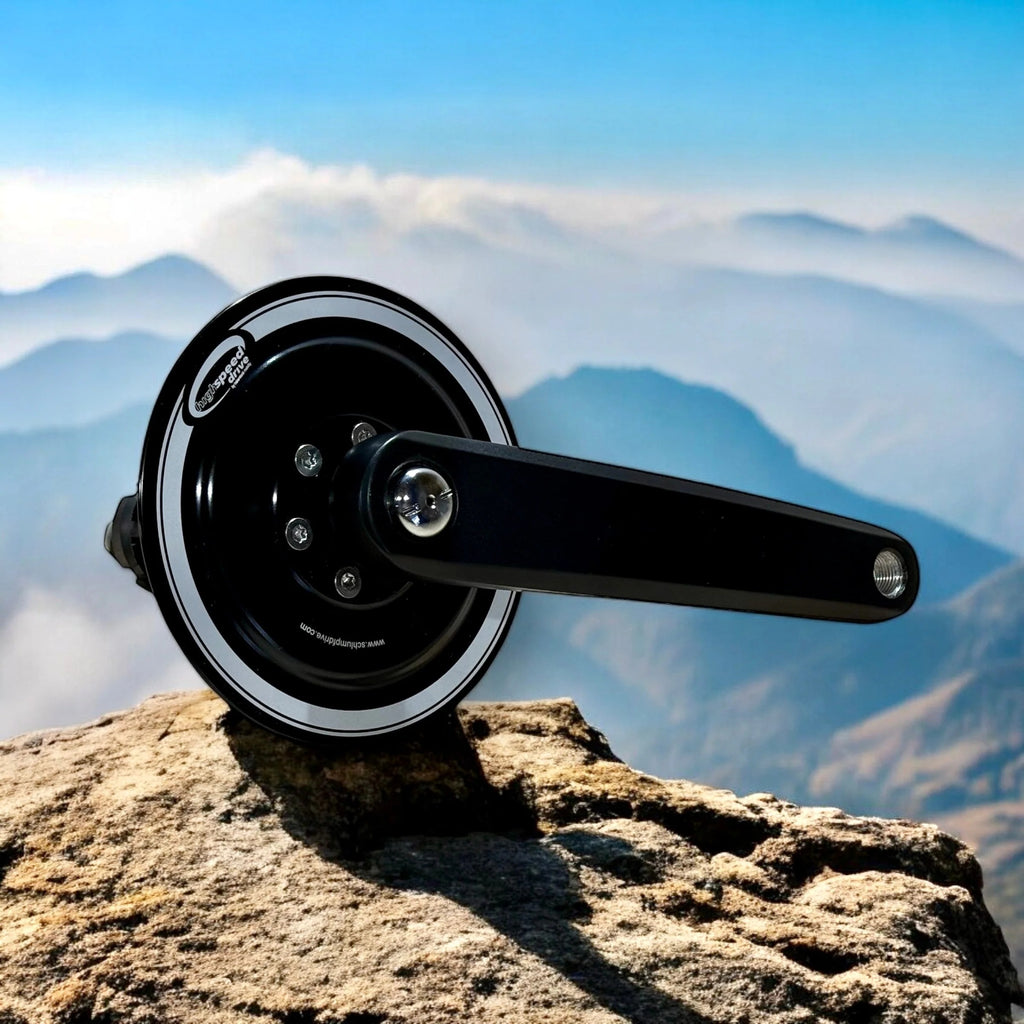

Feel like superman with this German made crankset. Pedal at INSANE speeds thanks to the 2.5X overdrive mode or shift to standard mode for climbing.

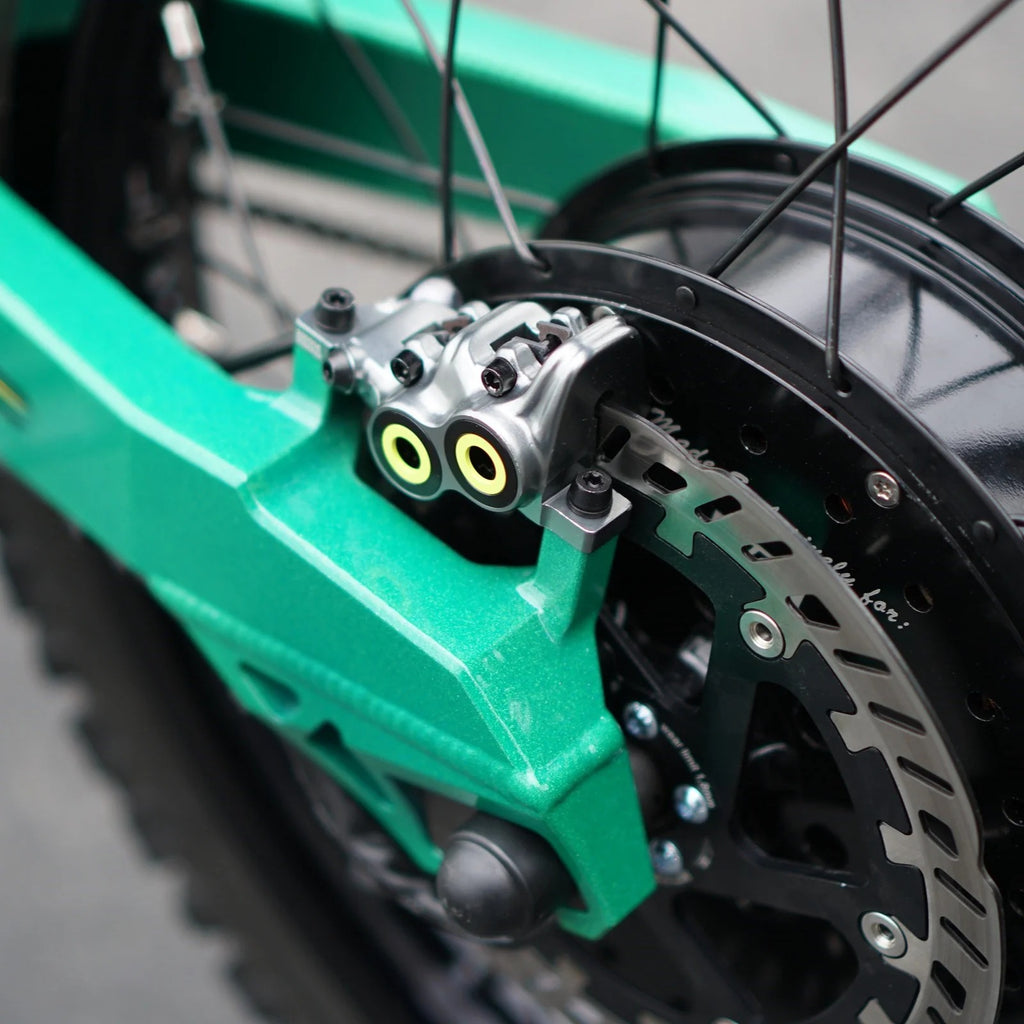

The Magura MT7 quad piston brakes offer unrivaled stopping power. Paired with optional regen braking (10kw system), you'll have no problem slowing down!

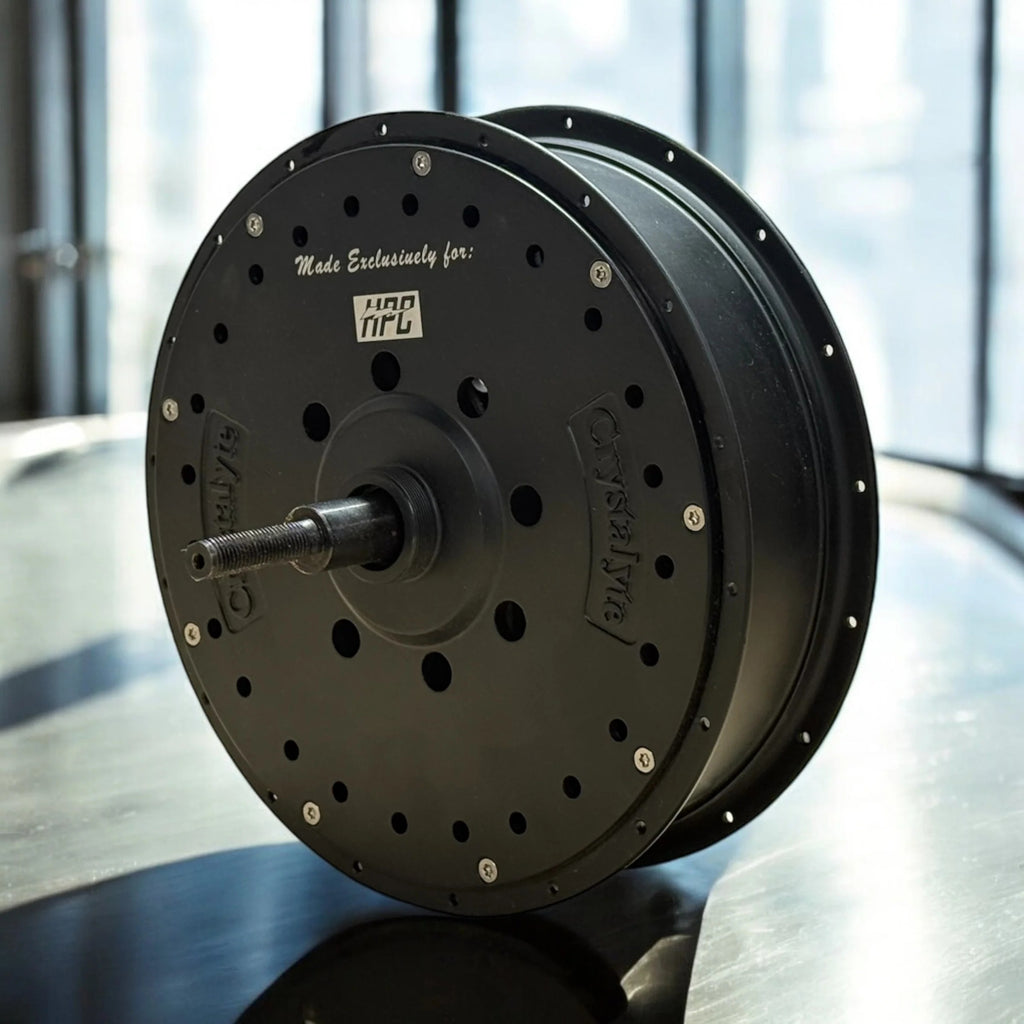

Motor: Custom DC Gearless, Air Cooled (6000W / 8000W / 10,000W options)
Battery: * 6000/8000W: USA Made, 86V (15Ah to 28Ah / up to 2400Wh)
10,000W: USA Made, 77.7V, 27.9Ah
Display: * 6000/8000W: Cycle Analyst V3 (Custom Programmable)
10,000W: Nucular Display
Charger: * Standard: Custom 96.6V (2A/4A/6A)
10,000W: 88.2V (2A/4A/6A), 3 Pin XLR, 100-240V
Wiring: Custom HPC harness with Integrated Brake Cutoff

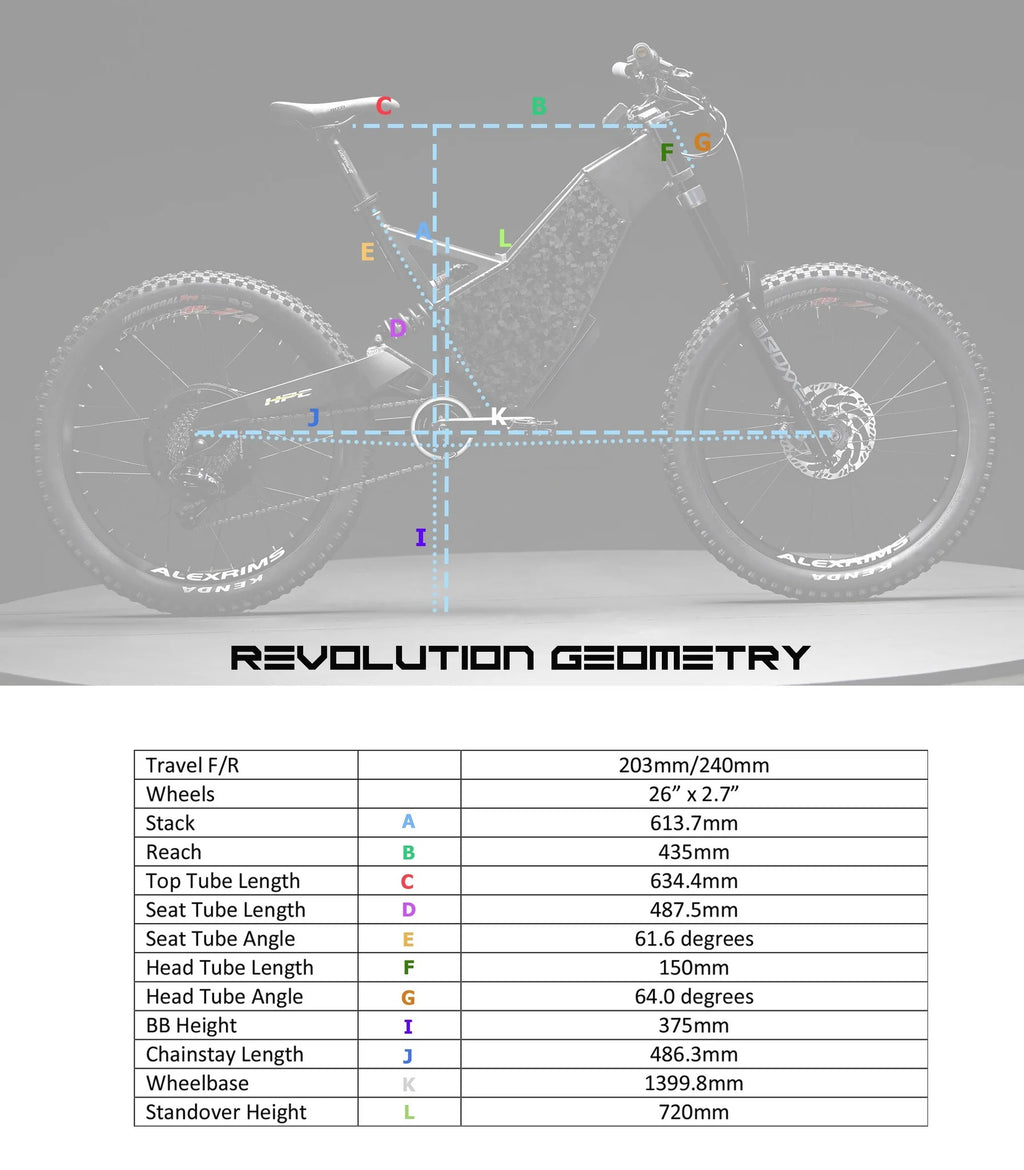

Frame: HPC Revolution, 26" wheels, internal cable routing, 157mm spacing, 9.5" travel
Headset: Cane Creek 110 ZS44/56 Internal, sealed bearings

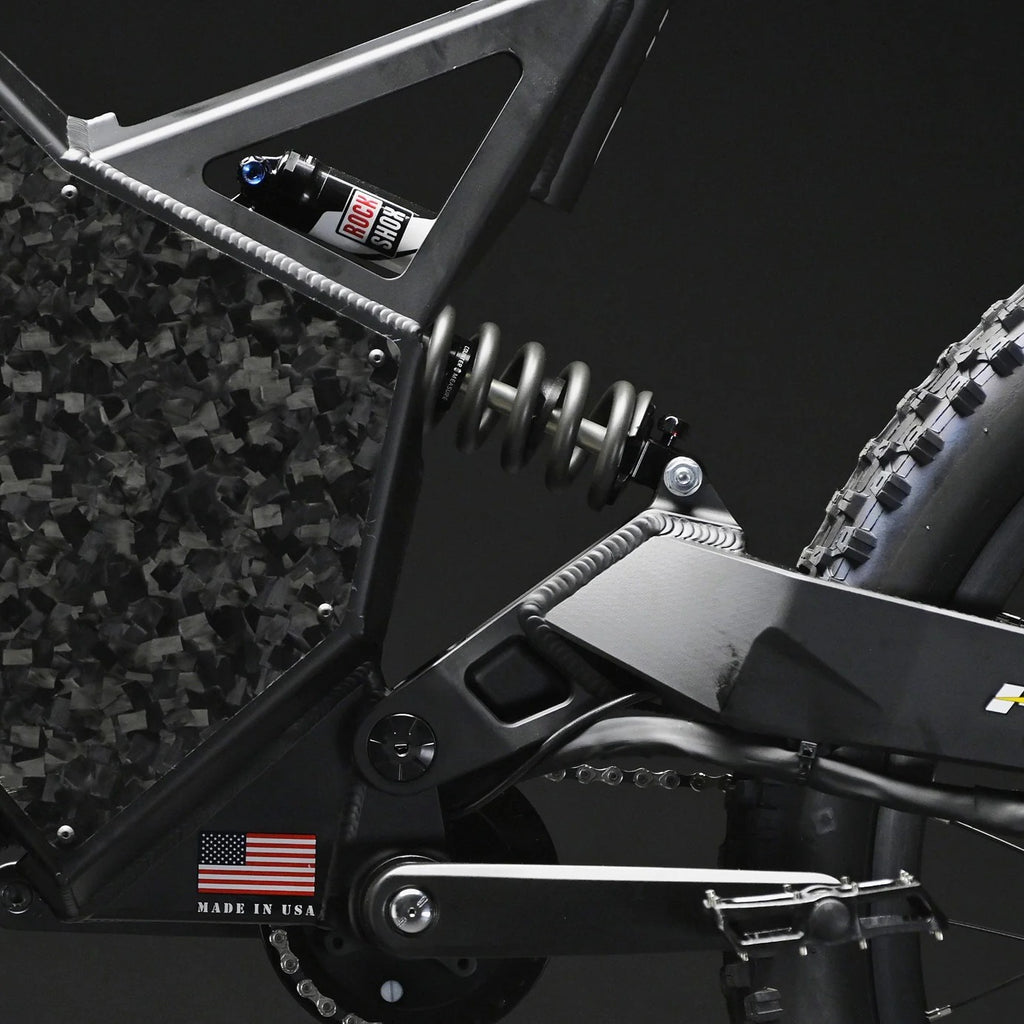

Rear Shock: DVO Jade Coil, 550lb Spring (241x76)
Fork: DVO Onyx DC, Black, 29", 200mm Travel
Calipers: Magura MT7e Quad Piston (Front & Rear)
Pads/Rotors: Metallic pads with Magura MDR-C 203mm rotors
Levers: Magura MT7e 4-finger blade with integrated electronic cutoff
Transmission: SRAM GX 10-speed (Trigger shifter & Medium cage derailleur)
Cassette: Sunrace 10S Freewheel (11-36T)
Chain: KMC E10 EPT

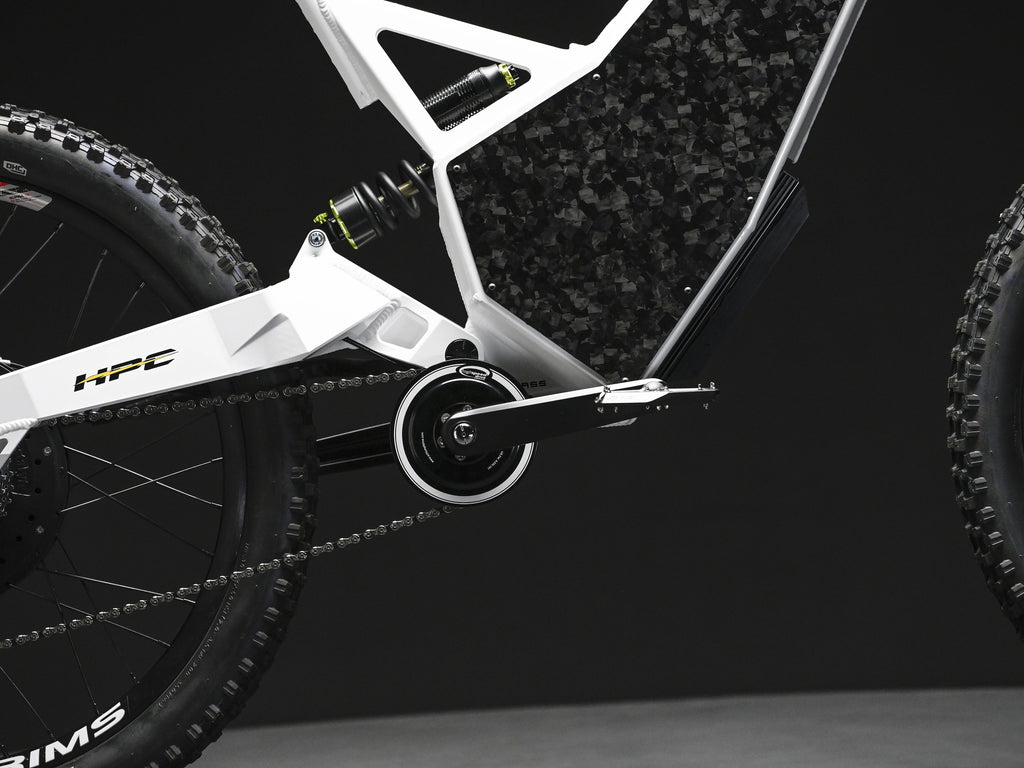

Crankset: Schlumpf High Speed Drive, 170mm (30T ring / 75T effective overdrive)
Rims: Alex Supra 35 (26", 35mm width, tubeless ready)

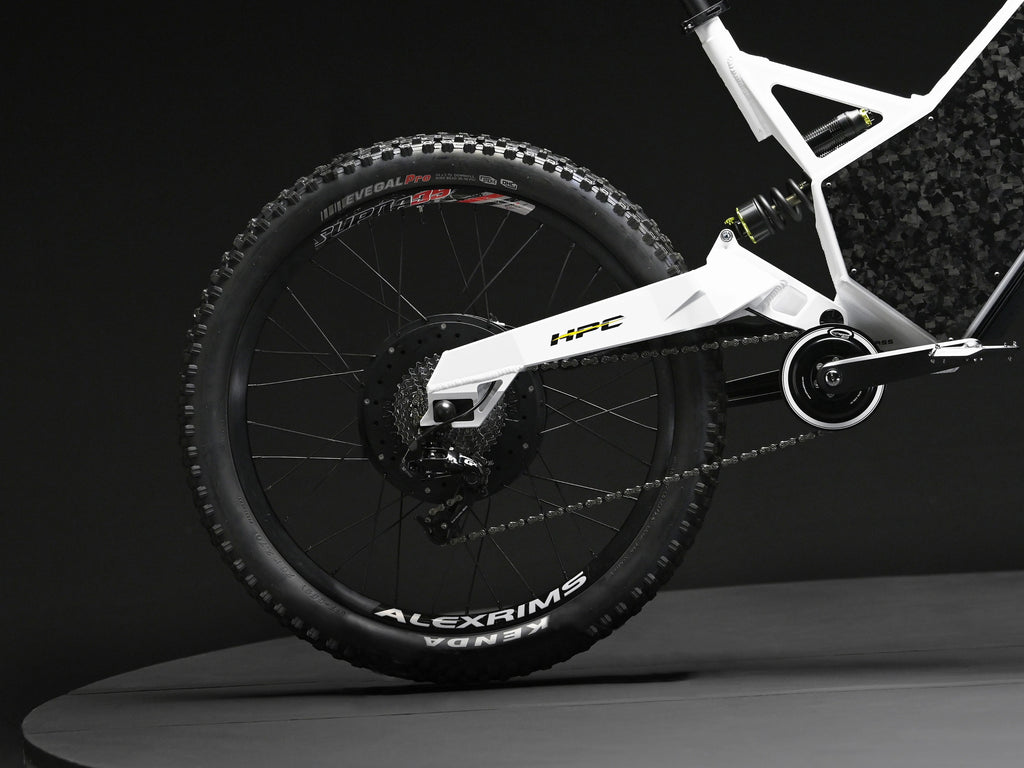

Hubs: HPC Alloy 20x110mm (Front) / DC Hub Motor 157mm (Rear)
Spokes: Phil Wood Black (14g Front / 12g Rear)
Tires: Kenda Nevegal Pro, 26x2.7 (Front & Rear)
Tubes: Kenda DH Double Thick, Presta Valve
Handlebars: Renthal FatBar Carbon Riser (35mm dia, 800mm width, 40mm rise)
Stem: Renthal Integra II Direct Mount (45mm length, +10mm rise)
Grips: ESI Chunky (Custom half-grip for throttle)
Saddle: WTB Volt (Medium)
Pedals: Spank Spike Reboot (Black)
