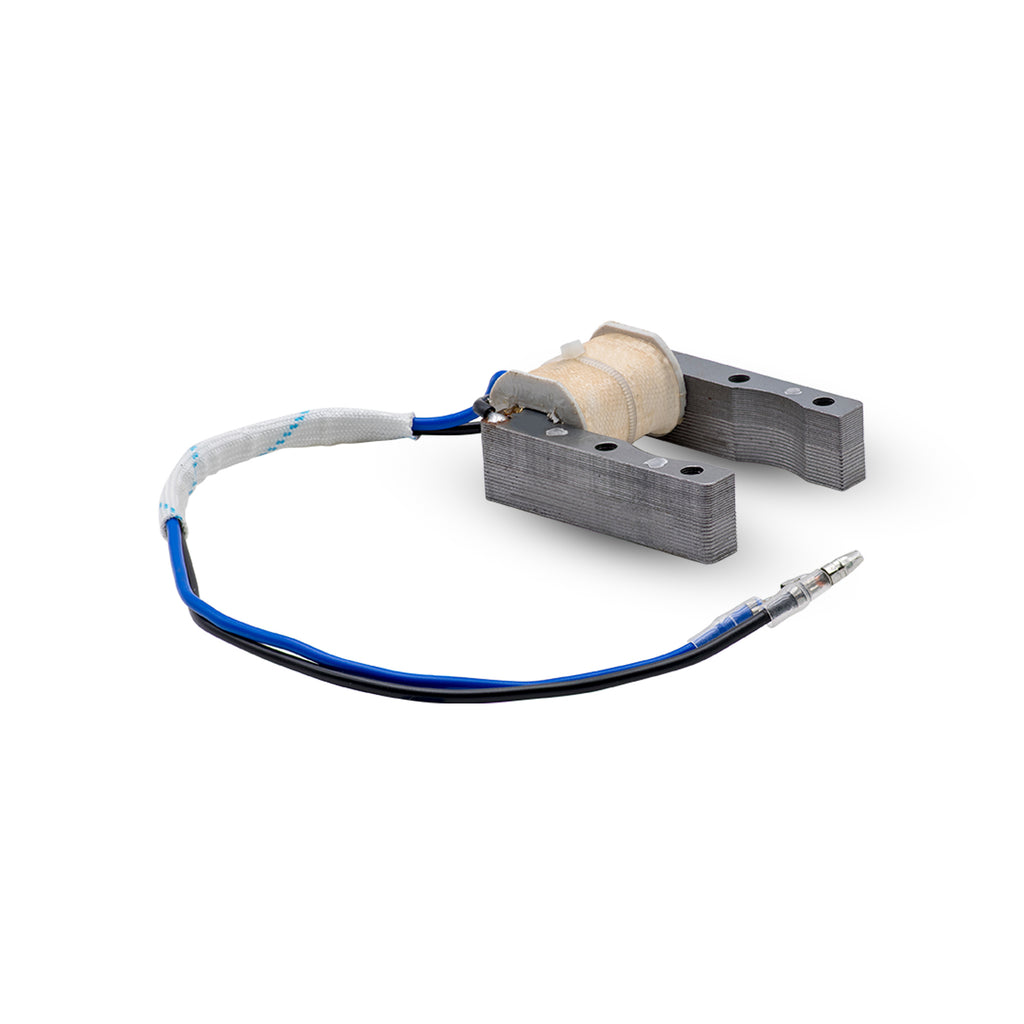

Magneto Loop Set - Layind Down Angled
Magneto Loop Set

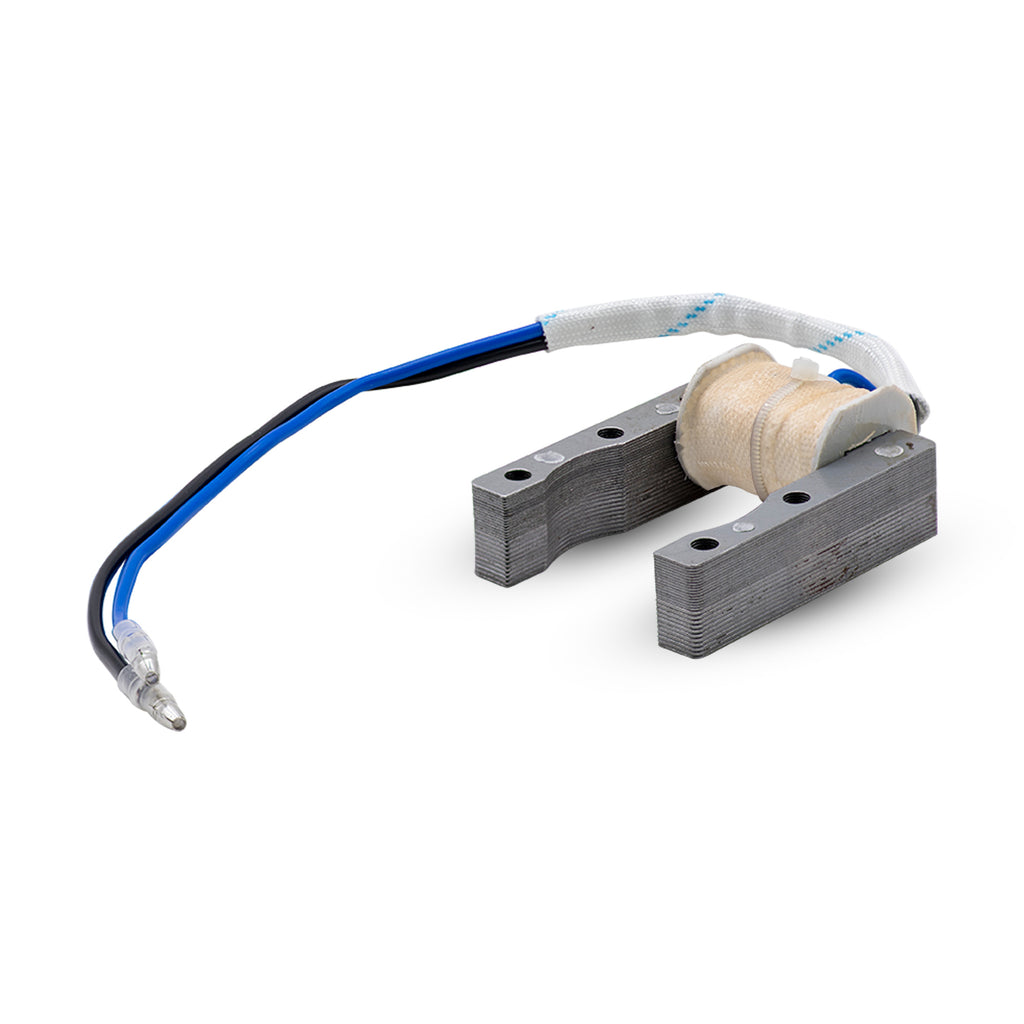

Magneto Loop Set - Laying Down

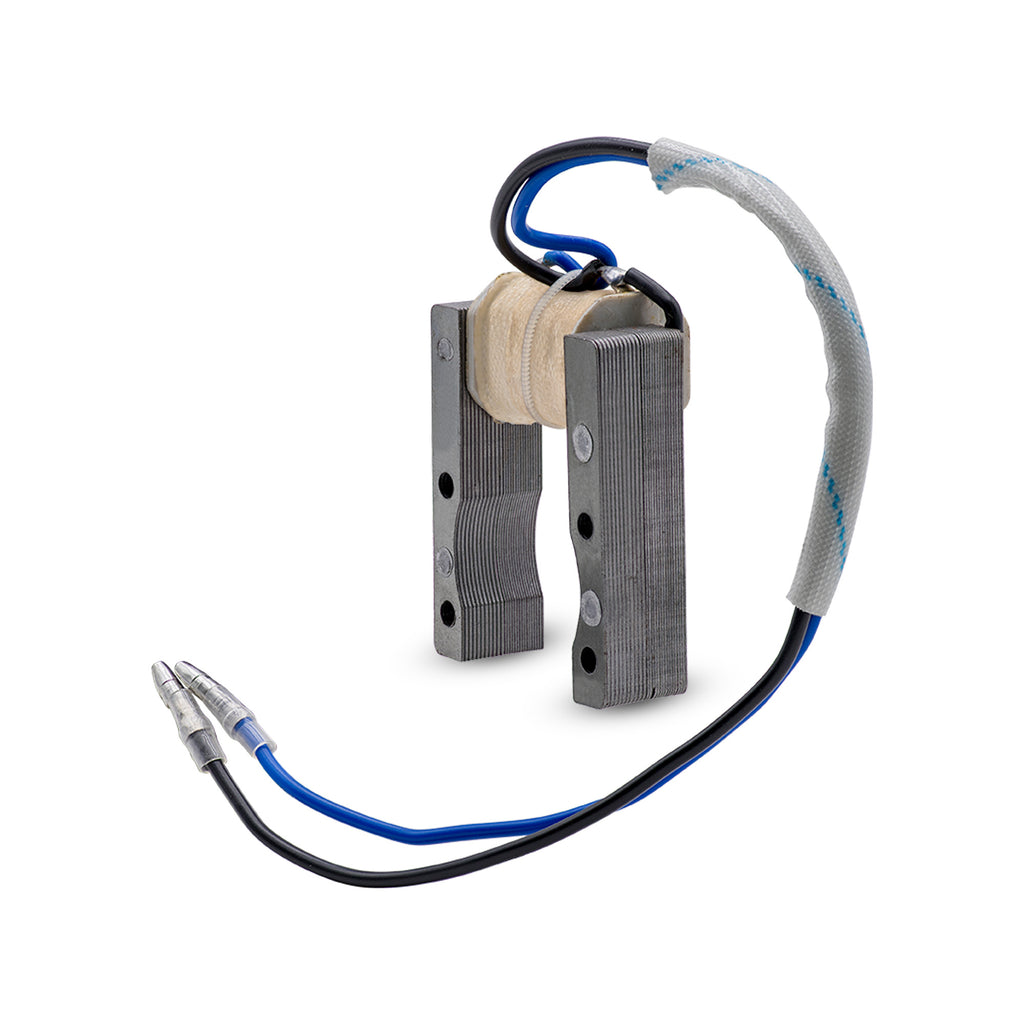

Magneto Loop Set - Standing Angled Profile

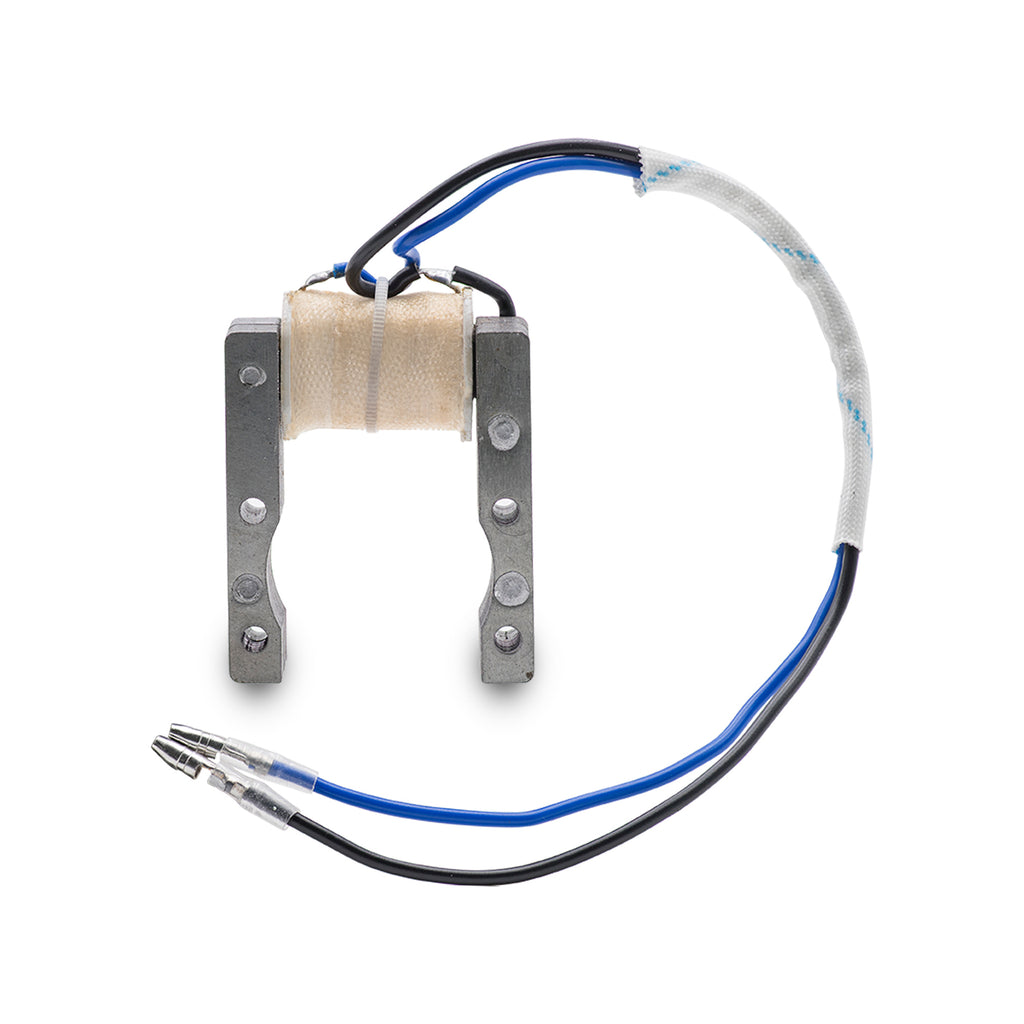

Magneto Loop Set - Standing Front

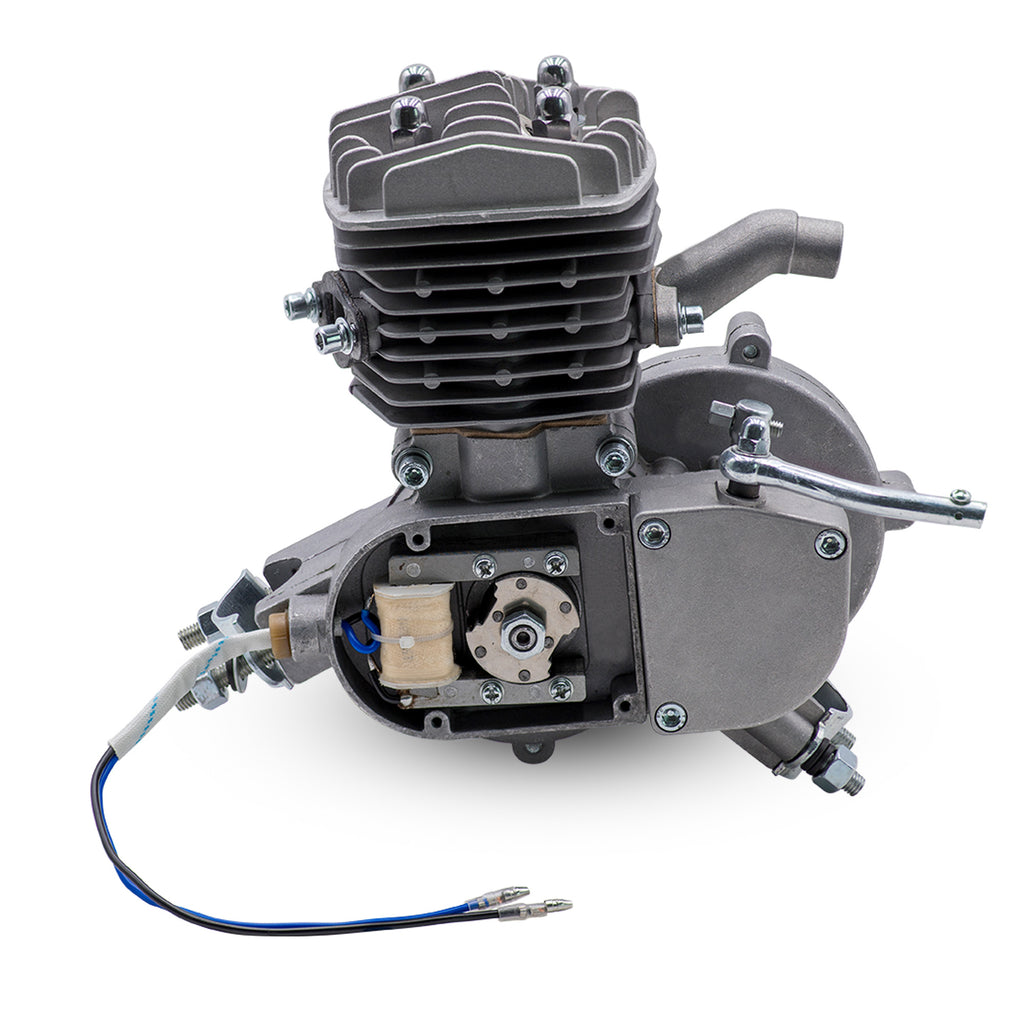

Magneto Loop Set - Installed on 66/80cc Engine

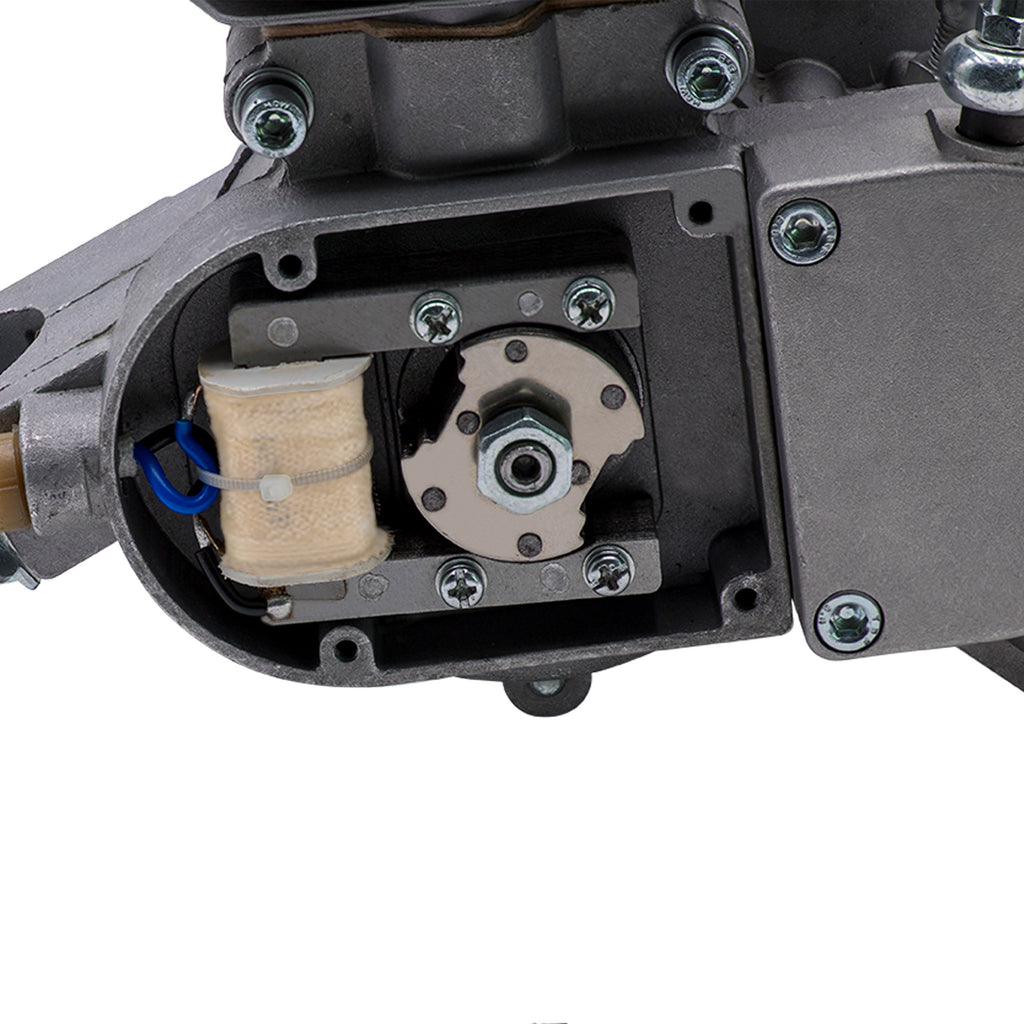

Magneto Loop Set - Installed on Engine Close up
Magneto Loop Set - electrical diagram
Roll over image to zoom in Click on image to zoom
Magneto Loop Set - Layind Down Angled
Magneto Loop Set
Magneto Loop Set - Laying Down
Magneto Loop Set - Standing Angled Profile
Magneto Loop Set - Standing Front
Magneto Loop Set - Installed on 66/80cc Engine
Magneto Loop Set - Installed on Engine Close up
Magneto Loop Set - electrical diagram
Magneto Loop Set
Magneto Loop Set

Magneto Loop Set

Early Black FridaySave 30%
BBR TuningSKU: FH-MAGNETO

FREE SHIPPING on Orders $99+
Support For Life Guarantee
Price:
$10.47 $14.95
  • Description

Description

A crucial electrical component for your engine, the 2-Stroke Magneto Loop Set assists with the production of your engine’s spark. Installed onto the crankcase and connected to the CDI and magneto magnet, this part surrounds the magneto magnet as it revolves. The result is the capture of magnetic force which is sent from the loop to the CDI to create your spark. Installation is also quite simple, all you need to do is unbolt your existing loop set, using sandpaper sand down the varnish on your new loop set, ensure your magneto magnet’s keyway is at the one o’clock position, install your new loop set. So, whether you are not getting a spark or are overhauling your engine, the 2-Stroke Magneto Loop Set has you covered.

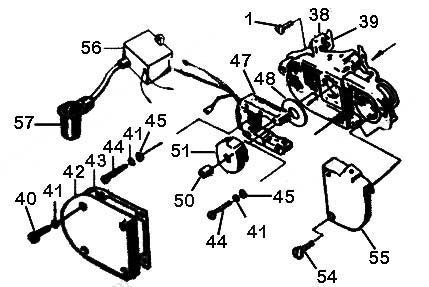

Part #47 on the Electrical Diagram

Package includes:

Magneto Wire Loop Set Part Number (See Parts Manual): 2-47 or D2-50

Recently viewed

Customers praised this replacement part for superior quality compared to original engine components, with many noting it "worked great" and came with fast shipping. The product performs well for engine builds and runs reliably. However, several shoppers warned about water sensitivity - moisture exposure can damage the unit. Some noted wiring discrepancies from product images.

  • Much better quality product than the original that came with the engine.
  • Item was just what I needed to get this build running right.
  • Bought that part at least a year and a half ago and the part worked fine.
Magneto (positive)Part (positive)Shipping (positive)Quality (positive)Motor (positive)
  • 5 stars: 14 (88%)
  • 4 stars: 2 (13%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Charles D Gilmore
Better than kit

Turned out that I didn't need it but, I'm going to keep it. Looks to be better than the engine kit product.

j
jeff michonski

Magneto Loop Set

S
Steven LaBelle

Got my order everything worked out the way it shouldn't great

j
jeffrey dugger

I bought that part at least a year and a half ago and the part worked fine

W
Walter Pollard

The part I ordered from Mike Barry it’s real good quality I would order it again

P
Pastor Jack

Working well. A much better quality product than the original that came with the engine.

B
Bigdickdaddy

Magneto loop Worked ('S) great recieved it fast with a decent price tag

B
BayouBugoutBikes

Highly recommended came fast tested perfect Item was just what I needed to get this build running right, great customer support, knowledgeable, I trust the people at Bikeberry when I need help.

B
Bob

Works fine Came to me,on time,works great.

D
Dylan

No bueno Magneto is nice but when mine arrived the black wire was soudered to the side of the magneto and there is no white wire at all. I don't use the white wire but it still didnt come as showed in the picture. Otherwise no problem. Time to go install it!

T
Tomas

Easy to find-Easy to buy- I bought all new electrical parts for my motor. Loop set.magnet..coil..Motor runs great, up grades are worth the money..carb next.

M
Magneto Repair

Jonny's Video on electrical testing Tell Johnny thanks for the ohm meters readings. That helped troubleshoot the problem I was having with the magneto. -Ken

a
al

burn 3 magnetos put red high heat siliconeas a gasket

a
aaron hebner

dont get it wet!! after riding my bike in seattle for a few weeks my bike just quit on me. didnt know why till i read reviewes here that the magneto cant get wet. tested mine an it was dead. ordered one here an got it in 3 days ground shipping. bike works great now! just put colcking in the hole where the wire comes out of the motor! rain goes right in other wise. safe ridin-heeb

s
sharnell brooks

buy it hii like to say that my Magneto Loop Setcame on time 3days its at my door wrap nice looked clean an new 5 stars on thisone

A
Anthony Bright

Careful about getting it wet Water that gets on this will fry it so don't get it wet!

D
Daniel Gates

How do you test the magneto loop set to determine if,it's okay, or not? I have a multimeter that can check all functions, but need to know method to test it.

BikeBerry

To test the magneto loop set, set your multi meter to the ohms setting, then connect the black wire to the black wire of the multimeter and the blue wire to the red wire of the multimeter. You should get a reading of .325-.332 if it is in good condition.

B
Benjamin powell

What Ohms the Magneto Loop should be putting out

BikeBerry

That's an excellent question! The Magneto loop should be putting out anywhere from 250 ohms - 500 ohms. If you have any further questions, comments, or concerns please feel free to contact us at your earliest convenience!

H
Harold

What is the purpose of the white wire?

Mine doesn't have that (just black and blue)

BikeBerry

Our Magneto Loop Set has a total of 3 wires, the Blue wire is the positive, the black wire is the negative and the white wire is to run accessories such as lights. We do not recommend using the white wire for accessories, it will draw a lot of power from the engine.

C
Customer

does this coil have 12v or 6v lighting coil

BikeBerry

Our Magneto Loop Set has a 12 volt lighting coil.

K
Karl

How do I test the Magneto Loop Set that came with my engine kit? I am not getting a spark. We have all ready replace the CDI. Is there a video that we can watch?

BikeBerry

To test the magneto please follow this video.

https://www.youtube.com/watch?v=YJFyDYIkElI
