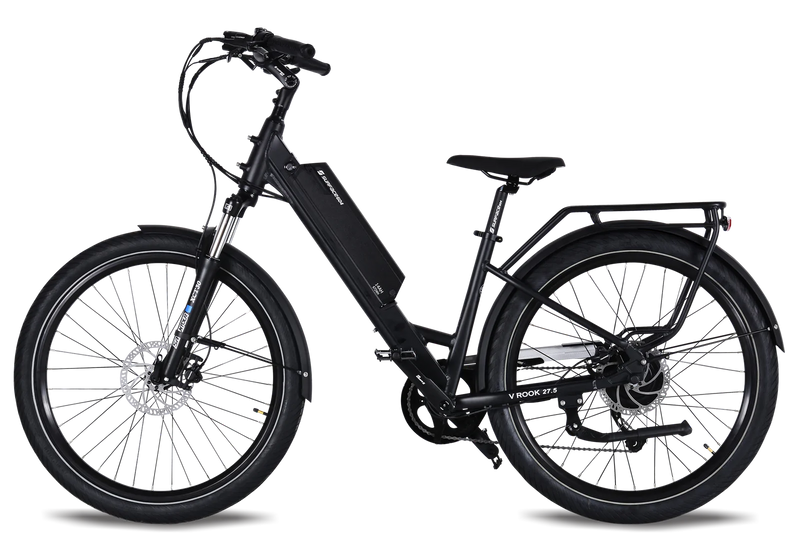

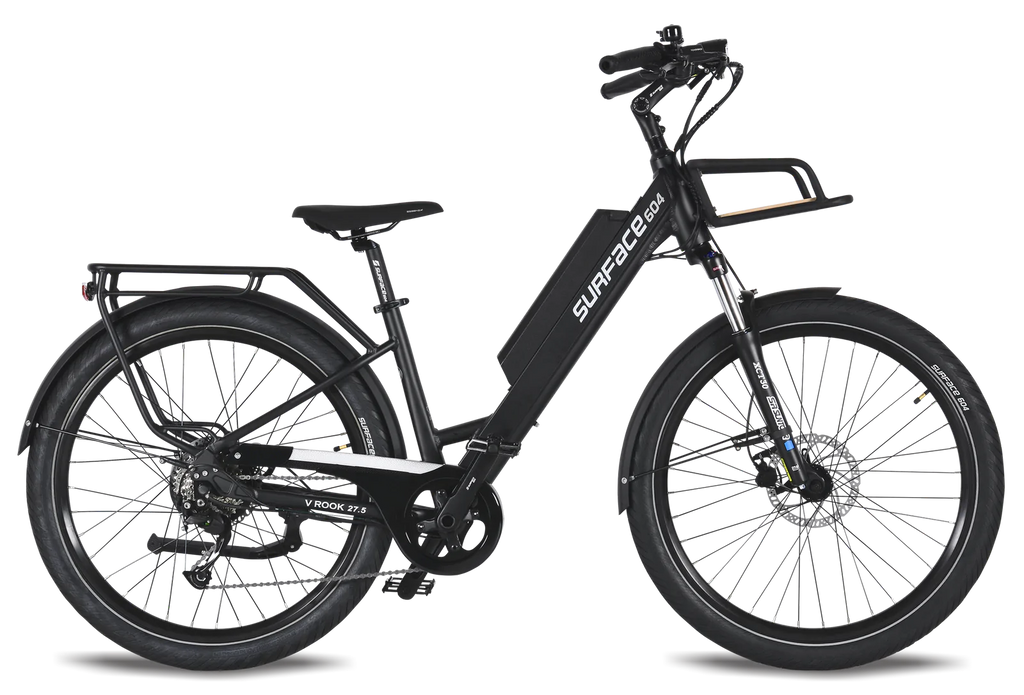

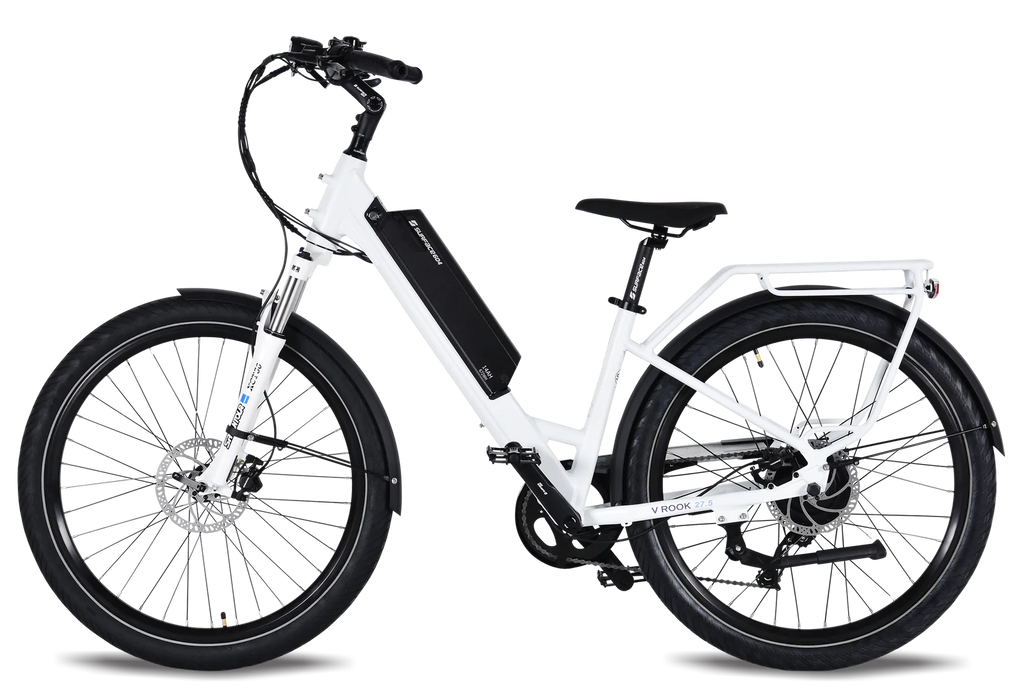

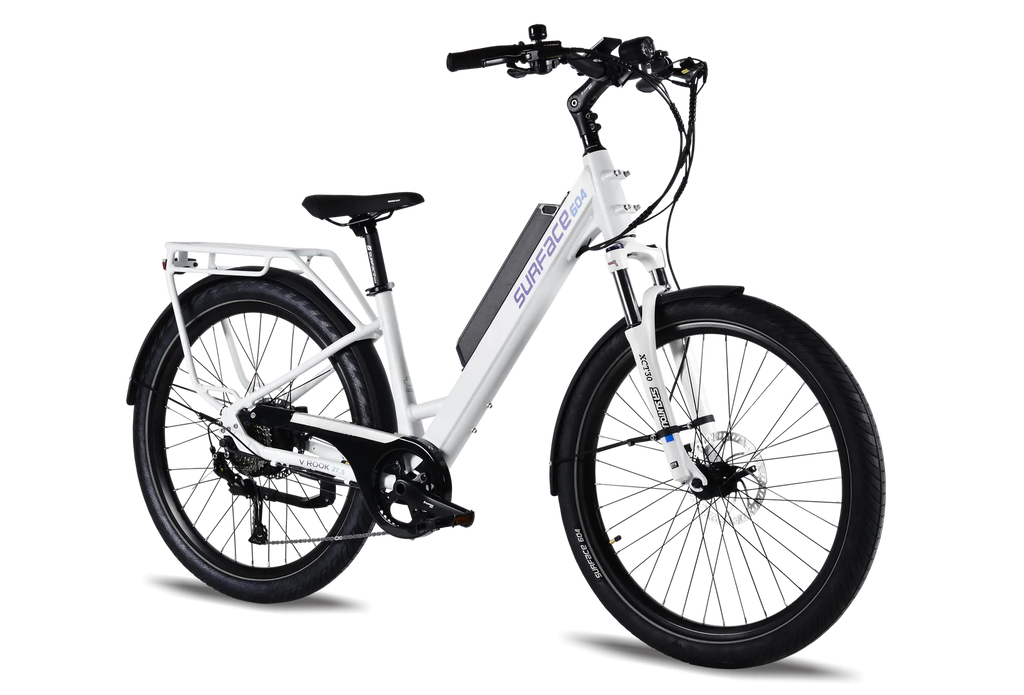

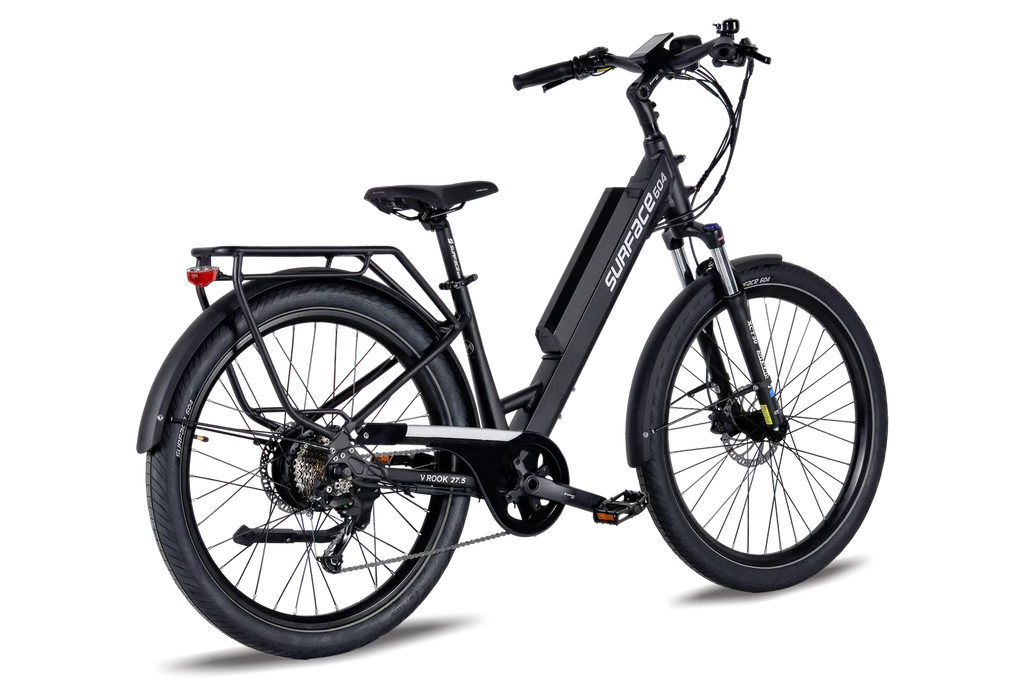

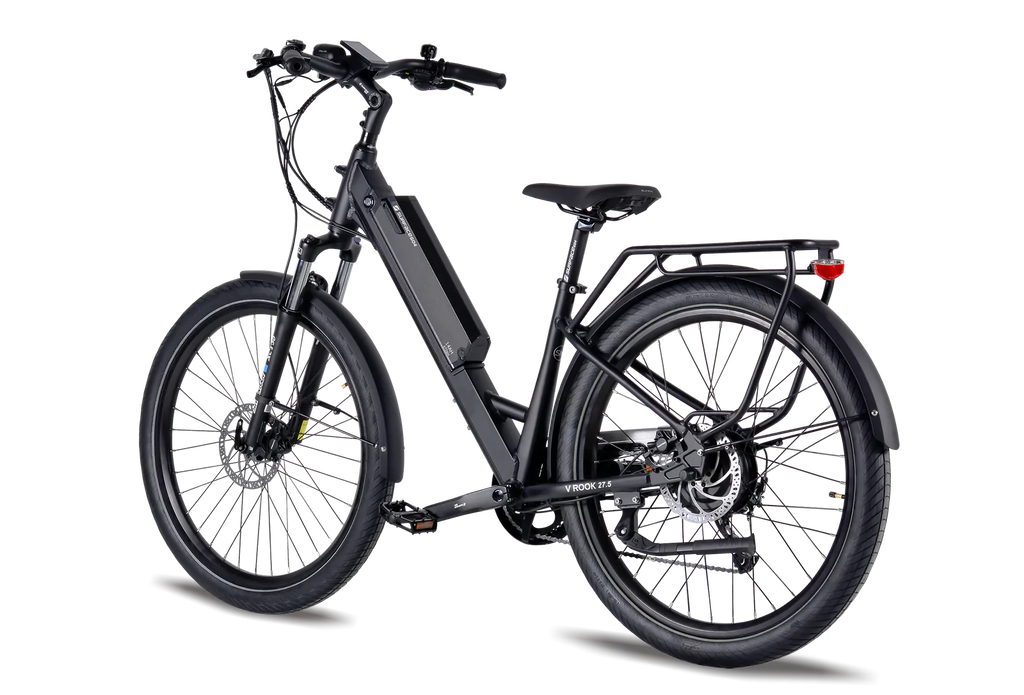

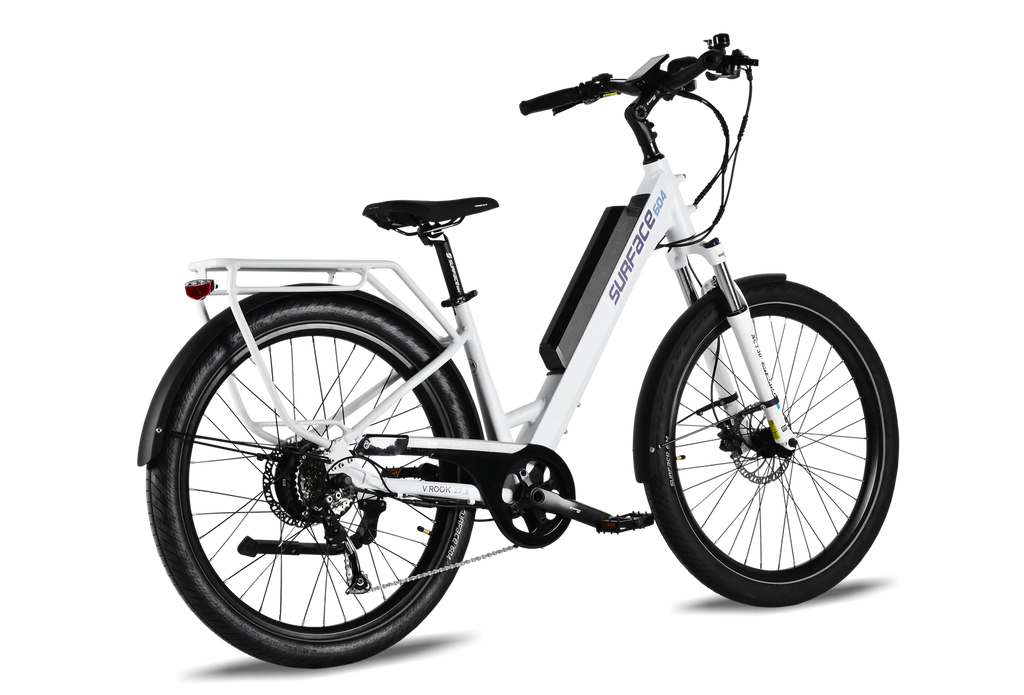

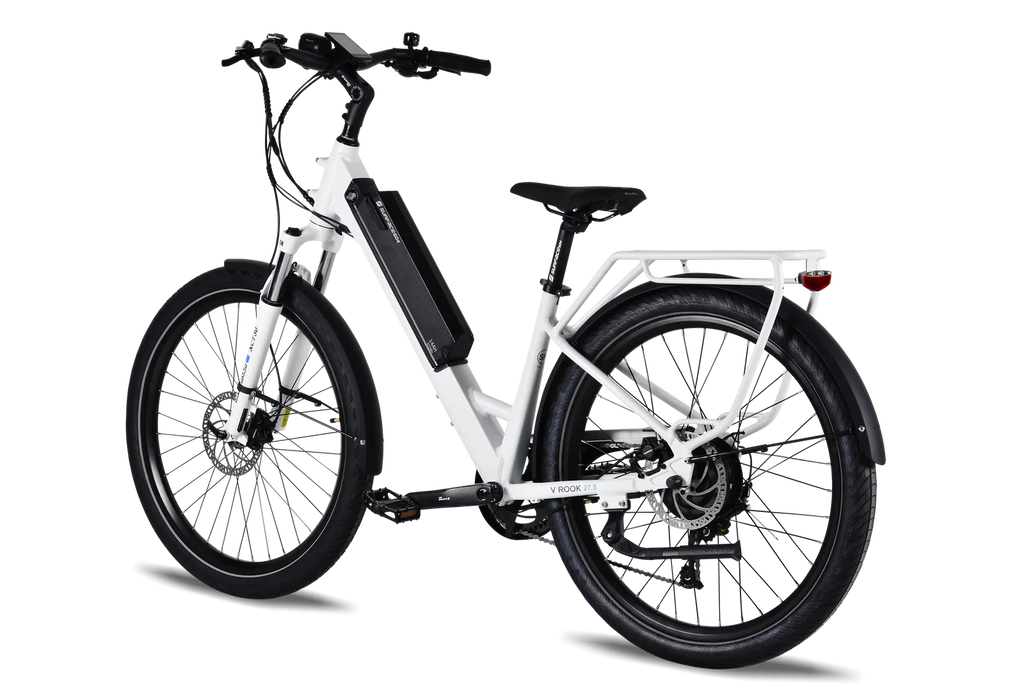

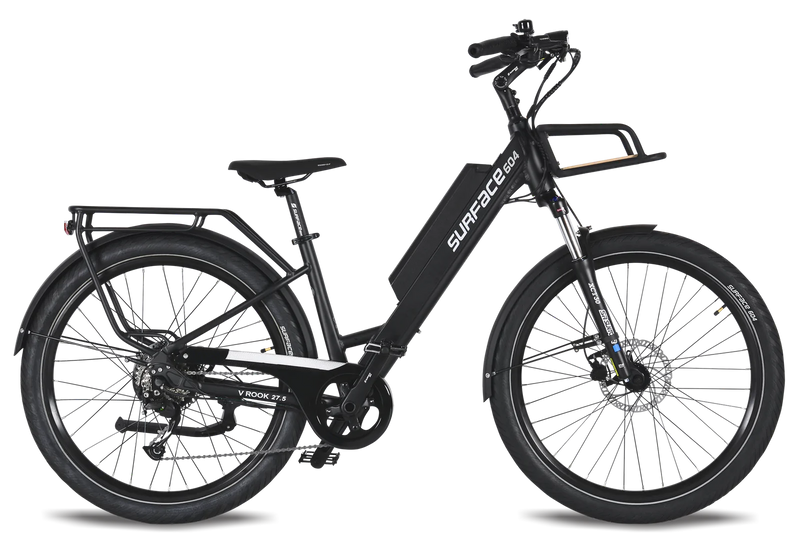

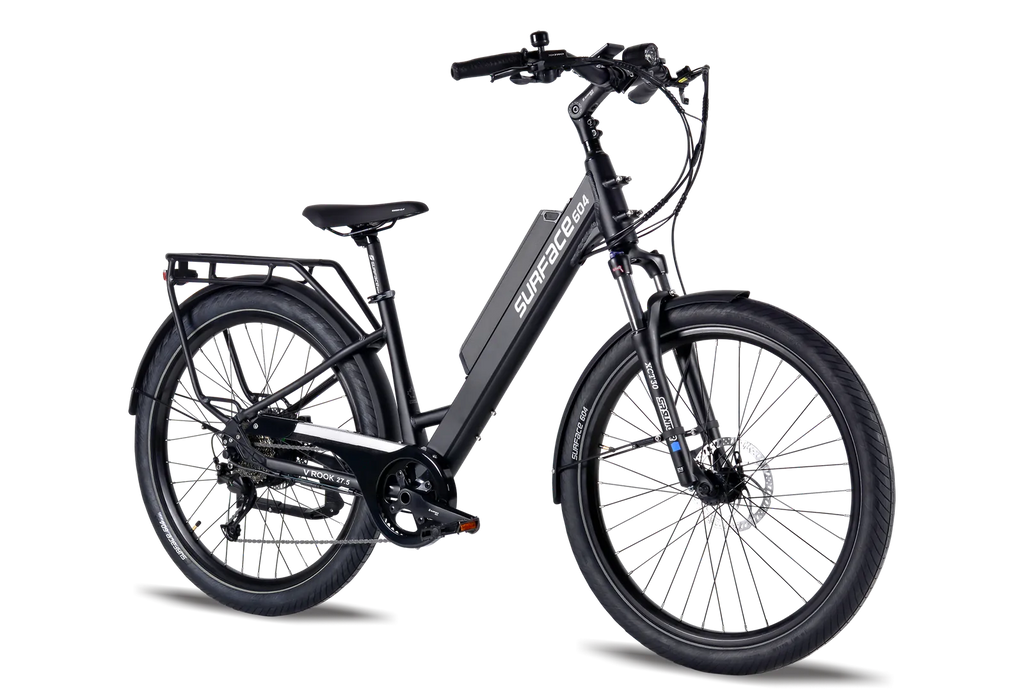

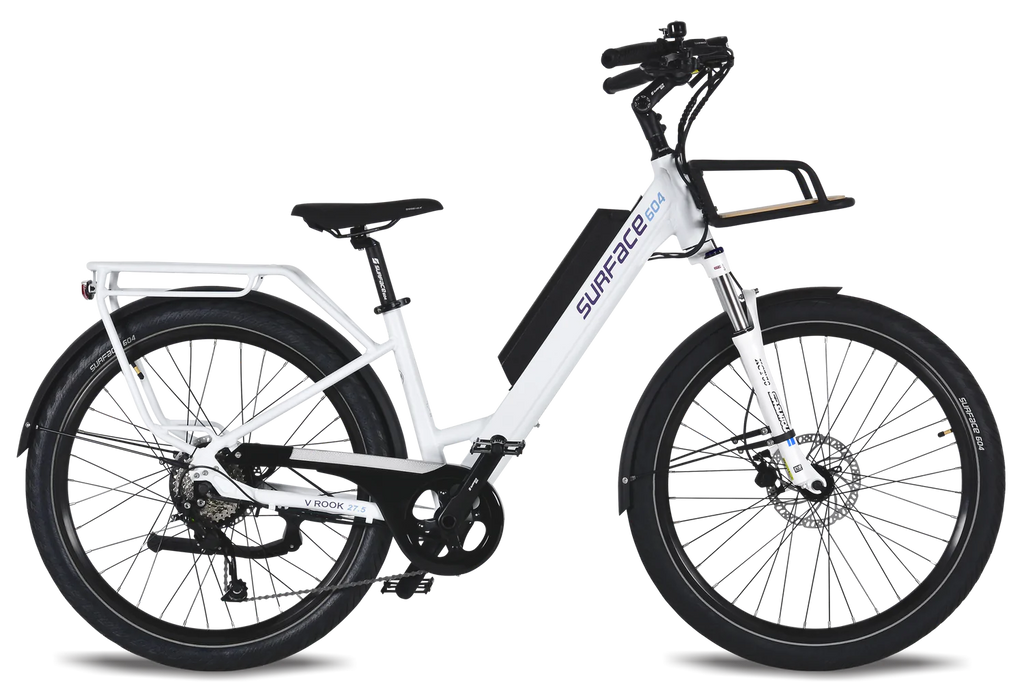

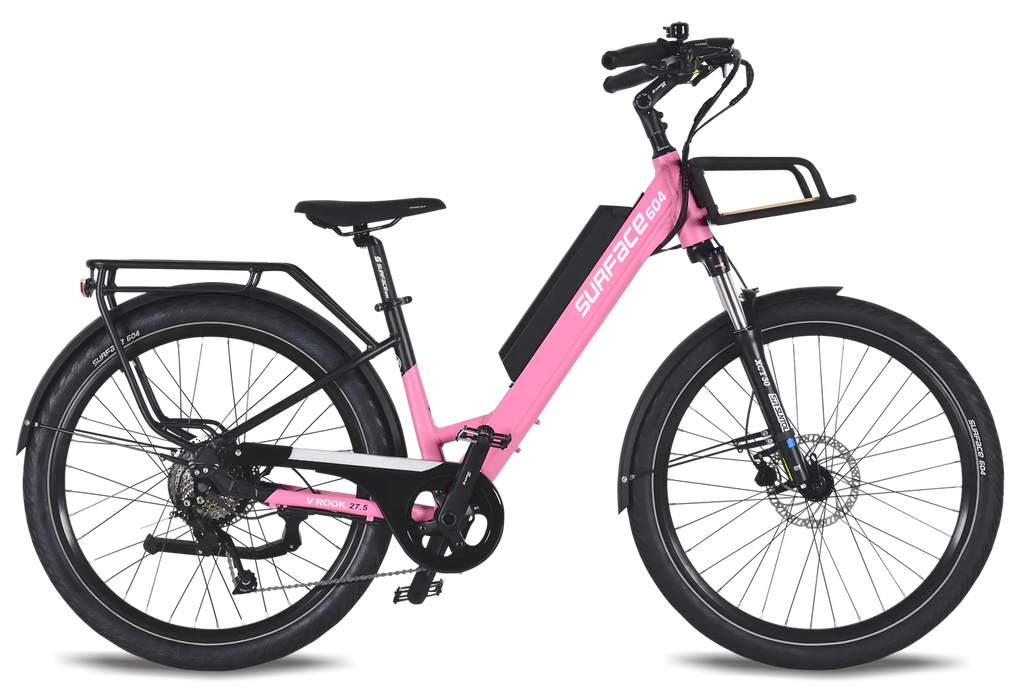

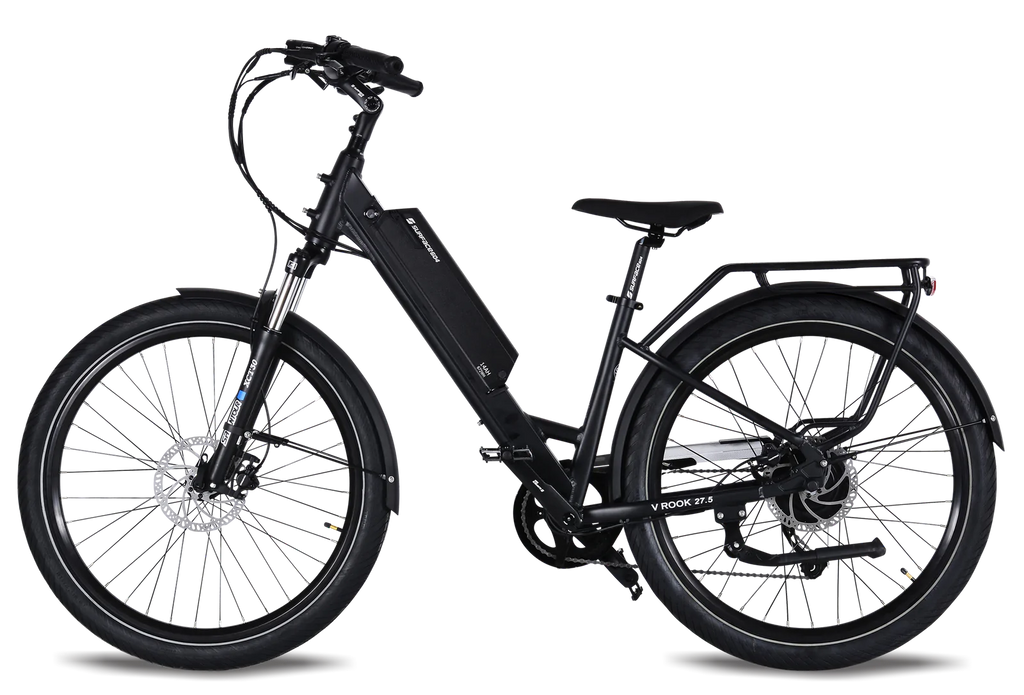

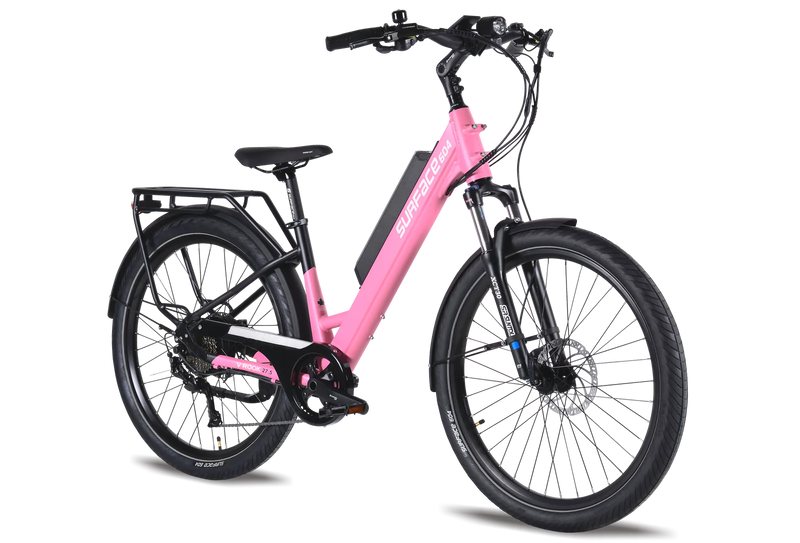

Surface 604 500W V-Shape Rook Electric Bike

Surface 604SKU: EB-VROOK-BLK-14

FREE SHIPPING to Continental US

Color: Black
Battery: 48V 14Ah
Sale price$2,599

Motor Size:

500W Bafang Brushless


48V Samsung Lithium Ion

Drive Mode:

Class II: Thumb Throttle Pedal Assist

Frame Type:

6061 Aluminum Alloy Step Thru

Wheel Size:


Motor Position:

Rear Hub

Financing Available

Pay in 4 interest-free payments.

Free Shipping

Enjoy free shipping to the continental US.

We're Here To Help

Lifetime customer & technical support

Premium Warranty

Every bike comes backed by a warranty against manufacturing defects

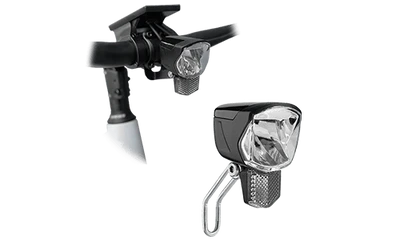

The Surface 604 500W V-Shape Rook Electric Bike is America's most innovative yet practical electric bike. With the Surface 604 500W V-Shape Rook, you can typically ride in PAS 1 and get about 1 mile per percent on my battery. The headlight is great and illuminates well for night riding.The bike has a built-in rear light that alerts you when you apply the brakes.

Powerful 500W Motor

The 500W (peaks at 750W) Bafang Geared Hub Brushless electric motor was built purposely for speed and power. So when riding this bike, you’ll enjoy the quiet and consistent power distribution at any speed.

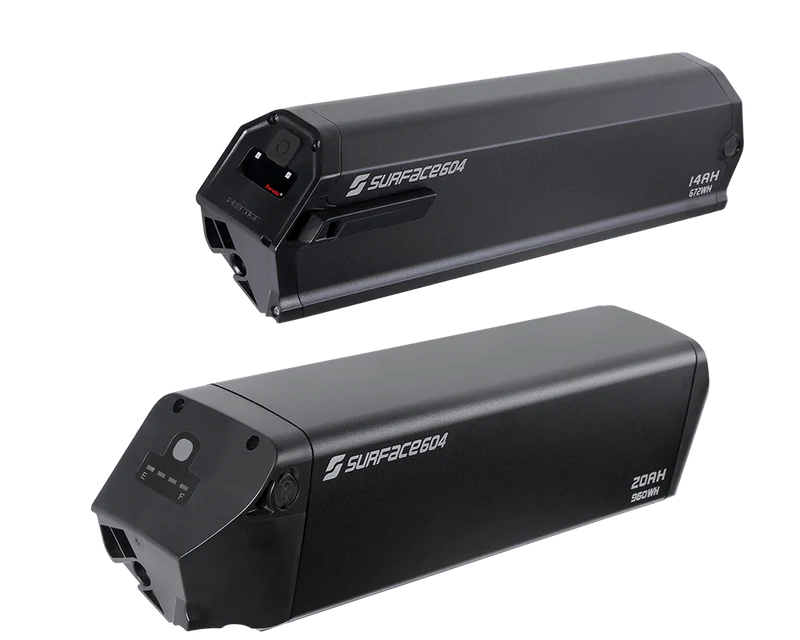

Long Range Battery

Another outstanding feature of this bike is the availability of two high-capacity battery options:

Option 1#. 48V14ah (672wh) 3500mah cell size, Samsung Cells 18650, Made in Korea, USB Plug, capacity indicator button, Range up to 45 Miles (72 Kms), Weight: 7.59 LBS (3.45 KG)

Option #2. 48V20ah (960wh) 5000mah cell size, (Same as in Tesla), Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button, Range up to 65 Miles (105 Kms), Weight: 10.23 LBS (4.65 KG)

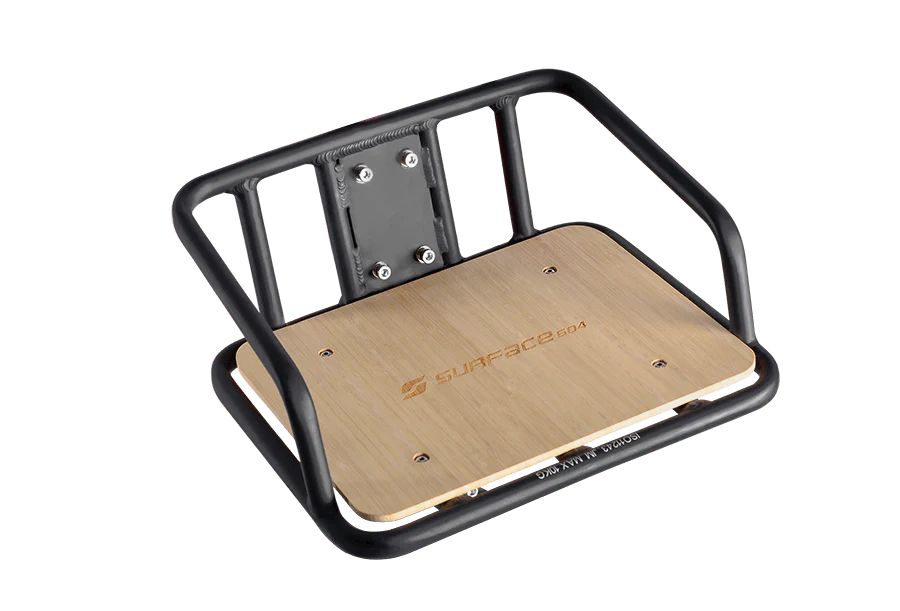

Cool Front Rack

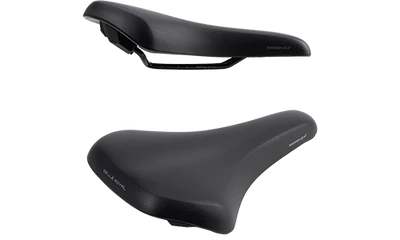

The Surface 604 500W V-Shape Rook Electric Bike has a bespoke front rack attachment as well as a front rack created particularly for the V-Rook. It has a detachable hardwood panel and two water bottle cage mounts. The rack can support up to 20 kg (45 lbs). It is also equipped with a Selle Royal "Essenza Plus" saddle. suited for usage in the city and on tours, with a maximum adjustment of 9 degrees.


MOTOR: 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
CONTROLLER: SURFACE 604 Designed 12 MOS 48V 500W 25Ah, Smart
BATTERY: Included: 48V 14Ah / 672Wh, Samsung lithium-ion 18650 cells, Upgrade option: 48V 20Ah / 960Wh, Samsung lithium-ion 21700 cells
BATTERY RANGE: Upto 45mi (72km) with a 48V14Ah Battery, Upto 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME: 3-4 Hours for a Full Charge from Empty
DISPLAY TYPE (NEW): SURFACE604 Color LCD Display with USB Jack, Bigger display: 3.5" for 2022 vs. 3.2" for 2020
FORK - UPGRADED SUSPENSION: SR SUNTOUR XCM 27.5 Suspension Fork. 80mm with Quick Release
BRAKES: TEKTRO Auriga Hydraulic Disc Brakes, Post Mount, with Motor Inhibitors
FRAME MATERIAL: 6061 Aluminum Alloy
WHEELS/TIRES: 27.5&" X 2.4&" Custom S604 Panaracer Tires With Puncture, Protections With Reflective Sidewall
RIMS: Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
STANDOVER HEIGHT: Small-Medium: 28.5" (724mm), Medium-Large: 30" (762mm)
NET WEIGHT (INCLUDING BATTERY): 26.6KG/58lbs(14AH), 27.75KG/61lbs (20AH)
WEIGHT CAPACITY: 285lbs(130kg)

You’ll no longer get anxious about whether you'll be able to make it up a hill with your bags loaded with groceries. Indeed, riding is really fun again with the V-Shape Rook Electric Bike—it's kind of like the joy you felt when you first learned to ride a bike. The Surface 604 V Rook Step Thru Electric Bike is the best way to clear your head, grab a bike, get out in the fresh air, and ride-on America!
