- Description
Description

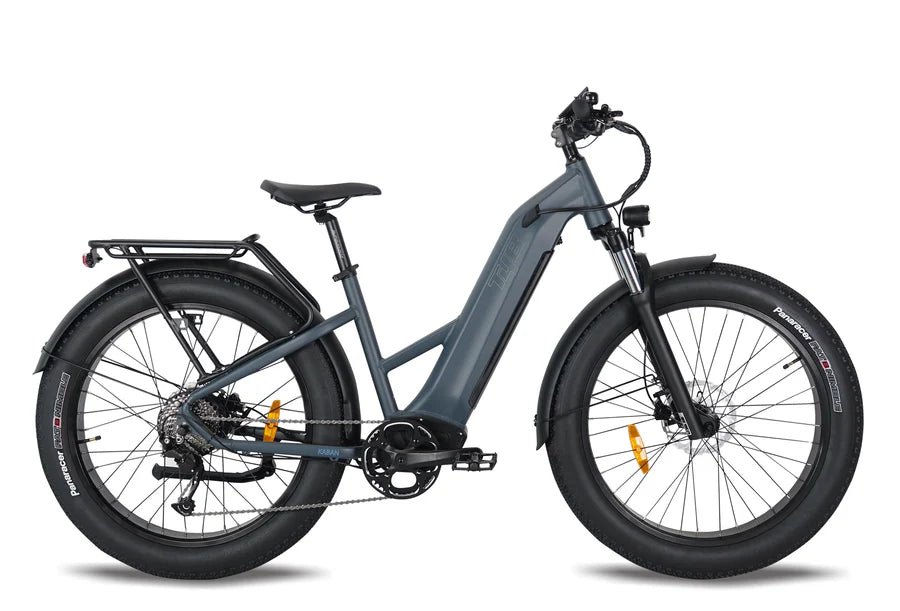

The 2025 T4B KABAN is a rugged, step-thru fat-tire electric bike engineered for maximum confidence and comfort across diverse riding environments, from city pavement and gravel paths to challenging trails. It is built around a powerful 750 W AIKEMA geared brushless rear hub motor and features a high-capacity 48 V 20 Ah lithium battery, utilizing advanced 21700 cells to ensure both strong performance and exceptional endurance. The step-thru frame design makes mounting and dismounting easy for riders of all abilities.
-
Motor & Battery: 750 W AIKEMA geared brushless rear hub motor paired with a 48 V 20 Ah lithium battery (21700 cells)
-
Top Speed & Range: Top speed of up to 32 km/h (20 mph) with approximately 70 km (45 miles) of range per charge
-
Braking & Gearing: GEMMA GA‑950E hydraulic disc brakes (180 mm rotors front and rear); Shimano Altus 9‑speed drivetrain
-
Comfort & Traction: 26″ suspension fork combined with Panaracer Fat Nimble 26″ × 4.0″ fat tires
-
Controls & Display: Thumb throttle plus cadence-sensor pedal assist (5 levels), visible on full LCD display
-
Extras for Everyday Ride: Integrated front and rear lights, a convenient rear rack, and charger (48 V 3 A) included
Focusing on safety and reliable operation, the Kaban is equipped with premium components, including responsive GEMMA GA-950E hydraulic disc brakes with 180mm rotors for reliable stopping power, and a Shimano Altus 9-speed drivetrain for smooth gear transitions. With a top speed of up to 32 km/h (20 mph) and an impressive estimated real-world range of 70 to 80 km (45 to 55 miles) per charge, this eBike is a versatile and durable choice for recreational riders and commuters looking for an all-terrain machine.
Product Specifications
-
Motor: 750 Watts AIKEMA Geared Brushless Rear Hub Motor
-
Battery: 48V 20Ah Lithium battery (21700 cells)
-
Top Speed: Up to 32 km/h (20 mph)
-
Estimated Range: 80 km (55 miles) (Approximate)
-
Brakes: GEMMA GA-950E Hydraulic Disc Brakes (180mm rotors)
-
Gearing: Shimano Altus 9-speed Derailleur (11-36T Cassette)
-
Frame: A6061 Aluminum Tig Welded
-
Tires: Panaracer Fat Nimble 26” X 4.0 Fat Tire
-
Fork: FAT Suspension Fork 26”
-
Pedal Assist: 5 Speed Cadence Sensor
-
Throttle: Thumb Activated
-
Display: Full LCD Display with 5 Speed assist mode
-
Max Capacity: 285 lbs (130 kg)
-
Bike Weight: 77 lbs (35 kg) (with battery)
