X-Treme 500W Sedona Step-Through Frame Mountain Electric Bike


FREE SHIPPING to Continental US
FREE Poplock bicycle lock ($84.95 value)

Color: Metallic White
Sale price$1,949


Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the X-Treme 500W Sedona Step-Through Frame Mountain Electric Bike ($84.95 value!)


The ideal choice for shorter riders or those with limited flexibility, the X-Treme 500W Sedona Step-Through Frame Mountain Electric Bike is both comfortable and stylish. With a low angled crossbar, the Sedona Step-Through is far easier to mount/dismount than a traditionally styled mountain bike with a high crossover bar. Offering a hand welded frame composed of 100% aluminum, the X-Treme Sedona Step-Through offers a lightweight electric mountain bike that is tough enough for some serious riding on mountain trails.

Since the Sedona Step-Through was specifically designed for mountain bike riding, it seemed only logical for X-Treme to test the e-bikes prowess and stamina.

What gives the Sedona Step-Through electric mountain bike such serious power? The 500 watt Bafang motor, with a zero resistance clutch that delivers high levels of torque. This impressive electric motor also has a Digital Torque Sensor which allows the engine to adjust the level of torque in order to match the conditions of a particular ascent. This means that the motor will never be straining when trying to get up a steep hill, which in turn will add to the longevity of the motor life. Connected to the Bafang motor is a LiPo4 48 volt, 10.4 amp hour battery that has been fully integrated into the actual frame of the e-bike (so you won’t have to worry about it being accidentally damaged while out riding).

For improved handling and safety, the Sedona Step-Through has Shimano Atlus 9 speed gears, and suspension at both the front and rear (Suntour XCT front suspension, plus KS rear shock suspension). The X-Treme Sedona Step-Through also has Tektro disc brakes for superior stopping power no matter what the weather conditions are.

  • Low angled crossbar makes it easier to mount/dismount than a traditional mountain bike
  • Hand welded frame composed of 100% aluminum
  • 500 watt Bafang motor, with a zero resistance clutch that delivers high levels of torque.
  • Shimano Atlus 9 speed gears, and suspension at both the front and rear



  • Power: Electric

  • Watts: 500 Watts

  • Amps: 10.4 AH Integrated Lithium Battery

  • Volts: 48 Volts

  • Battery: 48 Volt LiPo4 Lithium (lightweight)

  • Drive System: Chain Driven by Rear Hub Motor or Pedal Power

  • Distance: Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting

  • Charger: 48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours)

  • Tire Size: Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels

  • Motor: Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch

  • Controller: 48 Volt 15 Amp Sealed Smart Controller

  • Braking System: Tektro Disk Brakes With Hydraulic Upgrade Option

  • Pedals: Wellgo Aluminum Pedal Set

  • Front Wheel: Joytech Quick Release Hub

  • Throttle Type: Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power

  • LCD Display: King Meter LCD Smart PAS Digital System With USB Phone Charging Port

  • Cargo Rack: Aluminum Rear Carry Rack

  • Frame Type/Size: 6061-T6 Temper Aluminum Alloy - Very Lightweight - Step Through

  • Forks: Suntour® XCT Hydraulic Front Forks

  • Suspension: Front Hydraulic Suspension Included & KS Rear Shock Suspension

  • Front Sprocket: Aluminum Alloy Sprocket

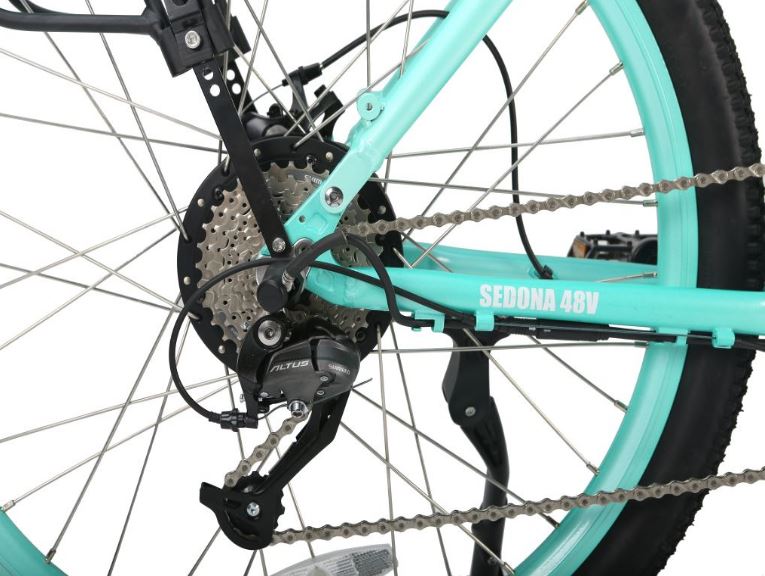

  • Derailleur: Shimano® 9-Speed Atlus Gears & Shifter

  • Seat & Post: Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat

  • Quick Release: Front & Rear Wheels Have Quick Release Axles - Flip Lever

  • Gooseneck: Aluminum VP

  • Handle Bars: Aluminum Alloy Mountain Bike Handle Bars

  • Head Light: Yes, included as free accessory add-on - Battery Operated Snap-On LED (Not covered under warranty)

  • Accessories: Drink Holder On Handle Bars Included

  • Bicycle Measurements: Max Seat Height = 37.75" Inches / Min Seat Height = 29.5" Inches / Handlebar Height = 37.75" Inches

  • Carton Size (L x W x H): 55 x 9 x 28

  • Bicycle In Box Weight: 69 lbs

  • Bicycle Weight: 59.5 lbs

  • Suggested Max Weight: 350 lbs.

  • Warranty: 1 Year Warranty & 1 Year Battery Warranty

  • Notes: *depends on rider weight & terrain Distance obtainable when using SPAS
