Looking for an easy way to get around town, well a motorized bicycle is the way to go. Including everything required for the assembly of a motorized bike, the Switz Cruz + 4 Stroke Chain Drive Motorized Bike DIY kit is an economical and affordable choice. With a HuaSheng 49cc pull start bicycle engine, upgraded hush muffler, a heavy-duty bicycle chain, and a high-performance carburetor, the Micargi chain drive motorized bike is decked out with a great range of components.

Assembling a bicycle from scratch using random parts can be very difficult and extremely frustrating, not to mention expensive. Not all bicycle frames are suited to fit any motor type or size. The Switz Cruz + 4 Stroke Chain Drive Motorized Bike DIY kit comes complete with carefully selected components to ensure 100% compatibility with no “extra” parts. With just a few basic tools and general knowledge of how mechanical parts work together, riders will be able to fully assemble a reliable and hardworking motorized bike that is perfectly suited for cruising.

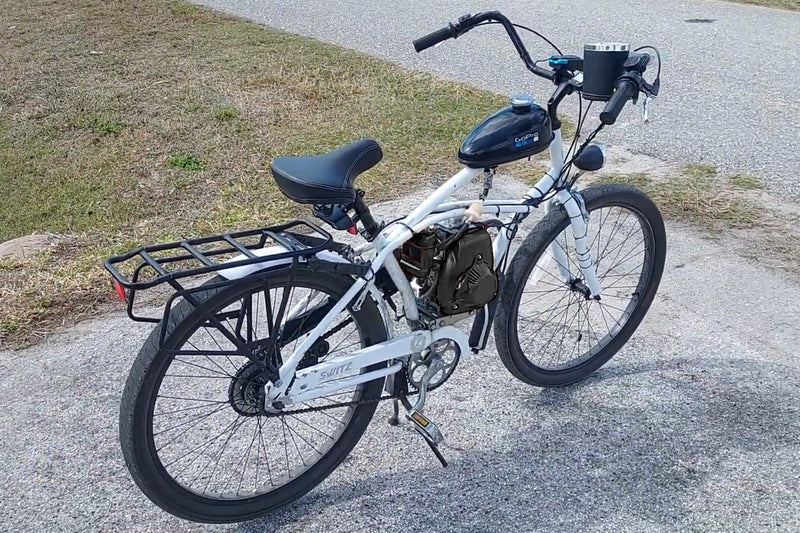

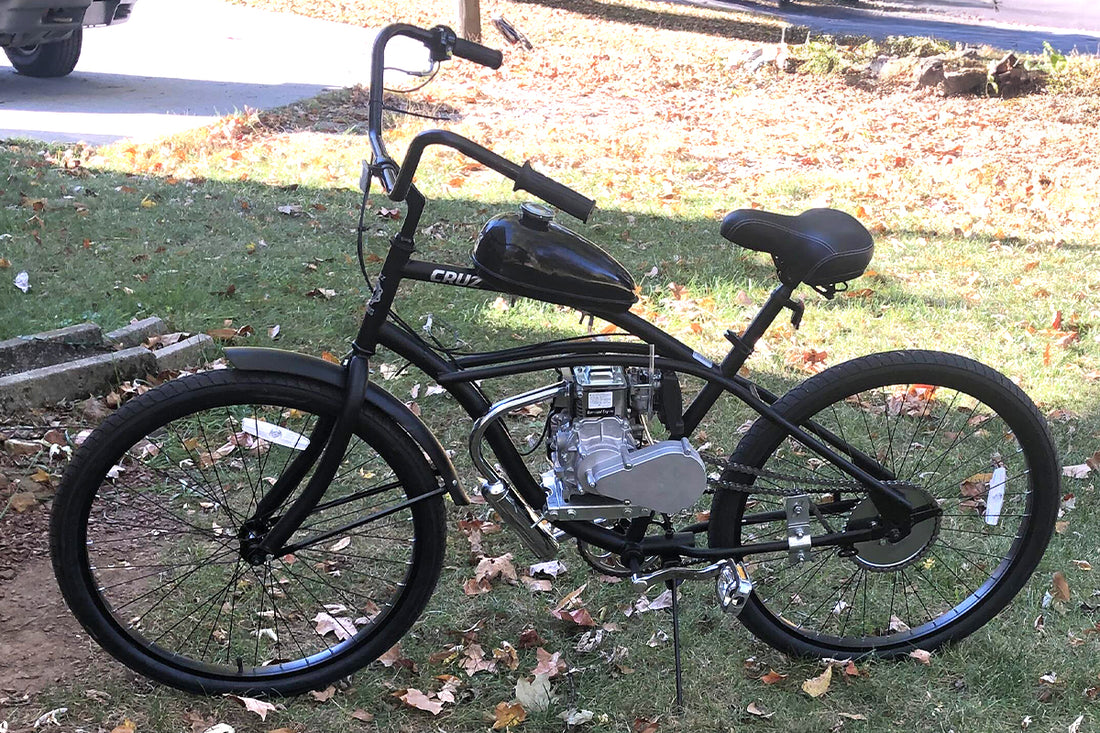

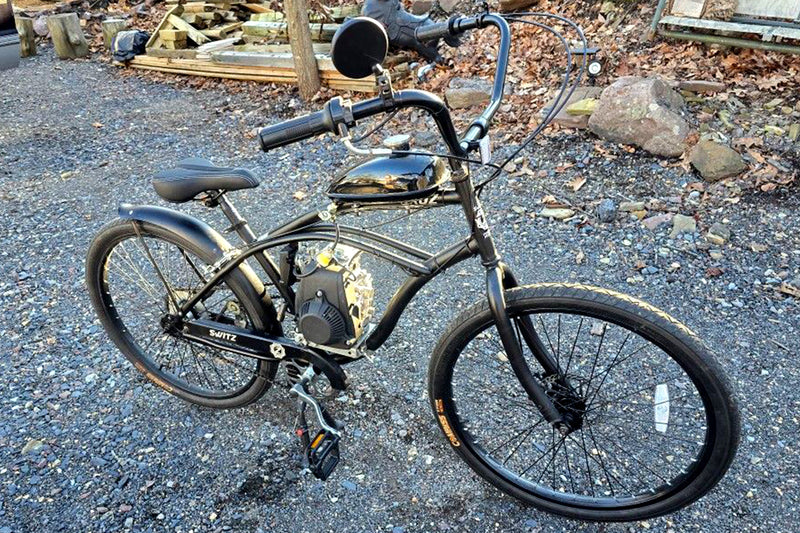

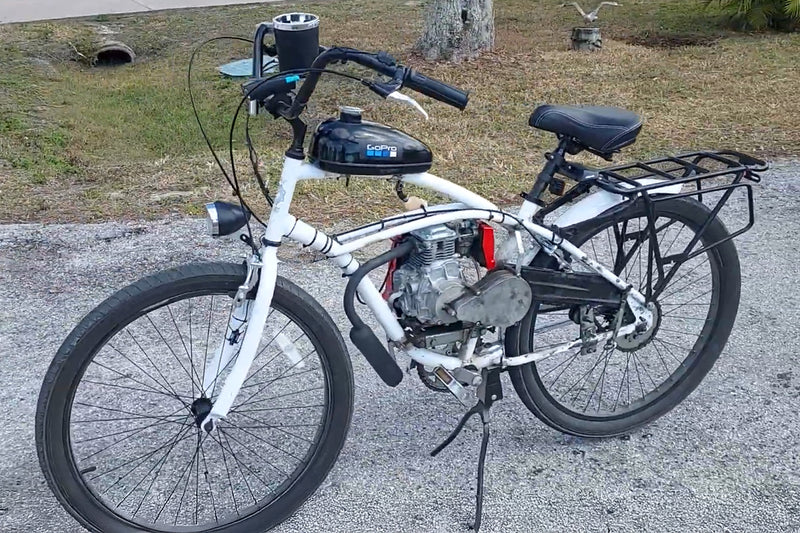

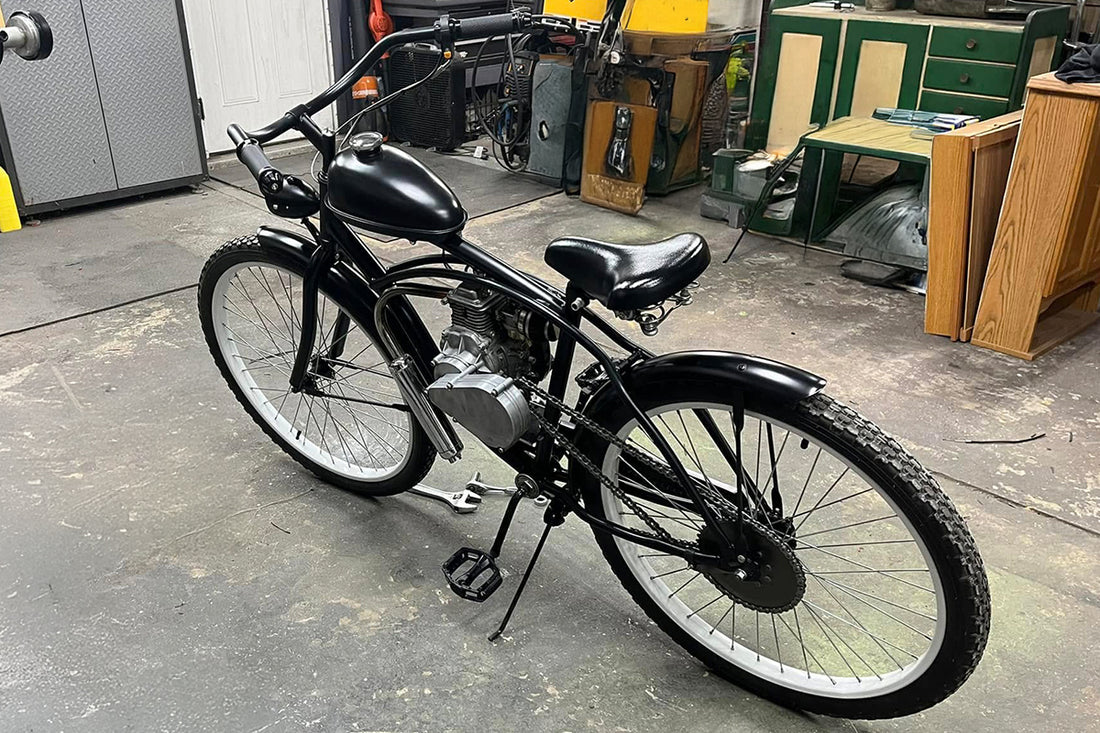

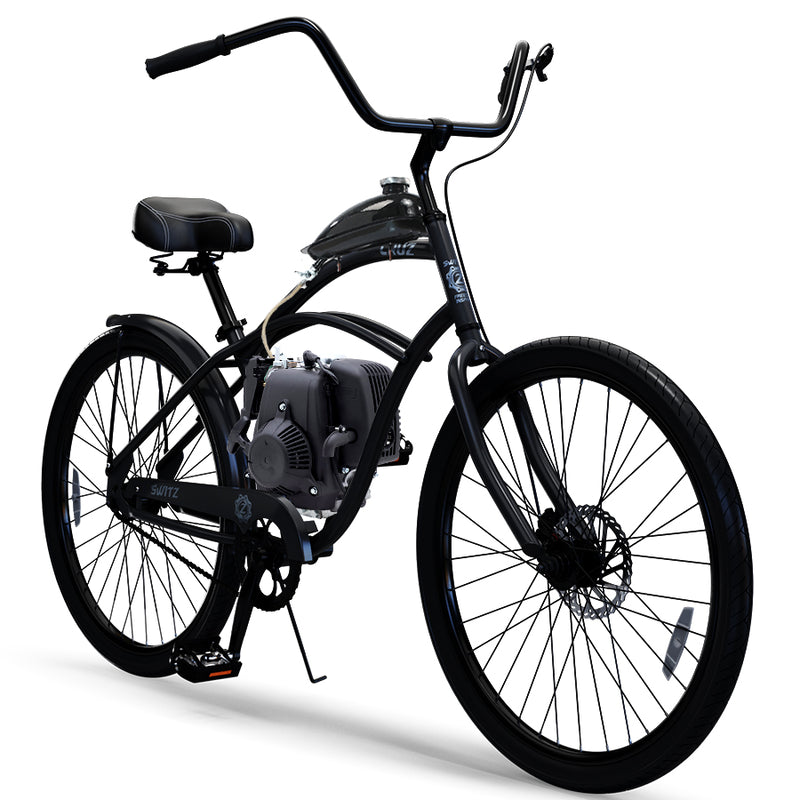

The Switz Cruz 26" Men's Beach Cruiser comes with a chain-driven 4-stroke motor. The chain drive system is still a lot more common than some of the newer drive technologies and has long been used for powering a traditional pushbike. This means that the Switz chain drive motorized bicycle will be easier (and cheaper) to service than a belt-driven system.

The Switz Cruz is not any ordinary beach cruiser, it's highly upgraded with an oversized padded saddle, classic fenders, and an adjustable oversized handlebar. The unique frame style of the Cruz allows for a high degree of adjustability to accommodate almost any rider 5'2'' and above. This bike is specifically engineered for comfort and style with it's ultra-smooth 2 inch wide tires with a comfortable tread.

On top of our strict quality assurance measures, we also back our motorized bikes with an industry leading 6 month warranty

Please Note: Gasoline operated products are NOT compliant with Environmental Protection Agency (E.P.A) or California Air Resources Board (C.A.R.B) for use on/off public roads. Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.

Installation is a breeze! The rider only needs some basic hardware skills, tools, and around 2-3 hours for installation and fine tuning adjustments (Note: Seller is not responsible for misuse or this kit or any warranty after installation).

Assembly of engine and motorized bicycle required. Click here
for instructions

*Note* CNS Carburetor upgrades will require extra matierial to fit flush around the manifold. This can be remedied by wrapping the manifold with electric tape or using PVC to fill in the gap between the carburetor port and the maifold.

1. Switz Cruz 26" Men's Beach Cruiser
2. BBR Tuning 2014 5G 4-Stroke Centrifugal Transfer Case (6:1 Gear Ratio)
3. HuaSheng 49cc Pull Start Bicycle Engine
4. High Performance Low Profile Carburetor
5. Upgraded Hush Muffler
6. High Quality Japanese Main Bearings
7. Heavy Duty 415 Bike Chain
8. Upgraded Chain Tension Guide
9. Chain Guard
10. Spark Plug
11. CDI (Ignition Coil)
12. Upgraded Twist Throttle and cable with matching grip
13. Engine Mounting Plate
14. Black Teardrop Gas Tank (1.5L)
15. Fuel Line
16. Throttle Cable
17. Gasoline Tank Switch
18. Sprocket Clamp Assembly
19. High Quality Needle Bearings on Both Ends Crank
20. 44 Tooth Chrome Sprocket with 9 Holes
21. Magneto
22. Kill Switch
23. Required Hardware and Gaskets
24. Complete Digital Installation Guide
25. Bonus: Spark Plug Removal Too!
26. Bonus: Wide crankset

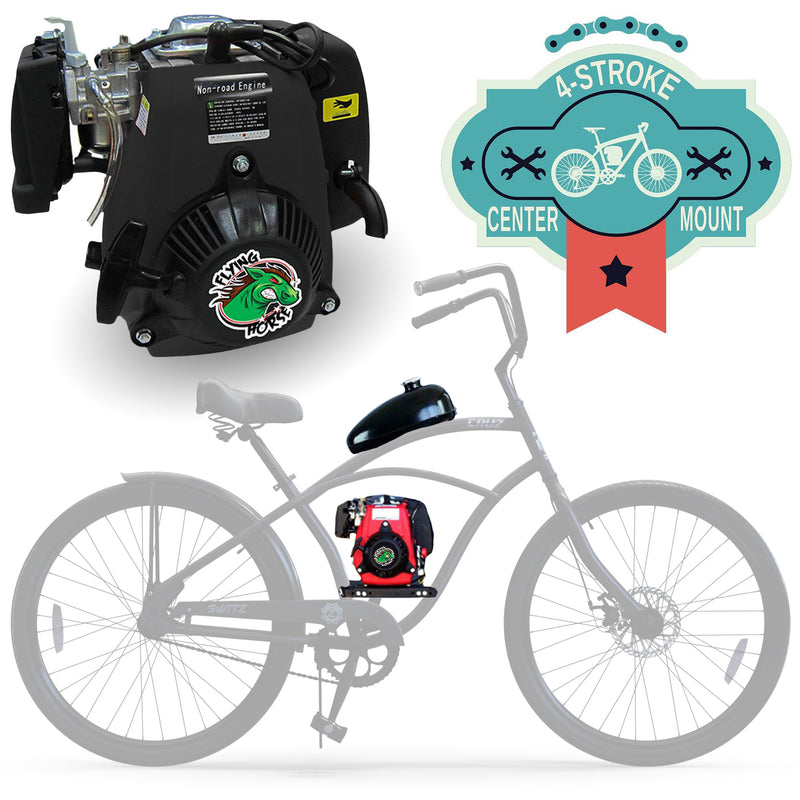

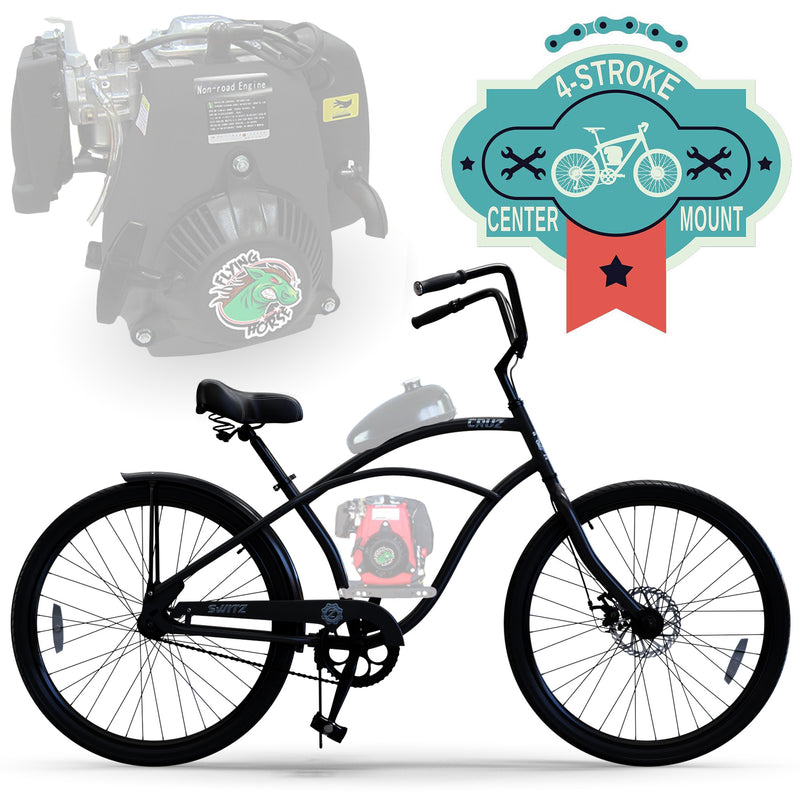

The BBR Tuning 49cc 4-Stroke bike engine kit is about 9" height 9.5" length 7" width. The bicycle gas engine kit includes a mounting plate that fits on standard 25mm to 29mm frame tube. Larger frame size requires modification to the mounting plate and/or frame of your bicycle.

• 2-3 HP (horse power)
• 20 to 25 mph depending on the gear ratio and weight.
• Fuel Economy: MPG 100-150 miles per gallon
• Oil Capacity: 250 mL (~8.45 oz)

Switz Cruz Specifications

• FRAME: 26 Inch Wheel Beach Cruiser Frame made of Hi-Ten Steel.
• SIZE: 18.5"
• FORK: Hi-Ten Steel
• CRANKSET: Steel Three Piece Crank 44T
• FREEWHEEL: Single Speed 18T
• BRAKES: Front Disc Brake and Rear Coaster Brake
• HANDLEBAR: Steel
• STEM: Alloy
• SEATPOST: Steel
• HUBS: Steel CP 36H
• RIMS: Alloy 26" x 1.75" Stainless Steel 14G Spokes
• TIRES: 26" x 2.125" Comfort Tread Tires

BBR Tuning 4-Stroke Engine Kits require fuel and oil for proper operation.

• Recommended Gas Grade: 87 Octane
• Recommended Oil: Maxima Scooter Pro Plus 4-Stroke Synthetic 10w30 Motor Oil 1 Liter
